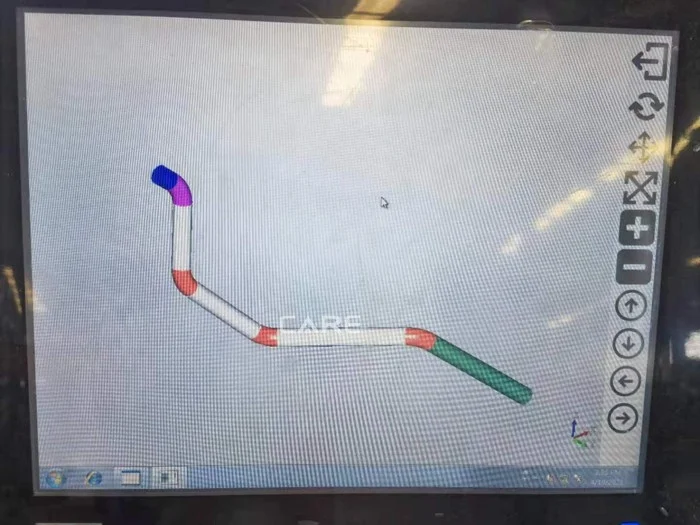

3D simulation display Automatic CNC Roll Bender with rolling and pushing function

Product Overview

Description

3D simulation display Automatic CNC Roll Bender with rolling and pushing function



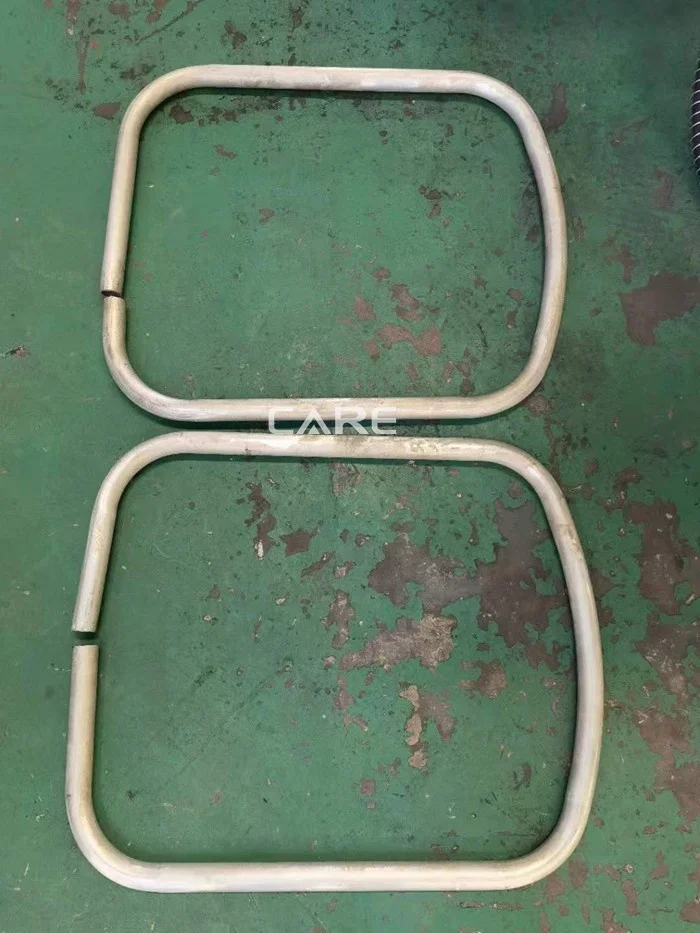

Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.



Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.



Main specification

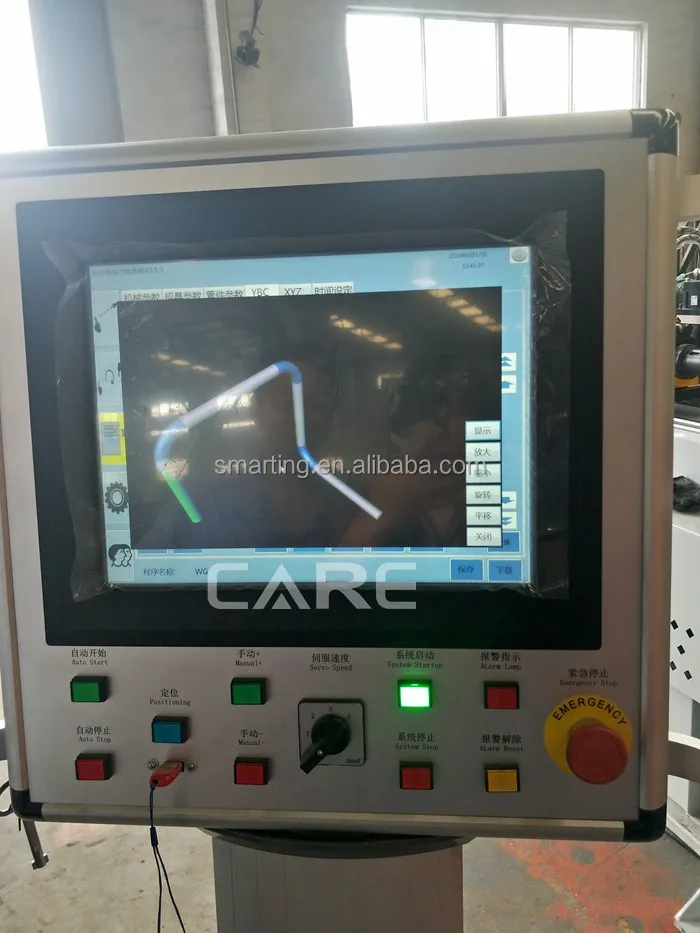

1. Interactive PLC touch screen offers easy access to auto and manual operating modes.

2. System diagnostics and multiple language capability.

3. Standard clockwise bending direction.

4. Fully hydraulic clamping on clamp die and pressure die.

5. Drop-way hydraulic clamping.

6. Direct acting hydraulic pressure die with adjustable speed valve.

7. Maximum 500 sets of program storage,Maximum 32 bends for each program.

8. With Independent programmable speeds Y, B, and C axes.

9. Programmable material spring back settings for each bend angle.

10. Automatic release of tube prior to final bend.

11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

13. Foot Pedal Cycle start.

14. With Air Cooling System.

15. One set of Tooling for Draw Bending.

16. Wiper die Bracket.

17. 1 Mandrel Rod.

18. Operation and Maintenance Manual.

19. Tool Box with Adjusted Tools.

20. Electric: As required



Technical parameter

Program		DW50CNC
Max bending R for carbon pipe is 1.5D		Ø50.8X 2.5t
Max bending R for s.s pipe is 1.5D		Ø44.4X 1.5t
Availability Length of bending pipe		2850mm
Max R for bending		220mm
Max angle for bending		185°
Bending process for every pipe		16
Working rate	Bend rate	Ma×25°/sec
	Rotary rate	Ma×180°/sec
	Feeding rate	Ma×700mm/sec
Working accuracy	Bend angle	±0.1°
	Rotary angle	±0.1°
	Feeding length	±0.1mm
Watt of oil press electrical machine		14mpa
Information inputting method		Axis (Y,B,C)
Bending method		Hydraulic
Max bending group		500
Power of rotary Servo motor		400 W
Power of feeding Servo motor		1300 W
Electrical motor power		5.5kw
Weight of machine		2500kg
Size  L W H(CM)		430X80X115

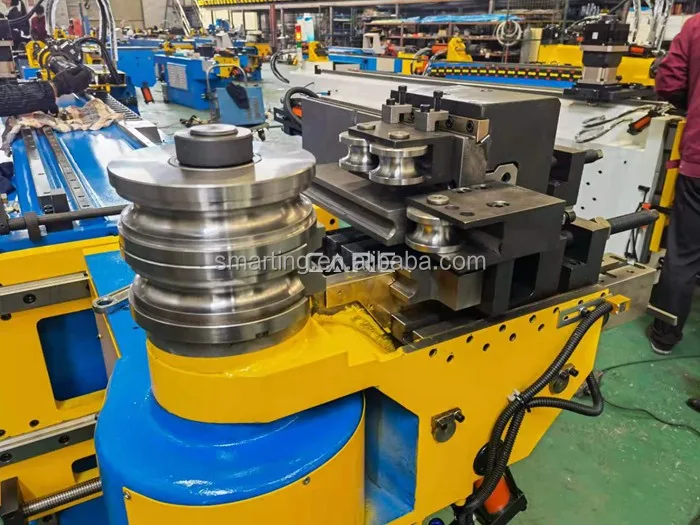

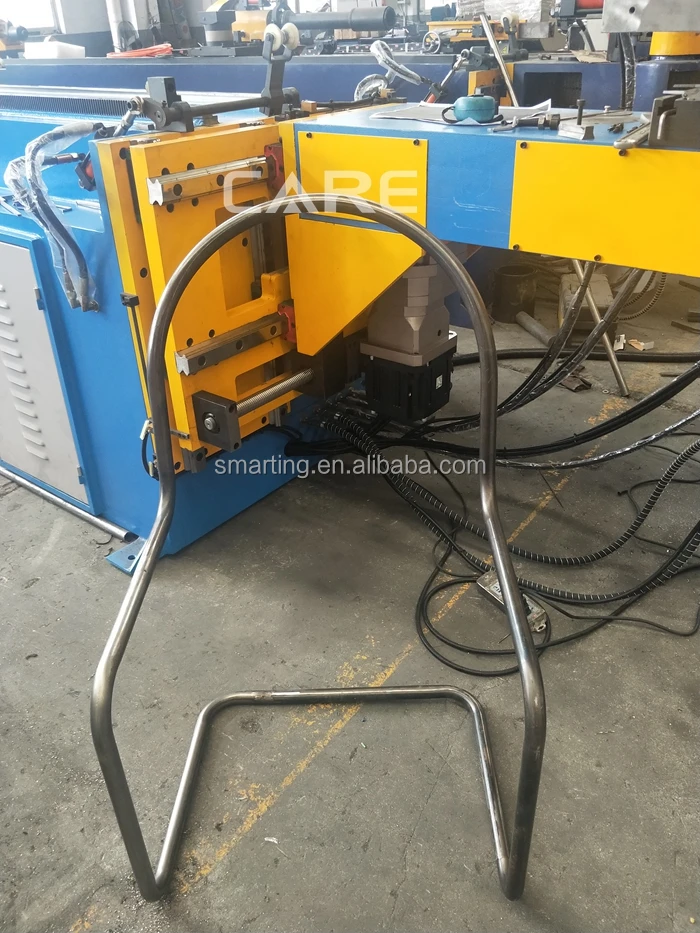

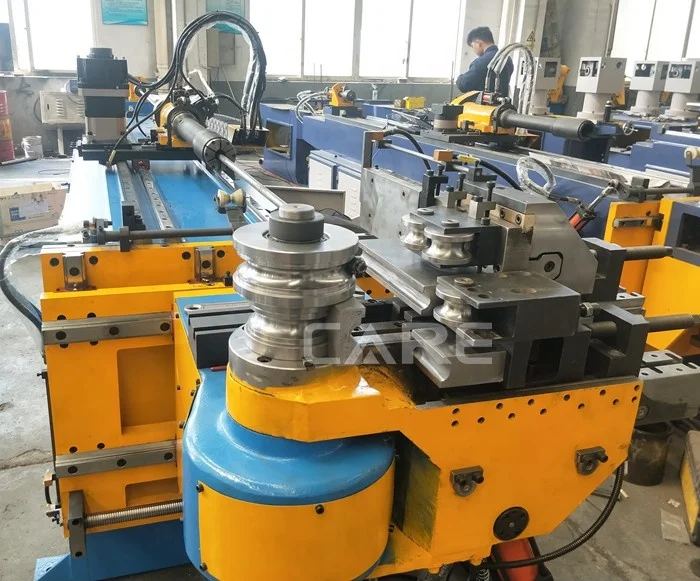

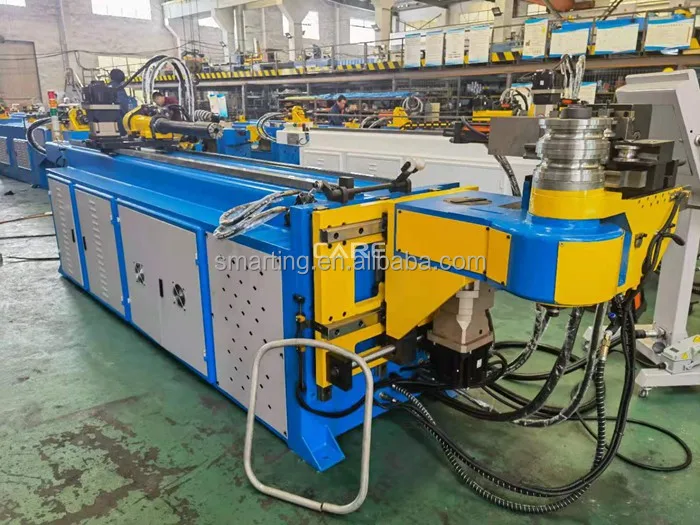

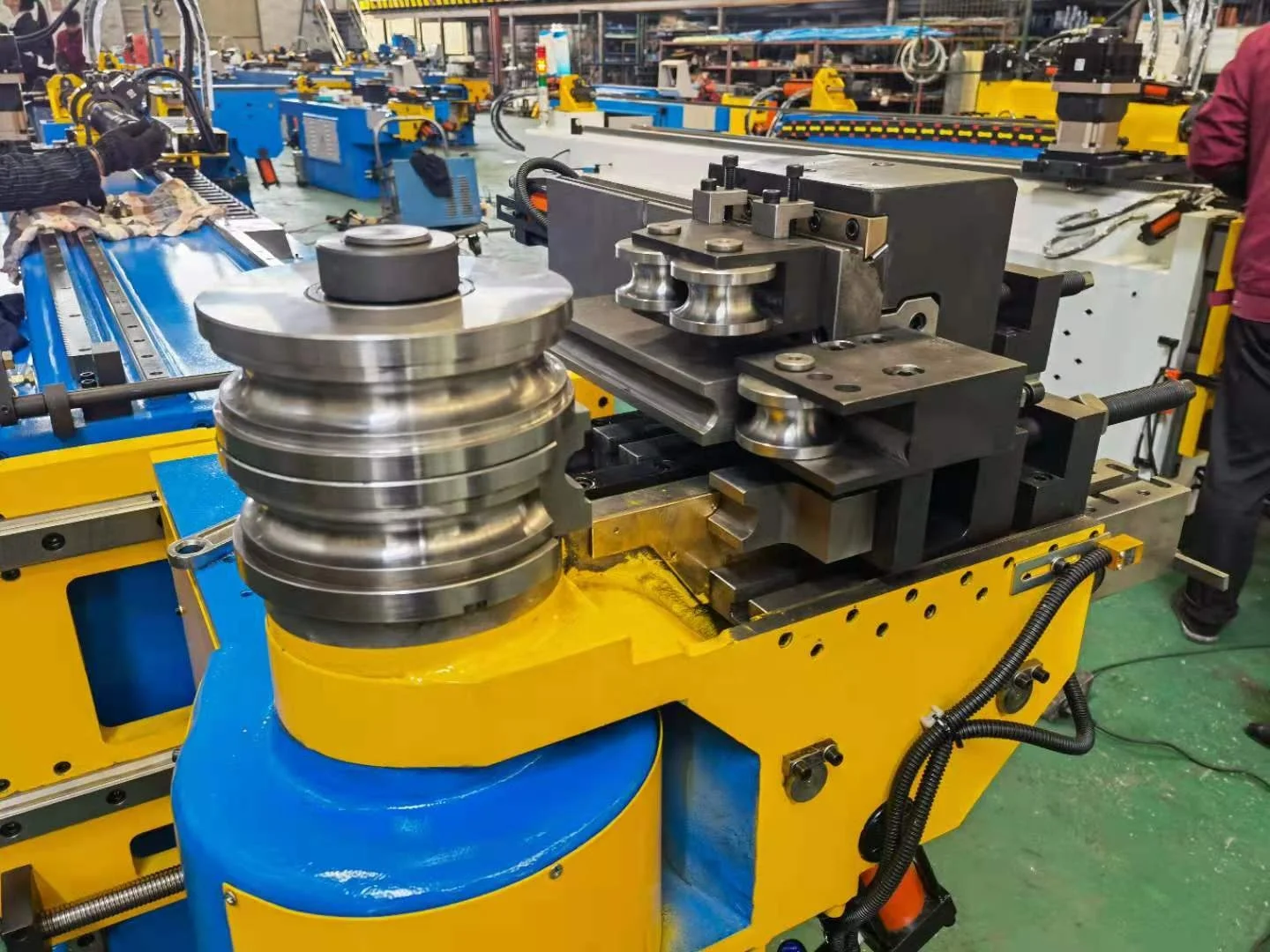

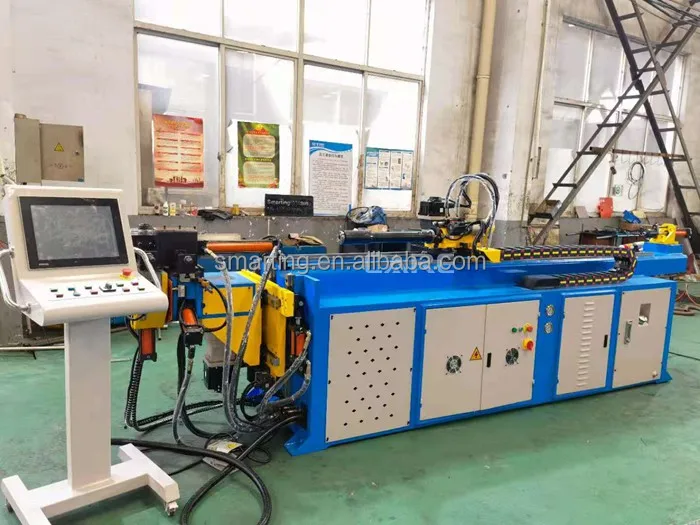

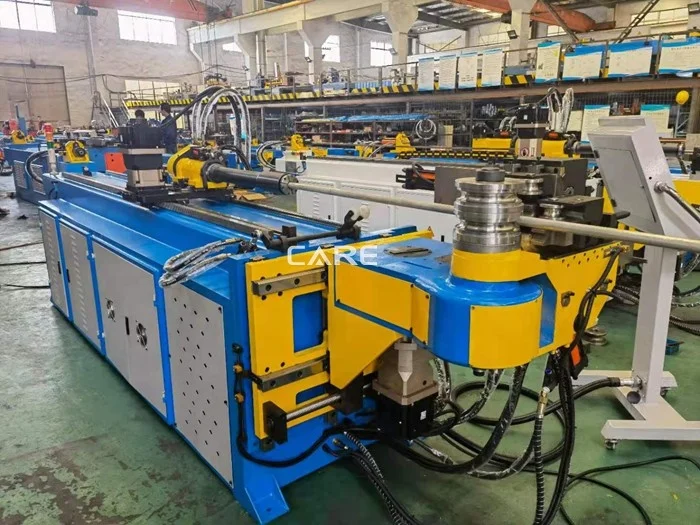

Machine photo
