Ручная подача гидравлической трубы DW38NC, гибочный станок с оправкой

Product Overview

Description

DW38NC Manual feeding hydraulic square pipe bending machine with mandrel ball



Main specification

1) PLC Control,imported electric and hydraulic elements.

2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Large Program Storage Capacity.
5) Automatically lock angle and the bending accuracy is high.
6) Angle changing is controlled by coder.
7) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
8) Self Diagnosis and Error Messages

9) Suitable materials:Steel pipe,Stainless steel pipe,copper pipe,aluminum pipe,iron and others.

 Technical parameter

Specification/Model	Unit	DW50NC
Max bending capability	mm	Φ50.8×2.0t
Max bending radius	mm	R200
Min bending radius	mm	R15
Max bending angle	Degree	185
Max effective distance of mandrel	mm	2210
Control System		NC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	KW	5.5
Max. Hydraulic Pressure	Mpa	14
Hydraulic System Control		Electromagnetic Valve
Oil Tank Capacity	L	150
Size	Cm	360×85×102
Weight of Machine	Kg	≈1280

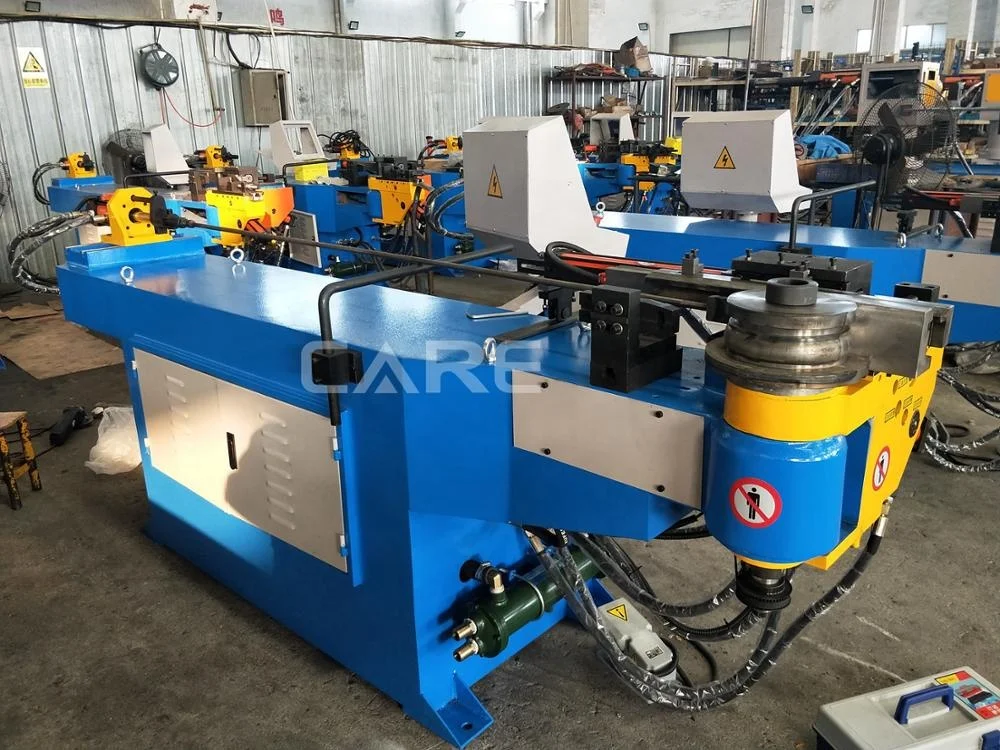

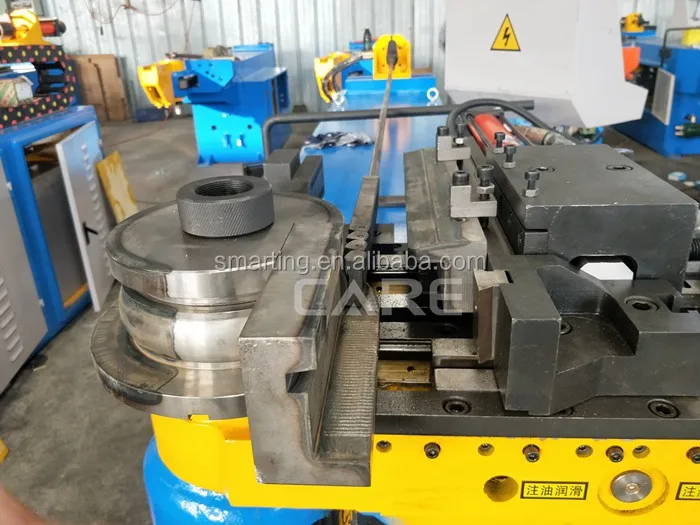

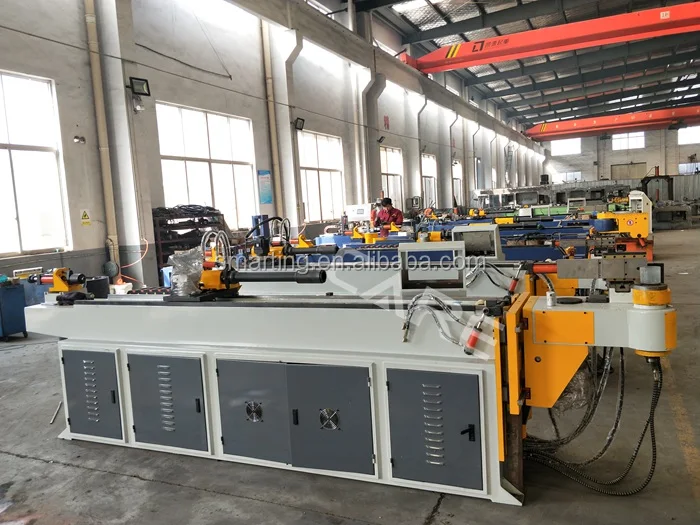

Machine photo

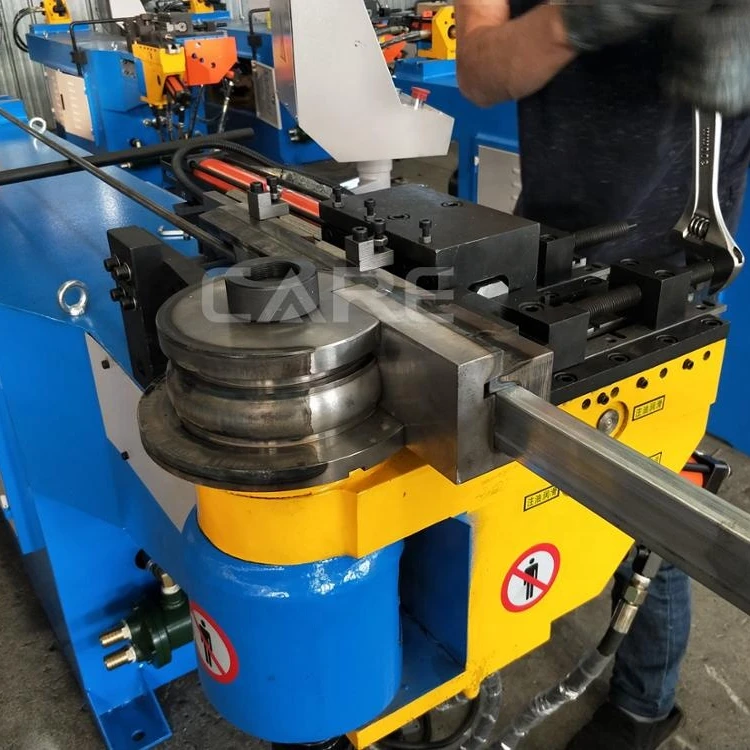

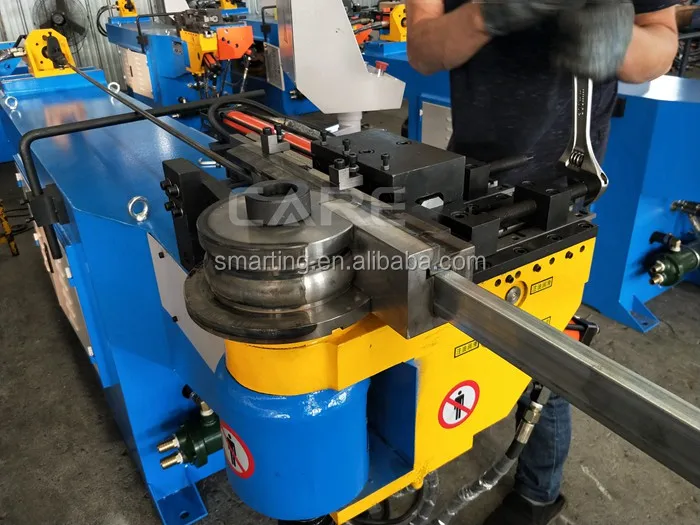

Manual type

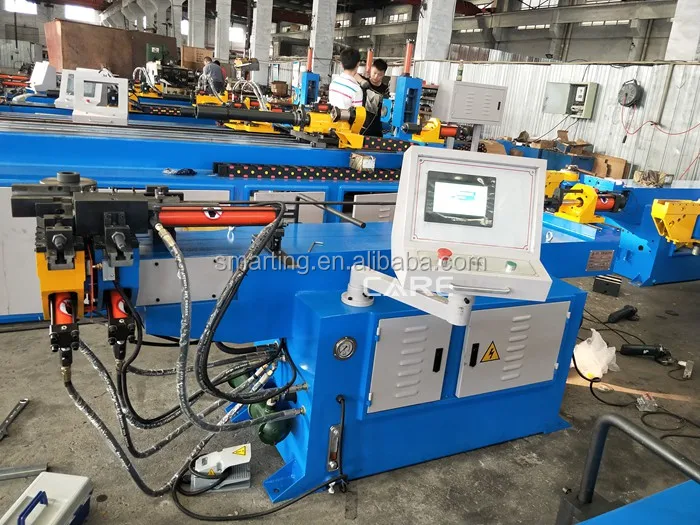

Automatic type

Customized color

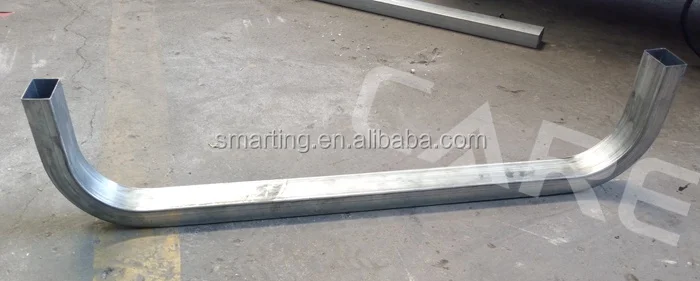

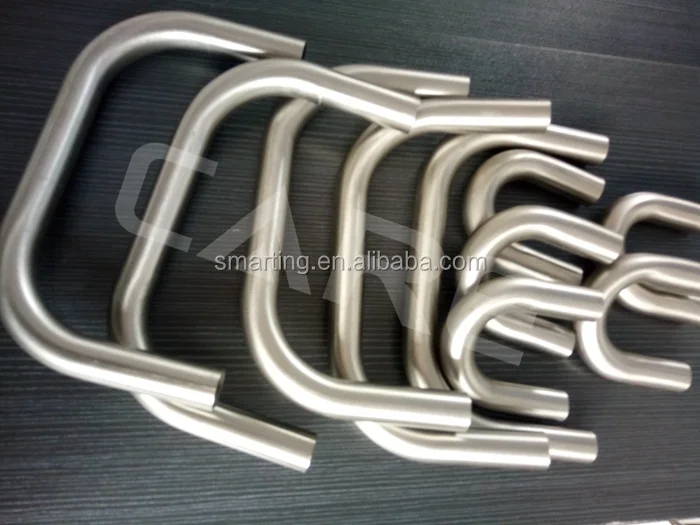

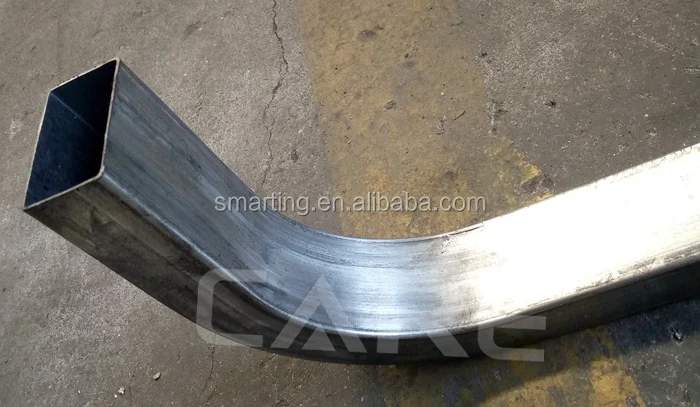

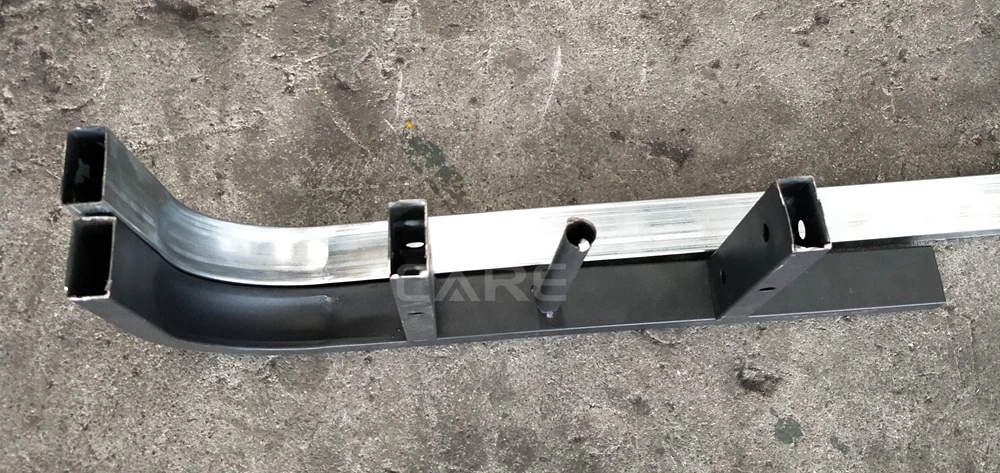

Pipe samples
