Waterproof ip67 addressable 12V milky white cover rgb pixel led tube for building facade

Share on (60653713749):


Price:

Quantity:


Product Overview

Description


Waterproof ip67 addressable 12V  milky white cover rgb pixel led tube for building facade



Product Description


Features and Benefits:


1.Led light  source: SMD5050 RGB led chip,  Epistar brand in Taiwan. 48leds/pcs

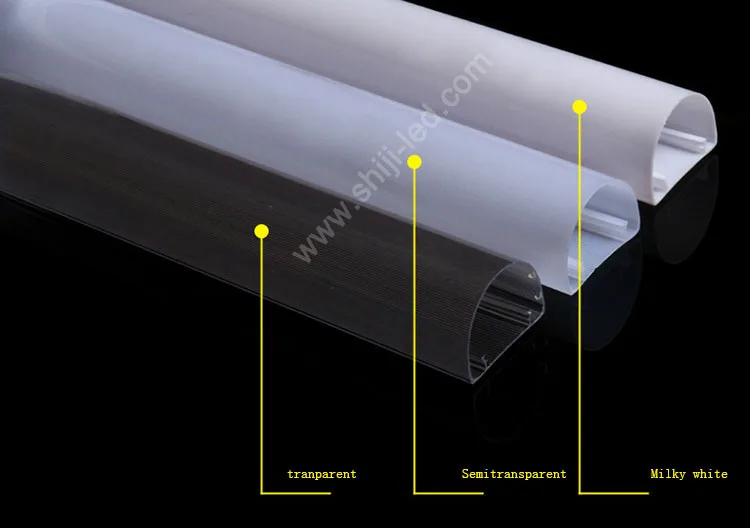

2.Material: PC cover + Allumminum alloy case+Rigid strip(Al based board.   Transparent , Semi-transparent and milky white cover avalible.
4.One ucs1912 control 3 led chips. 6.3cm one part, Color changed by part.
5.SPI series circuit signal transmission.


6.Compatible clips and installation tools. Easily to be installed.

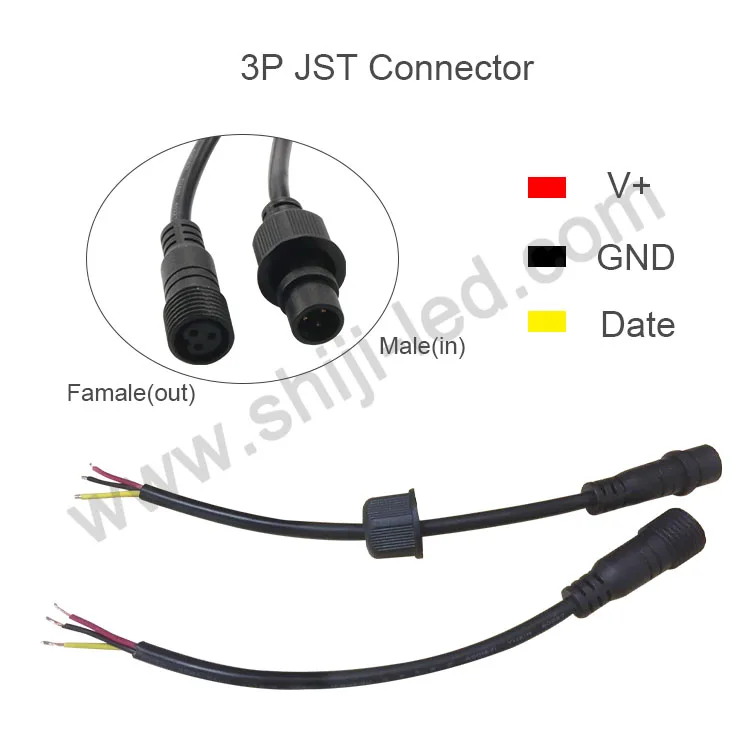

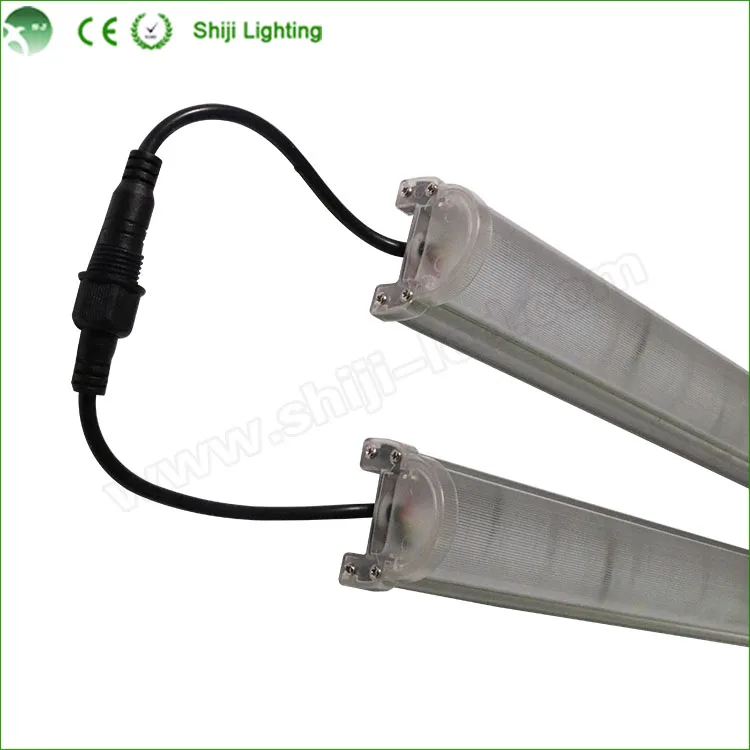

7. 3 pin waterproof  18AWG black rubber connectors.

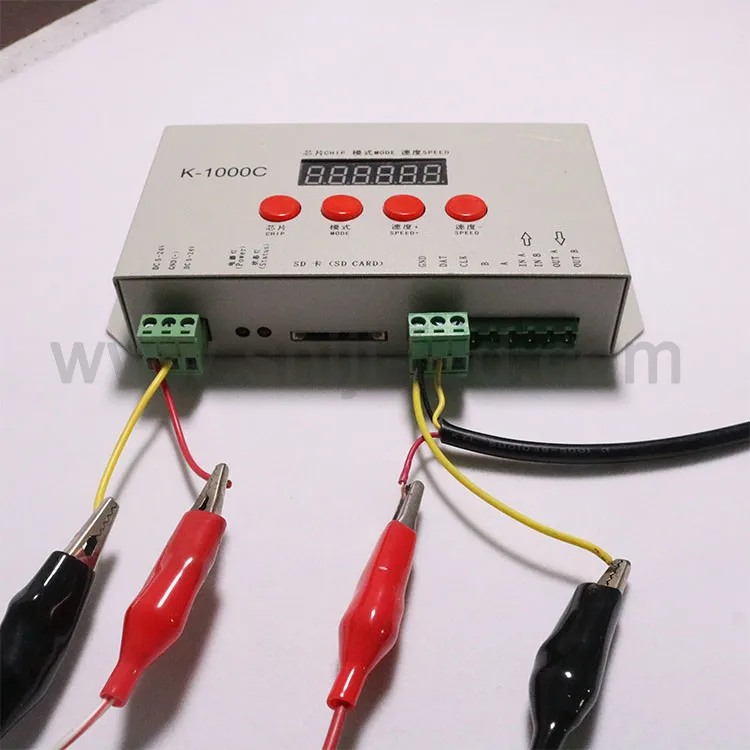

8. Work with SD card controller, like k-80000C.  so you can directly play program and show the effect.


9. 2 years warranty. CE , RoHS approval avalible.

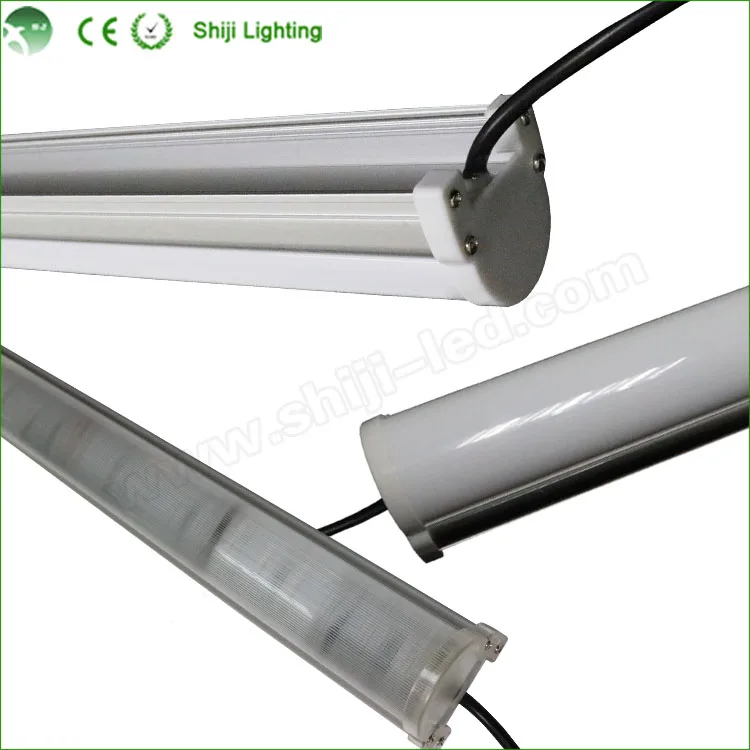

SJ-10048-ucs1912 (56)





Specifications:





























































Product name  Waterproof ip67 addressable 12V  milky white cover rgb pixel led tube for building facade
LED Quantity48leds/pcs
Waterproof  RatingIP67

Led Power Consumption


11.52w/m

Input Voltage


 DC12V

Beam angle


 140°

Operating Temp


-30°c-60 °c

Cover


Clear /Frost body
IC Chip16 pcs UCS1912/pcs
Average life50,000 hours
colorChangable

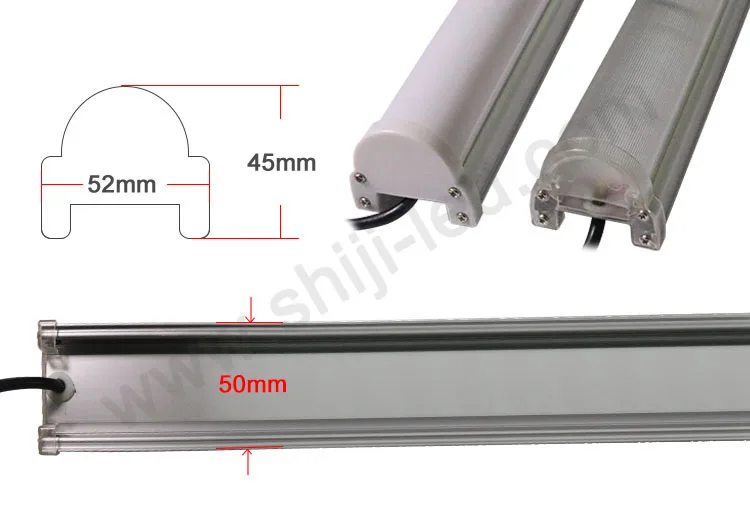

Dimension1000mm(L)*14mm(W)*10mm(H)
Warranty  2 years
CertificatesCE&RoHS

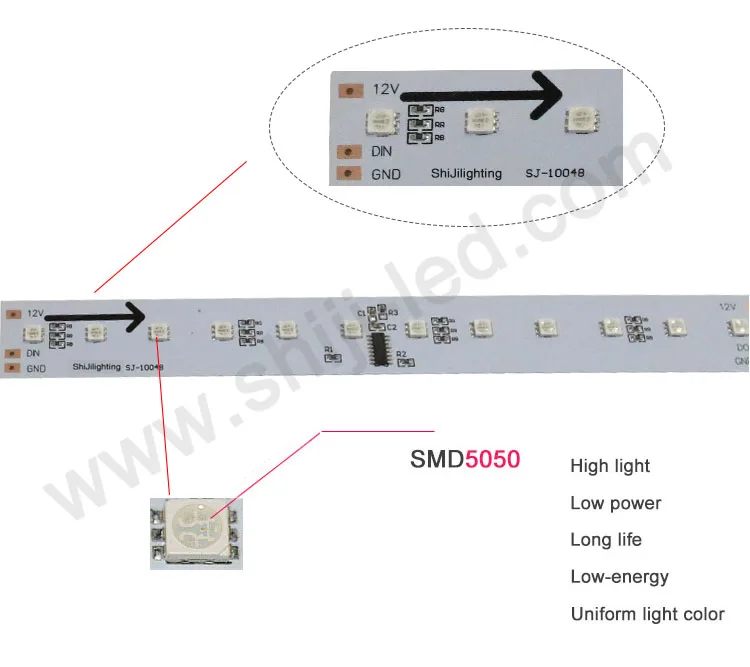

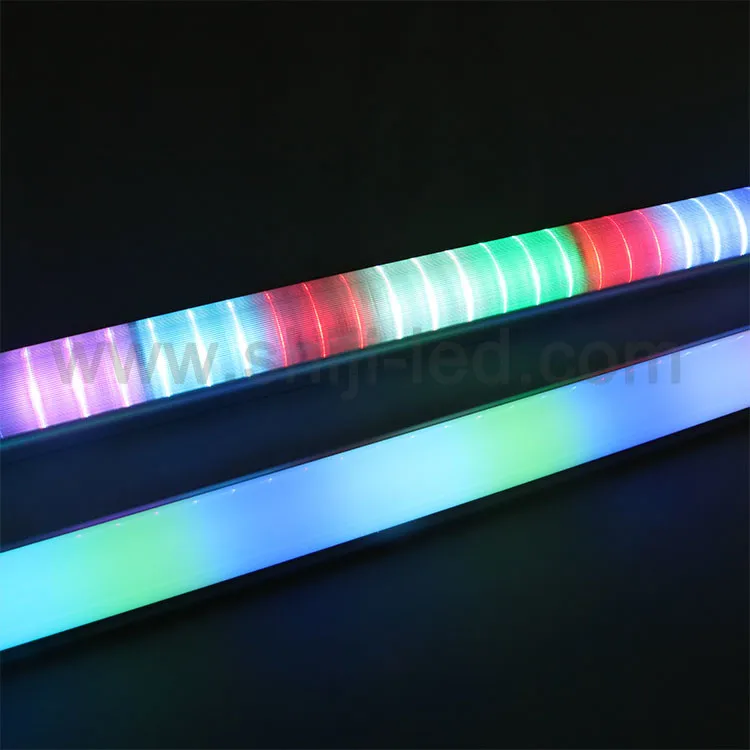

 SJ-10048-ucs1912 (12)SJ-10048-ucs1912 (91)SJ-10048-ucs1912 (47)2SJ-10048-ucs1912 (71)SJ-10048-ucs1912 (87)

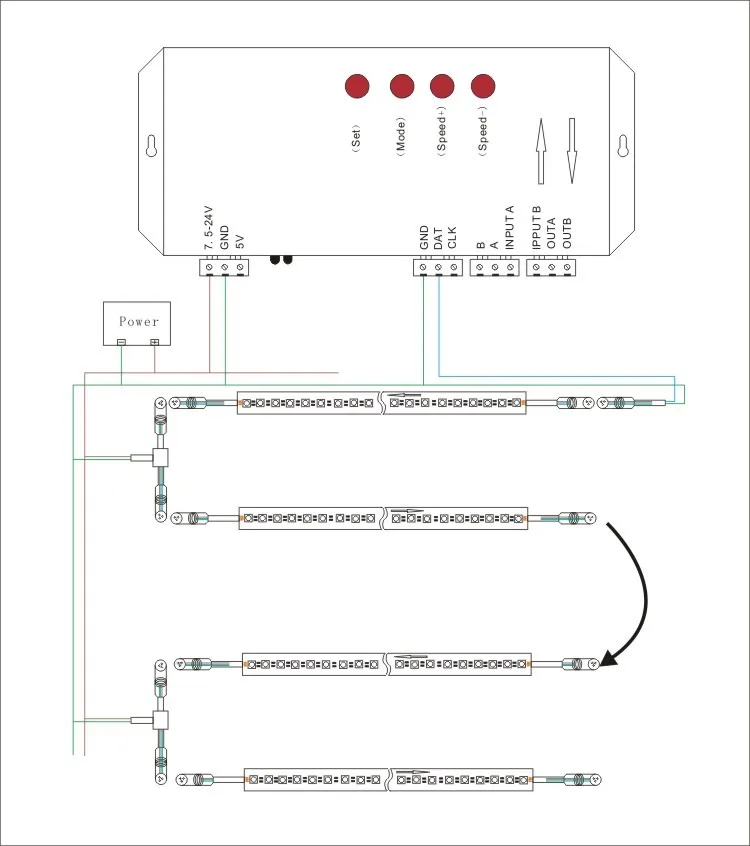

SJ-10048-1912  (1).jpg





Related products:


SJ-10048XQD-24V

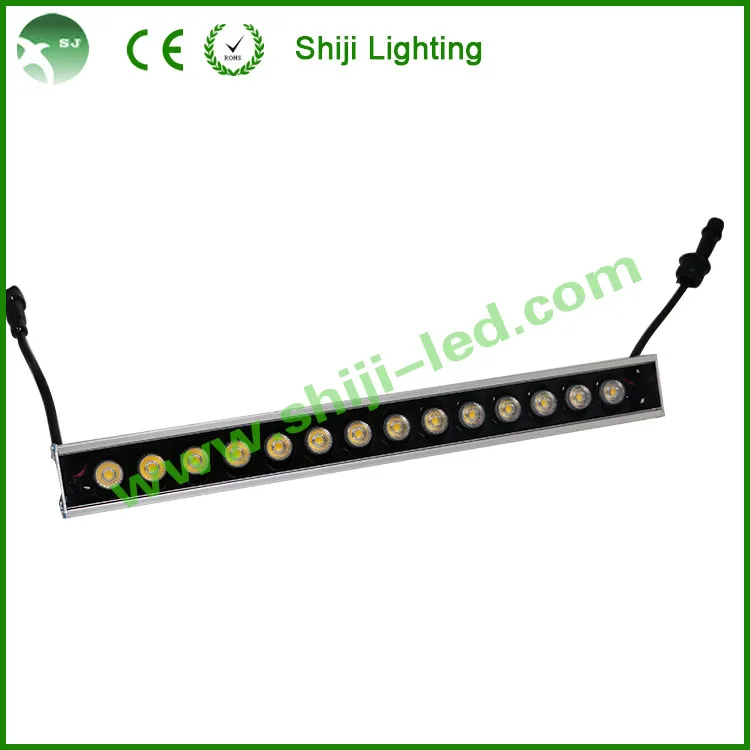

SJ-10048XQD-24V (17)


SJ-10030-6803

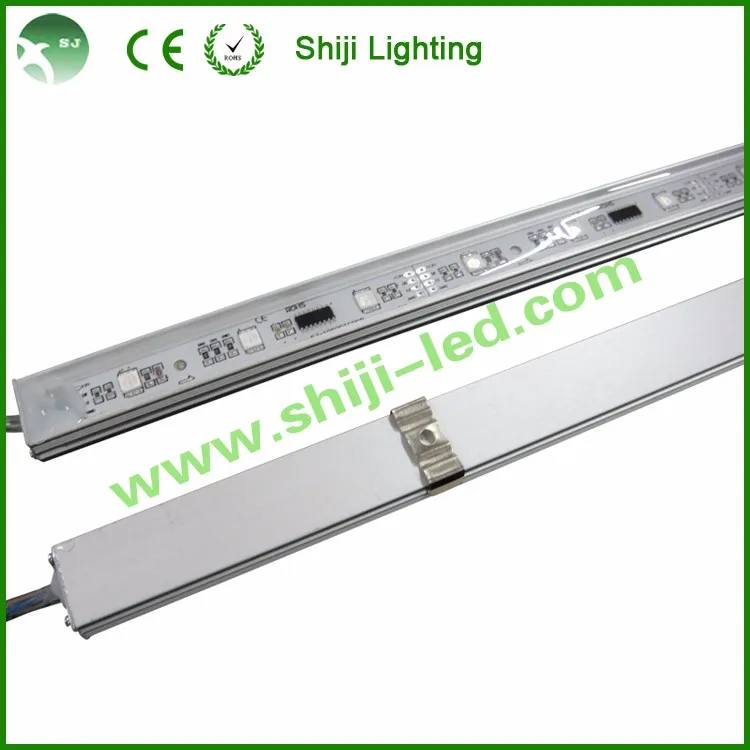

SJ-10030-6803  (8)





Applications:


1.The excellent light and user-friendly designs make LED strip perfect for numerous applications, such as back lights, cabinet lights, edge light,


for corridor, canopy, archway, lights for path and contour marking; etc.
2.They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops,  beauty centers, lights etc





_sT92nB644wrcRCNxhyk86CqeaTnAu2uk0pC2nKLMq_DO0P3XwjXE2b786aP6Pq4TYGVDmosZWTLal1WbWRW3A








Packaging & Shipping


Packaging: Standard exporting carton. carton, wooden case, flight case .


0.5m or 1m with 50pcs one carton.


DHL,Fedex,UPS,TNT and your own logistics is available.





Shipping: 3-7days
