RHH 240C Household commerical electric press noodle pasta maker

Product Overview

Description

RHH-240C Household commerical  electric press noodle pasta maker



  Manual Noodle Machine             Electric dough mixer           Vertical Noodle machine



   RHH-240C household commerical electric press noodle pasta maker is the latest products. Using multi-type chain driven technologies, the machine transmits more steadily and reliably. Those machines using all-steel construction, firm and durable, aesthetic in appearance have good quality, exquisite in workmanship, handle modulation make operation more easier and safer. Those machines are suitable for noodles processing factory, hotels, restaurants and surface hall to make the wheaten food.

About Product

Item No	RHH 220C electric noodle pasta maker	RHH 240C electric noodle pasta maker
Roller Width	220mm	240mm
Roller Material	Stainless Steel	Stainless Steel

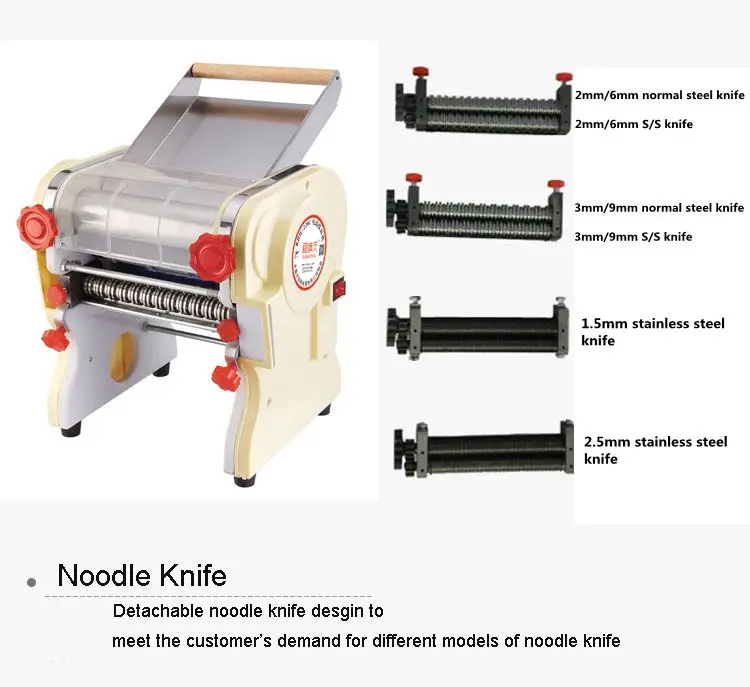

Knife Standard	3mm*9mm or 2mm*6mm	3mm*9mm or 2mm*6mm
Other knife	round knife: 2mm,3mm	round knife: 2mm,3mm
Dough Thicknesses	1mm-20mm	1mm-20mm
Driving Method	Double Belt Transmission	Double Belt Transmission
Power	550W	550W
Voltage	220V/50hz	220V/50hz
Capacity	15-20kgs/h	15-20kgs/h
Color	Cream	Cream
Pcs/ctn	1Pcs/ctn for electric noodle pasta maker	1Pcs/ctn for electric noodle pasta maker
N.W/G.W	20.5/22kgs for electric noodle pasta maker	22/24kgs for electric noodle pasta maker
Dimension	425*330*395mm for electric noodle pasta maker	445*330*395mm for electric noodle pasta maker
Out package	Carton with foam for electric noodle pasta maker	Carton with foam for electric noodle pasta maker

Product Details









WHY CHOOSE HAIOU

1) Professional food machinery manufacturers with nearly 20 years history

2) Environment-friendly materials and technology

3) One stop sourcing on all food machinery machine

4) 24 hours technical supports and after sales services

5) Customized services, strong OEM capability available

Exhibition

Sample Room

Packing



Certificates





Problem&Solution



Problem	Reason	Solution
The machine doesn’t work once turn on the machine	1.No noise, switch is broken 2.There is noise inside machine, the electric capacity is broken	1.Change the switch 2.Change the electric capacity
The dough sheet is not smooth or twine the rollers	1.The thickness of dough sheet is not the same 2.The dough mixture is so soft 3. Scrap of roller is loosen or out of shape	1. Regulate the gap between rollers, make the thickness uniform 2.Add some flour and make mixture again. Add some dry flour on both side of dough sheet 3. Regulate knife scrap to make sure there is no space between roller and scrap
The dough sheet is still dirty after long time use	The scrap fix too tight to the roller	Loose the screw of the scrap a little bit
Noise come from knife scrap	There is space between roller and scrap.	Fasten screw of the scrap, keep scrap close to the roller
There are scratches or rust on the roller	1.Roller is injured by hard object. 2.Machine is not used for long time or improper maintenance	Polish roller surface with emery cloth in rotation direction after turn off the power
Noodle is not made smoothly or a lot of dough stick on the knife	1.Dough sheet too wet 2.The scrap of knife is loosened	1.Regulate the humidity of the mixture and add some dry flour on both side of dough sheet 2. Fasten screw of scrap of knife



ADVANTAGES

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced components in electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution.
