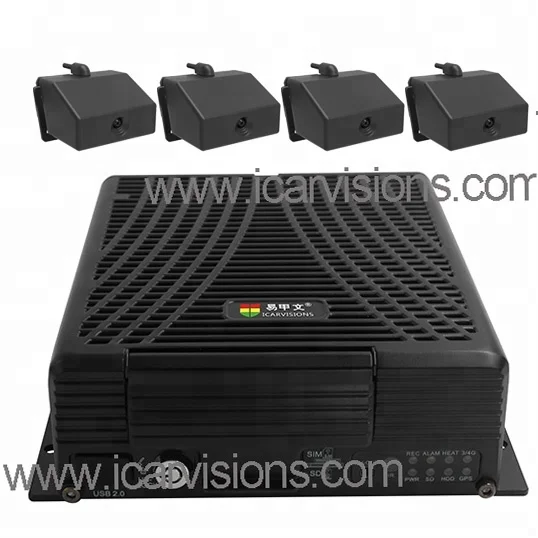

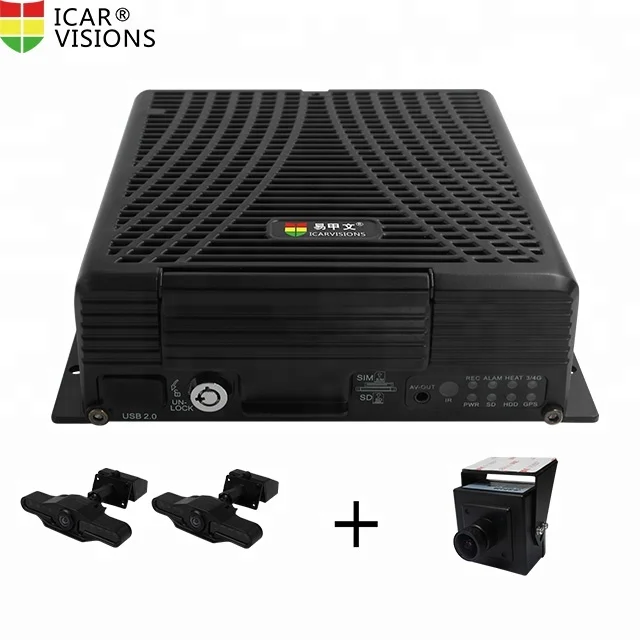

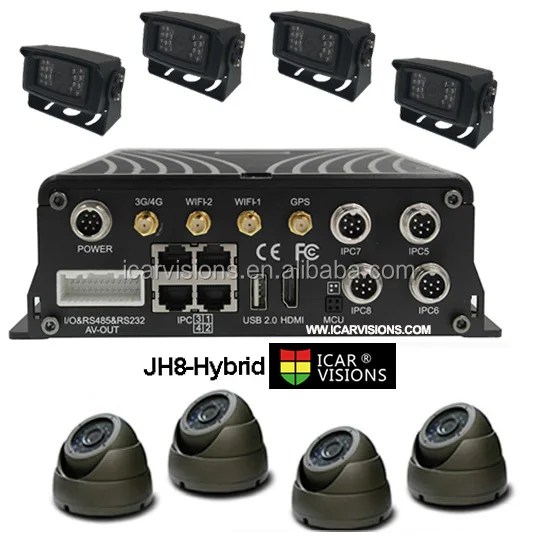

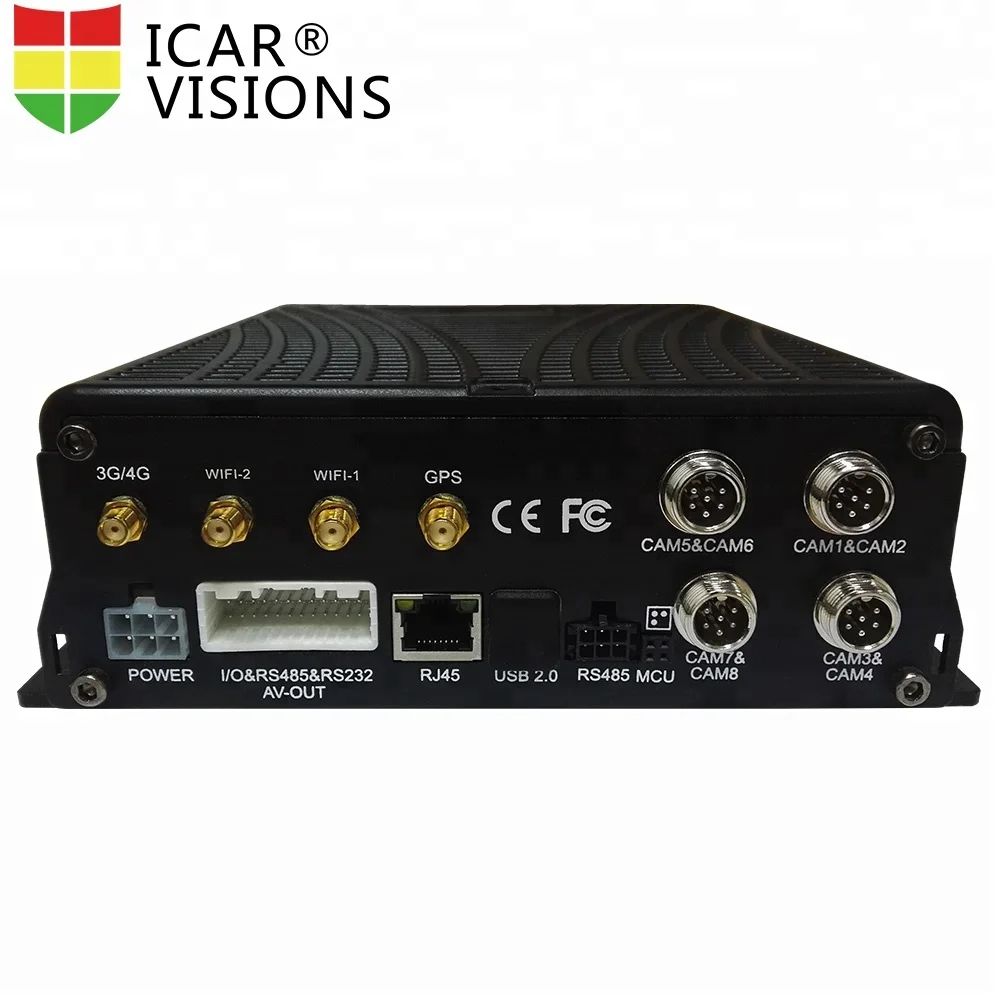

ICarVision IVMS server client 3G GPS HDD card mobile digital video recorder 8 channel




JH8-HD-GFW (GPS + 4G +wifi) (720P)

Features
★8 x 720P AHD / 960H / D1 / HD1 / CIF +1x IPC(720P/1080P )Video input, support 960P AHD camera
★ accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup(at 3G/4G/Wi-Fi model option)
★ Internal G-Sensor, with GPS, 4G and Wi-Fi (5.8 Ghz)
★ 2 WIFI Antennas (download speed up to 3Mb/s)
★ Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard)
★ Hard drive automatic heating startup in cold weather
★ On board UPS 8 seconds delay power-off for data protection
★ Operating temperature -40℃ ~ +80℃
★ 8V-36V wide voltage power supply


Our Mobile DVR with 3G / 4G, GPS, WiFi modules optional, according to different demands.
GPS: For map, location and route tracking
3G / 4G: For real-time video and monitoring
Wi-Fi: For automatically downloading video file


JH8-HD series model names:

Model Name
JH8-HD-NNN
JH8-HD-GNN
JH8-HD-GNW
JH8-HD-GWN
JH8-HD-GWW
JH8-HD-GFN
JH8-HD-GFW
Details
N/A
GPS
GPS
WIFI 5.8G
GPS
3G(WCDMA)
GPS
3G(WCDMA)
WIFI 5.8G
GPS
4G FDD
GPS
4G FDD
WIFI 5.8G
Function
JH8-HD
System
Language
English / Chinese
Operation Interface
Graphical User Interface (OSD menu)
Password Security
2 Levels: Administrator & User





Video
Video Input
Supports 8 channels CIF/HD1/D1/960H camera Video input
Supports 8 channels 720P AHD Video input Supports 4 channels 720P AHD + 4 channels CIF/HD1/D1/960H Video input Supports 1-CH 720P/1080P IPC + 8-CH 960H/D1/CIF Video input
Supports 1-CH 720P/1080P IPC +8-CH 720P AHD Video input
Video Output
2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port)
Video Display
Single picture, 1~9 pictures
Signal System
PAL / NTSC ( PAL@200 frame 720P/sec; NTSC@240 frame 720P/sec )
Image Compression
H.264 Main profile
Audio
Audio Input
8 Channels
Audio Output
2 Channels (Front Panel 3.5mm Jack, 1 in the 24pin connector)
Record Format
Synchronized A/V recording





Recording &
Storage
Image Resolution
CIF / HD1 / D1 / 960H / 720P /1080Poptions
Video Coding
ISO14496-10 Industry Standard



Video Bit Rate
CIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
720P:4096Kbps ~ 400Kbps
1080P:4096Kbps ~ 400Kbps
Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
Audio Bit Rate
40Kbps
Storage
Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model option)
Alarm
Alarm Input
8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC
Alarm Output
1 Channel, 12V output
Communication Ports
RS485
1 Port for PTZ control or Data Device usage
RS232
2 Port for communication or data usage
RJ45 Network
4 Ports of RJ45, For connection to an IP camera with maximum of 1080P
USB
2 Ports for USB 2.0, the front panel one to download video files & upgrade firmware; the rear panel one is optional.
Wireless Communication*
3G*
3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module
4G*
4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier
Wi-Fi*
Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional
GPS
Int'l Standard GPS*
Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor
Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback
A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS
Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely
Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input
+8~+36V
8~36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V
12V(+/-0.2V),Max 3A
ACC Detection
≤4V
Power Off
≥6V
Power On
Video Input Resistance
75Ω
75Ω
Video Output Voltage
2Vp-p
2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O port
<1V
Low voltage trigger
>5V
High voltage trigger
Operation Temperature
-40℃~80℃
Install in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
192x184x61mm
Including Security Cover 248x184x61mm
Detailed Images
PC Client and APP

Customized IVMS Server,Client and APP are all available,which developped by ourselves.


IVMS Client (Intelligent vehicle monitoring system)

Through this platform, wireless remote real-time video monitoring, GPS map positioning, historical track playback, voice intercom, alarm linkage, remote video recording, remote video downloading,remote video playback, equipment area management and remote upgrading can be realized.

"ICarView" APP for Android&IOS system

User-friendly and easy control intergace,the ICarView APP help users to remote check:
Real-time video

GPS tracking

vehicle movement histroy playback

Speed information

Specific video research

Playback

Snapshot

Other functions

Company &Factory

ABOUT ICAVISIONS

ICARvisions was established by a group of senior R&D software and hardware engineers who have specialized in MDVR development internationally for over 10 years with one goal in mind; we are a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.

Contact us today for a comprehensive solution tailored to your company's need.
