Product Overview
Description

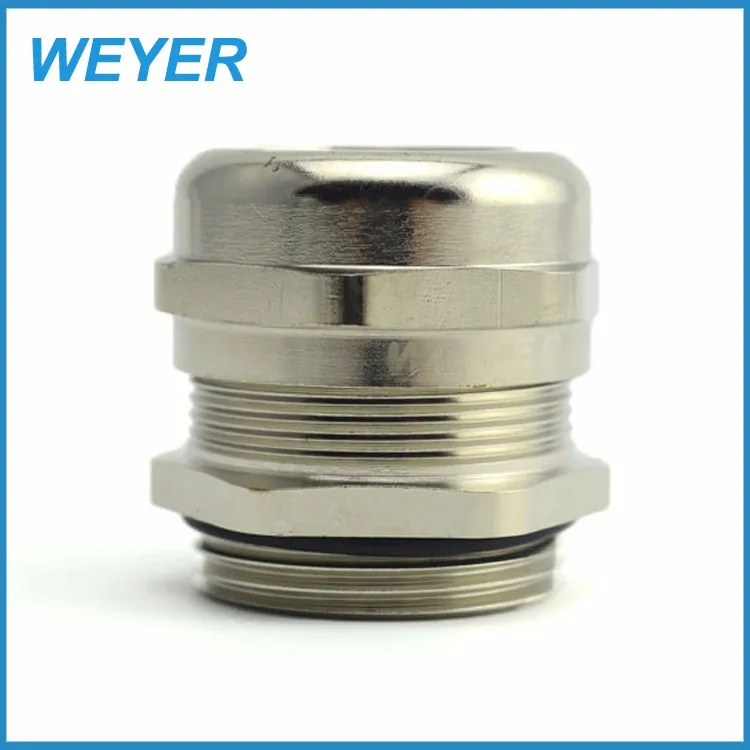

HSMS-M Stainless Steel Cable Gland
1.Material: Body:SUS 304, Seal:Polyamide, Sealing: Modified Rubber
2.Protection degree: Within the clamping range,its protection degree can reach IP68
3.Temperature Range: Min-40℃,Max100℃,Short-term120℃
4.Properties: Succeed in the experiment of IEC-60077-1999 Resistent to vibration and impact, passed ROHS.
| Article No. | Thread | Clamping Range | AG | GL | H | Wrench Size | Packet |
| Dimension | mm | mm | mm | mm | mm | units | |
| HSMS-M12 | M12x1.5 | 3~6.5 | 12 | 6 | 19 | 14 | 75 |
| HSMS-M16-H | M16x1.5 | 3~6.5 | 16 | 7 | 20 | 14/18 | 75 |
| HSMS-M16 | M16x1.5 | 4~8 | 16 | 7 | 21 | 17/18 | 75 |
| HSMS-M16-D | M16x1.5 | 5~10 | 16 | 7 | 23 | 20 | 50 |
| HSMS-M18 | M18x1.5 | 5~10 | 18 | 7 | 23 | 20 | 50 |
| HSMS-M20-H | M20x1.5 | 5~10 | 20 | 7 | 23 | 20/22 | 32 |
| HSMS-M20 | M20x1.5 | 6~12 | 20 | 7 | 23.5 | 22 | 32 |
| HSMS-M20-D | M20x1.5 | 8~14 | 20 | 7 | 23.5 | 24 | 32 |
| HSMS-M22 | M22x1.5 | 8~14 | 22 | 7 | 23.5 | 24 | 32 |
| HSMS-M24-H | M24x1.5 | 6~12 | 24 | 7 | 23.5 | 24/27 | 32 |
| HSMS-M24 | M24x1.4 | 8~14 | 24 | 7 | 23.5 | 24/27 | 18 |
| HSMS-M25-H | M25x1.5 | 8~14 | 25 | 7 | 23.5 | 24/28 | 18 |
| HSMS-M25 | M25x1.5 | 10~16 | 25 | 7 | 24 | 28 | 18 |
| HSMS-M25-D | M25x1.5 | 13~18 | 25 | 7 | 26 | 30 | 18 |
| HSMS-M27-H | M27x2.0 | 10~16 | 27 | 8 | 24.5 | 28/30 | 18 |
| HSMS-M27 | M27x2.0 | 13~18 | 27 | 8 | 26 | 30 | 18 |
| HSMS-M30-H | H30x2.0 | 10~16 | 30 | 8 | 24.5 | 28/34 | 18 |
| HSMS-M30 | M30x2.0 | 13~18 | 30 | 8 | 25 | 30/34 | 18 |
| HSMS-M32-H | M32x1.5 | 13~18 | 32 | 8 | 25 | 30/36 | 18 |
| HSMS-M32 | M32x1.5 | 15~22 | 32 | 8 | 28 | 36 | 18 |
| HSMS-M32-D | M32x1.5 | 18~25 | 32 | 8 | 33 | 38/40 | 8 |
| HSMS-M33 | M33x2.0 | 18~25 | 33 | 8 | 33 | 38/40 | 8 |
| HSMS-M36-H | M36x2.0 | 15~22 | 36 | 8 | 28 | 36/40 | 8 |
| HSMS-M36 | M36x2.0 | 18~25 | 36 | 8 | 33 | 40 | 8 |
| HSMS-M40-H | M40x1.5 | 18~25 | 40 | 9 | 33 | 40/45 | 8 |
| HSMS-M40 | M40x1.5 | 22~30 | 40 | 9 | 36 | 45 | 8 |
| HSMS-M40-D | M40x1.5 | 22~32 | 40 | 9 | 38 | 50 | 4 |
| HSMS-M42 | M42x2.0 | 22~32 | 42 | 9 | 38 | 50 | 4 |
| HSMS-M48 | M48x2.0 | 22~32 | 48 | 9 | 38 | 50/52 | 4 |
| HSMS-M50 | M50x1.5 | 30~38 | 50 | 9 | 40 | 55/58 | 4 |
| HSMS-M56 | M56x2.0 | 30~38 | 56 | 9 | 40 | 58/60 | 4 |
| HSMS-M60 | M60x2.0 | 37~44 | 60 | 10 | 41.5 | 65 | 2 |
| HSMS-M63 | M63x1.5 | 37~44 | 63 | 10 | 41.5 | 65/70 | 2 |
| HSMS-M63-D | M63x1.5 | 42~53 | 63 | 10 | 44 | 75 | 2 |
| HSMS-M64 | M64x2.0 | 37~44 | 64 | 10 | 41.5 | 65/70 | 2 |
| HSMS-M72-H | M72x2.0 | 52~57 | 72 | 12 | 43 | 80/80 | 2 |
| HSMS-M75-H | M75x2.0 | 52~57 | 75 | 12 | 43 | 80/80 | 2 |
| HSMS-M80-H | M80x2.0 | 52~57 | 80 | 12 | 43 | 80/86 | 2 |
| HSMS-M72 | M72x2.0 | 55~61 | 72 | 12 | 43 | 86/86 | 2 |
| HSMS-M75 | M75x2.0 | 55~61 | 75 | 12 | 43 | 86/86 | 2 |
| HSMS-M80 | M80x2.0 | 55~61 | 80 | 12 | 43 | 86/86 | 2 |
| HSMS-M80-D | M80x2.0 | 60~66 | 80 | 12 | 43 | 90/90 | 2 |
