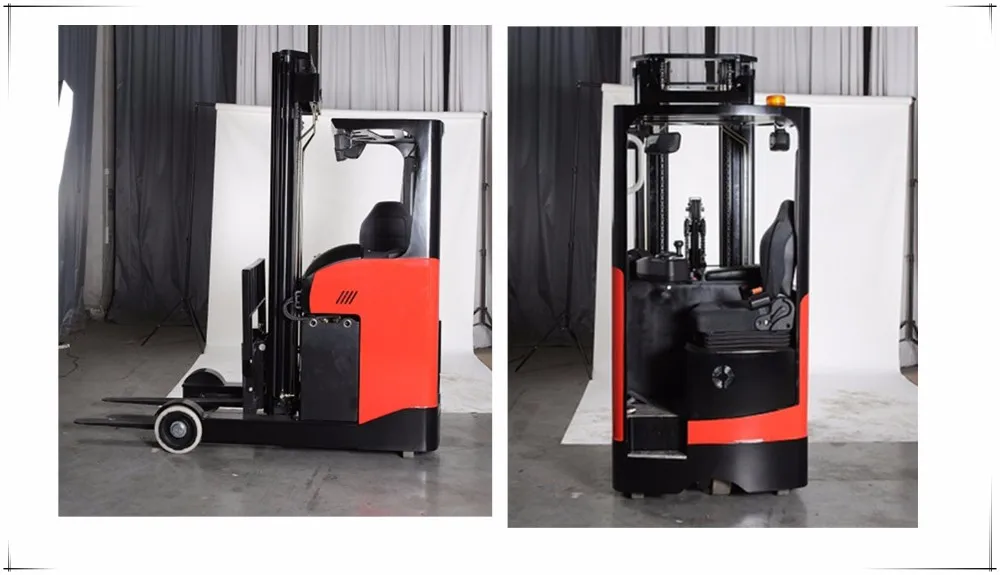

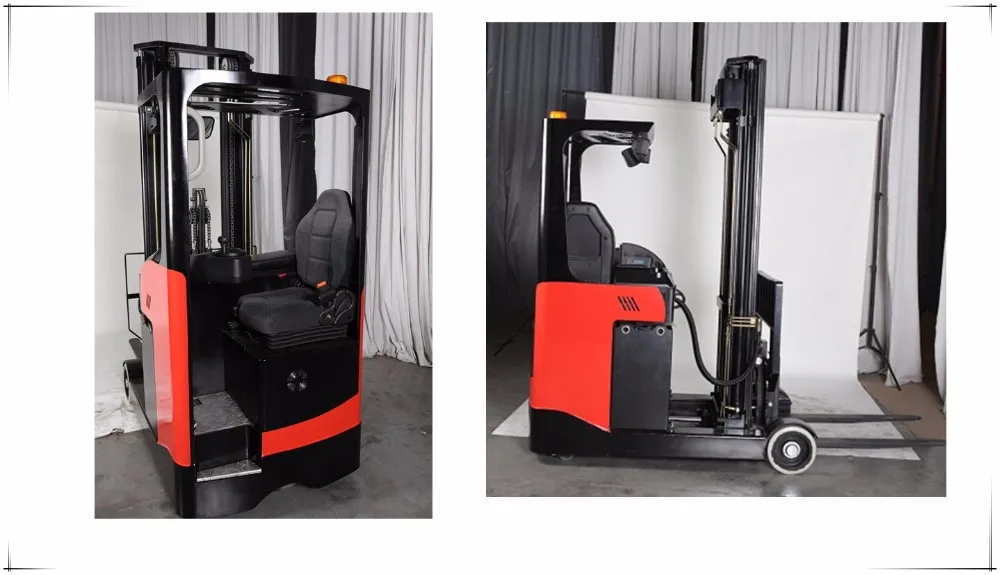

REDDOT Electric Reach truck
CQD12R/RF
Elextric Forklift Basic Info
- Model number: CQD12R/RF
- Capacity: 1.2T
- Lifting height: 3000mm
- Fork length: 1070mm
- Battery Voltage: 48V/320AH
- Controller: AC
Product Detailed Specifications
| Model | CQD12R/RF | |
| Rated capacity | kg | 1200 |
| Load center | mm | 600 |
| Height,mast lowered | mm | 2060 |
| Lifting height | mm | 3000 |
| Height,mast extended | mm | 4000 |
| Height of overhead guard | mm | 1965 |
| Overall length | mm | 2285 |
| length to face of forks | mm | 1215 |
| Overall width | mm | 988 |
| Fork dimensions | s/e/l | 40*100*1070 |
| Turning radius | mm | 1570 |
| Gradeability,laden/unladen | % | 8/10 |
| Battery boltage/nominal capacity k5 | 48/320 | |
| Type of drive unit | AC | |
| Service weight | kg | 2015 |
