FTTH Dual Mode ONT Compatible Optical Network Unit 1GE WIFI EPON/GPON/GEPON XPON ONU
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (60654136876):
Product Overview
Description

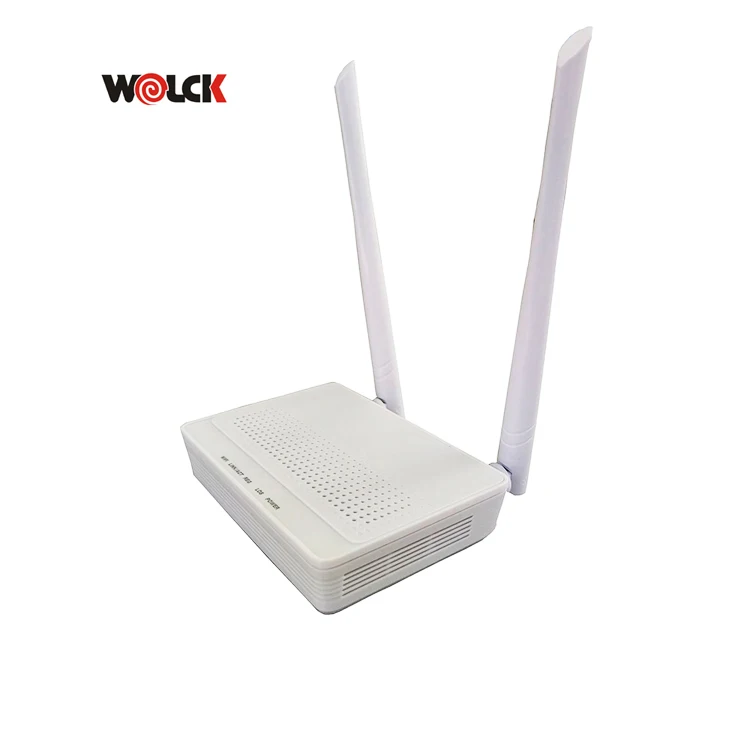

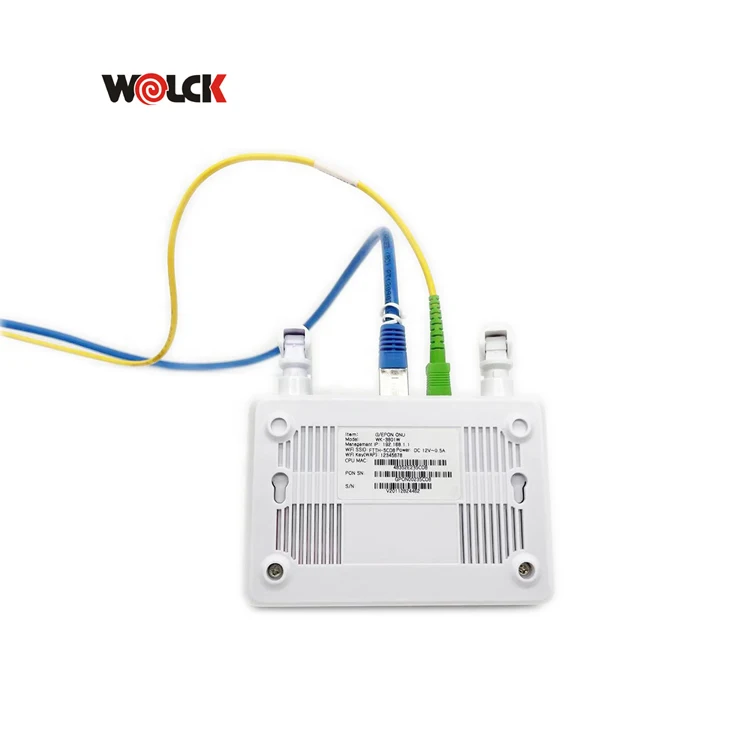

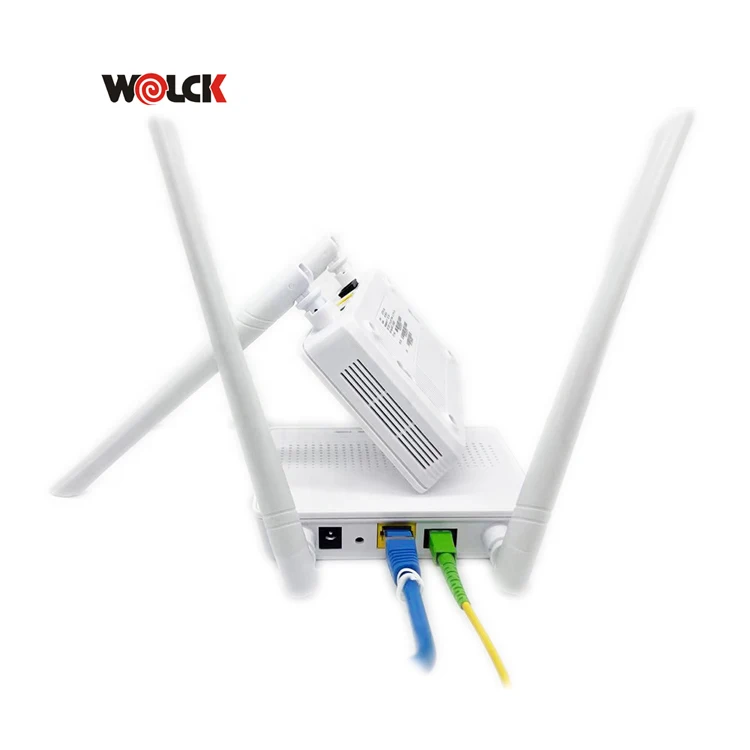

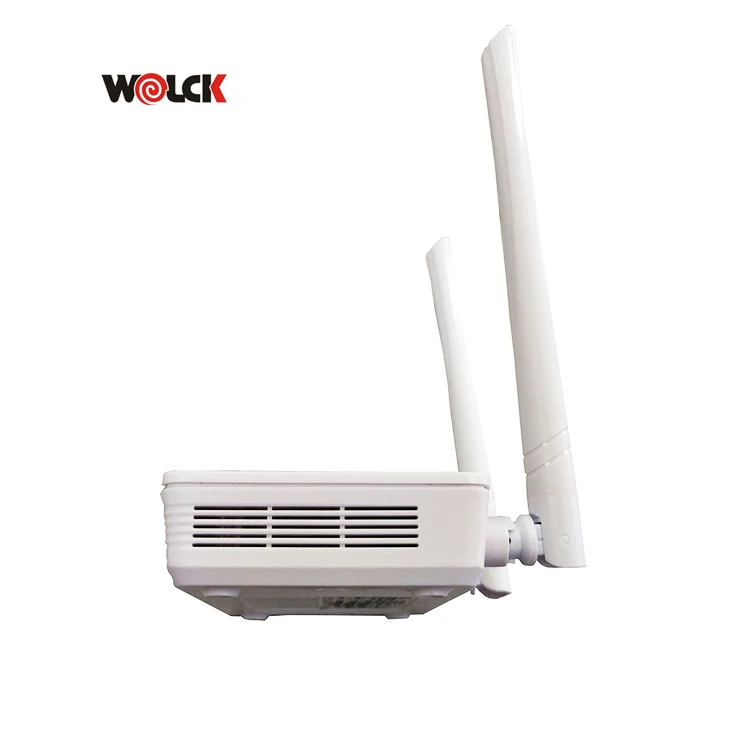

1GE+WIFI 2.2 XPON ONU
1GE+WiFi 2.2 XPON ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment, good WiFi coverage and also has a powerful firewall function. 1GE+WiFi 2.2 XPON ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products . The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, withguaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
Compatible with Huawei/ZTE OLT
Web Management
SMART OLT Configure WAN
Tr069 Management
Technical Support
Packing

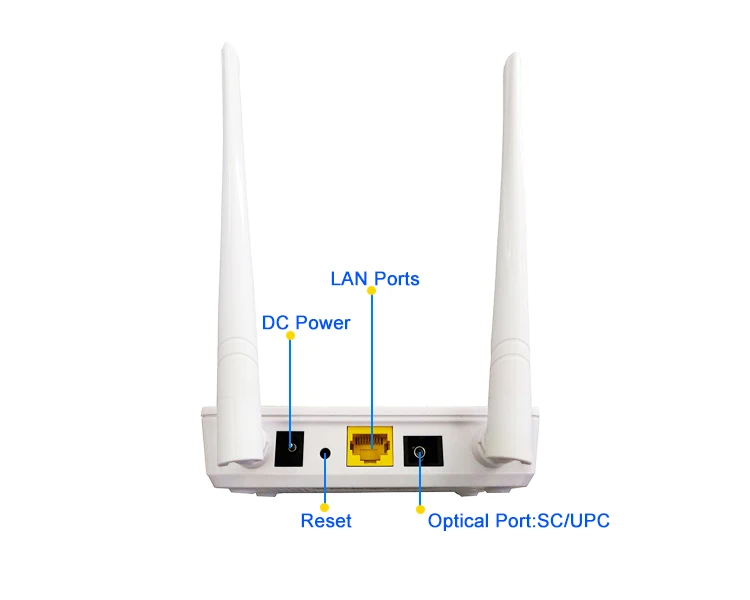

Technical items | Descriptions |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
Wavelength | Tx1310nm,Rx 1490nm |
Optical interface | SC/PC connector |
Interface | 1* 10/100/1000Mbps auto adaptive Ethernet interfaces. Full /Half Duplex, RJ45 connectors. |
Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 1 internal antenna,dual external antenna |
Indicator | 5 indicators，POWER、LOS、REG、LINK/ACT、SYS |
Operating condition | -5℃～55℃，10%～90%（non-condenseing） |
Storing condition | -30℃～60℃，10%～90%（non-condenseing） |
Power supply | DC 12V,0.5A |
Power consumption | ≤6W |
Dimension | 120mm×78mm×30mm（L×W×H） |
Net weight | 0.13Kg |
Packaging | 1pcs in one small box,40pcs in one carton carton size: 59*53*35cm,GW: 11.3kgs |

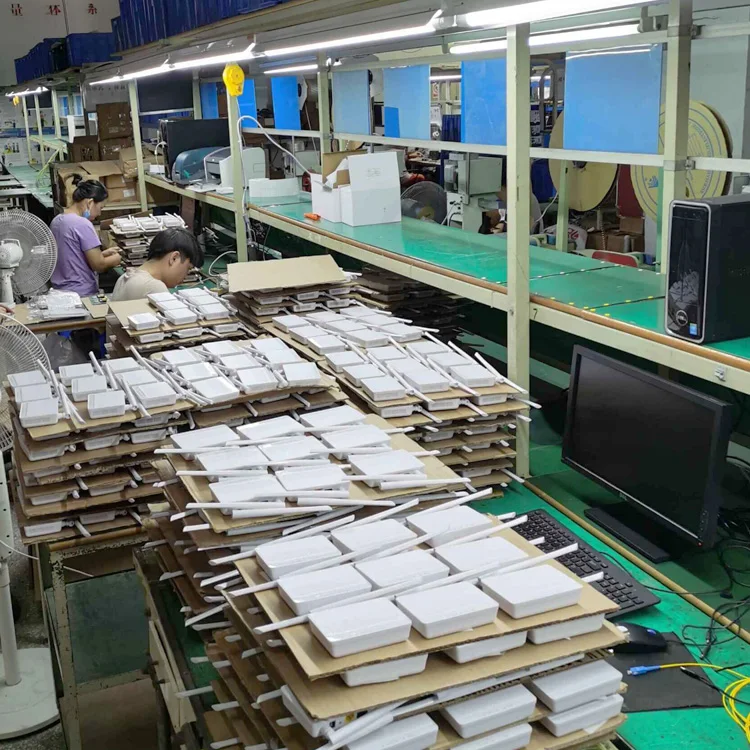

Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
