Product Overview

Description



Product Description


Main features


1. Fast mixing of dry powder or small granules with good flowability in food, chemical and pharmaceutical industry
2. Mixing chamber volume: 50-2000L
3. GMP design
4. Agitator can be equipped to strengthen the mixing effect
5. Can work with vacuum conveyor to achieve automatic feeding and prevent dust




Working principle

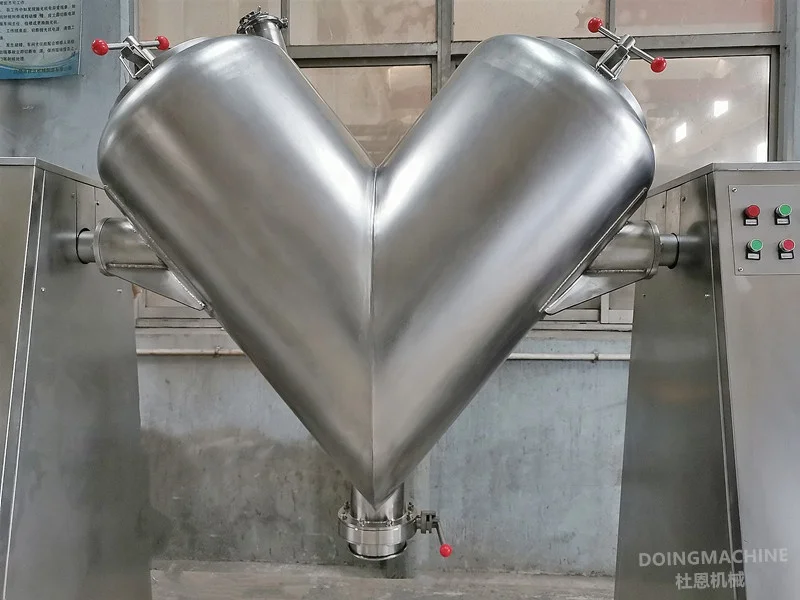

VHJ series V shape mixer blender consists of two V-shells of different or same altitudes,and through mechanical transmission,the meterials in these shells are made to move back and forth, crossed over and rotate 360 degree to achieving ultimate uniform mixing.

VHJ series V shape mixer blender are commonly used in pharmaceutical , nutriceutical, chemical, food and related industries to mix dried powder and granules with good flowability.

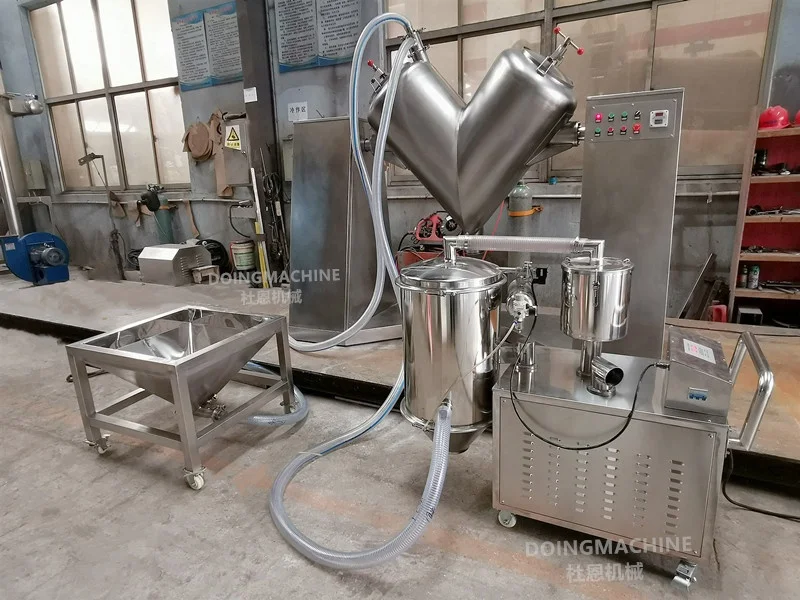

Working with vacuum conveyor for feeding




Technical advantages


1. Mirror polished of inner and outer shell to meet GMP standard.
2. No blind angle in the V-shells, no accumulation of materials,high speed I-bar,efficient and short mixing time.
3. Mixing uniformity can reach 99%
4. Plate valve is equipped for discharging
5. Fully integrated motors and controls
6. Can work with vacuum feeding system to create dust-free working condition.

Main Technical Parameters



Model
VHJ-50
VHJ-200
VHJ-300
VHJ-500
VHJ-1000
VHJ-2000
Volume L
50
200
300
500
1000
2000
Capacity kg/batch
15
50
80
150
300
850
Mixing time  Min
4-8
6-10
6-10
6-10
6-10
6-10
Rotation speed RPM
12
12
12
12
10
10
Motor power KW
0.55
1.1
2.2
4
4
7.5
Dimension  LxWxH M
1.1X0.6X1.1
1.8X0.7X1.9
1.9X0.7X1.9
2.5x0.9x2.4
2.9x1.4x3
3.8x1.6x3.3
Totation height mm
1450
1850
1900
2450
3000
3.7
Weight kg
120
290
400
550
850
2040




Detailed Images

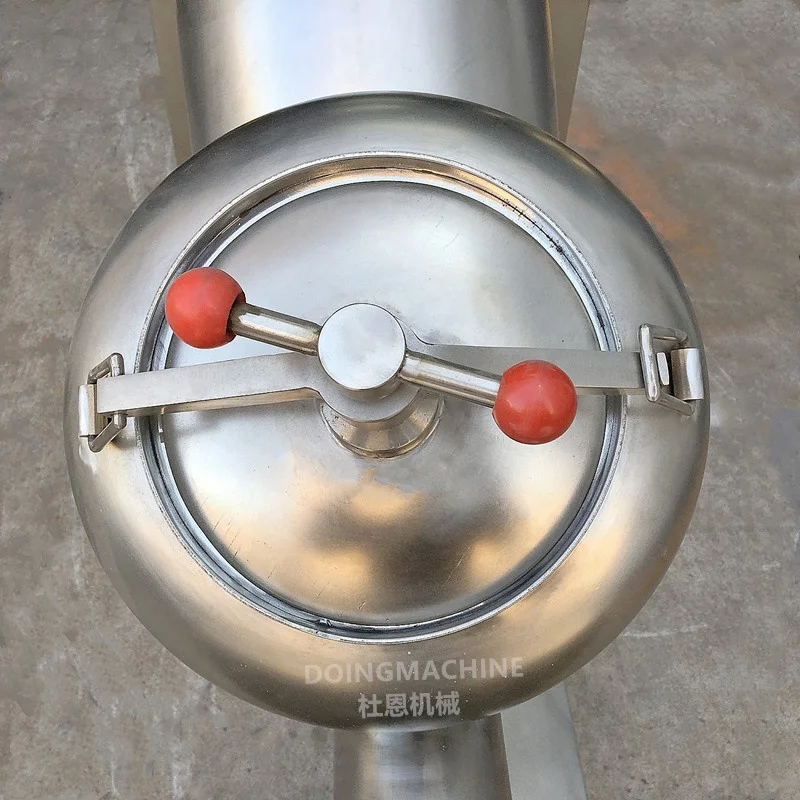

Feed port
Mixing chamber

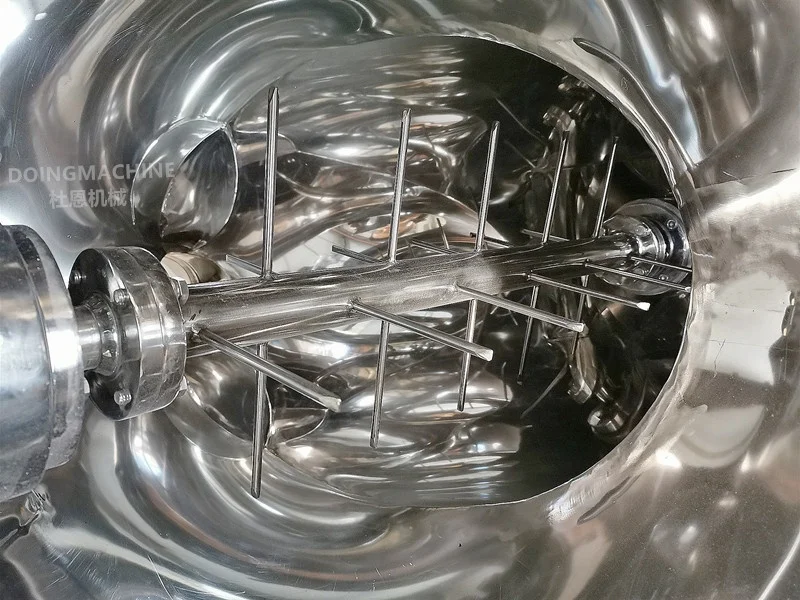

Intensifying bar

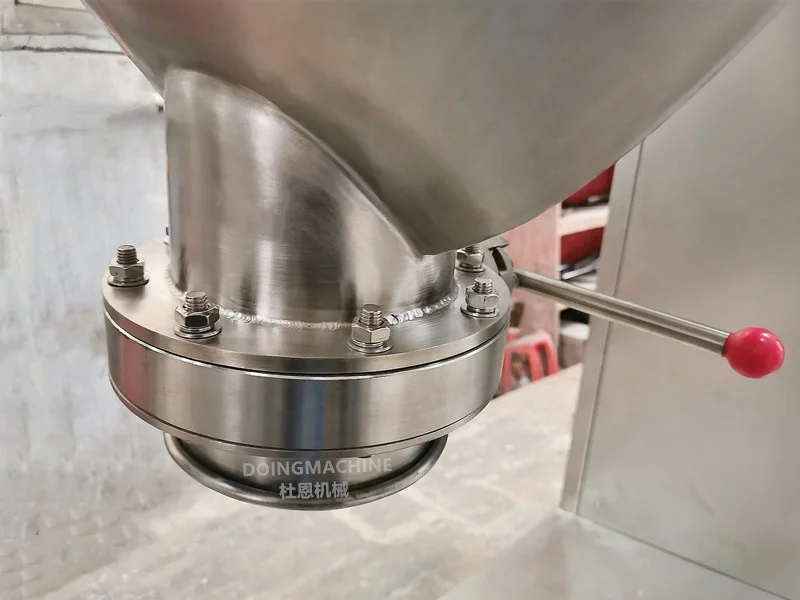

Discharge valve


Typical Applications


Protein powder

Seasoning powder

Chemical powder



Packing & Delivery




FAQ


Q: What information should be provided in order to get a proposal or quotation?
A: Our V shape mixer can be customerized. To work out a detailed proposal or quotation, we have to know the following information:

1) Particle size of products
2) Bulk density of products
3) Mixing capacity
4) Construction material:SUS304 or SUS316L

Q: How the machine will be delivered ?
A: The mixer is packed in plywood box for shipping
