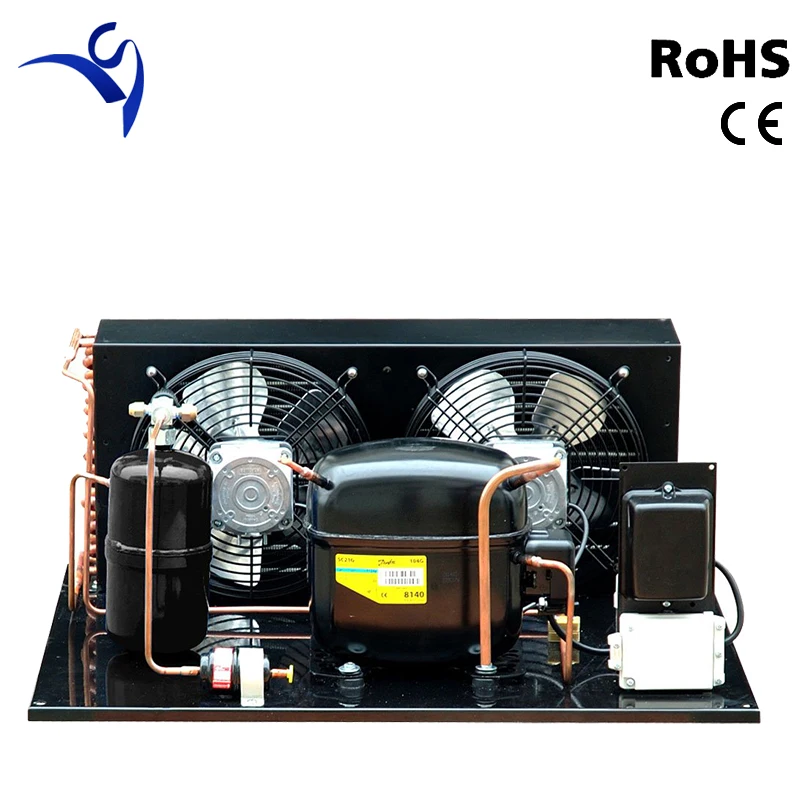

60HZ deep freezer Embraco hermetic compressor refrigeration unit

Product Overview

Description

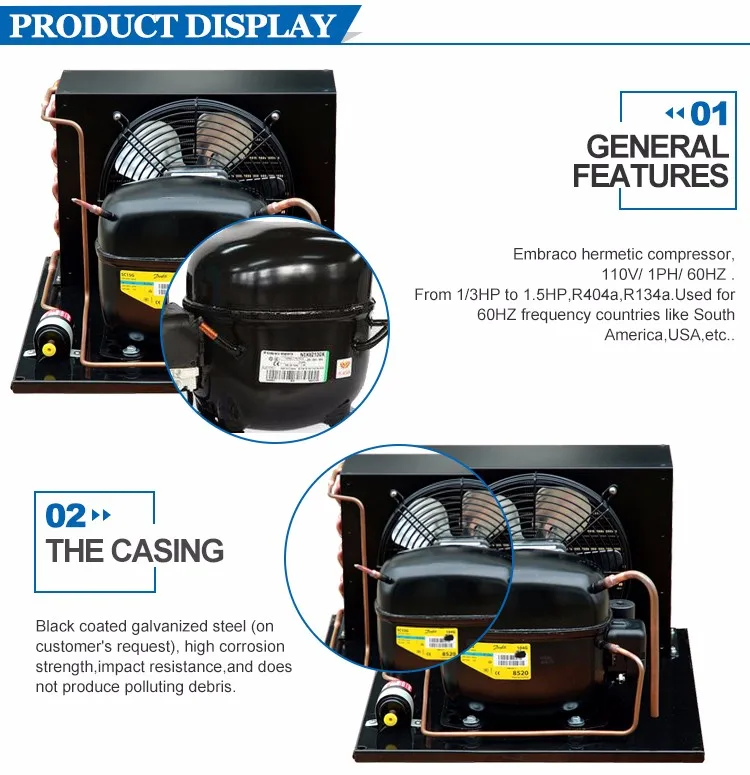

110V/1PH/60HZ EMBRACO hermetic compressor refrigeration unit

Low temperature                                    R404A

Nominal data

LBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge
							ASHRAE
							Evaporating temperature(°C)
Model			V-PH-HZ	M2	No x Φ	type	-30	-25	-23.3	-20	-15
LKPG048	1/2	NEK2150GK	110-1-60	4.6	1 x 300	axial fan motor	515	671	730	856	1069	8.2mm	6.2mm
LKPG068	3/4	NT2168GKV	110-1-60	6.1	1 x 300	axial fan motor	525	704	770	910	1150	10.2mm	6.2mm
LKPG100	1	NT2180GK	110-1-60	8.6	1 x 300	axial fan motor	750	1020	1120	1326	1664	10.2mm	6.2mm
LKPG150	1.5	NJ2212GK	110-1-60	11.2	1 x 300	axial fan motor	1105	1559	1728	2077	2659	10.2mm	6.2mm
TEST CONDITION: Condensing Temperature: 54.4°C







110V/1PH/60HZ EMBRACO hermetic compressor refrigeration unit

Medium temperature                           R134A

Nominal data

MBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge
							ASHRAE
							Evaporating temperature(°C)
Model			V-PH-HZ	M2	No x Φ	type	-5	0	5	7.2	10
LKPG039	1/3	NEK6187Z	110-1-60	2.3	1 x 250	square shade pole fan	662	828	1026	1122	1253	8.2mm	6.2mm
LKPG048	1/2	NEK6210Z	110-1-60	4.1	1 x 250	square shade pole fan	801	995	1219	1326	1469	8.2mm	6.2mm
LKPG068	3/4	NT6215Z	110-1-60	4.6	1 x 300	axial fan motor	1174	1460	1790	1942	2160	10.2mm	6.2mm
LKPG100	1	NT6220Z	110-1-60	6.1	1 x 300	axial fan motor	1308	1684	2195	2466	2844	10.2mm	6.2mm
TEST CONDITION: Condensing Temperature: 54.4°C
