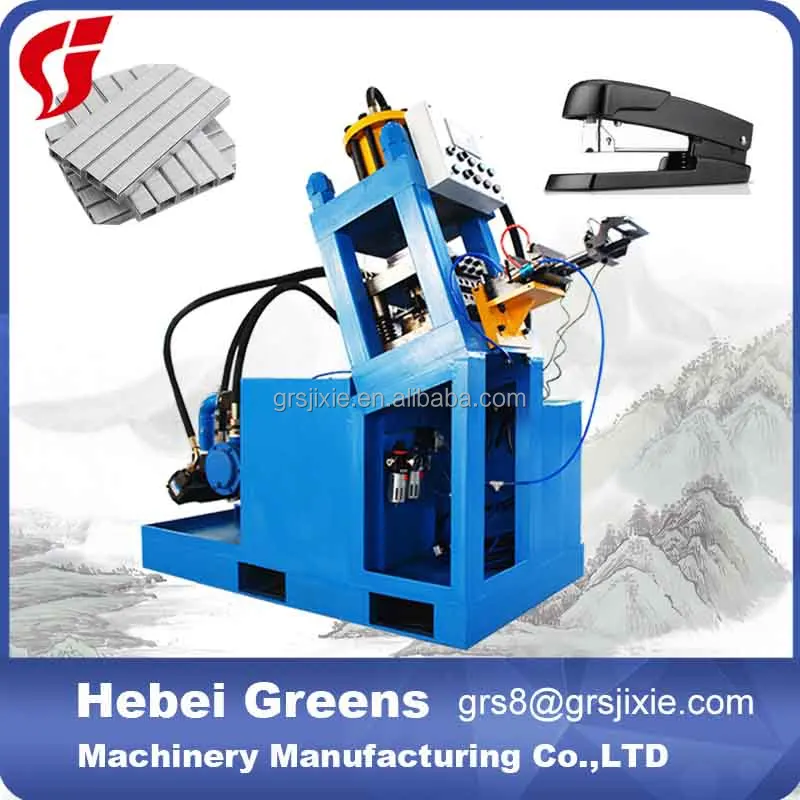

office staplers pin making machine for making office/paper staples

Product Overview

Description

office staplers pin making machine for making office/paper staples



Hot selling staple nail making machine  price:

1.wire flattener



Motor power	2.2kw
Speed	0-350 m/min
Wire flatting range	0.4--2mm
Weight	900kg





2.wire gluing combiner



Motor power	9kw
Speed	2-18m/min
Combububg width	50-150mm
Weight	1500KG

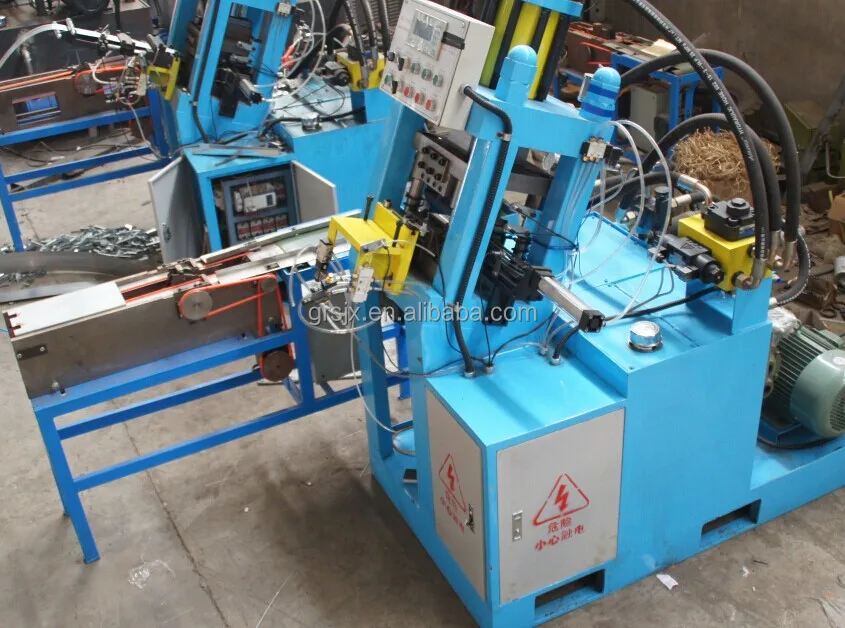

3. staple nail making machine

N/K type forming machine

Motor	Speed	Weight
5.5KW	60-100 pcs/min	1800KG

J type forming machine

Motor	Speed	Weight
5.5KW	60-100 pcs/min	1800KG





Staple nail making machine technical parameter:

1,F nail specifications are divided into:F10,F15,F20,F25,F30,F40, wire diameter: standard diameter for: Φ1.18mm, squash thickness: 1mm, F nails used in the range of wire diameter: Φ1.05-Φ1.2mm. By the use of wire tensile strength in the 90-100kg.

T Nail specifications are divided into:T32,T38,T45,T50, wire diameter: standard diameter for: Φ1.57mm, squash thickness: 1.35mm.T nails used in the range of wire diameter: Φ1.45-Φ1.5mm.

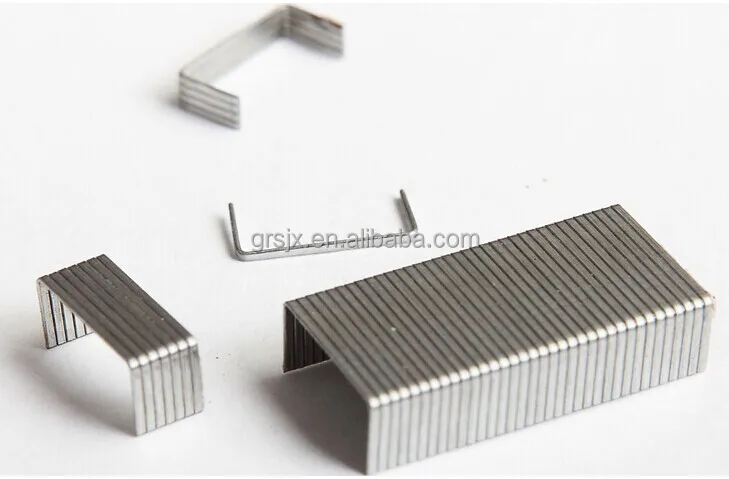

Staple size

Include office staple,industry staple and so on, such as 1010J ,1013J.

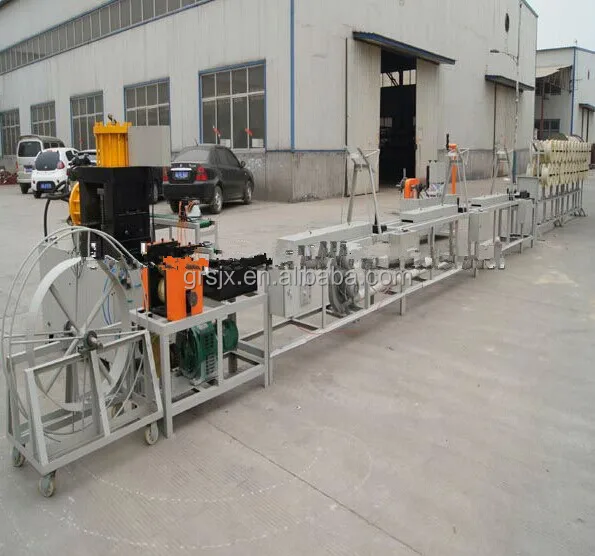

Industrial staple machine working process:

wire flatter-wire gluing combiner-forming machine



The first process,it use wire flattener,The galvanized wire will be compressed into flat shape line,



The second process,it use wire jointing machine ,wire jointing machine will combine and paste the flat shape line into a whole.



The third process , it use new oil pressure  forming machine, Forming machine will produce the finished product











Wherever you are,we offer equal service.

Hot selling staple nail making machine has past the certification of ISO9001.



Strict quality control of is performed in every procedure from material sourcing, processing and testing to packing, which makes our automatic nail making machine gain wide praises at home and abroad.
