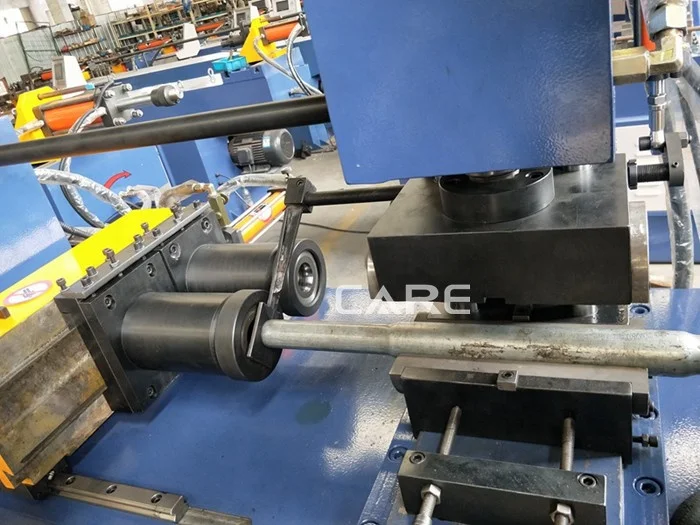

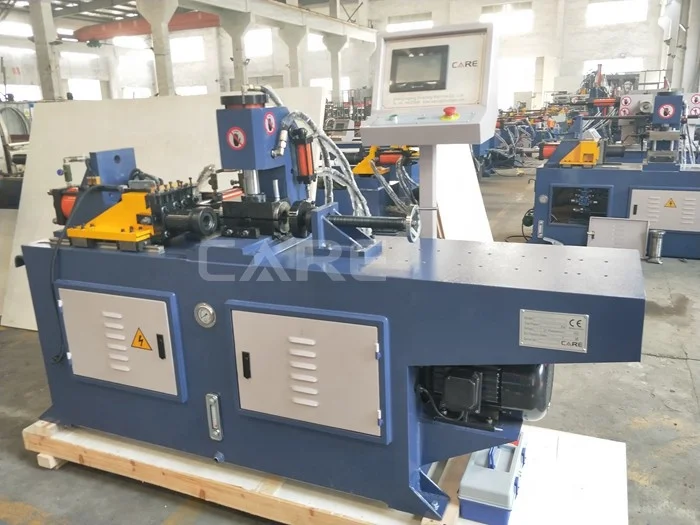

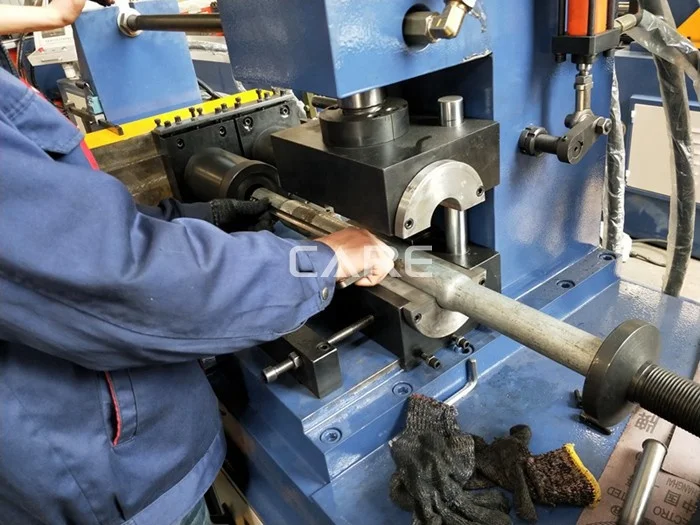

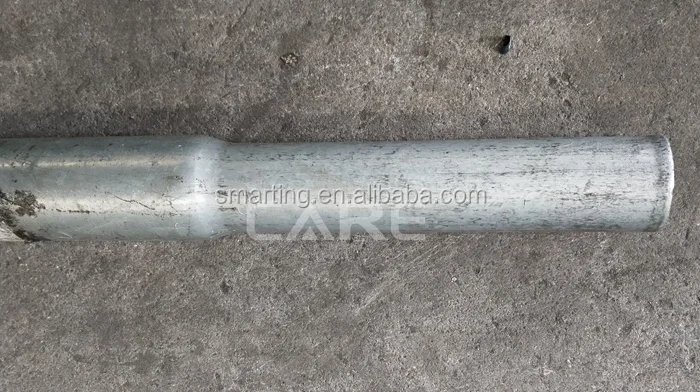

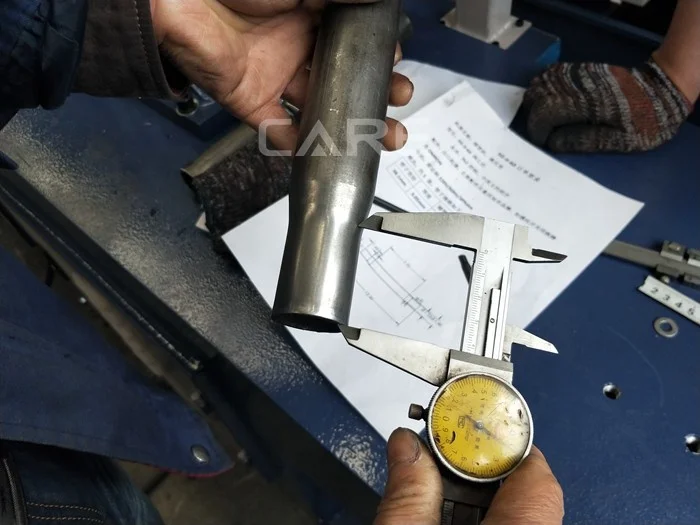

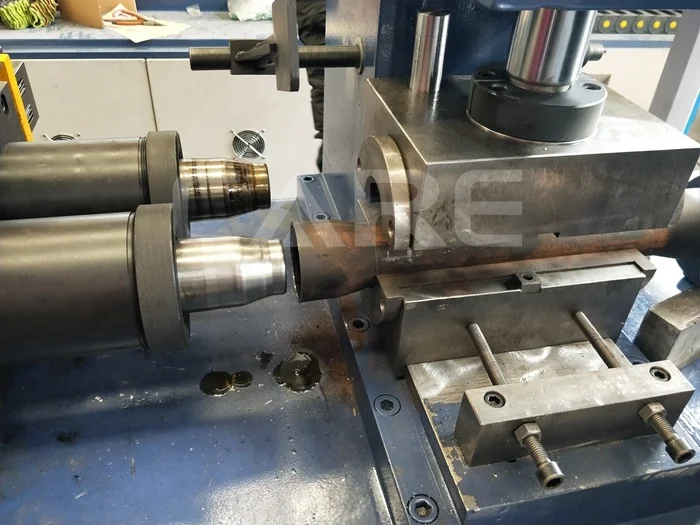

Single station automatic hydraulic conical tube end forming machine for fitting one tube into another

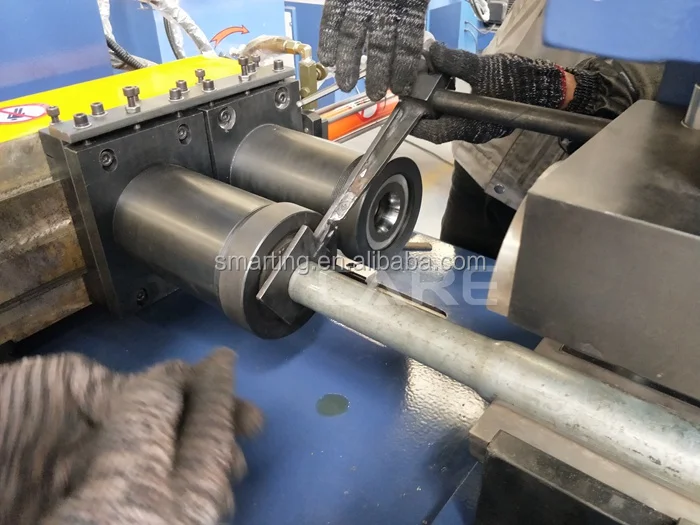

Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. PLC controller with English language.

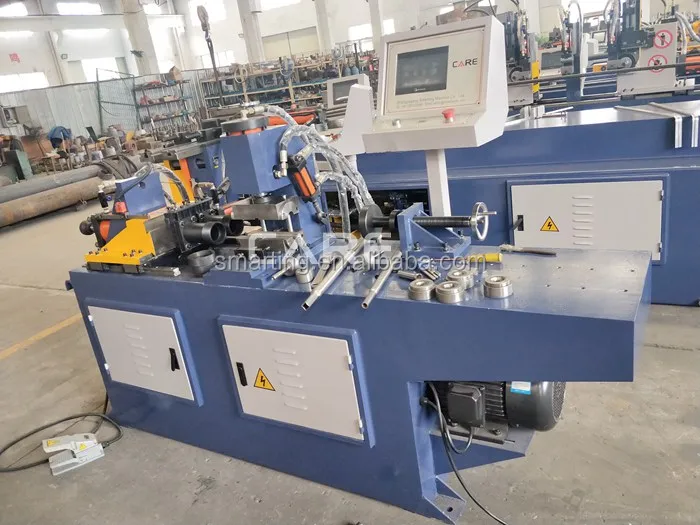

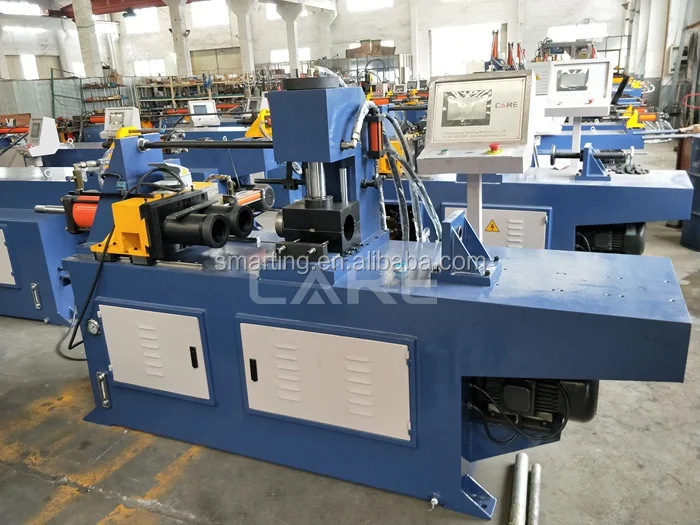

Main specification
1) PLC control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 150mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Technical parameter
Type
SG-40
SG-60
SG-80
SG-100
Max tube(mm)
φ40*2.0
φ60*2.0
φ80*3.0
φ100*3.5
Max processing length(mm)
110
130
150
180
Oil pressure(Mpa)
14
14
14
14
Working speed
100mm in3-4/s
100mm in3-4/s
100mm in3-4/s
100mm in3-4/s
Size(cm)
180*45*120
200*50*130
290*70*140
300*75*150
Weight(kg)
600
950
1600
1800
Remark
1.The max processing length can according to customers requirement.
