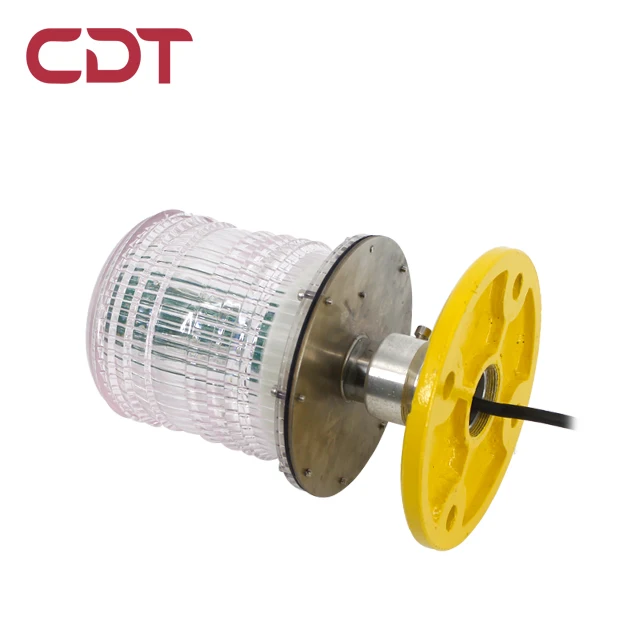

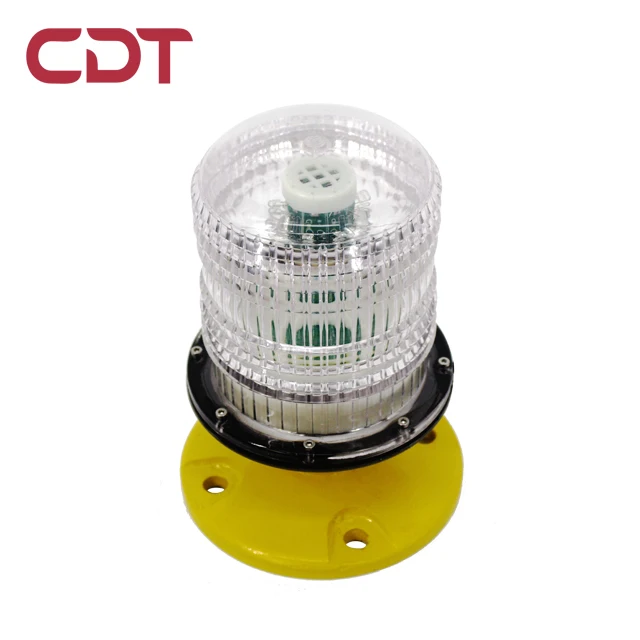

CH-HT12/CU heliport perimeter light is a constant green light upright installing light. Emitting omnidirectional green light at night or in the daytime with low visibility to indicate the perimeter of heliport take off and land area, to indicate the safe landing area for helicopter pilot. It is controlled by switch in the heliport control cabinet.
Specification
• The lamp cover adopts PC material with excellent impact resistance (IZOD notch impact strength: 90), thermal stability (service temperature can be 130℃), great transparency (available with a light transmission of up to 90%), auto-UV resistance, aging resistance and flammability rating in UL94V0. • The house of the light adopts aluminum alloy, the product features are light weight, water tightness, seismic and corrosion resistance. • Light source adopts the international advanced LED featuring low power consumption, high efficiency and light source lifespan reaching 100,000 hr.. • The light with surge protection device (In 7.5KA/5 times, Imax 15KA) can be used in the harsh environment.
Item
Parameter
Model
CM-HT12/CU
Operating voltage
AC220V/6.6A
Power consumption
≤5W
Flash Frequency
4 times/2 second
Light Intensity
25cd
Light Source
Green LED
Light Source Lifespan
100,000 Hours
Emitting Color
Green
Ingress Protection
IP65
Operating temperature
-55℃~55℃
Wind Load
80m/s
Weight
1.2kg
Overall Dimension (mm)
220mmx287mm
Installation Dimension (mm)
166mmx4-M14
Company Information
project show
Packaging & Shipping
Our Services
All products sold from our company enjoy warranty commitment. Please keep this warranty card carefully in case you need to contact us,we will make response in 24 hours.
Full Warranty 2 years: We will provide full manufacturer warranty for product breakdown caused by quality problems within 2 years.
