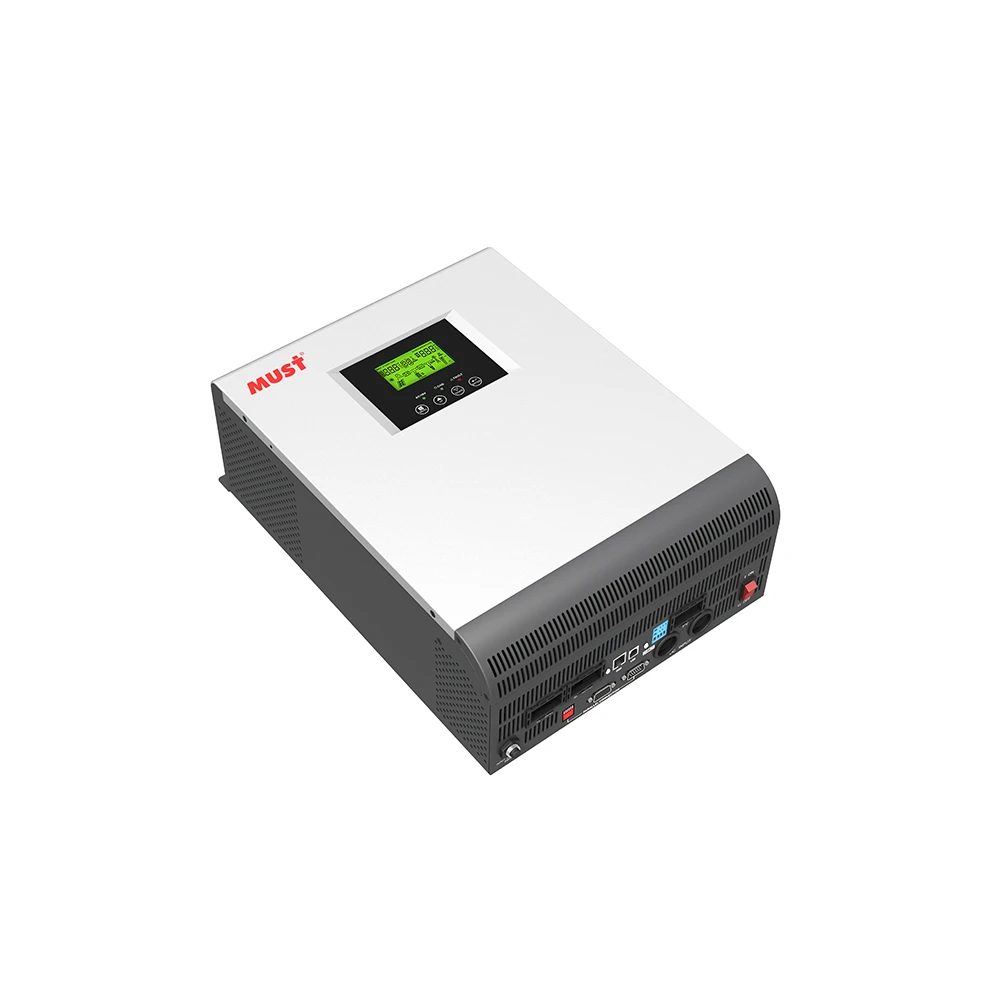

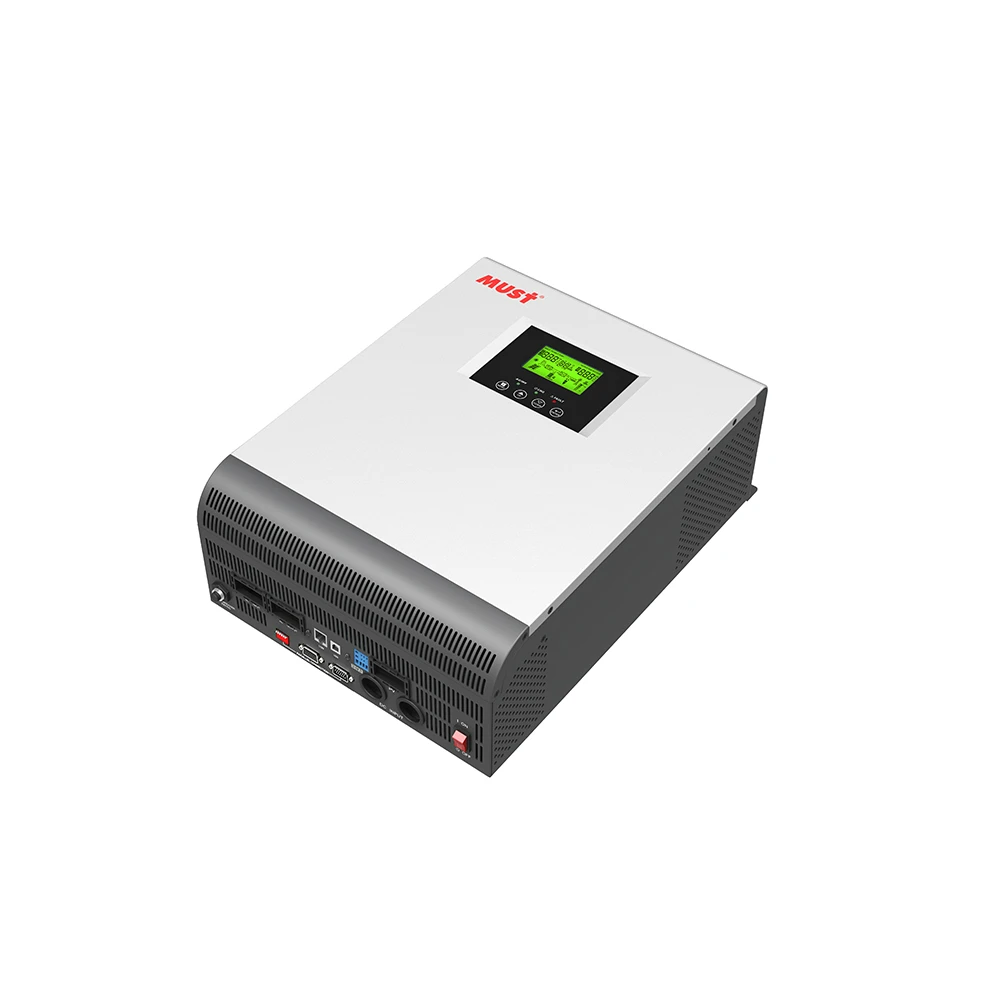

MUST pv1800 dc 24v 3kva 2400w hybrid solar inverter with 60A MPPT solar charge controller inversor onduleur solaire
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (60654833160):
Product Overview
Description
MUST 3 Phase Solar Inverter Parallel 12KVA 4KVA 3.2KW High Freq Wifi Kit
Model: PV18MPK 5KVA
Product Details
| Specification of the Solar Inverter PV1800 series |
- Pure sine wave output;
- Built-in MPPT solar charge controller 60A;
- Selectable input voltage range for home appliances and personal computers;
- Selectable charging current based on applications;
- Configurable AC/Solar input priority via LCD setting;
- Compatible to mains voltage or generator power;
- Auto restart while AC is recovering;
- Overload and short circuit protection;
- Smart battery charger design to optimize battery performance;
- Cold start function;
- Optional Remote Control Panel available

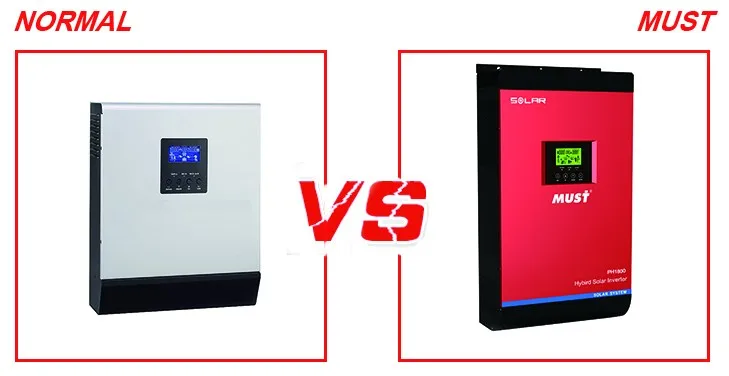

| Compare With Normal Solar Inverter |
| Item | Normal Solar Inverter | Solar Inverter PV(H) 1800 Series |
| Type | Off Grid Type | Off Grid/On Grid Type,(to add ON-Grid function of selling electricity to Grid ) |
| CPU | Old CPU: TI 2809 | New CPU: TI 28335, DSP faster, higher quality of output wave, better controling when in parallel operation |
| Communication | RS232 | RS485 |
| LCD Setting | in LCD, No Setting Function for Inverter, Charger and System Separatedly | Able to Set Inverter, Charger and System Separatedly by LCD, User Manual will explain |
| Working Mode | Solar First, Untility First, SBU First | Prefer to Load, Full match load, Prefer to off grid, UPS mode, Full sell utility |
| Max Charging Current setting | 70A, 80A, 90A... 120A, setting by every 10A | 1A, 2A to 120A, setting by every 1A |
| Whether able to sell utility to GRID | NO | Yes |
| Output AC volt setting function | NO | YES, 220V-240V,setting by every 1V |
| Battery Type to charge | Lead Acid Battery | Lead Acid Battery, Lithium Battery |
| Parallel Operation | upto 6pcs, with card, communication cable and current sharing cable, more complicated in cable connection | upto 3pcs, with card, cable ONLY communication cable, Easier cable connection |
| MPPT PV array operating volt range | 60-115V | 64-130V (Wide Range) |
| Wifi Kit/GSM | No | Optional |

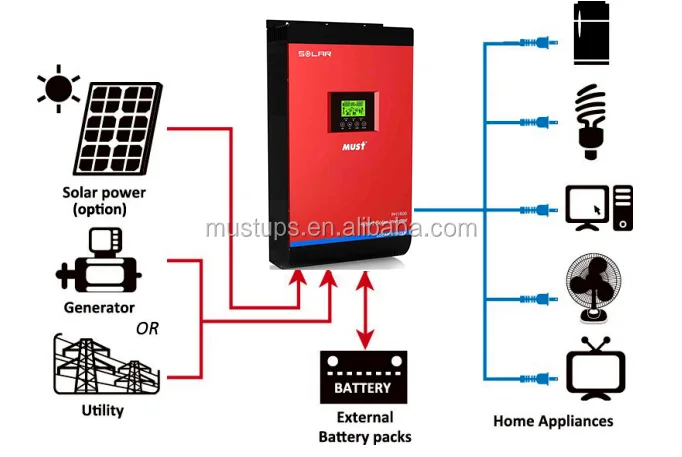

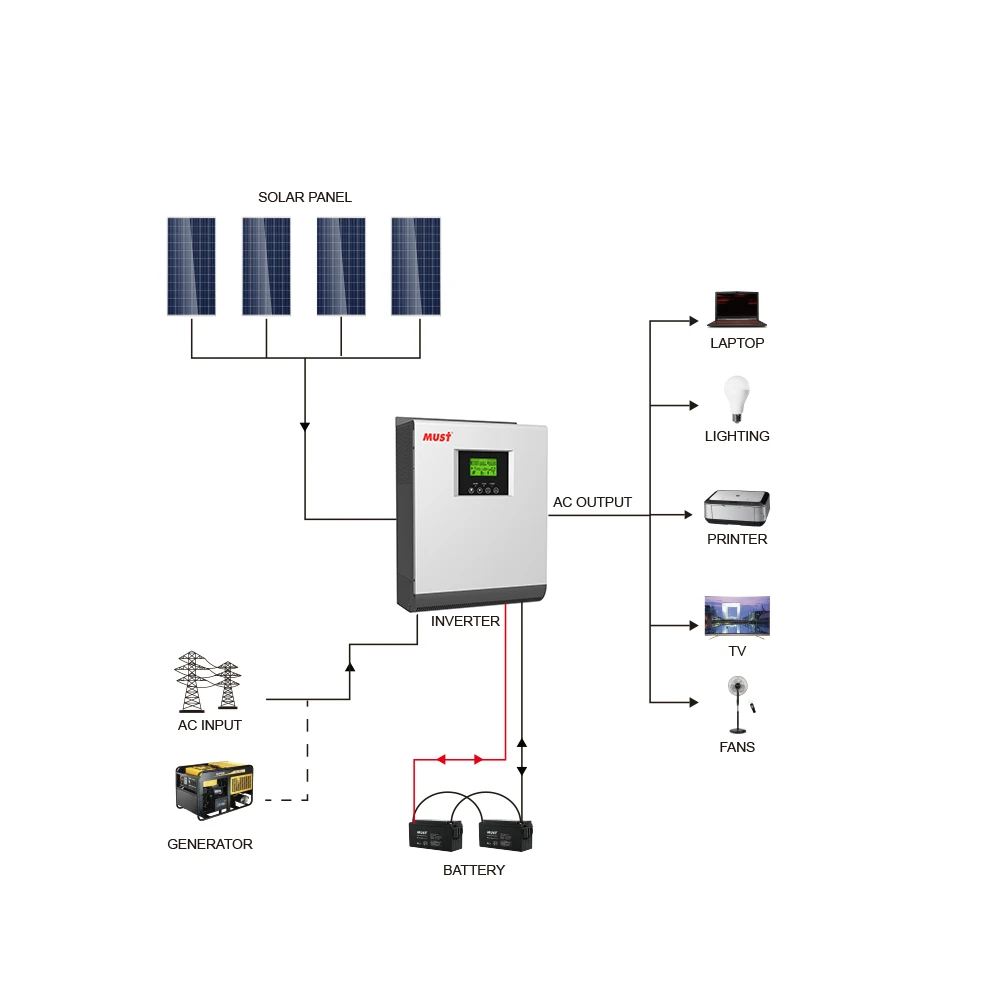

Product Link Sketch
| Product Link Sketch |

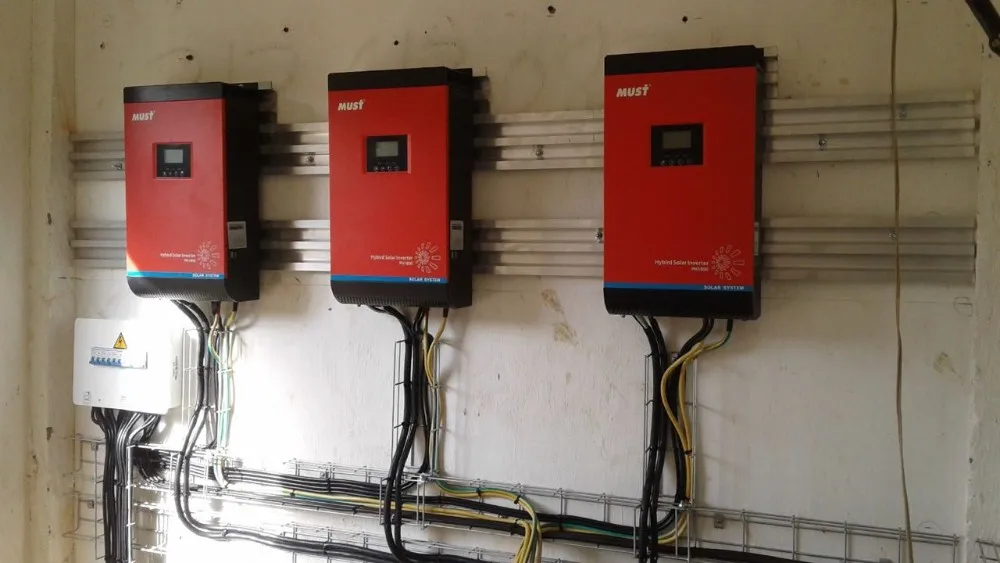

| Product for Home Installation |
(1)Parallel In two Units Installation
(2)Parallel In Three Units Installation

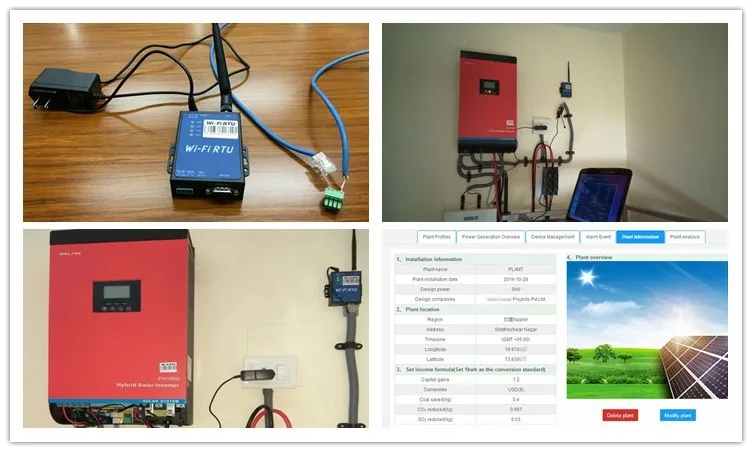

| Solar Inverter within WiFi Control Function |
Product Parameters
| Product Parameter |
MODEL | PV18-1K MPK | PV18-2K MPK | PV18-3K MPK | PV18-4K MPK | PV18-5K MPK | |
Default Battery System Voltage | 24VDC | 48VDC | ||||
INVERTER OUTPUT | Reted Power | 1000VA/ | 2000VA/ | 3000VA/ | 4000VA/ | 5000VA/ |
Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
Waveform | Pure sine wave | |||||
AC Voltage Regulation | 230VAC±5% | |||||
Inverter Efficiency (Peak) | 90% | 93% | ||||
Transfer Time | 10ms(For Personal Computers) | |||||
AC INPUT | Voltage | 230VAC | ||||
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||
BATTERY | Nominal voltage | 24VDC | 48VDC | |||
Floating Charge Voltage | 27VDC | 54VDC | ||||
Overcharge Protection | 31VDC | 60VDC | ||||
SOLAR CHARGER | Maximum PV Array | 75VDC | 145VDC | |||
PV Array MPPT Voltage | 30 ~ 66VDC | 60 ~115VDC | ||||
Standby Power | 2W | |||||
Reted Power | 600W | 3000W | ||||
Maximum Solar Charge | 25A | 60A | ||||
Maximum Efficiency | 98% | |||||
Maximum AC Charge | 10A or 20A | 20A or 30A | 60A | |||
Maximum Charge Current | 25A | 30A | 120A | |||
MECHANICAL SPECIFICATIONS | Dimension,W*H*D(mm) | 272*372*131 | 295*528*141 | |||
Net Weight(kg) | 7.4 | 7.6 | 8.0 | 12.5 | 13.5 | |
OTHER | Humidity | 5% to 95% Relativ Humidity (Non-condensing) | ||||
Operating Temperature | 0°C -55 °C | |||||
Storage Temperature | -15 °C -60 °C | |||||
Packaging & Shipping

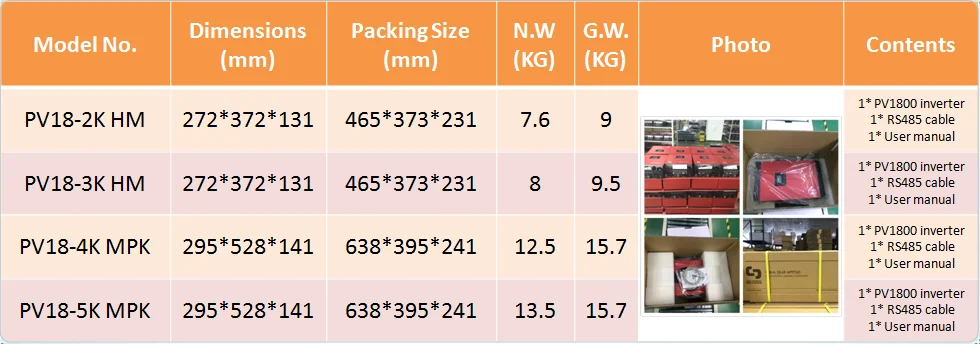

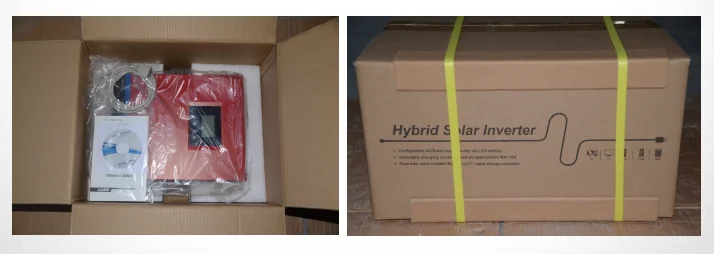

| Product Packing |
Our Services
| Production Progress |
Why Choose Us
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
FAQ
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
