PE100 Hdpe Polyethylene Pipe Irrigation 40mm Coil Pe Tube 25mm 32mm

Product Overview

Description

HDPE Pipe and Fittings

HDPE pipe is made of high density polyethylene resin. The product's physical properties make it applicable to open-trench, horizontal directional drilling, pipe-bursting and slip-lining installations. It can be manufactured with the color striping to identify application, such as a blue stripe for potable water, a green stripe for drainage, a yellow stripe for gas applications, an orange stripe for electrical conduit and a red stripe for mining applications.







HDPE Fittings for Connection

                                                                                                                                                                              Specifications:

High-density polyethylene pipe (HDPE) can carry potable water, wastewater, slurries, chemicals, hazardeous wastes, and compressed gases. Polyethylene is strong, extremely tough and very durable.



Standard: ISO4427, GB/T13663

Size: DN20mm to DN1600mm

SDR: 41/33/26/21/17/13.6/11/9/7

PN: 4/5/6/8/10/12.5/16/20/25



Physical properties index:

No.	Item		Requirements
1	Percentage of breaking-elongation,%		≥350
2	Longitudinal reversion(110℃),%		≤3
3	Oxidation induction time (200℃)min		≥20
4	Weather resistance 1. (After the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2)	80℃ static hydraulic strength (165h)	No break, no leakage.
		Percentage of breaking-elongation,%	≥350
		Oxidation induction time (200℃)min	≥10
1.  Only suitable for pipe in blue color.
Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber, food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field.



Application:

1. Urban tap water pipe network system:

Large diameter HDPE pipe is health nontoxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.

2. Replaceable cement tubes, iron pipe and steel tube:

Used for old nets renovation project, don't need large area excavation, low cost, can be widely used in old town of pipe network reconstruction.

3. Industrial materials duct:

Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.

4. Landscaping water supply network:

Landscaping need lots of water pipe, HDPE pipe toughness and low cost, make it become the best choice.

5. Sewage discharge pipes:

HDPE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe, low costs and maintenance costs.

6.Ore, mud transfers:

HDPE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.

7. Agricultural irrigation pipe:

HDPE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.

PE100 Hdpe Polyethylene Pipe Irrigation 40mm Coil Pe Tube 25mm 32mm

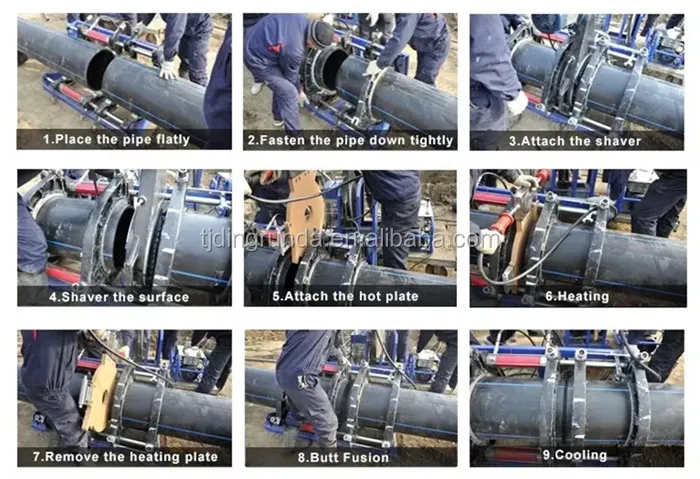

 Installation:

Project views:



Advantages:

1. Nontoxic:

HDPE pipe material nontoxic and tasteless. It belongs to gree building materials, never scaling, which can effectively improve the water quality.

2. Corrosion resistance:

High resistance to attack from various types of chemicals. No electrochemical corrosion.

3. No leakage:

HDPE pipe is connected in the ways of butt fusion, socket fusion and electrofusion and the strength of joint point is higher than tube itself.

4. Higher flow capacity:

The smooth inner wall is easy for pipeline trasportation. Under the same condition, delivery capacity can be increased by at least 30%.

5. Convenient for construction and installation:

HDPE pipe could be installed in a variety of trenchless ways, so it is very convenient for construction and installation.

6. Lower system and maintenance costs:

HDPE pipe is not only convenient to transport and install, but also reduce the worker's labor intensity and improve work efficience.

7. Longevity of working life:

More than 50 years under pressure use.

8. HDPE pipe is recycled and environment-friendly.

PE100 Hdpe Polyethylene Pipe Irrigation 40mm Coil Pe Tube 25mm 32mm

Production process:

Loading pictures for your reference:

FAQ:

Q1. Are you trading company or manufacturer?

A: We are professional manufacturer and welcome to your visit at any time.

Q2. How long is your delivery time?

A: Generally it takes 5-10 days if the goods are in stock, which is depends on your quantity and can be negotiable.

Q3. Do you provide samples?

A: Yes, of course, sample is avalaible and for small quantity we can supply for free.

Q4. What is your terms of payment?

A: L/C, Western Union, T/T 30% in advance, balance before shipment .

Q5. For pipe fittings, what do you do mainly?

A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap, some electrofusion fittings and compression fittings.

Q6. Can I have my own logo on the product?

A: Yes, sure, you just need send us your drawing, we'll make logo for you and before production we will confirm with you in advance.

Q7. Can I request to change the method of packaging and transportation?

A: Yes, the packaging  and trasportation can be made as per your requirements.
