Power QS Motor 17*3.5inch 2000W 8000W 273 Brushless DC Electric Scooter Motorcycle Hub Motors

Product Overview

Description

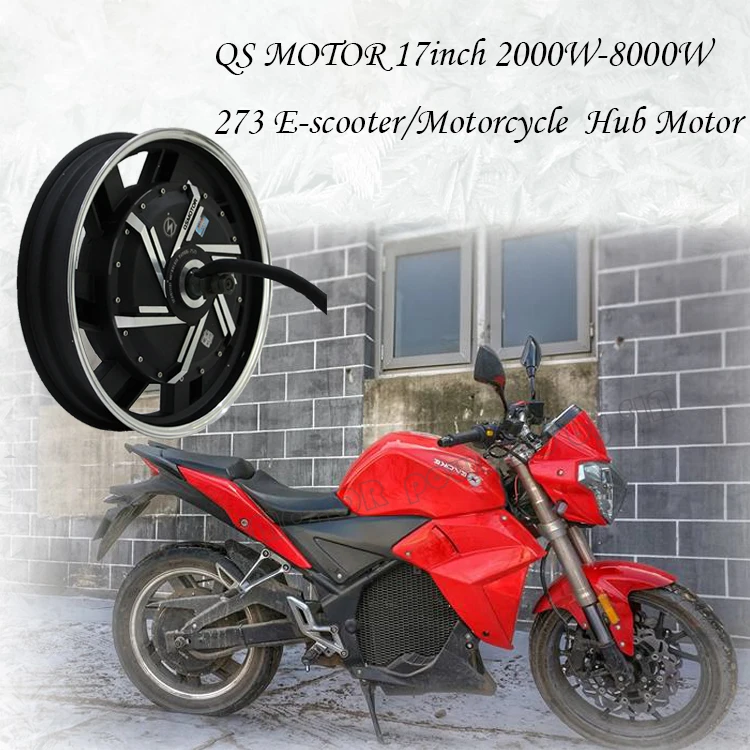

QS Motor 17*3.5inch 2000W-8000W 273 Brushless DC Electric Scooter Motorcycle Hub Motors



For 17inch E-scooter Wheel hub motor, it could be used for electric scooter, electric motorcycle.

273 motor means the diameter of iron ring of rotor is 273mm, for all 273 motor, e.g. 13inch,14inch,16inch & 17inch 273  hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.



------------------------------------------------------------------------------------------------------------------------



Table of contents

1. Comparing wheel hub motor with gear differential motor

2. QS Motor notice(Producing time/Warranty/Package/Certidication etc.)

3. QS Motor 17inch 2000W-8000W 273 Brushless DC Electric scooter Wheel Hub Motor List

4. Products description(SPEC, appearance, drawing)

5. Buying guides(How to find a suitable motor)

6. Application



------------------------------------------------------------------------------------------------------------------------



1. Comparing Wheel Hub Motor with Gear Differential Motor

1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in wheels, and easy to be hybrid car.

3). Easily to make 4-wheel drive, which could spot turn.

4). Support regenerative braking

5). High efficiency: 85~92%



2. QS Motor Notice Before Order (Producing time/Warranty/Package/Certidication etc.)

Pls. click below hyperlink of picture.

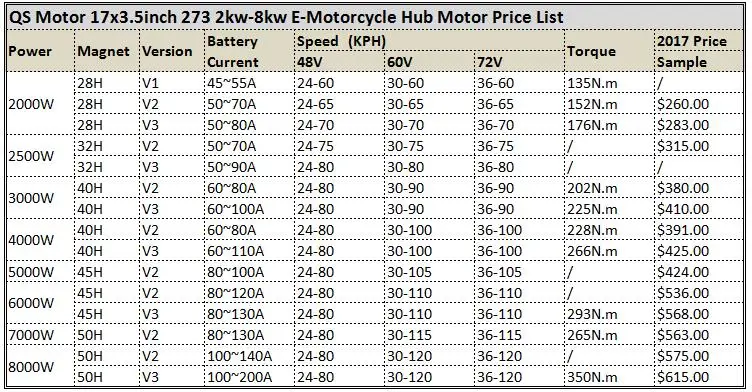

3. QS Motor 17inch 2000W-800W 273 Brushless DC Electric Scooter Wheel Hub Motor List

There are many options for the power, refer to below list.



 QS Motor Specification (e.g. 8000W 273 50H V3)

Item: QS MOTOR 17inch 8000W 273 50H V3 BLDC Electric Scooter Motorcycle Hub Motor

• Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
• Brand: QS Motor,QSMOTOR
• Motor Design: Double axle with 17inch moped Aluminum rim (integrated)
• Magnet Height: 50mm, 16 pole pairs
• Stator: Aluminmum Core
• Rated Power: 8000W (could be 21000W peak in few seconds)
• Rated Voltage: 96V as default (48V-144V, optional)
• Speed: 120KPH as default (24-120KPH, optional)
• kV: 6.0/9.0/13.0/14.9/18.0/19.4 etc.
• Max Torque: approx 350N.m
• Max Efficiency: 86-91%
• Continuous Battery Current: 104A (96V)
• Peak Battery Current: 210A (96V)
• Suggest Peak Phase Current: 530-660A
• Thermic Probe: KTY83/122 (as default, optional)
• Working Temperature: 70-120℃ , peak 150 ℃
• Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
• Drop-outs/Rear Fork Width for installation: 200mm
• Dual Hall Set with waterproof connectors
• 16mm² Cross Section of Phase Wire (not include insulation layer)
• Hall Sensor Phasing angle: 120 degree
• Waterproof Grade: IP54
• Color: Black (as default), Yellow or White/Luminous (extra $5.0)
• N.W./G.W.: 21.8kg/23.5kg   Package Dimension: 43cm*43cm*34cm/piece

PS. Temp Sensor Options: KTY84/130, KTY83/122, 10K@25C NTC(model MF58-103F3950).

QS Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.



For the max continuous rating power, the data should be tested in lab, which means no further temp rise at the power (e.g. 100 degree inside of motor at the power). Unluckly, all the continuous power rating is not done yet.

Due to our understanding and feedback of customer, for 205 3000W V3 motor, the max continuous power could be 6000W, peak power 12kW (even 18kW). For EV enthusiastic, they could input more power to enjoy the high performance, but the motor might suffer from over heating or even burnt. For EV Manufacture, we should notice the potential performance of motor, and keep some allowance for the whole e-scooter kits. include motor, controller, battery. to get them as stable as possible & decress the repair rate (consider all the usage environment). E.g. 3000W as continuous rating power.



More QS Motor Informaiton:

Optional Appearance

Motor Details, drawing, performance curve/test report are available.

For more information, please feel free to contact with us.

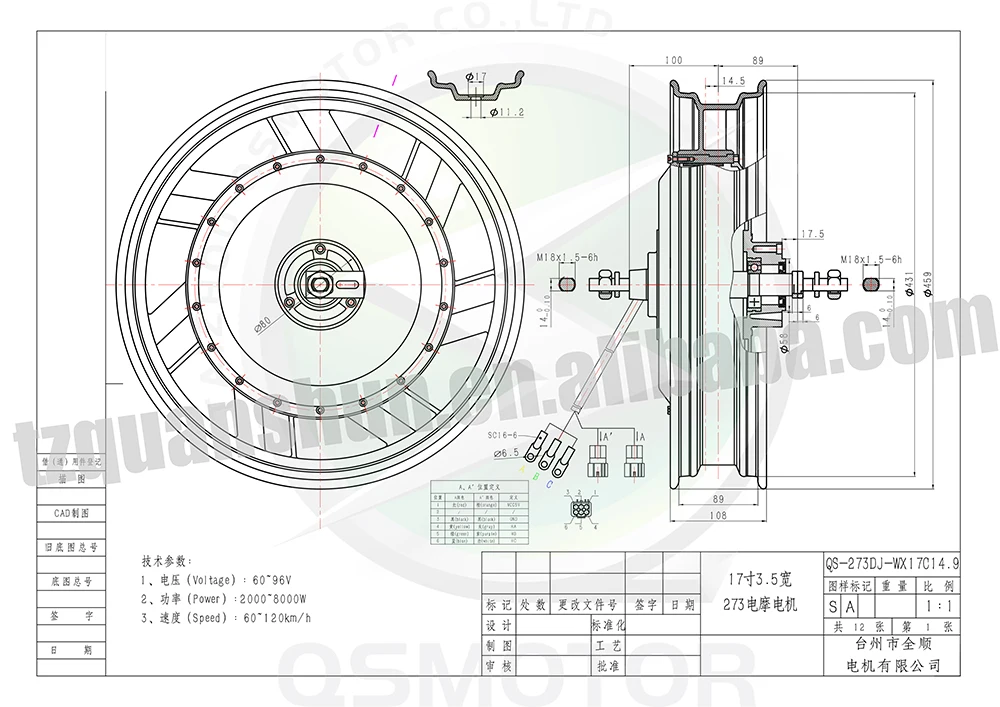

Drawing:

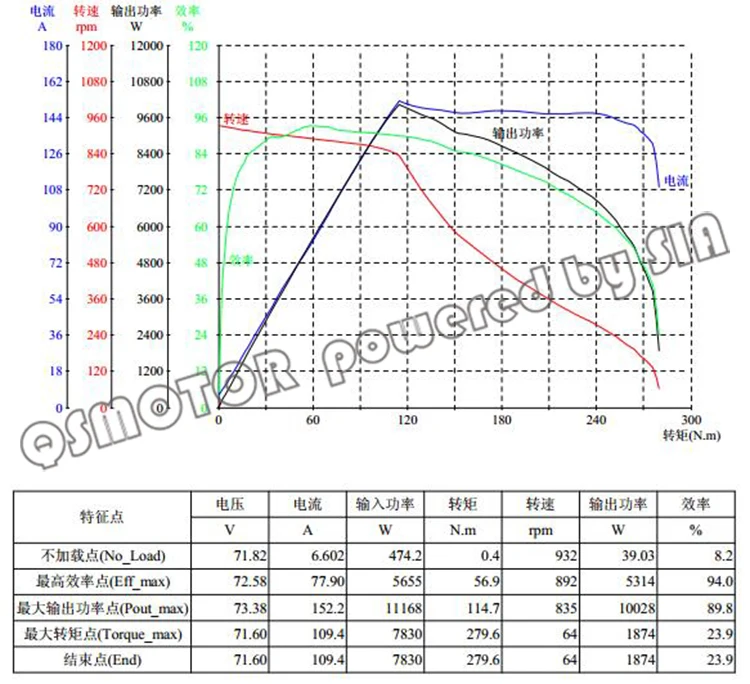

 Test Report:
