Small Portable Stone Crusher Mini Hammer Crusher, High Quality Mini Hammer Crusher, Small Portable Rock Crusher

Product Overview

Description

Small Portable Stone Crusher Mini Hammer Crusher,

High Quality Mini Hammer Crusher, Small Portable Rock Crusher

I. Introduction Of Small Stone Crusher Machine, Mini Hammer Mill Crusher

This series of hammer crusher is applicable for crushing brittle minerals, such as coal, salt, plaster, alum, brick, tile and limestone with compression strength no more than 100mpa and humidity no more than 15%. The hammer crusher crushes by the collisions between high-speed hammer and materials. The PC hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building and petroleum & chemical industries.





II. Working Principle Of Small Stone Crusher Machine, Mini Hammer Mill Crusher



The motor drives the rotor rotates of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.



III. Description Of Small Stone Crusher Machine, Mini Hammer Mill Crusher

Hammer crusher are used for various hard and fragile materials, like limestone, coal, salt, brick and etc. The crushing compression strength of the material should not more than 150Mpa. Hammer crusher is mainly used in industries of cement, coal, electricity, chemical and so on.



Features Of Small Stone Crusher Machine, Mini Hammer Mill Crusher

 1. High yield.                                                      (Small Stone Crusher Machine, Mini Hammer Mill Crusher)

 2. Less wearing parts.                                         (Small Stone Crusher Machine, Mini Hammer Mill Crusher)

3. Uniform discharging size.                                   (Small Stone Crusher Machine, Mini Hammer Mill Crusher)

4. Large crushing ratio.                                         (Small Stone Crusher Machine, Mini Hammer Mill Crusher)

5. Long service life, lower cost of operation.         (Small Stone Crusher Machine, Mini Hammer Mill Crusher)



 Parameter Of Small Stone Crusher Machine, Mini Hammer Mill Crusher

Type	Feeding size (mm)	End size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PC400x300	≤100	≤10	5-10	11	800
PC600x400	≤120	≤15	10-25	18.5	1500
PC800x600	≤120	≤15	20-35	55	3100
PC1000x800	≤200	≤13	20-40	115	7900
PC1000x1000	≤200	≤15	30-80	132	8650
PC1300x1200	≤250	≤19	80-200	240	13600

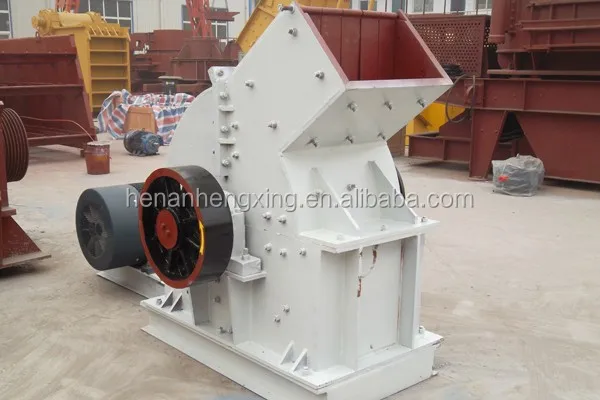

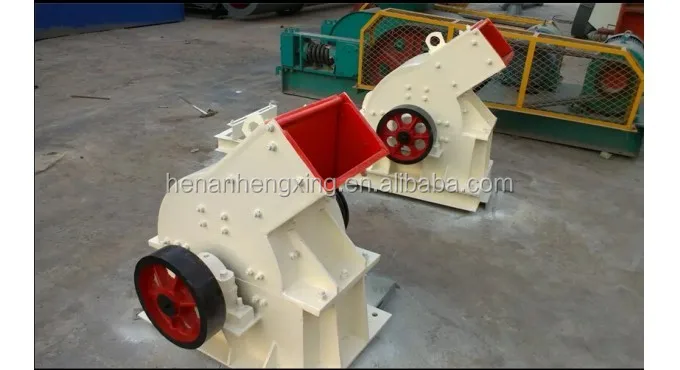

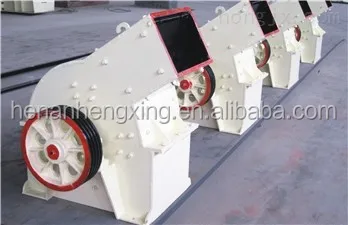

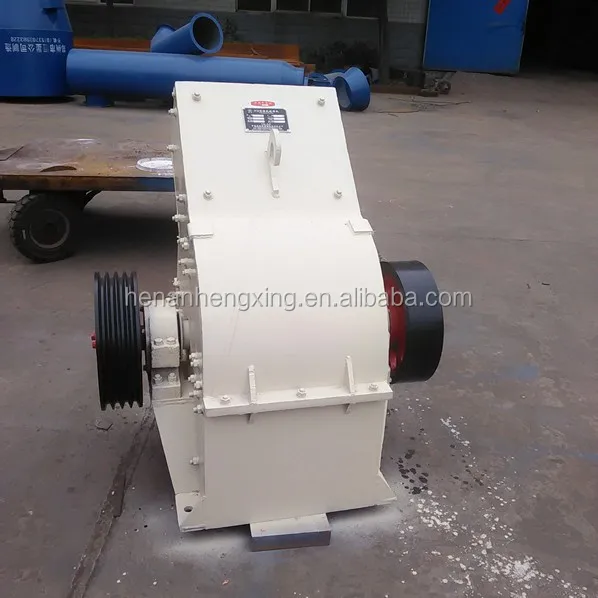

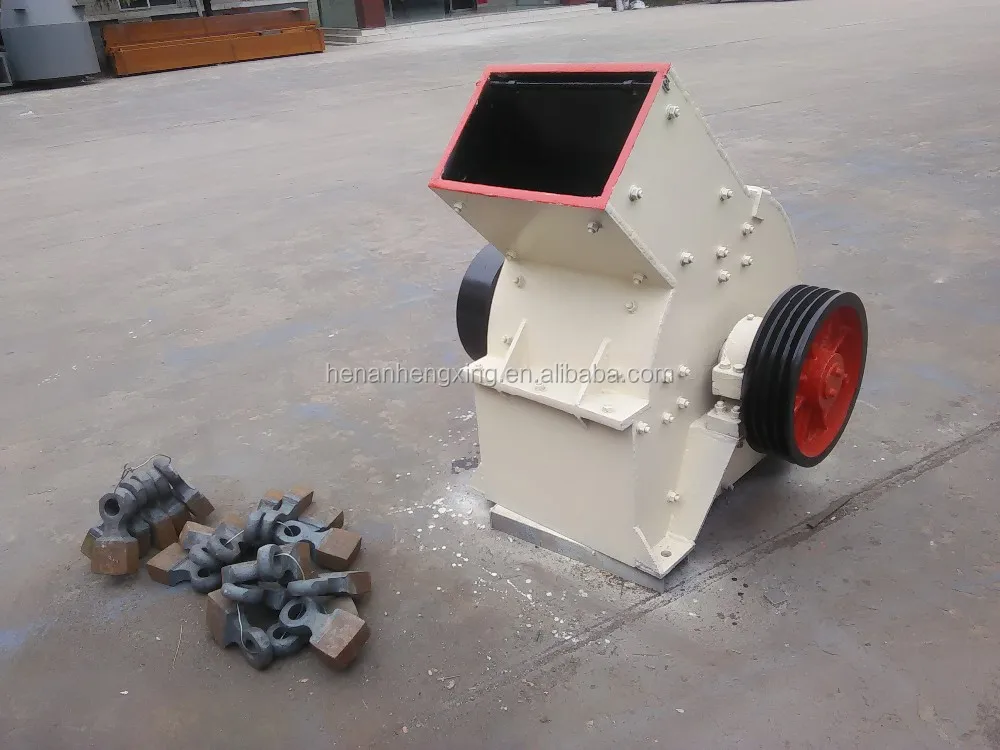

Photos Of Small Stone Crusher Machine, Mini Hammer Mill Crusher







Head Of Small Stone Crusher Machine, Mini Hammer Mill Crusher
