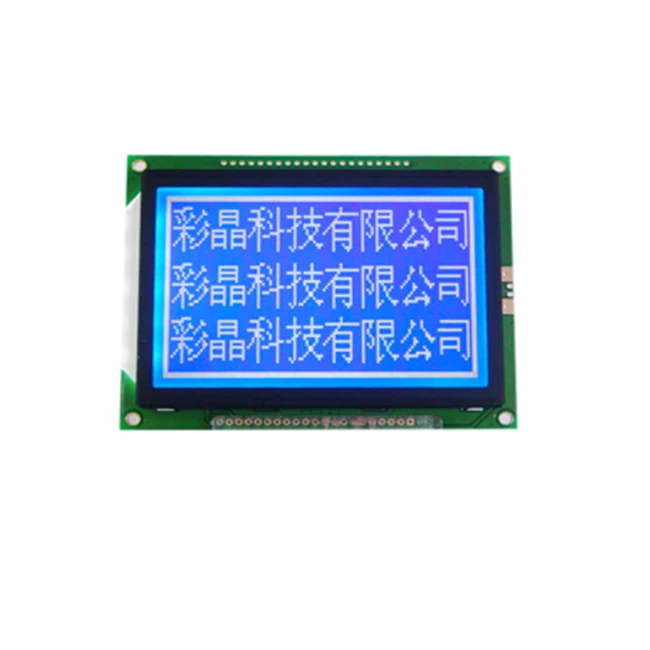

3.3v programmable 128x64 monochrome lcd display

Display type: COB STN/FSTN

Dot matrix: 128 x 64 pixels

Duty: 1/64

Bias: 1/9

Input voltage: 5.0/3.3V DC

Controller: KS0108 or equation

Connector: zebra

6 O'clock viewing direction

LED backlight color: white/blue/yellow green

Operating temperature: 0 to 50/-20 to +70°C

Storing temperature: -10 to 60/-30 to +80°C

Module dimensions (W x H x T): 107.0 x 85.0 x 9.5mm

VA (W x H): 88 x 60mm

AA (W x H): 83.15 x 54.99mm

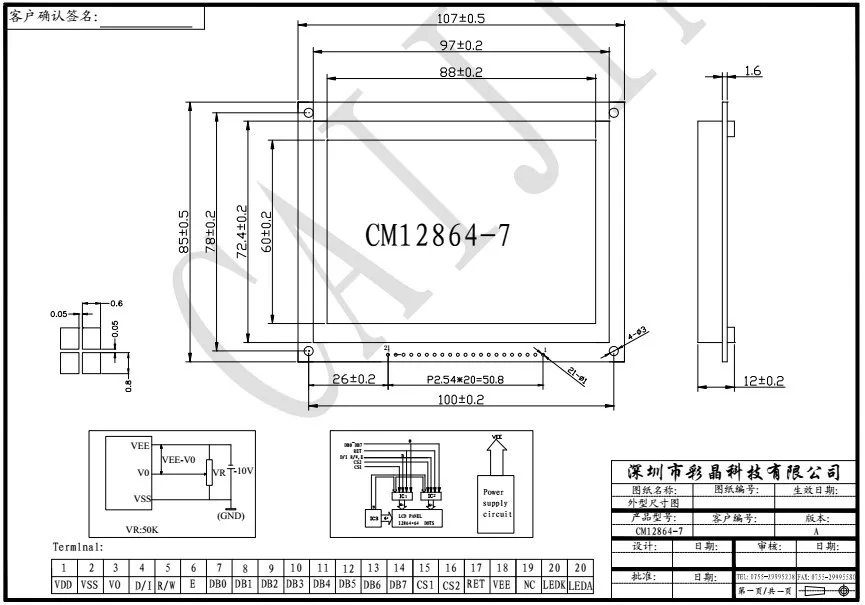

 Drawing for 3.3v programmable 128x64 monochrome lcd display

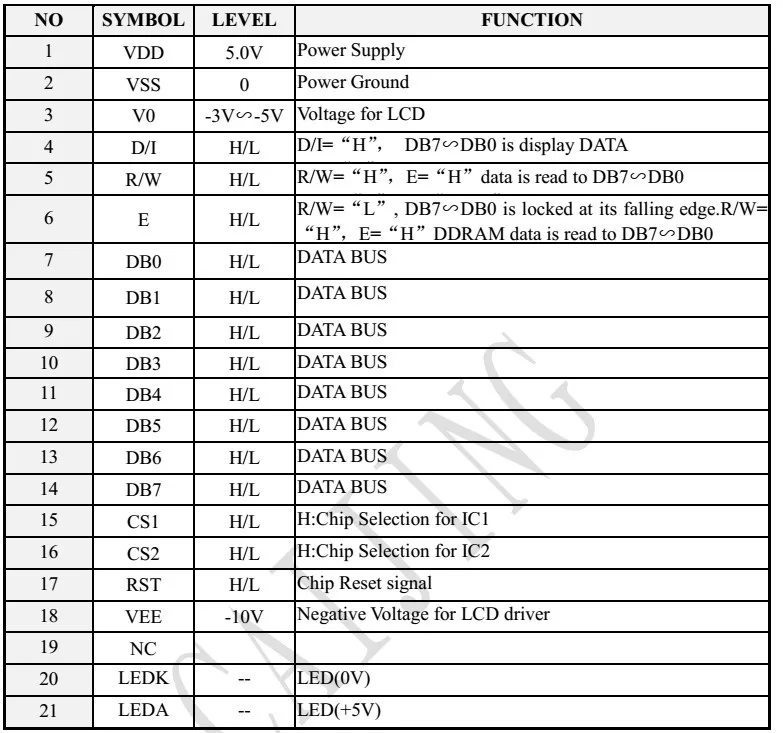

 PINS CONNECTION FOR  3.3v programmable 128x64 monochrome lcd display

 3.3v programmable 128x64 monochrome lcd display

How to custom LCD

Step 1: Offer us your requirements according the below table or send us your drawing directly
Step 2: Our engineer check it and confirm
Step 3: If confirmed ,pay us tool fees
Step 4:Send you the final drawing and you sign your name on it .
Step 5:Received your payment and start to produce sample
Step 6:ship samples and offer technology support

 Our products are widely used in household appliances, communications equipment, automotive electronics, instrumentation, health care equipment, financial tax control, consumer digital and other display products.
  Household Appliances Products Small Appliance Control Panels, Air-Conditioning Refrigerators, Microwave Households, Induction Cookers, Electronics, Pressure Cookers, Water Dispensers, Gas Stoves, Water Heaters, Fans, Heaters, Heaters, Washing Machines, Clothes Dryers, Air Purifiers , dehumidifiers, humidifiers, purifiers, sterilizers, filing cabinets, stereo water makers, wine coolers, soya-bean milk makers, coffee makers, toasters, kettles, yogurt makers, electric ovens, radiant ovens, electric steam cookers, shoes Cabinets, disinfection cabinets, range hoods, tea appliances and other controllers;
  Communication equipment products, smart card swiping, live machine, walkie-talkie, fax, etc.
  Automotive Electronic Products - Automotive Instrumentation, Automotive Fault Detectors, Drive Recorders, Tire Pressure Sensors, Car Audio, Parking Sensors, Alarms, etc.
  Instrumentation products, inkjet printers, spacecraft safety, temperature instrumentation, water safety, electricity meters, multimeters, pressure gauges, flow meters, display instruments, electrical instruments, electrical quantities, instrumentation, analytical instruments, electrochemical instruments, Optical instruments, measuring instruments, etc.
  Health care equipment, slimming instrument, massage instrument, digital electrocardiograph, multi-functional cervical spondylosis therapeutic instrument, artificial massage instrument, electronic blood t gauge, fat exercise machine, health shaping machine, beauty and body instrument, and medical instruments;
  Financial tax control products eleven tax-controlled cash registers, POS machines, USB-KEY male printer, point) machine. Tax control plus machine, tax control billing machine, etc.

Shenzhen Brilliant crystal Technologic Co.,ltd  a professional Character and Graphic LCD manufacturer.graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 122x32, 128x64, 128x128, 256x64, 160x128, 160x160, 160x32, 160x80, 192x64,240x128 dots 240x64, 320x240 and etc. The sizes are including 3" LCD, 3.2" LCD, 4" LCD Display, and etc. Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.

1.Are custom displays more expensive than standard displays?
No,It only means you need pay some tool fees .
2.Can I modify an existing standard display?
Yes, we consider this semi-custom, and anything is possible.It will help you save tool fees .
3.What's you MOQ?
If there is stock,we have no MOQ
If no stock ,Gernerally speaking ,
The MOQ is 1000 pcs for COB styles
3000~5000pcs for segment and COG style
300~500pcs for TFT lcd module styles .
4.What is your Delivery time
1~2 days for sample making.
7-10 days for mass production has raw material stock
30~45 days if no stock raw material
5.How long is your display span
Most of our displays run 7-10 years
