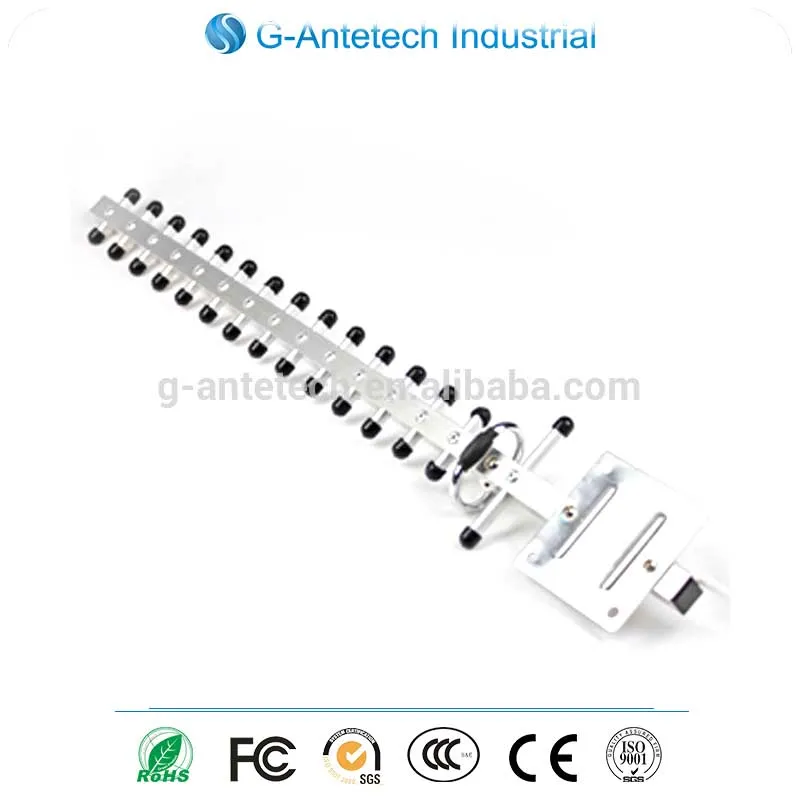

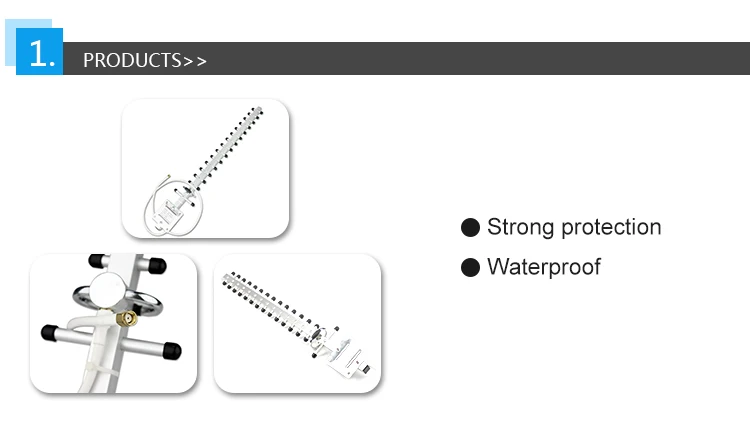

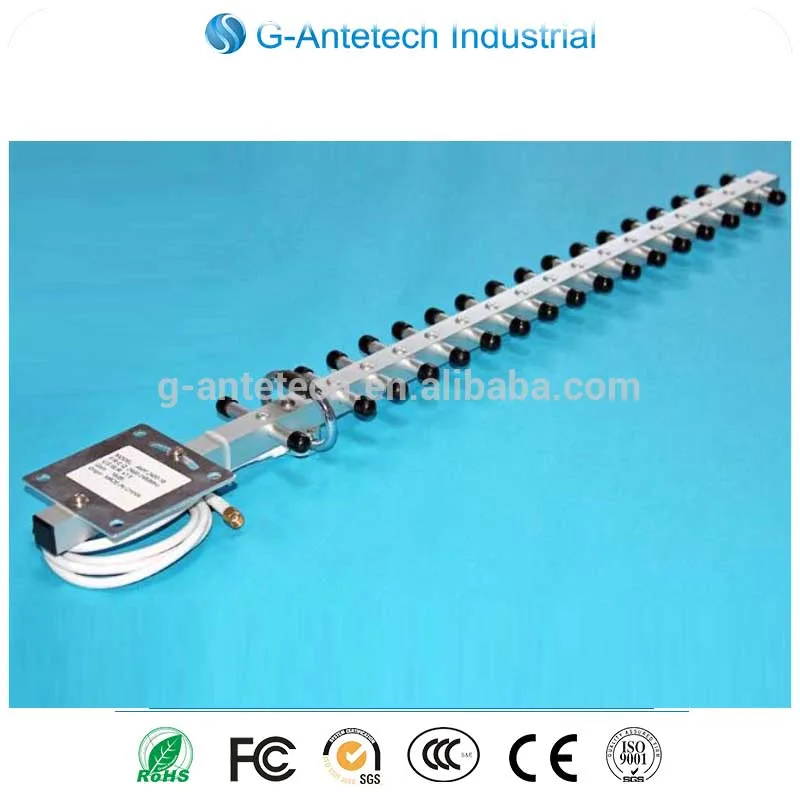

Free sample high gain 18db 1710~2170mhz 1800MHZ 3G system yagi uda antenna

Mechanical Specification

Model

GA-D1900Y18A18

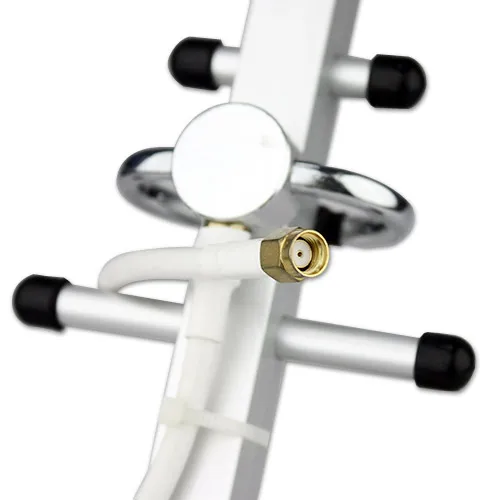

Connector

N-Female or customized

Frequency Range-MHz

1920-2170

Dimension-mm

660*75*45-mm

Bandwidth (Mhz)

 250mhz

Weight

0.6Kg

Gain-dBi

18

Holding pole

Φ40-Φ50-mm

Vertical Beamwidth -°

V:25°

Temperature

-40 to +85-℃

Horizontal Beamwidth -°

H:30°

Material

Aluminum

F/B Ratio

≥15

Wind resistance

VSWR

≤1.5

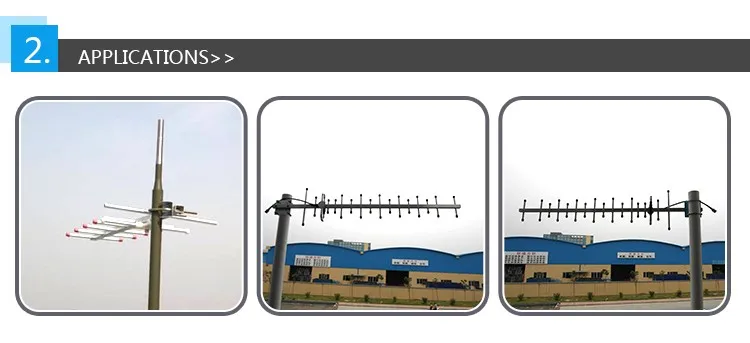

Applications

Polarization

Vertical

* 3G system
* PCS, PHS, SCDMA system
* Point to point system
* Client antenna
* Repeater

Maximum Power -W

100 -W

Input Impedance -Ω

50 -Ω
