professional wire cut edm machine manufacturers

Share on (60655093159):


Price:

Quantity:


Product Overview

Description



Product Description


professional wire cut edm machine manufacturers
Technical parameter
Unit
DK7732ZAC
DK7740ZAC
DK7750ZAC
DK7763ZAC
DK7780ZAC
Table size (W*D)
mm
440×680
540×760
640×1020
750×1180
950×1440
Table travel (X*Y)
mm
320×400
400×500
500×630
630×800
800×1000
Table size(U*V)
mm
320X320
Max. workpiece weight
kg
600
1000
1600
2000
2300
Max. thickness of workpiece
mm
400
Max. taper angle/workpiece thickness

60°/100mm
Molybdenum Dia.
mm
φ0.15~φ0.2mm(recommend φ0.18mm)
Max. wire feed rate
m/sec
1~11.4m/sec  frequency adjustable
Machining precision
mm
≤0.015
Max. machining speed
mm2/min
≥200
Surface roughness
μm
one time Ra≤2.5,three times Ra≤1.1 five times Ra≤0.9
Motor type

X,Y,U,V stepper motor
axis controlled

4 axis simultaneous
Min.control pace
mm
0.001
Power supply

380V,3Ph,50Hz
Max. working current
A
10
Power consumption
Kw
1
Work liquid

JR3A
Water tank
L
90
Filtering mode

Paper filter/Italy pump
Controller

DQE-DM-03/DQE-DC-01
Closed protective cover

standard
Machine weight
kg
1800
2400
2800
3800
5800

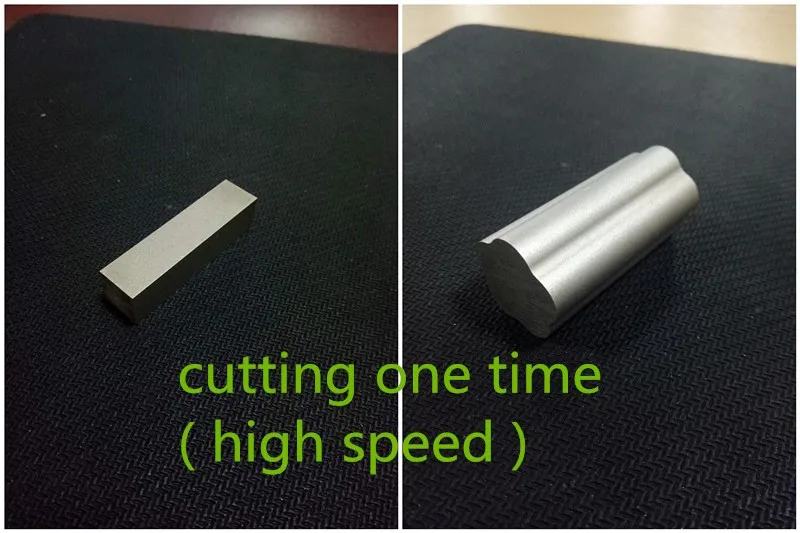

Cutting samples




Company profile




Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.

The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut edm, Die sinking edm and Micro hole drilling edm.

The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. “Innovation, development and win-win situation” makes TOPSCNC enjoy high reputation in this line.

TOPSCNC people wish to share success with you in the future!


Certificate




TOPSCNC Customer






Our service


1) Quality : We take care of the product quality in order to provide good service to our customers.

2)Warranty: One year after shipment,consumables are not included.

3)The quotation do not include installation and education training fee.

4) Payment Method: T/T or L/C
T/T 30% with the order, the rest 70% of total amount T/T before shipment.

5) Delivery time : 20--25 days

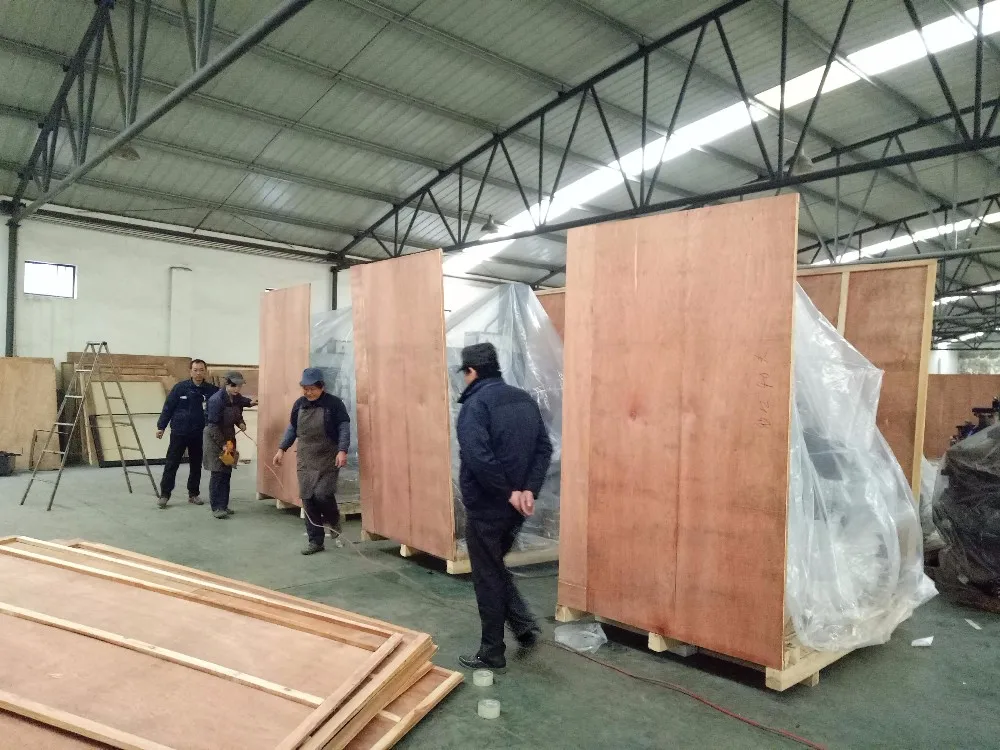

6) Packing : Standard export wooden cases

7) Port: Shanghai or any China port




Related Products






Contact Us


Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd

Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China

Tel:0086-523-86290115

Mobile:+86-18860892195

Web:www.topscnc.cn
