Product Overview
Description
Product Description
*Usage and Characteristics*
Impact specimen gap broaching machine is necessary and special equipment of metallurgy, pressure vessel,vehicles and vessels, construction machinery manufacture industries and departments of science&research.
So far this kind of machine includes
impact specimen gap hydraulic broaching machine(double knives),
impact specimen gap power-driven broaching machine(double knives),
impact specimen gap power-driven broaching machine(three knives),
impact specimen gap manual broaching machine(single knife).
This product satisfies GB/T229-2007 which also can satisfy American standard, European standard like ASTM E23-02a,EN10045,ISO148,ISO83 and other international standards.
*Advantages*

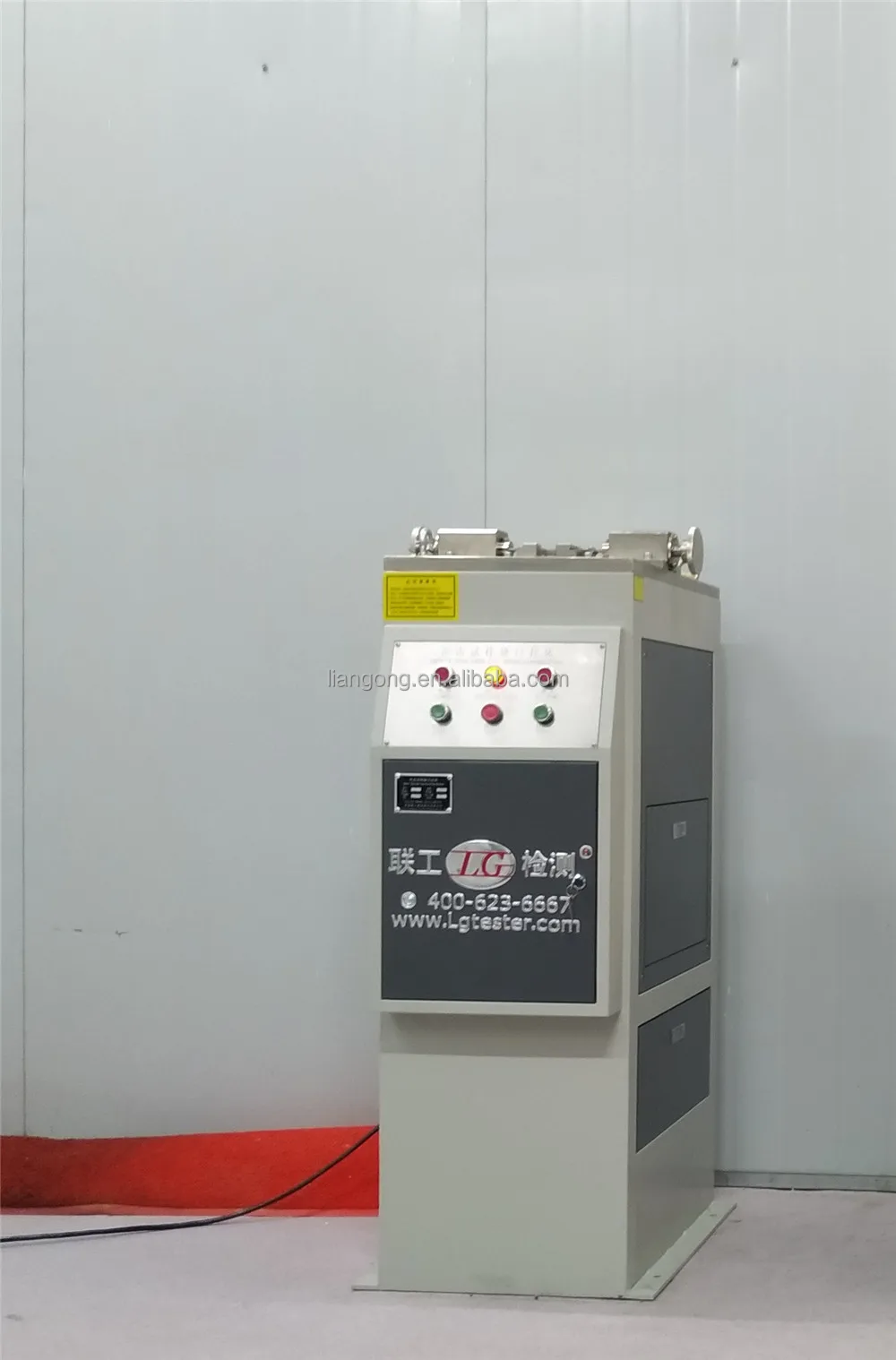

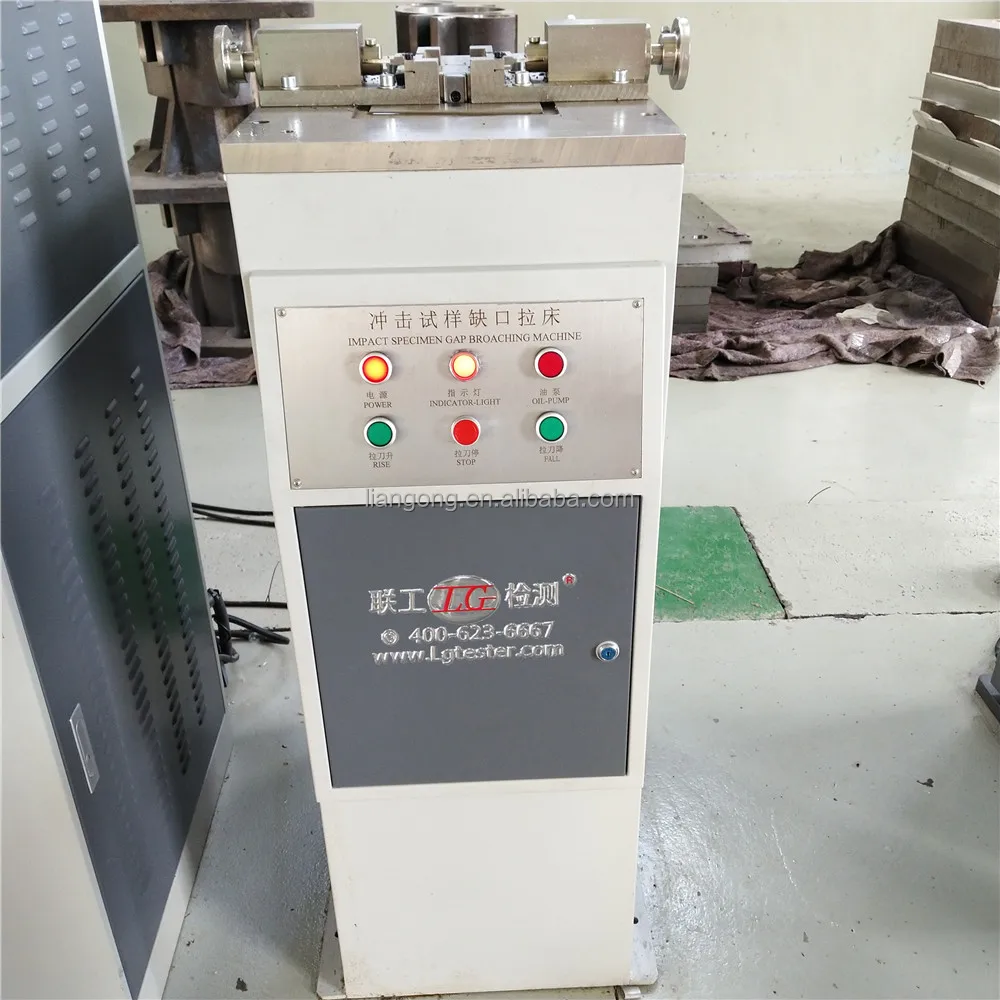

CSL-Y Impact Specimen Gap (double knives) Hydraulic Broaching Machine
1.It adopts hydraulic drive, run steadily. It can ensure geometric accuracy of gap.
2.It makes use of the principle of one-time-molding.Its processing identity is very good. It can assure gap 100 percent qualified.
3.The broaching knife is made of imported W18Cr4V material. Its hardness is high and its wear-resistance is excellent. Each broaching knife can process up to 20,000 specimens.
4.It is equipped with double-pole and processes two specimen gaps simultaneously with a “V” type and a “U” type (also two “V” or two “U” type). Whether processing “V” or “U” notch, the pole do not need changing. Processing specimen gap only needs 8 seconds.
5.It is equipped with special lubrication device which has good lubricity to avoid damaging broaches. The inside of equipment has recycling box for iron chips to facilitate clearance.

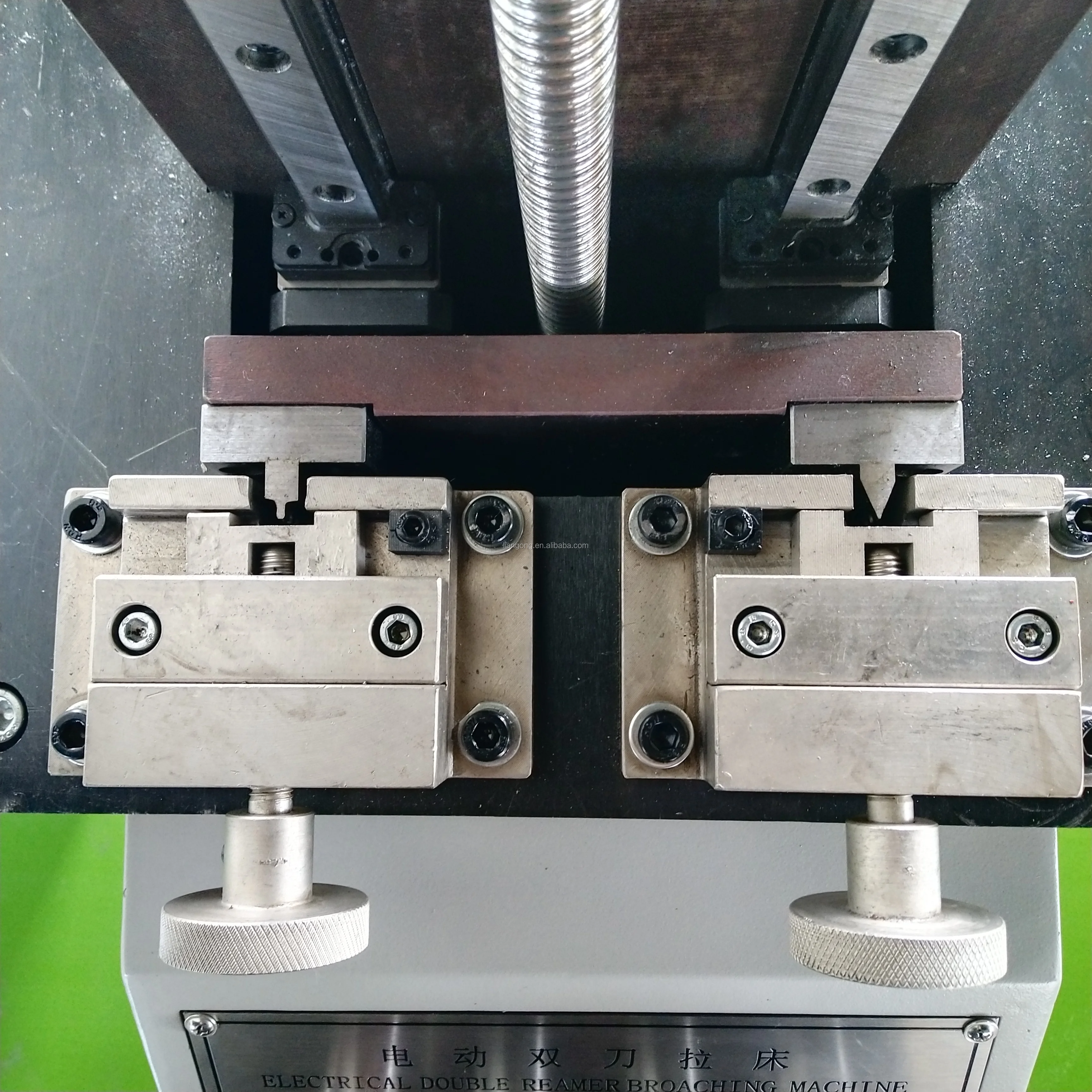

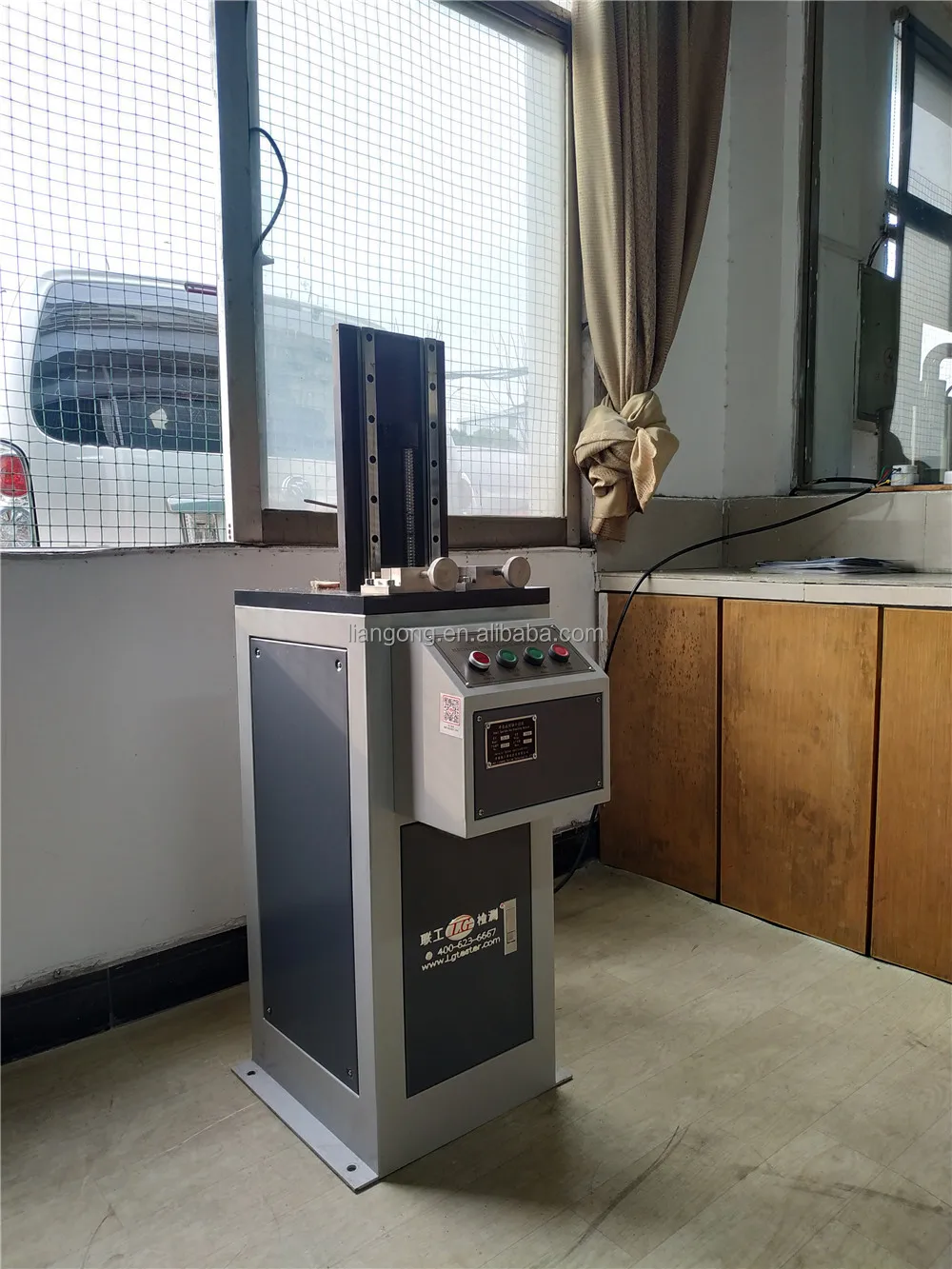

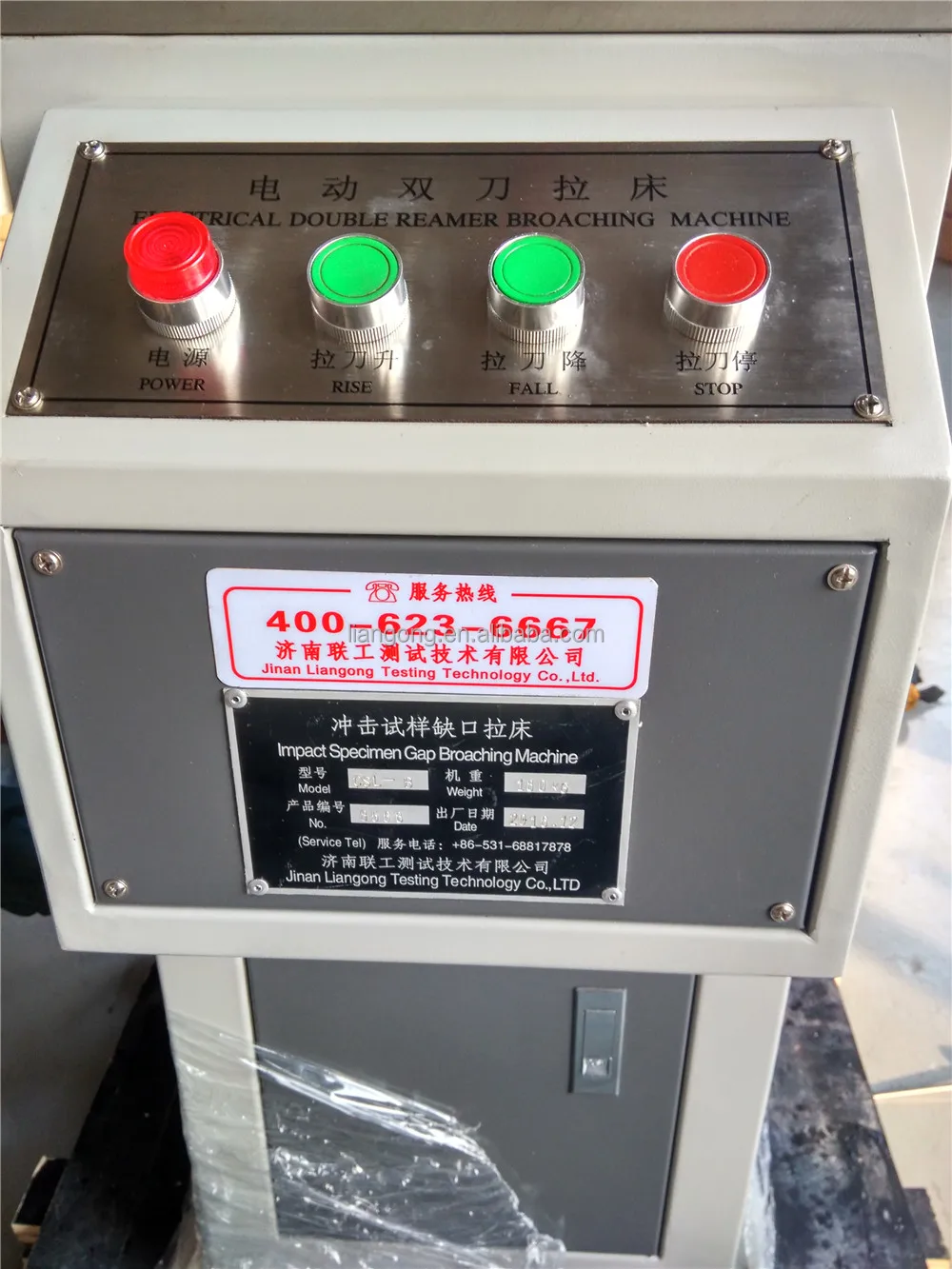

CSL-B Impact Specimen Gap Power-driven Broaching Machine

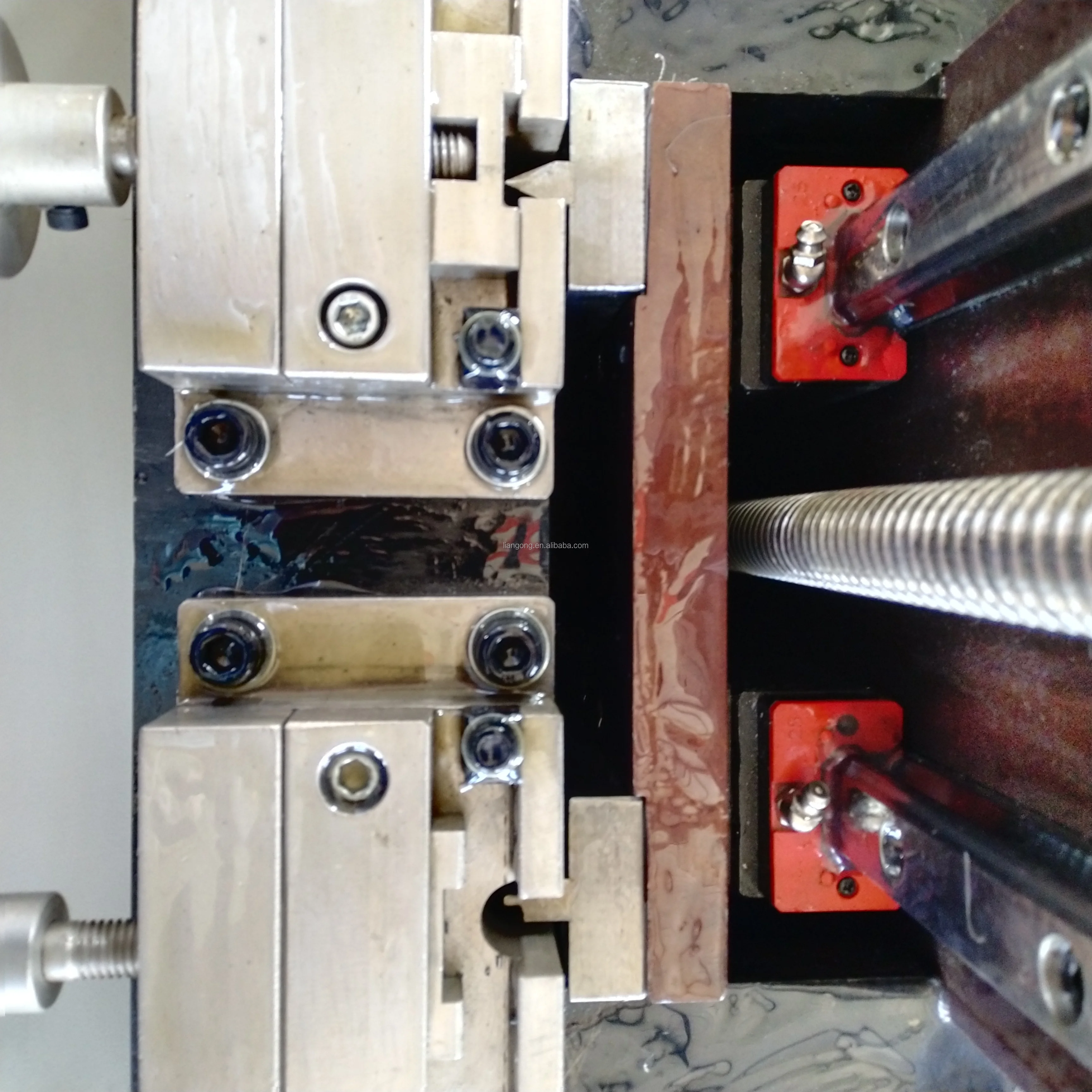

1.It adopts high precision ball screw drive and linear guide track for support. This structure ensures stability of the broach and geometric precision of gap.
2.It makes use of the principle of one-time-molding. Its processing identity is very good.It can assure gap 100 percent qualified.
3.The broaching knife is made of imported W18Cr4V material. Its hardness is high and its wear-resistance is excellent. Each broaching knife can process up to 20,000 specimens.
4.It is equipped with double-pole and processes two specimen gaps simultaneously with a “V” type and a “U” type (also two “V” or two “U” type). Whether processing “V” or “U” notch, the pole do not need changing. Processing specimen gap only needs 10 seconds.
5.This equipment is our patent product.

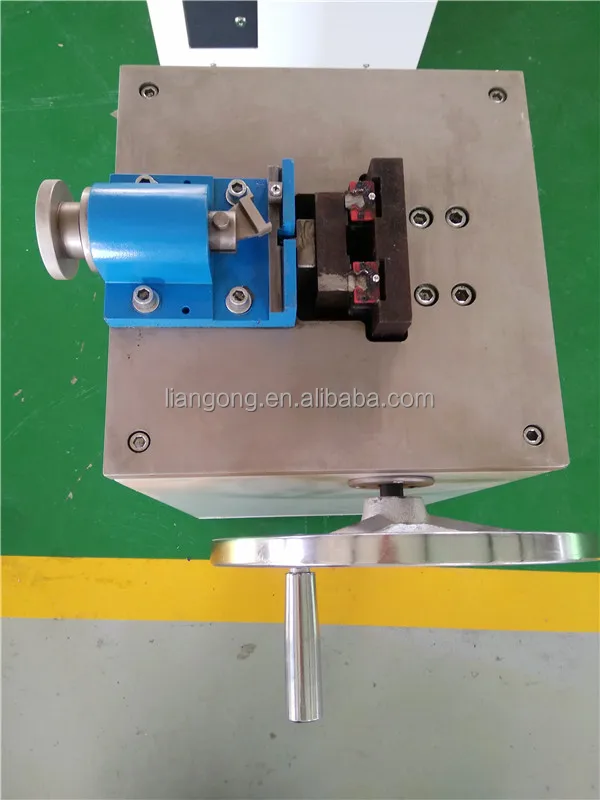

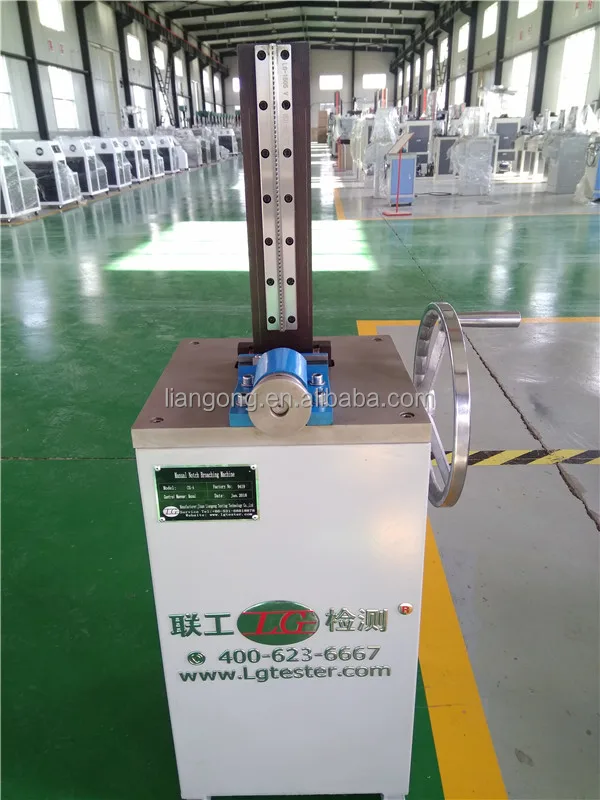

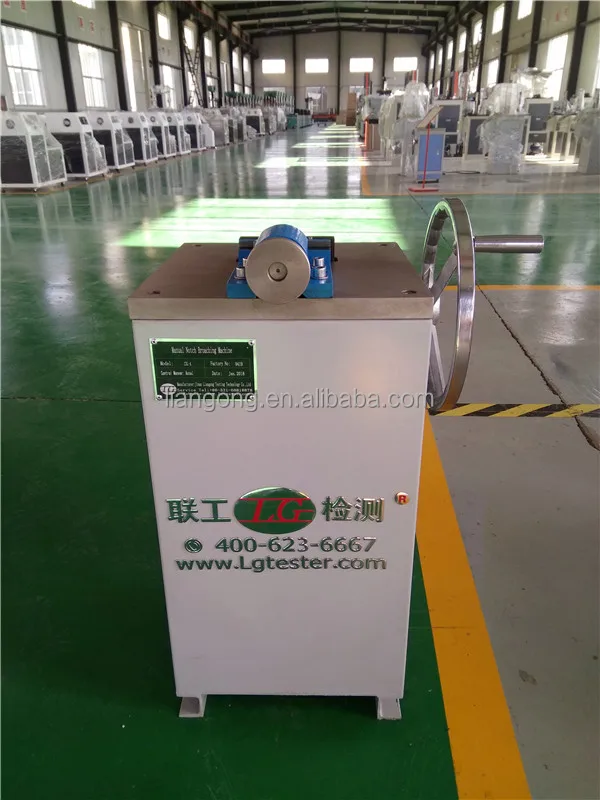

CSL-A Impact Specimen Gap (single knife) Manual Broaching Machine
1.CSL-A machine is a manual structure and it has the advantages of manual operation, without power, low cost and is applied to departments or schools whose testing volume is smaller.
2.This machine makes use of the principle of one time molding.Its processing identity is very good. It can assure gap 100 percent qualified.
3.The broaching knife is made of imported W18Cr4V material. Its hardness is high and its wear-resistance is excellent. Each broaching knife can process up to 20,000 specimens.
4.You can select one of V-type or U-type broaching knifes according to your own needs. More flexible and convenient.
*Main Technical Parameters*

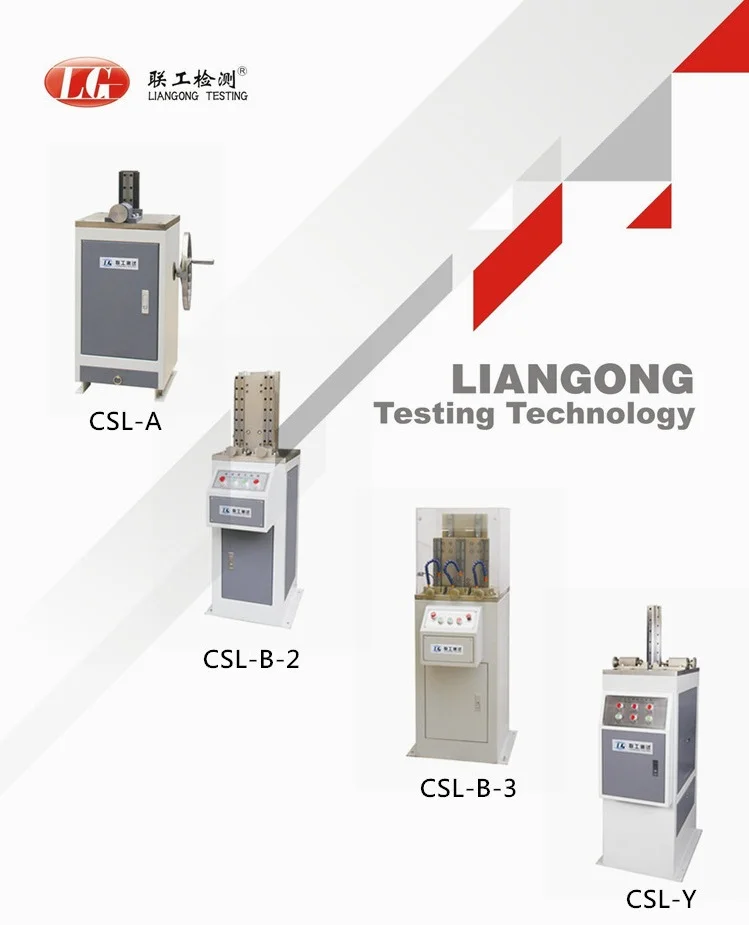

Model | CSL-Y | CSL-B-2/3 | CSL-A |
Specimen gap shape | V-or U-(2mm) | V-or U-(2mm) | V-or U-(2mm) |
Processing the Specimen size | 10*10(7.5 or 5)*55mm | 10*10(7.5 or 5)*55mm | 10*10(7.5 or 5)*55mm |
Drive mode | Hydraulic | High precision ball screw | Manual |
Broach stroke | 350mm | 350mm | 350mm |
Broach Materials | W18Cr4V | W18Cr4V | W18Cr4V |
Cutting speed | 2.5m/min | 2.3m/min | / |
Power | 3-phase 4-wire 380V 50Hz 0.4KW Main motor 0.37KW | 3-phase 4-wire 380V 50Hz 0.5KW Main motor 0.4KW | no electricity |
Dimensions (mm) | 660*400*1200mm | 350*570*1250mm | 430*400*770mm |
Weight | 200Kg | 180Kg | 100Kg |

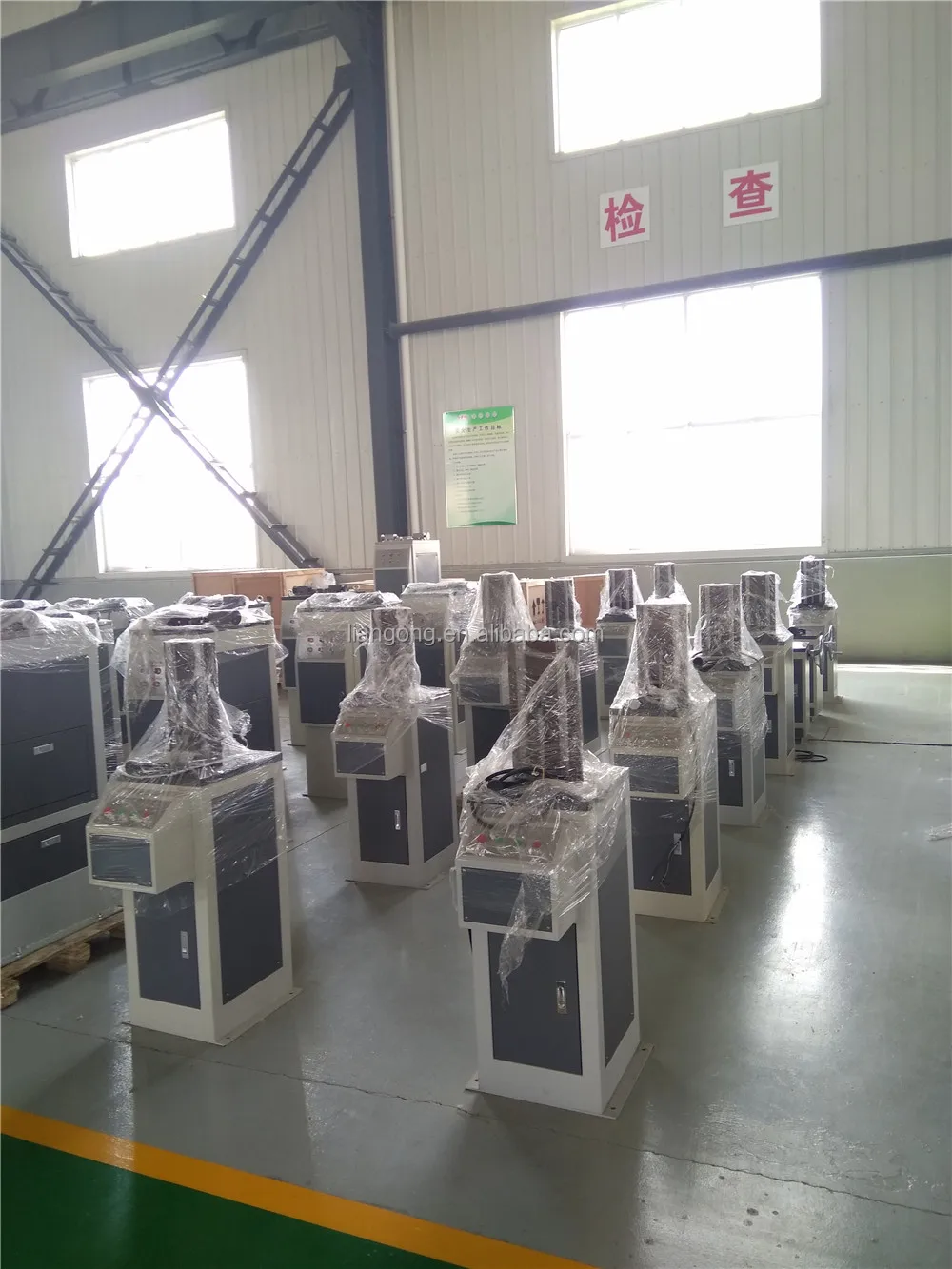

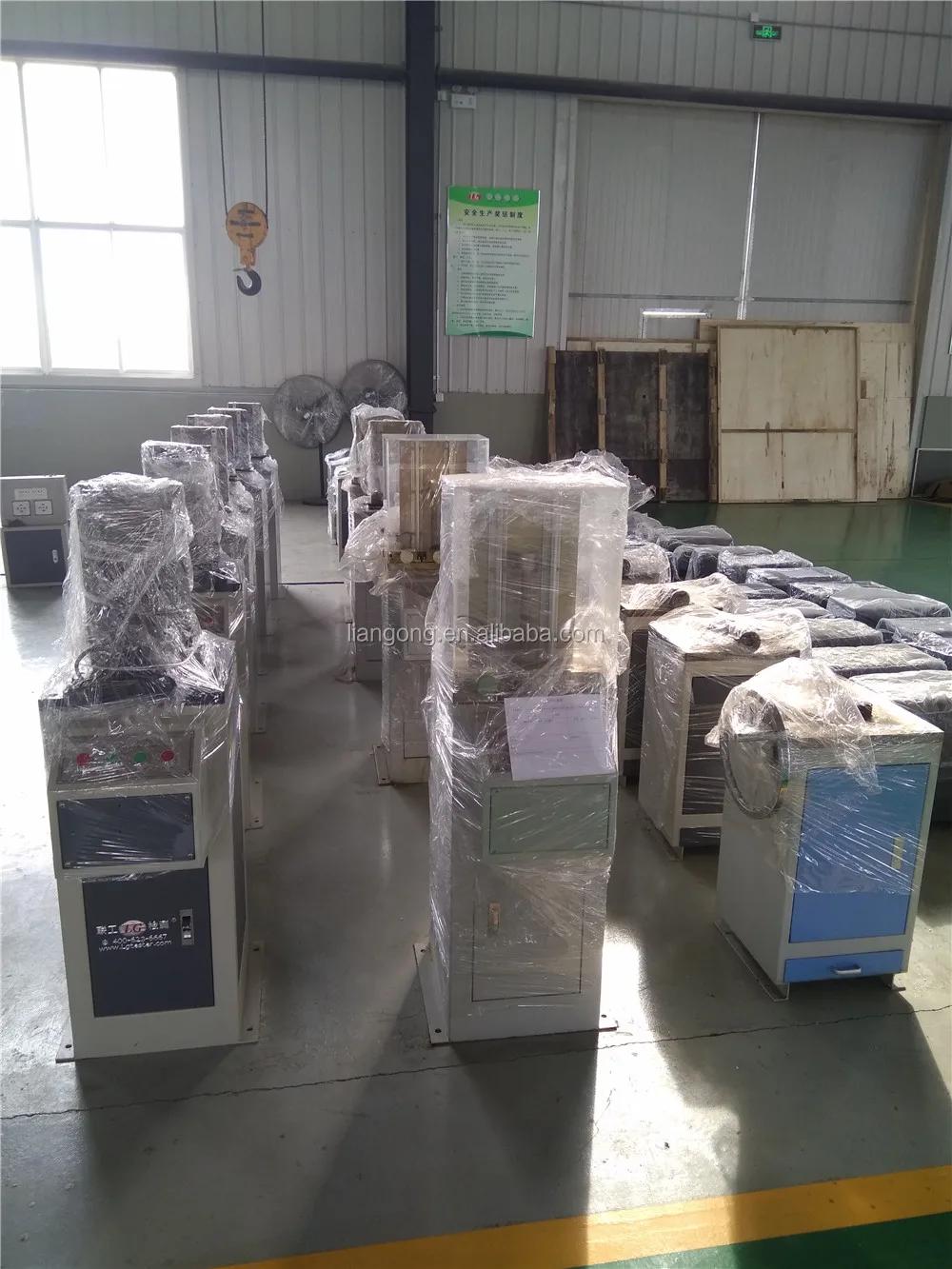

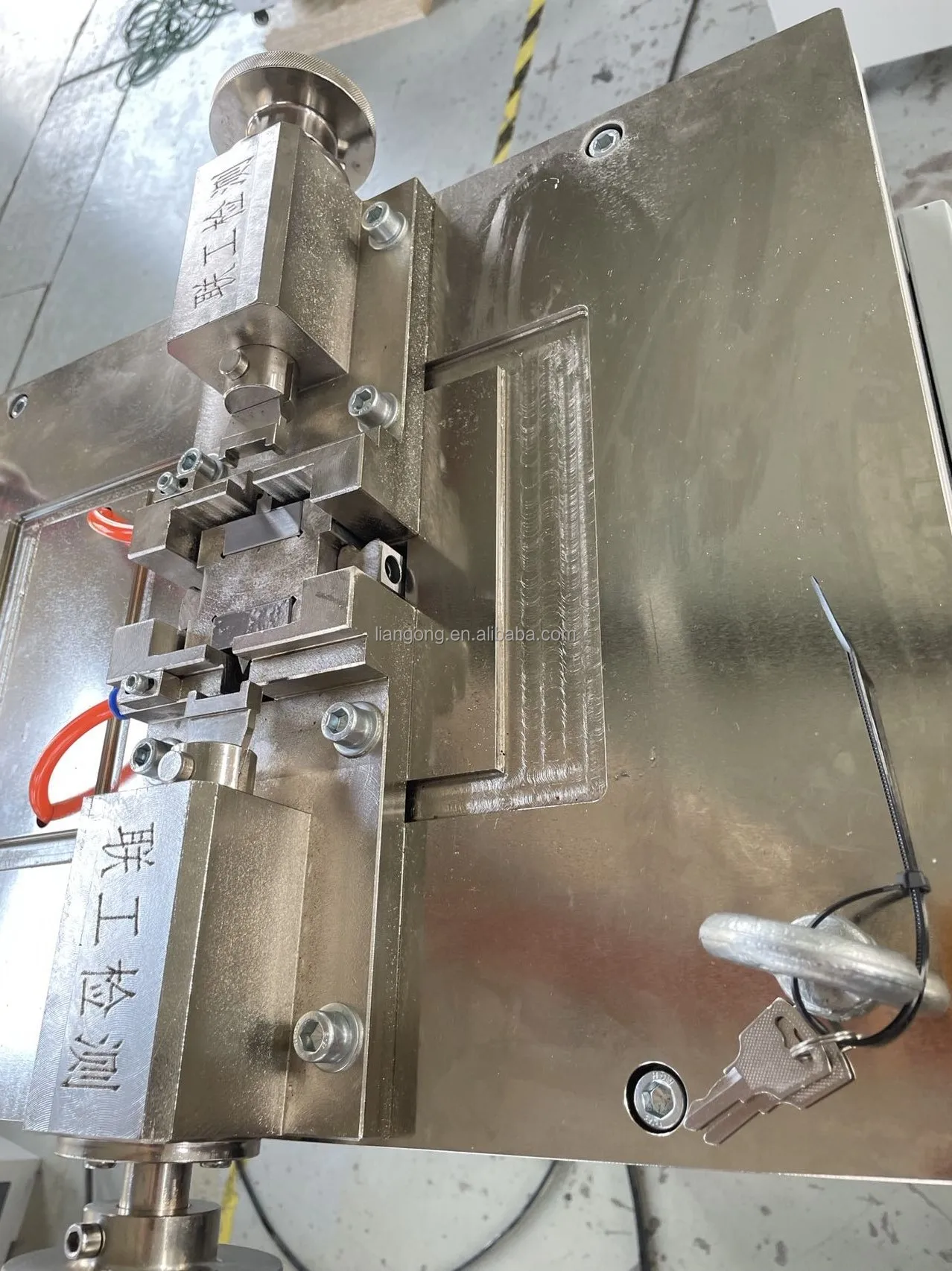

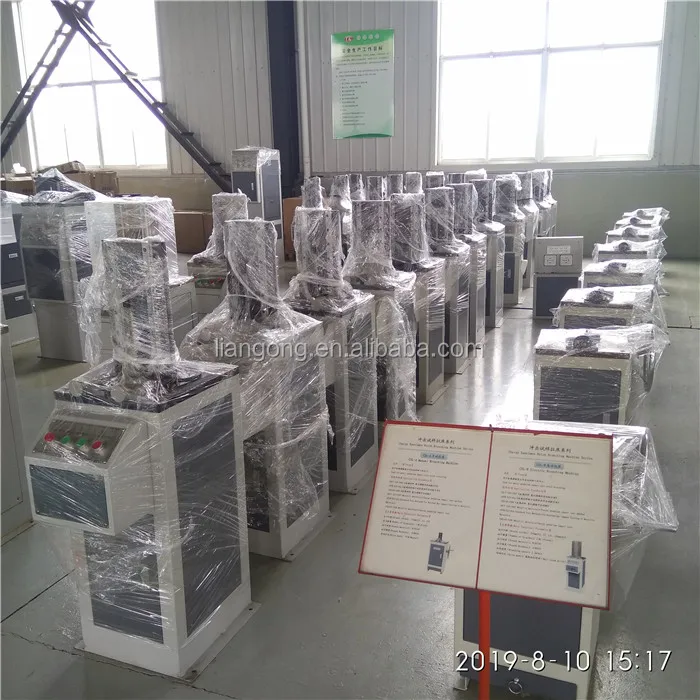

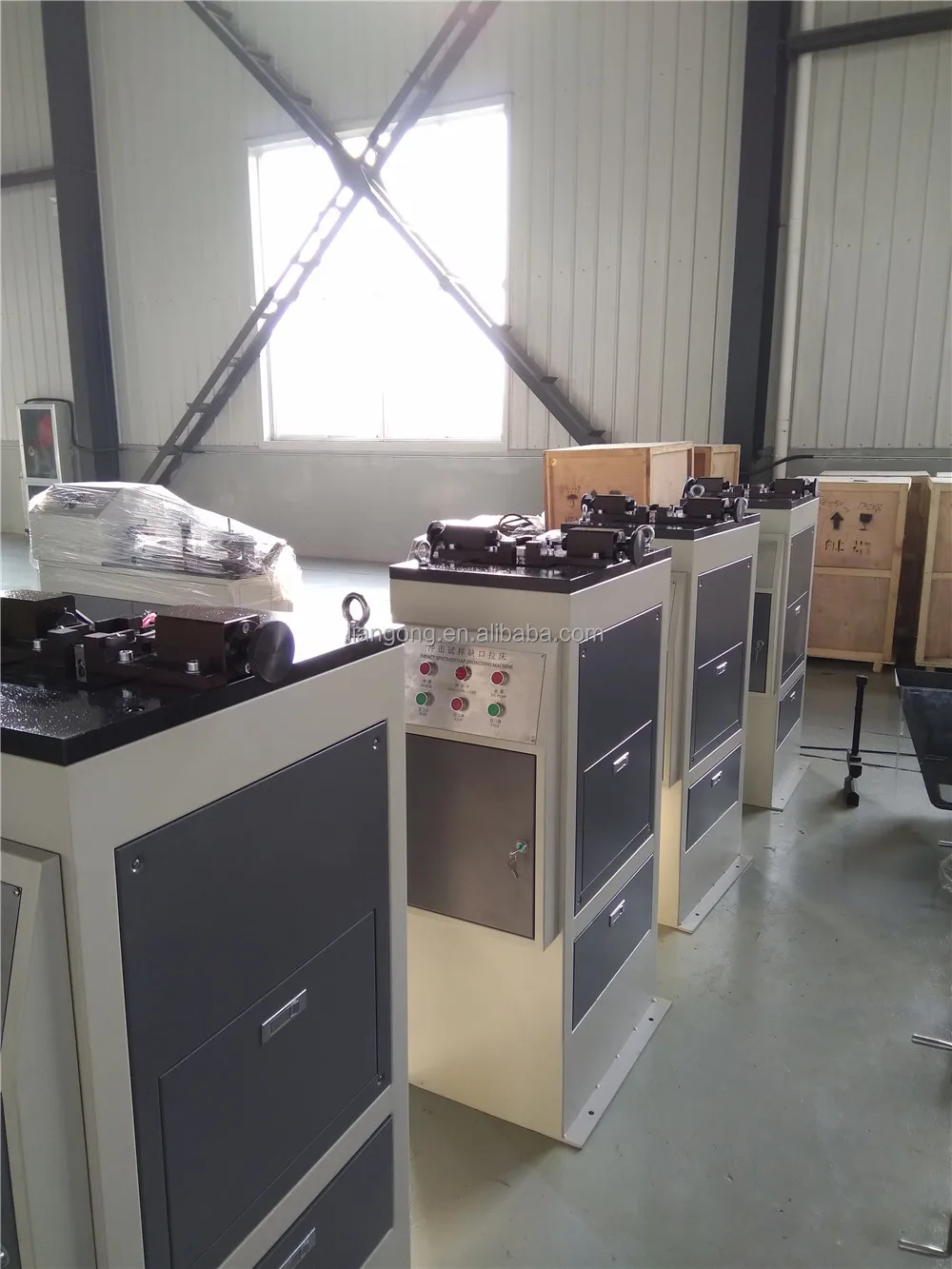

Detailed Images
Company Introduction
Certifications
Customer Photos

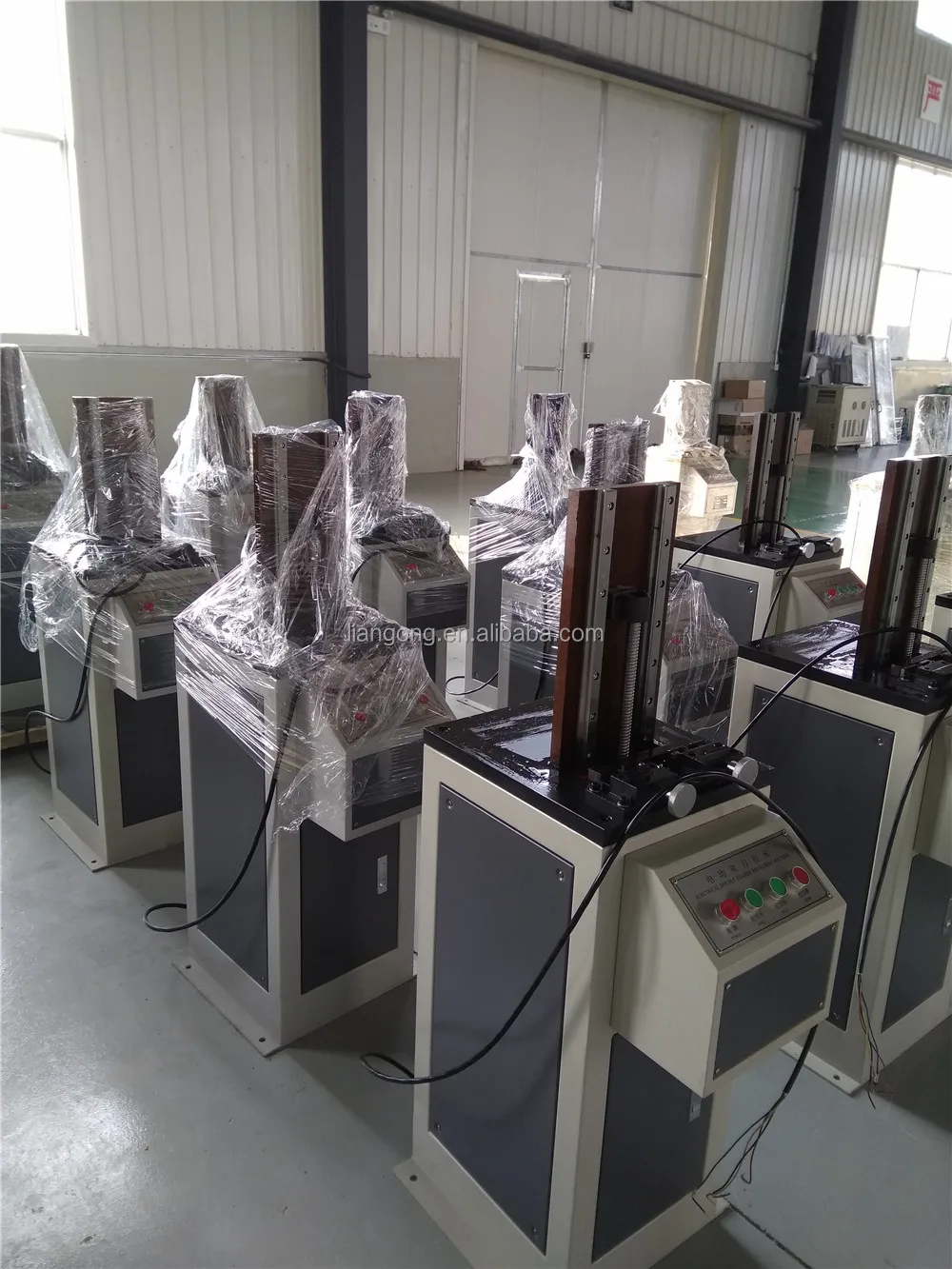

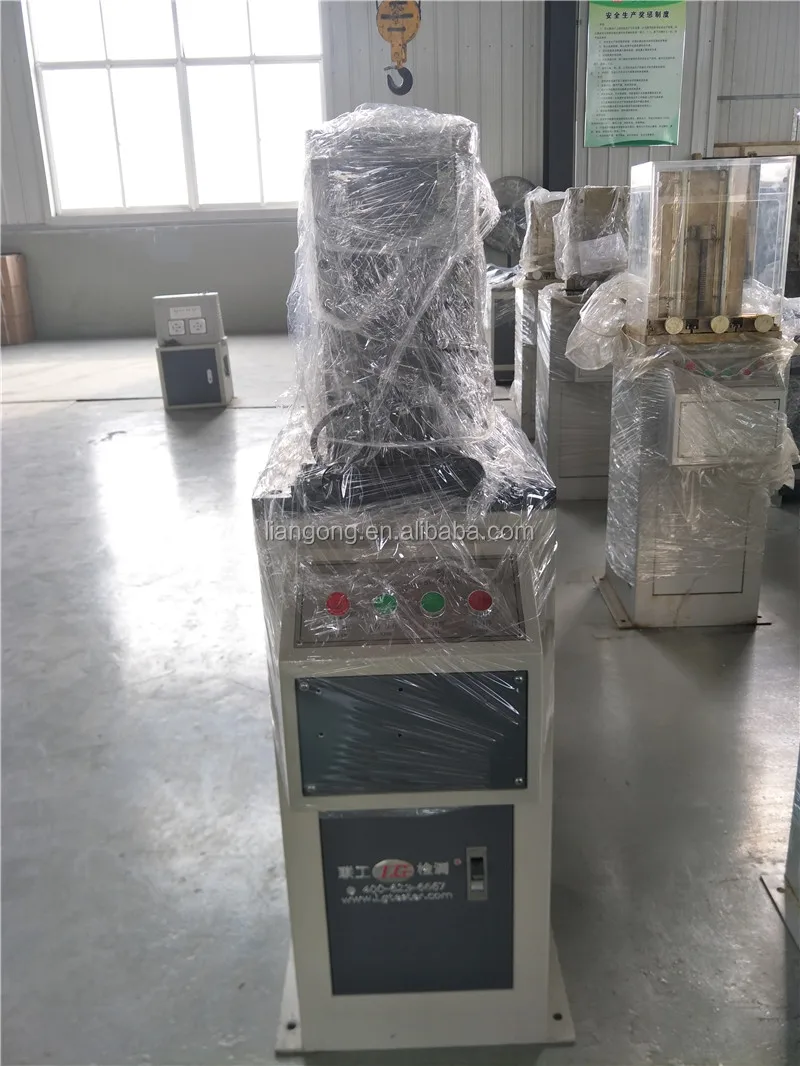

Packing&Shipping
Standard Export Plywood package per set
After Sales Service
Warranty
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance
Consultation services. We answer your question timely via the telephone or email. Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Because professional,its leading.
We are committed to every customer to provide timely, efficient, high quality service!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer for making testing machine, charpy testing machine,broaching machine, temperature champer, etc for many years.
2. What is your payment terms?
We accept TT, West Union, L/C, and other payment terms.
3. What is your delivery time?
Generally is about 10 days for standard testing machine, but for non-standard machines, it needs to be customized.
4. Can you accept customers' inspection or third party inspection?
Yes, we totally accept inspection before shipment. Welcome to our factory.
5. Why choose your company?
We are manufacturing testing machines for more than 10 years, and our products have exported all the world. We constantly study and research new projects, and some of our products have won patents. We also get the CE, ISO certificates. High quality products and service are our main center.
