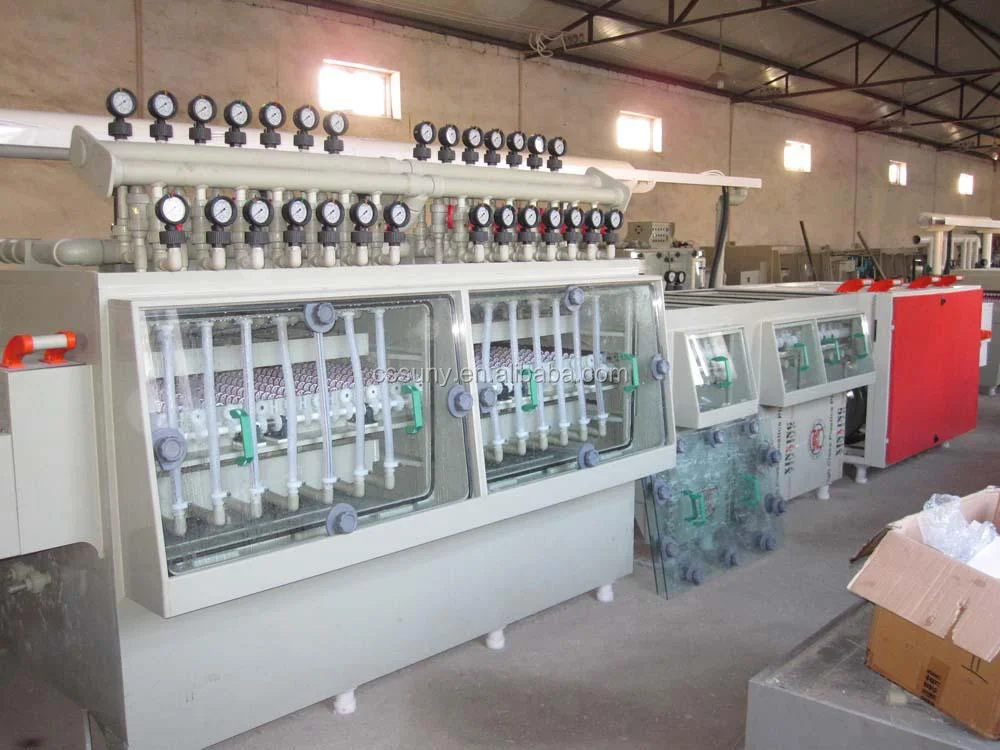

pcb board production line/pcb etching machine/pcb striping machine

Products: pcb board production line/pcb etching machine/pcb stripingmachine

 Automatic spray etching machine for printed circuit board

• Usage: realizing automatic etching process of the circuit board processing through high pressure spraying and automatic transmission;
• Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition etching process manual ; In touch screen you can play the video file in etching process;
• The machine adopts anticorrosive PVC material, with excellent anti acid and alkali performance
• The roof and the front of the machine both have double completely transparent glass windows, so the whole process can be observed
• With level automatic in board detection function, it can stop automatically in a due time, to make the machine operation more intelligent and automatic;
• With up and down spraying pressure testing and adjustment function, it can make some adjustment to up and down spraying pressure according to the technical requirements;
• With liquid level instruction window, you can understand the liquid level of the machine in real-time;
• The machine configures four universal caster wheels for more convenient location adjustment of the equipment;
• With automatic etching, liquid isolation, automatic water washing, liquid blotting of board surface and other functions, realizing clean and environmental protect production of the PCB;
• The effective work area: double-sided plate of 400 mm width; double-sided plate of unlimited length;
• Working mode: PCB automatically in and out board, automatic high pressure spraying up and down double-sided;
• Work time: 10~240s adjustable
•  Temperature setting: 20~55°C
• Standard volume: 90L
• Power supply: AC380V/5KW;
• Overall dimension: 1840mm×1240mm×1300mm;
• Net weight: 300KG
