Long Stocking Pantyhose Making Machine

Share on (60655571431):


Price:

Quantity:


Product Overview

Description


Long Stocking Pantyhose Making Machine

Product Description

Legging Fabirc Circular Knitting Machine

                                                   Description
Cylinder Diameter
4" , 4 1/2,5"
Needle Range
192-400N
Running Speed
220-360RPM

Power Required
Drive Motor
0.85KW
Fan Motor
0.75KW
Control Box
0.70KW
Floor Space in CM
150X120X240cm
NET Weight
300KGS
Gross Weight
350KGS
Packing Diamension in CM
82x108x167cm

Main Features and Functions


1. All material of needles system is adopted the technology of Japan, and have a good stability, wearable.

2. Drumless, fully computer control.

3. Electro-pneumatic yarn finger and cam control.

4. Stepping motor for elastic yarn and stitch cam control.

5. The double picks, the double lift needle to beat a heel, can knit Y heel.

6. Automatic stop by a sensor when every error occurs.

7. Option of up to 2 main feeds + 5 pattern feeds (16 colour).

8. Equipped the UPS machine can keep the memory of program and the knitting action if transient electric power cut happened, when the power restored, machine can continue the knitting.

9. Knitting can be operated through keyboard and LCD.

10. The fog form of needle tube is even to provide oil, reducing fabric greasy dirt.

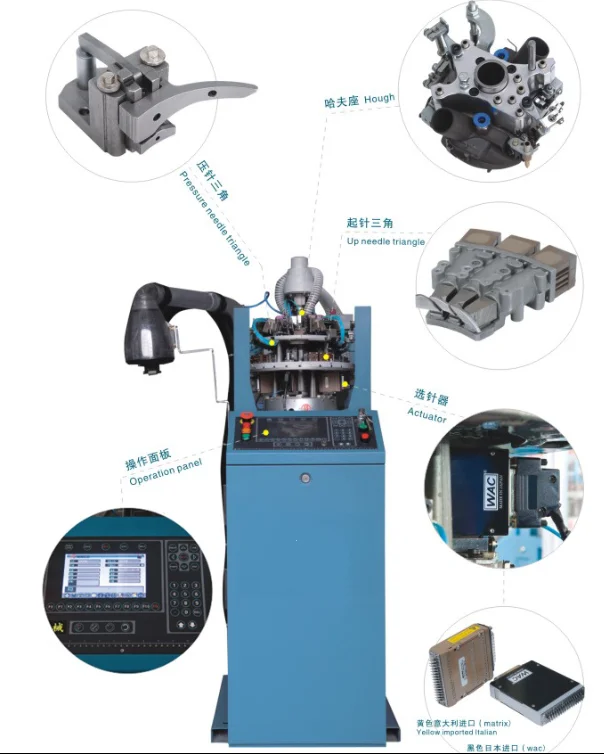

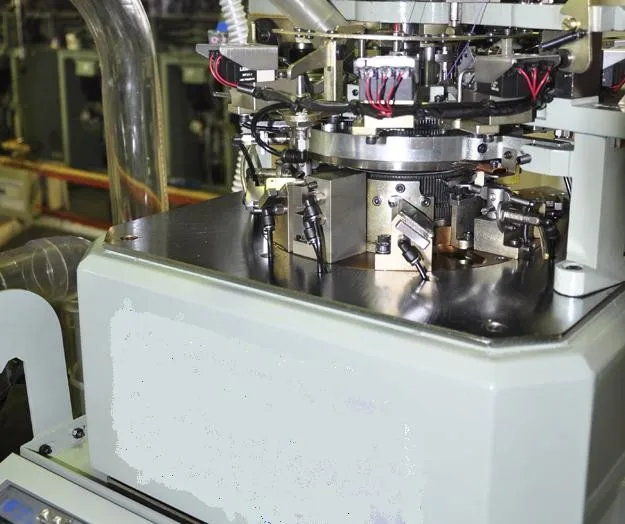

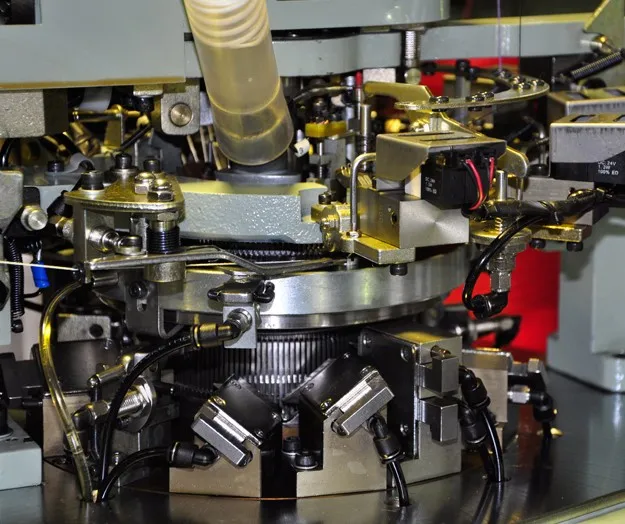

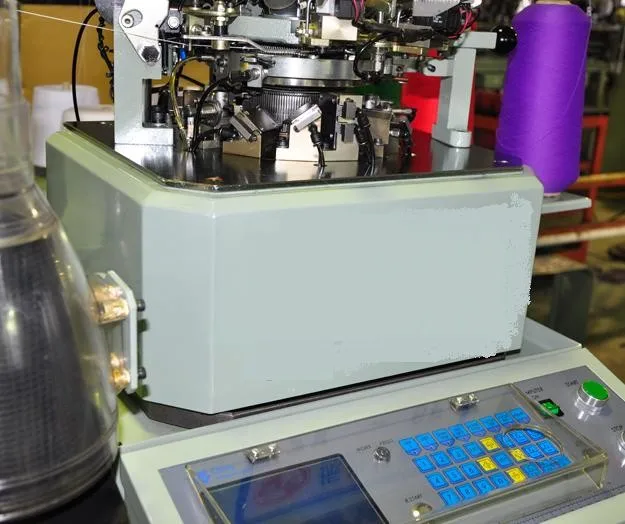

Detailed Images
