- composite panel fiberglass deck grp grating panels
composite panel fiberglass deck grp grating panels
- Category: >>>
- Supplier: Nantong Drayson Composite Material Co. Ltd. [Jiangsu China]Nantong
Share on (60655584924):
Product Overview
Description
Product Descriptioncomposite panel fiberglass deck grp grating panels
composite panel fiberglass deck grp grating panels

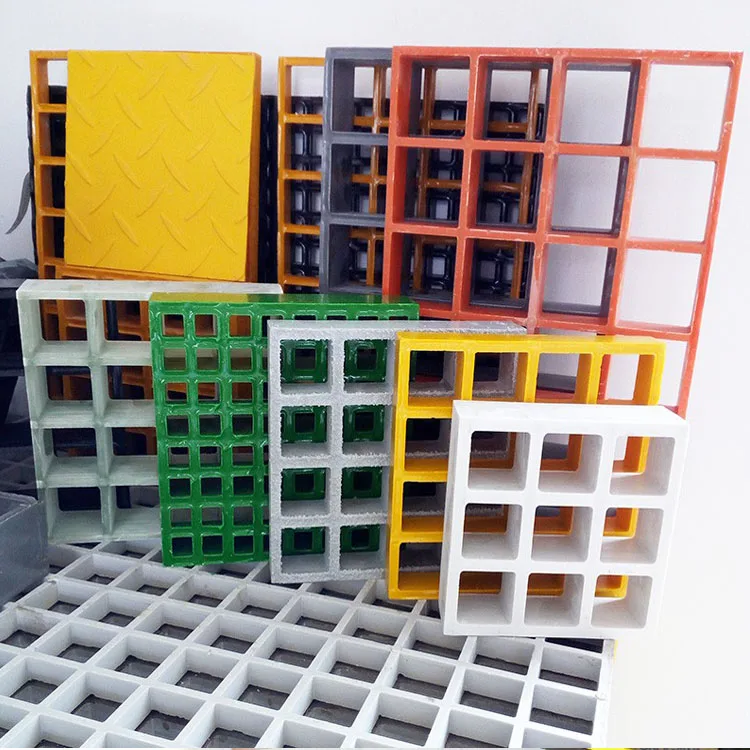

| concave, gritted surfaceanti skid | mini/micro mesh surfaceCould prevent objects from falling through. | Solid cover Anti skid and prevent liquid leaking and gas volatilizing. | smooth surfaceIt can be used for decoration such as doors, partitions, ceilings, etc. |
| Parameters | |||
| Type | composite panel fiberglass deck grp grating panels | ||
| Material | ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH) | ||
| Mesh Size | 38*38*38mm，40*40*40mm, etc. can be customized (pls check detail as below form) | ||
| Color | According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized | ||
| Surface | Gritted, Smooth, Concave, Solid Top Covered | ||
Anti-Fire/Corrosion/UV
Light Weight/High Strength
Safety/Easy Installation
Size-Molded Grating
| Mesh Size(mm) | Thickness (mm) | Bar Thickness(mm) | Standard Panel Size(mm) |
| 38x38 | 13 | 6.0/5.0 | 1220x3660,1220x4000,1220x2440,921x3055 |
| 14 | 6.0/5.0 | 1220x3660,1220x4000,1220x2440,921x3055 | |
| 15 | 6.0/5.0 | 1220x3660,1220x4000,1220x2440 | |
| 20 | 6.0/5.0 | 1220x3660,1220x4000,1524x4010,997x3012 | |
| 25 | 6.5/5.0 | 1220x3660,1226x4010,1524x4000,1530x4010,1997x3012 | |
| 30 | 6.5/5.0 | 1220x3660,1220x4010,1524x4010,921x3055 | |
| 38 | 7.0/5.0 | 1220x3660,1220x4010,2100x4240,998x4010,1220x2440 | |
| 50 | 9.5/7.5 | 1220x4010,1220x3666,1230x4010,1220x2440,921x3055 | |
| 60 | 10.5/8.5 | 1230x4010 | |
| 70 | 11.0/9.0 | 1230x4010 | |
| 40x40 | 25 | 7.0/5.0 | 1007x3007,1007x4007,1247x4047,1527x4047 |
| 30 | 7.0/5.0 | 1527x4047,1007x3007,1247x4047 | |
| 38 | 7.0/5.0 | 1527x4047,1247x4047,1007x3007,1007x4047 | |
| 40 | 7.0/5.0 | 1527x4047,1007x3007,1007x4047,1247x4047 | |
| 50x50 | 15 | 6.0/5.0 | 1228x4020,1220x3660,1220x2440 |
| 40 | 6.8/5.0 | 1787x4530,1225x4530 | |
| 25 | 7.0/6.0 | 1220x3660,1226x4020,1220x2440,915x3050 | |
| 50 | 8.0/6.0 | 1524x4000,1220x3660,1220x2440,1220x4000 | |
| 83x83 | 38 | 7.0/5.0 | 1007x4007,1007x3007,1007x4255 |
| 40 | 7.0/5.0 | 1007x4007,1007x3007,1007x4255 | |
| 13x13/40x40 micro mesh | 25 | 6.5/4.5/5.0 | 1247x4047,1007x3007,1007x4047,1530x4047 |
| 30 | 6.5/4.5/5.0 | 1527x4047,1247x4047,1007x3007,1007x4047 | |
| 38 | 6.5/4.5/5.0 | 1527x4047,1247x4047,1007x3007,1007x4047 | |
| 19x19/38x38 mini mesh | 25 | 6.5/5.0 | 1220x3660,1220x2440,921x3055,1226x4007,1268x4007 |
| 30 | 6.5/5.0 | 1220x3660,1220x2440,921x3055,1220x4000,1530x4047 | |
| 38 | 6.5/5.0 | 1220x3660,1220x2440,921x3055,1220x4000,1226x4010 | |
| 20x20/40x40 mini mesh | 14 | 6.5/5.0 | 1007x3007,1247x4047 |
| 22 | 6.5/5.0 | 1527x4047,1007x3007,1247x4047 | |
| 25 | 6.5/5.0 | 1527x4047,1247x4047 | |
| 30 | 7.0/5.0 | 1527x4047,1007x3007,1007x4047,1247x4047 | |
| 38 | 7.0/5.0 | 1527x4047,1007x3007,1007x4047,1247x4047 | |
| 40 | 7.0/5.0 | 1527x4047,1007x3007,1007x4047,1247x4047 | |
| 25x25/50x50 mini mesh | 50 | 8.0/6.0 | 1532x4020 |
| 26x26/52x52 mini mesh | 30 | 7.0/6.0 | 1530x4000,1532x4050 |
| 38 | 6.0/5.0 | 1517x4015 | |
| 25x50 | 38 | 11.0/9.0 | 1220x1835 |
| 50 | 12.0/9.0 | 1220x1835 | |
| 25x100 | 25 | 7.0/5.0 | 1220x3660,915x3050 |
| 38x100 | 38 | 8.0/6.0 | 1226x3665,1530x4047,921x3050 |
| 25x152 | 38 | 8.0/6.5 | 1220x3660,1220x2440,1220x4124,921x3050 |
| 38x152 | 38 | 8.0/6.0 | 1220x3660,1220x2440,915x3050 |
Application-Grating
Walkway / Platform Grating
Car Wash Floor Drain Grating
Stair Grating
Farm & Breed Industry Floor Grating
Decorative Ceiling Roofing Grating
Tree Protective Grating
Fence Grating
Drain Grating
