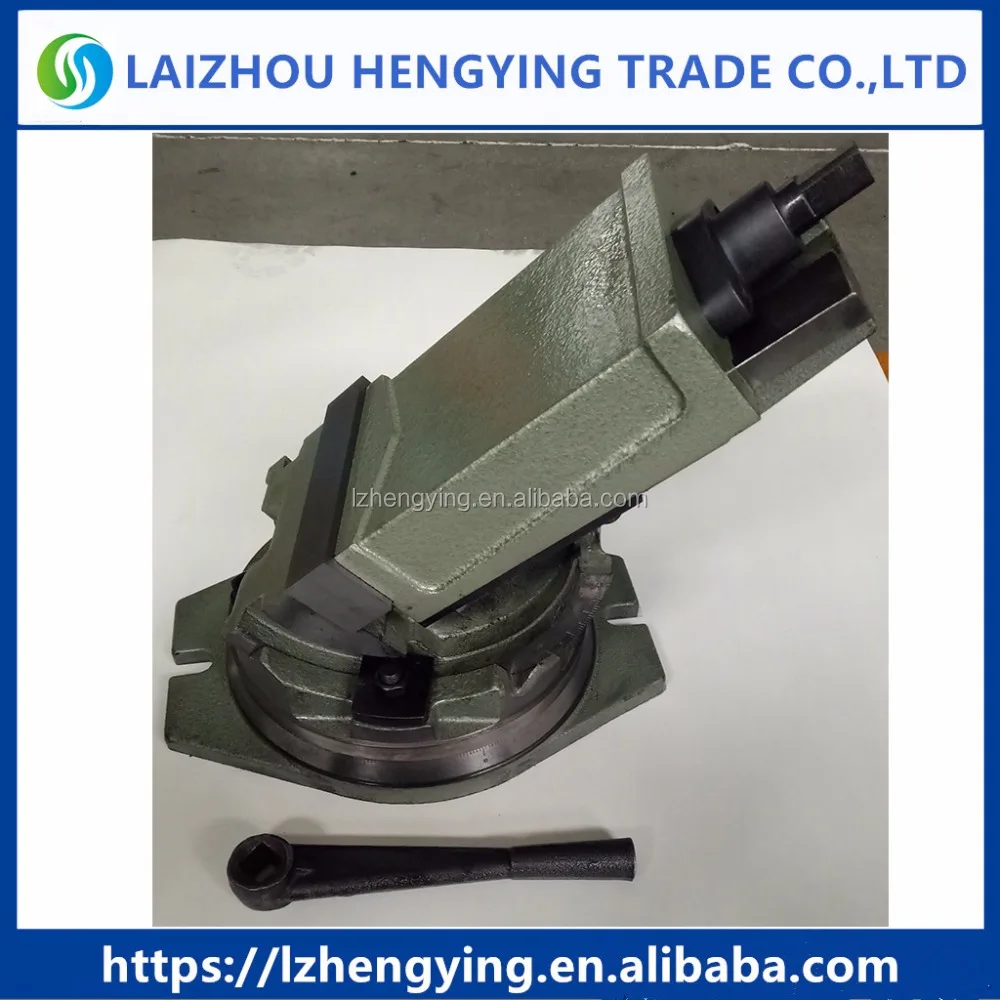

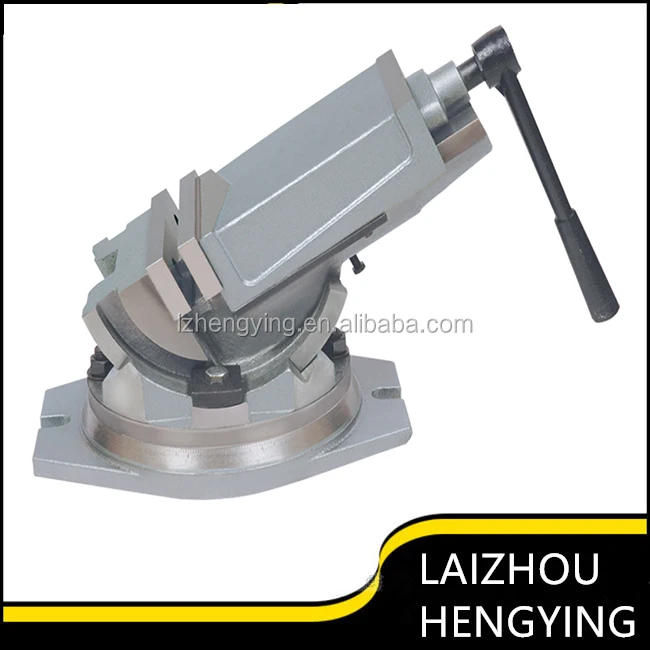

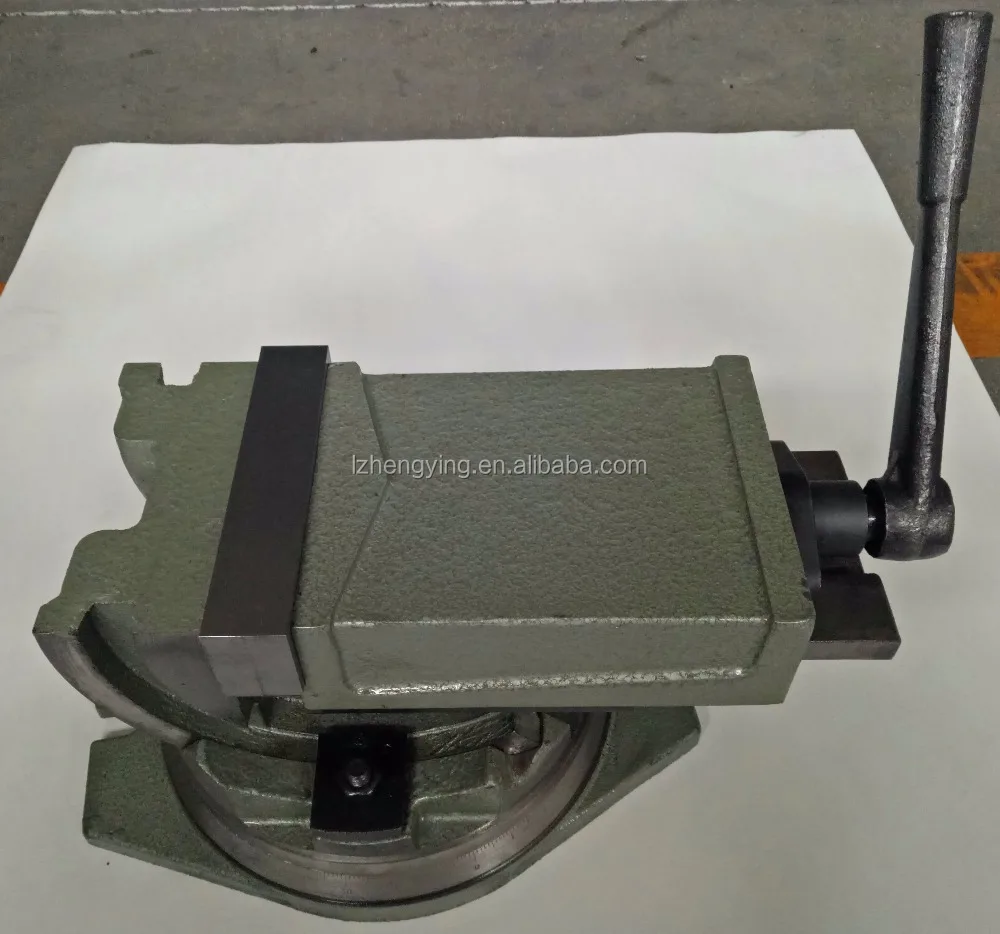

Q41(QHK) Series Drilling Machine Vice

Product Overview

Description

Q41(QHK) Series Drilling Machine Vice



performance and character:

1. It adopts the high-quality cast iron.

2. Both parallelism and verticality about the two jaws are 0.025mm/100mm.

3. The vice can be adjusted and locked at random from the horizontal position to the vertical position (0°-90°) with swivelling base being rotated 360°.

4. It  can be widely used for processing all kinds angels of surface ,soft and hole.

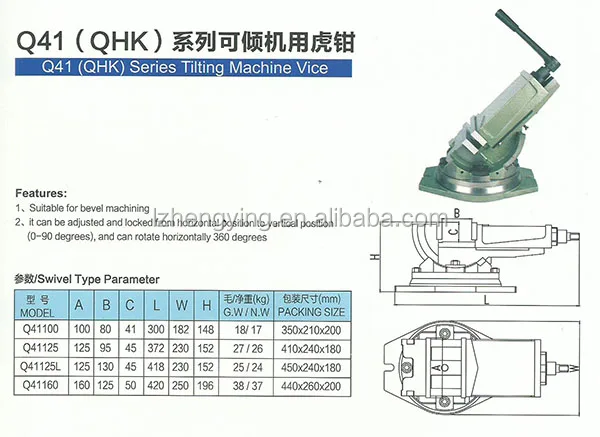

MODEL	WIDTH OF JAW(mm)	HEIGHT OF JAW(mm)	TOTAL HEIGHT(mm)	MAX.OPENING(mm)	G./N.WEIGHT(kg)	Q'TY	PACKING SIZE(mm)
Q41100	100	41	148	80	18/17	1	350x210x200
Q41125	125	45	152	95	28/27	1	410x240x180
Q41125L	125	45	152	130	25/24	1	450x240x180
Q41160	160	50	196	125	37/36	1	440x260x200

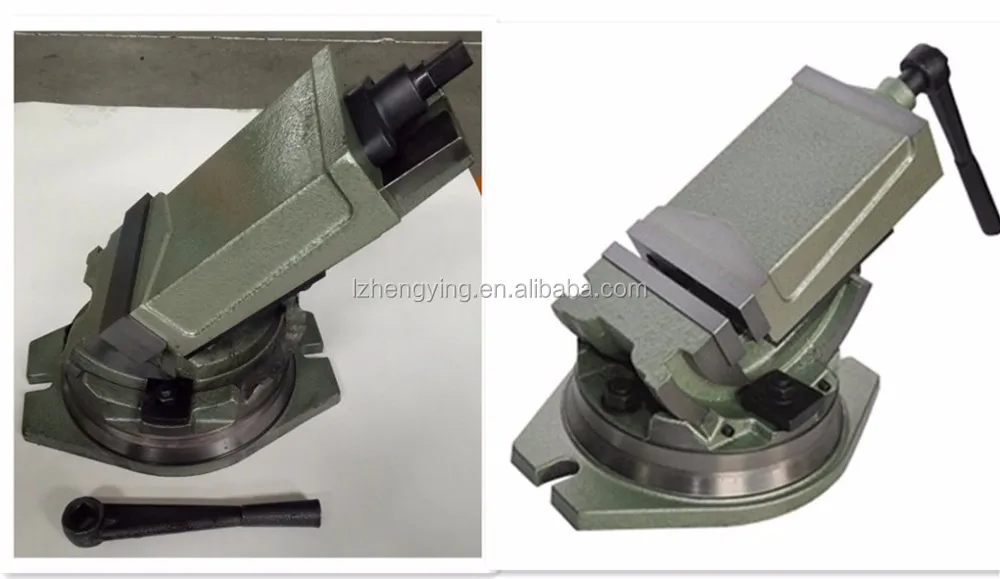

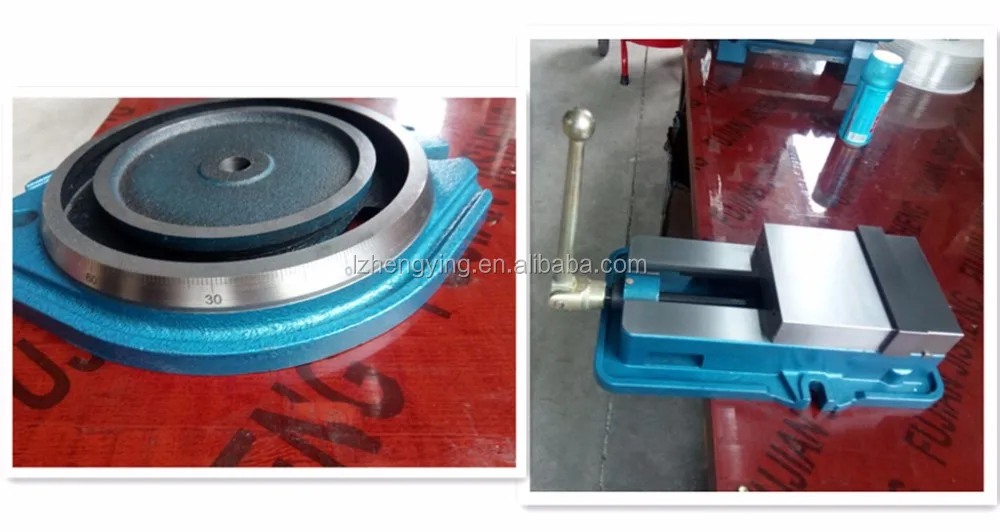

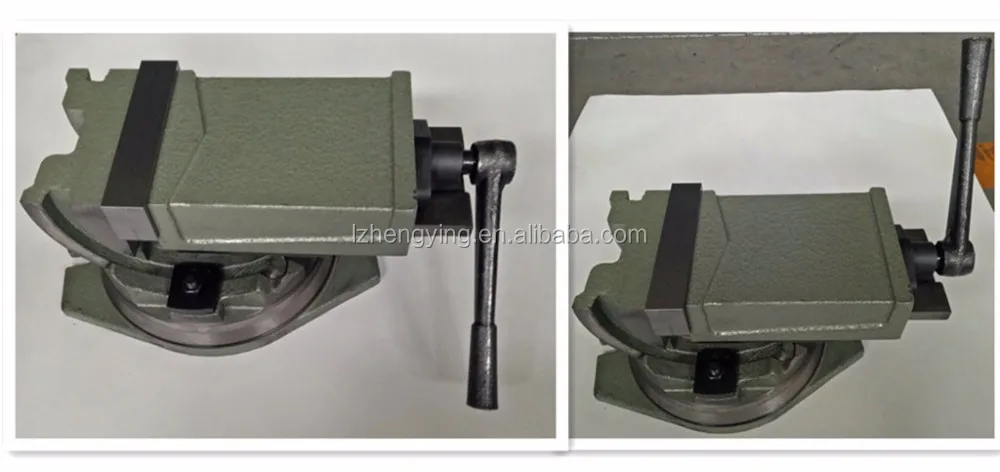

PICTURE DETAILS

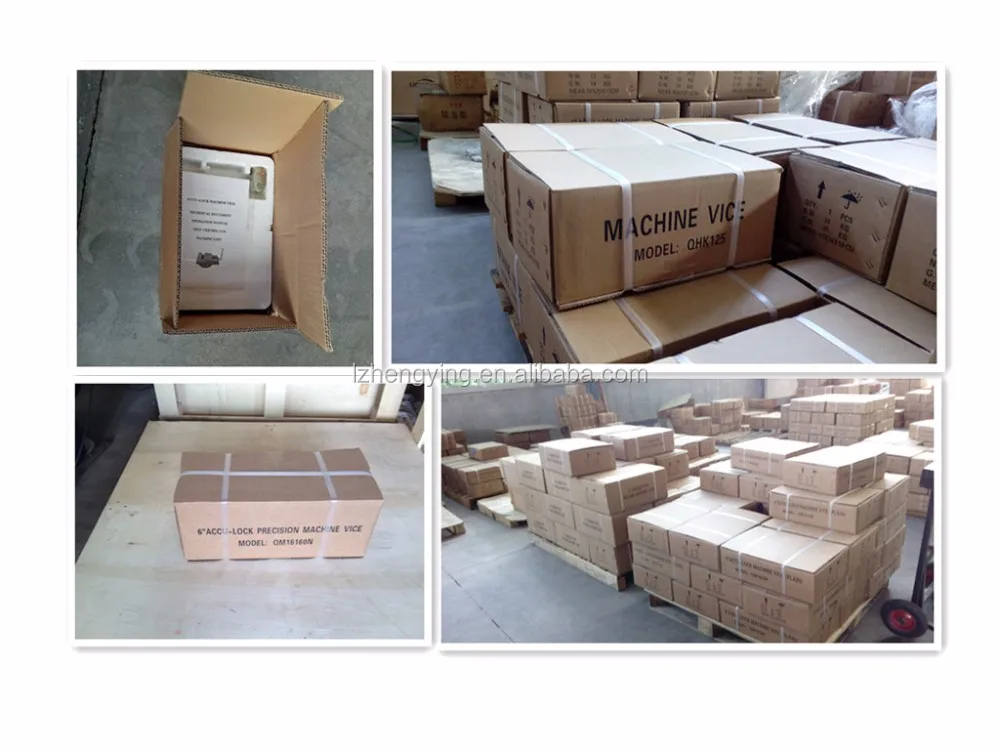

PACKING

WORKSHOP
