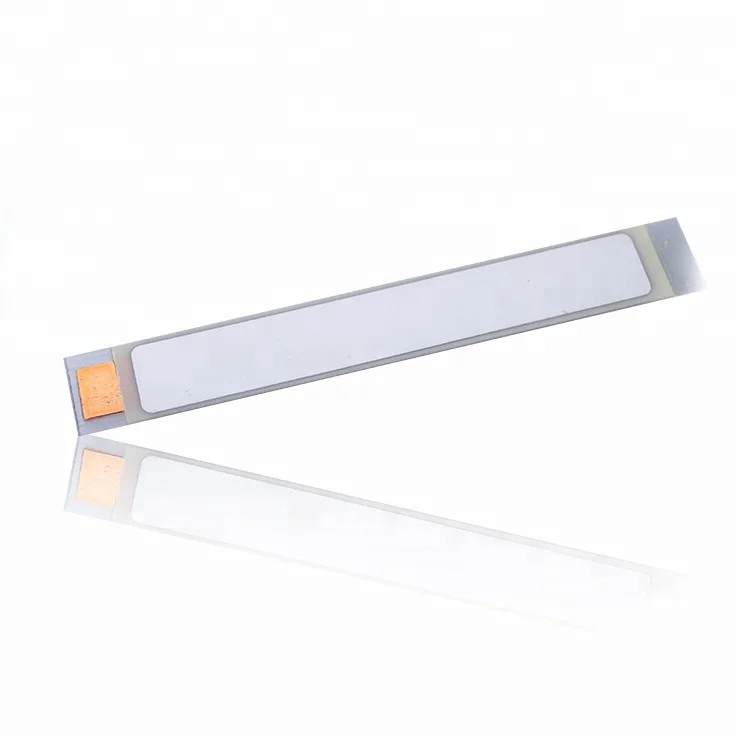

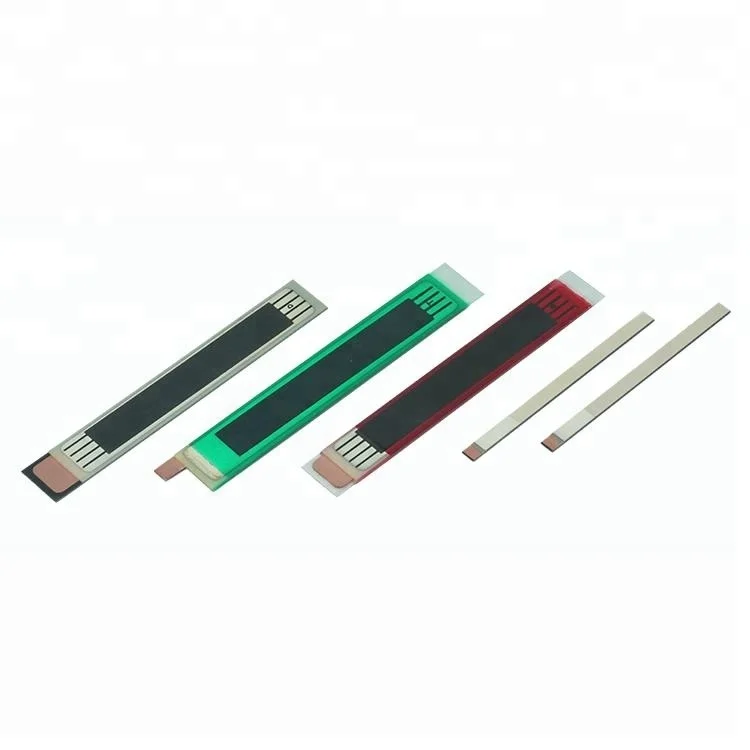

JIAKANG Fast Response Piezoelectric Actuator for Medical Apparatus

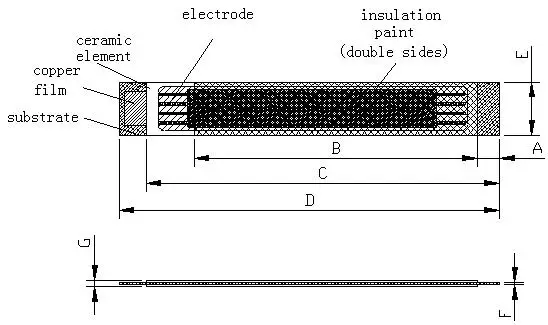

A

B

C

D

E

F

G

3.0±0.2

38.5±0.3

48.0±0.2

51.7±0.3

7.2±0.1

0.35±0.05

G±0.05

Item

Content

Operating Voltage(V)

≤200(forward direction)

Withstanding Voltage(V)

250

Storage Temperature(℃)

-40~+85

Operating Temperature(℃)

-25~+85

Withstanding Operating Voltage(℃)

120

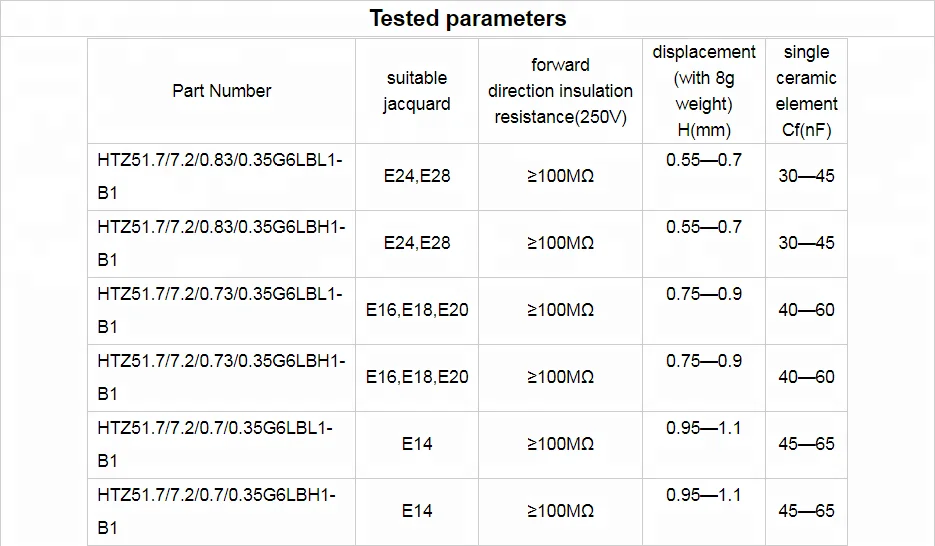

Part Number

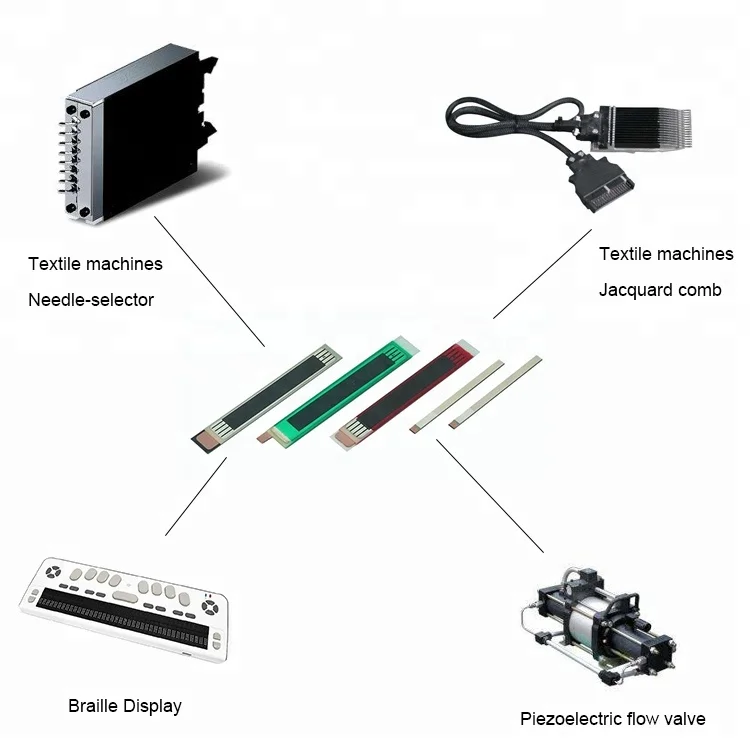

suitable jacquard

forward direction insulation resistance(250V)

displacement (with 8g weight)

H(mm)

single ceramic element

Cf(nF)

HTZ51.7/7.2/0.83/0.35G6LBL1-B1

E24,E28

≥100MΩ

0.55—0.7

30—45

HTZ51.7/7.2/0.83/0.35G6LBH1-B1

E24,E28

≥100MΩ

0.55—0.7

30—45

HTZ51.7/7.2/0.73/0.35G6LBL1-B1

E16,E18,E20

≥100MΩ

0.75—0.9

40—60

HTZ51.7/7.2/0.73/0.35G6LBH1-B1

E16,E18,E20

≥100MΩ

0.75—0.9

40—60

HTZ51.7/7.2/0.7/0.35G6LBL1-B1

E14

≥100MΩ

0.95—1.1

45—65

HTZ51.7/7.2/0.7/0.35G6LBH1-B1

E14

≥100MΩ

0.95—1.1

45—65
