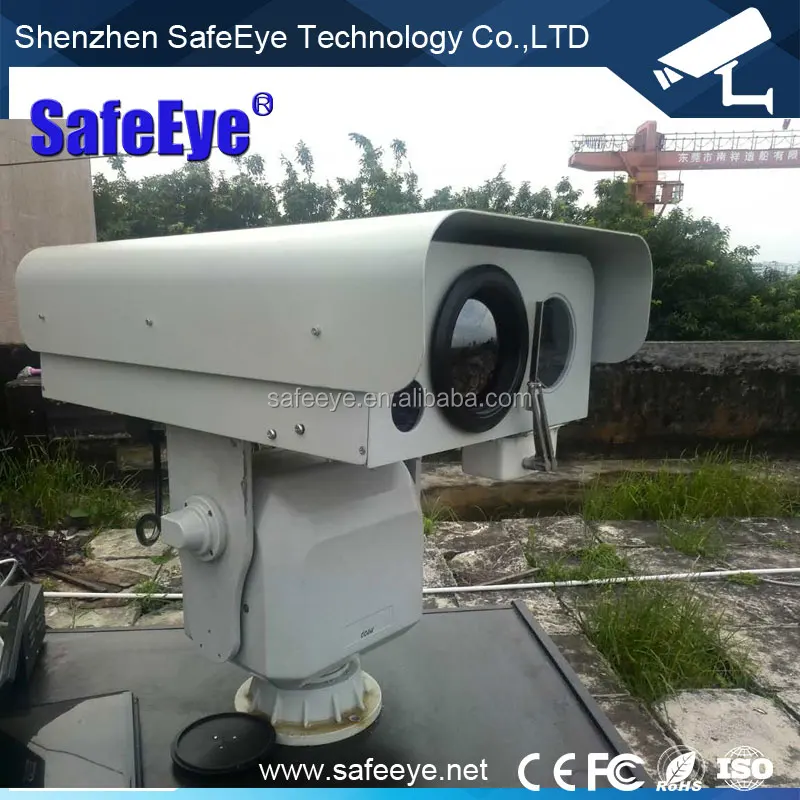

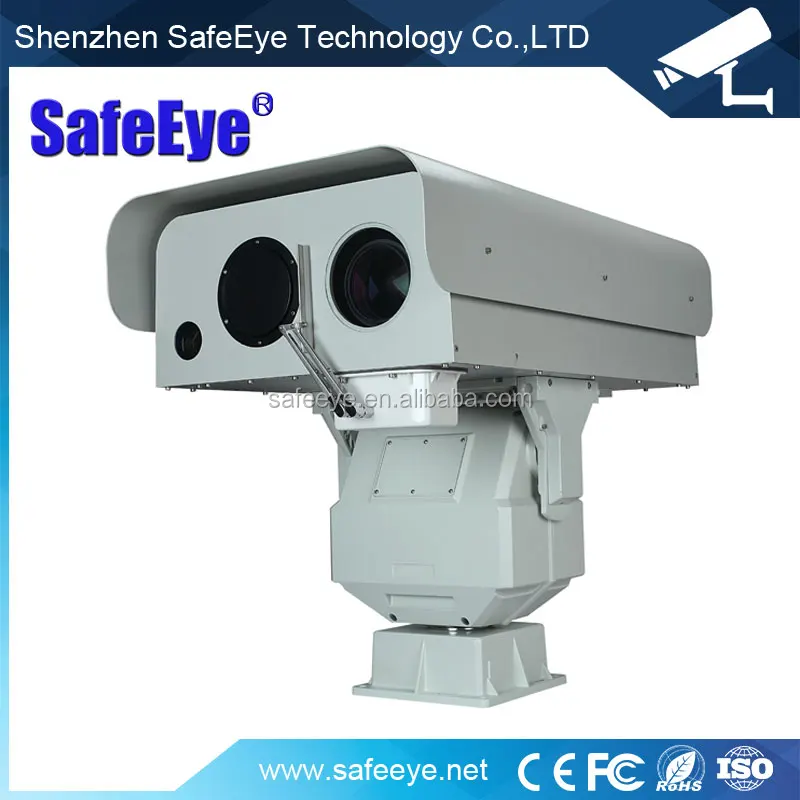

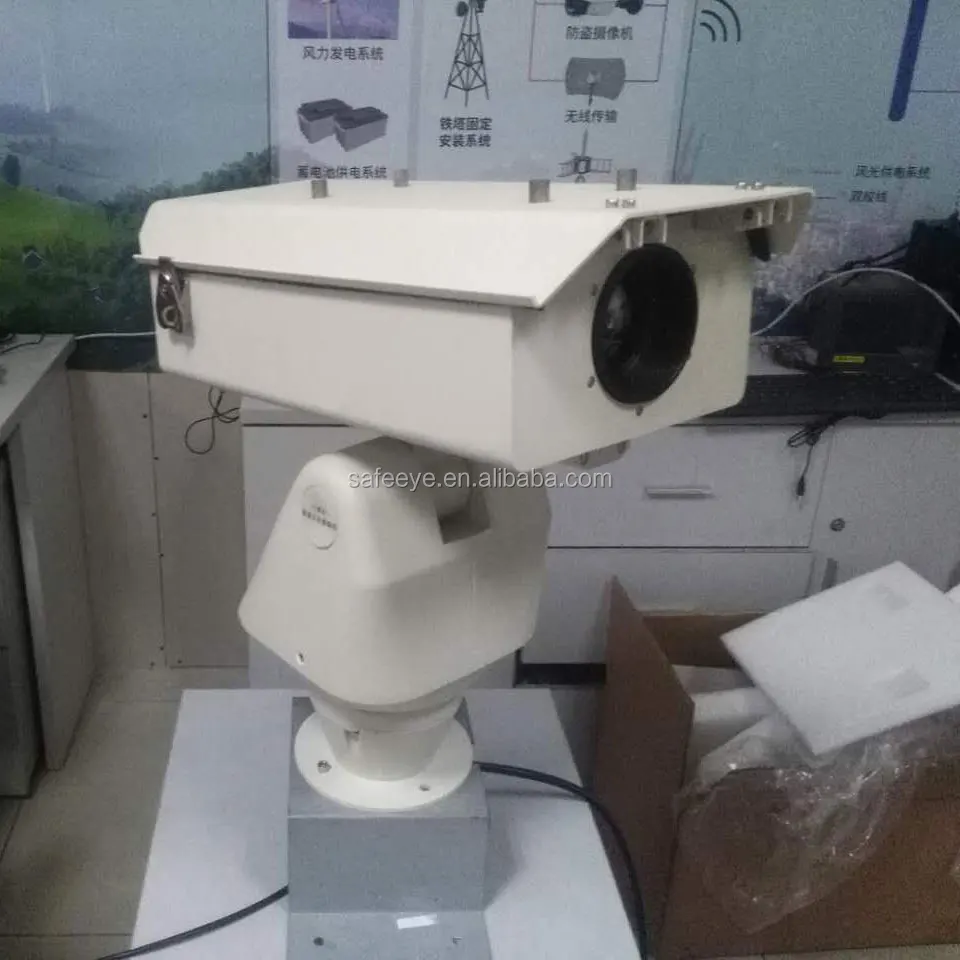

Forest fire protection Border coastal defense airport long distance PTZ thermal imaging camera
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60655762047):
Product Overview
Description
Product Description
Forest fire protection Border coastal defense airport long distance PTZ thermal imaging camera
Overview
Any object as long as its temperature above absolute zero(-273.15℃), although not light,infrared radiation,but can also be called infrared heat radiation. Objects of different temperatures in the infrared radition is absorbed by the infrared detector,generating a temperature variation,resulting in electric effect, the electrical signal is amplified and then processed,the object is obtained with the surface of the heat distribution corresponding thermal image,that is”thermal imaging.”
The thermal camera suitable for a wide range of video surveillance applications, including public facilities,fire control,manufacturing industry,building diagnosis,renewable energy,ocean affair and etc.
Key Features
- Uncooled IRFPA Microbolometer

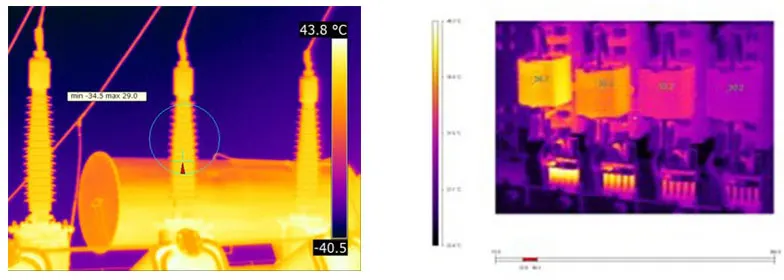

- Temperature detection
- Effective resolution 396x264
- Sensitivity 50mK
- 8 to 50 mm lens optional
- Vision Optical Zoom 30X
- Infrared detection wavelength 8-14um
- Support 8 area temperature Detection
- Support 17 Polarity Control
- Support DVE image Enhance
- Standalone Operating
Sprcifications:
| CAMERA | |
| Detector Type | Long-Life,Uncooled IRFPA Microbolometer |
| Effective Resolution | 396x264 |
| Pixel Pitch | 20μm |
| Sensitivity | 50mK |
| Spectral Range | 8 to 14μm |
| Temperature Detection | Yes |
| Vision Lens | 30X Optical Zoom |
| Thermal Lens | F1.0,8mm,15mm,25mm,35mm,50mm optional |
| Motorized 8mm,25mm,50mm optional | |
| Focus | Manual/Motorized |
| FOV | 43.6°x36.4°/24°x18°/14.6°x11°/10.5°x7.8°/7.3°x 5.5° |
| Temperature Detect Distance(Fire) | 160m(Lens:8mm) / 300m(Lens:15mm) / 500m(Lens:25mm) / 1000m(Lens:35mm) / 1500(Lens:50mm) |
| Fixed Lens Recognition Distance (Body) | 100/200/300/450/650m |
| Fixed Lens Recognition Distance(Vehicle) | 200/350/600/850/1200m |
| Motorized Lens Recognition Distance (Body) | 100/300/650m |
| Motorized Lens Recognition Distance (Vehicle) | 200/600/1200m |
| IMAGE | |
| Video Compression | H.264 High/Main/Baseline Profile, MJPEG |
| Bit Rate (CBR/VBR) | 500Kb-10Mb |
| Audio Compression | G.711 ,RAW_PCM |
| Thermal Resolution | D1/30fps |
| Vision Resolution | 1080P/30fps |
| Stream | D1 ,CIF ;1080P |
| Image Color Mode | Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes |
| DVE Image Enhance | Yes ,Level 0 -6 |
| 3D Noise Reduce | Yes |
| Image Correction | Auto/Manual/External |
| Image Overturn | Horizontal /Vertical /Horizontal+Vertical |
| NETWORK | |
| Network Protocols | IPv4/v6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPOE,SMTP,SIP |
| Alarm Trigger | Temperature Alarm,Motion Detection,Network disconnect,Disk alarm,I/O alarm |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. |
| Security | User security authentication, Reset, Hardware WatchDog |
| Web Language | English, Chinese |
| System Compatibility | Onvif |
| INTERFACE | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio I/O | Optional |
| Alarm I/O | Optional |
| RS485 | Yes |
| BNC Output | N/A |
| Reset Button | Yes(built-in) |
| Edge Storage | Micro SD/SDHC slot ,Max 32GB |
| GENERAL | |
| Power Supply | DC18-DC36V ,AC24V optional |
| Power Consumption | 100W(MAX) |
| OperatingTemperature | -25℃~+55℃ |
| Ingress Protection | IP66 |
| Approvals | CE / FCC |
| Product Dimensions | 492x260x477mm |
| Product Weight | 40kg |

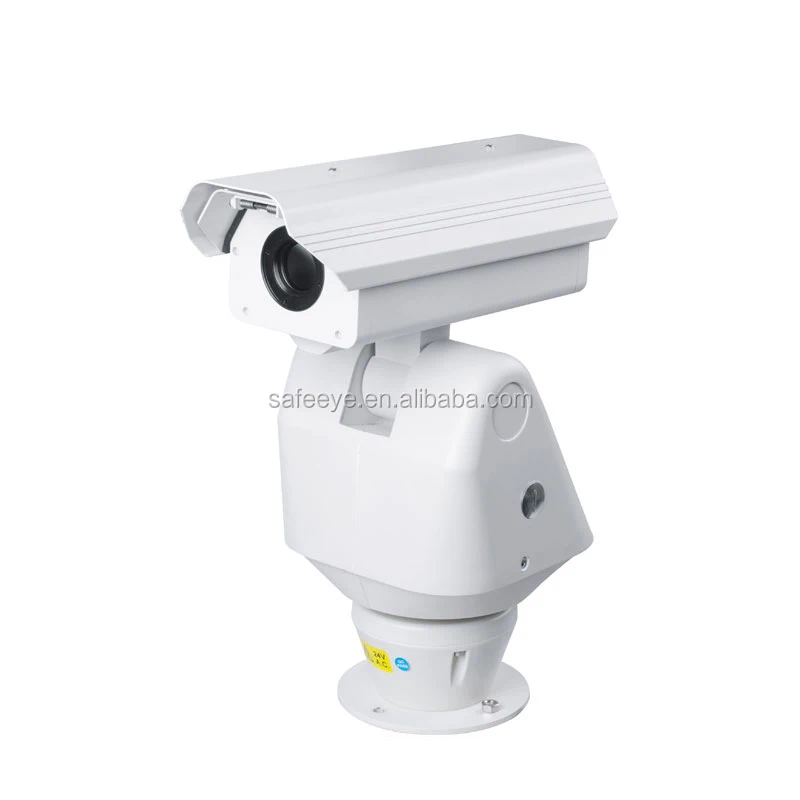

temperature detection sensor PTZ thermal imaging camera with Model S-TPT5200ZT
Our Services
- The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
- Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
- Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
- All the above products have CE ,FCC and ROHS certificates
- Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
- Power adapter isn't included in above prices, it's optional
- Price Validity: 30 days from issuing date.
- Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
- If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
Company Information
Why Choose SafeEye ?
(1) 24 hours reply
(2) 2 years Warranty
(3) 100% 5 steps Quality Check
(4) Powerful R&D team, OEM hardware and software
(5) fast leadtime: 3-4 days for sample order, 5-10 days for leadtime
Packaging & Shipping
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)
- DHL (3-7 business days)
- FedEX (3-7 business days)
- UPS (3-7 business days)
- EMS (5-9 business days)
- Air mail (7-25 business days)
- The shipping way depends on your address.
FAQ
What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.
Q.May I print our company logo on package box and products?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
Click “send” to get the latest price list from us.
