Product Overview

Description

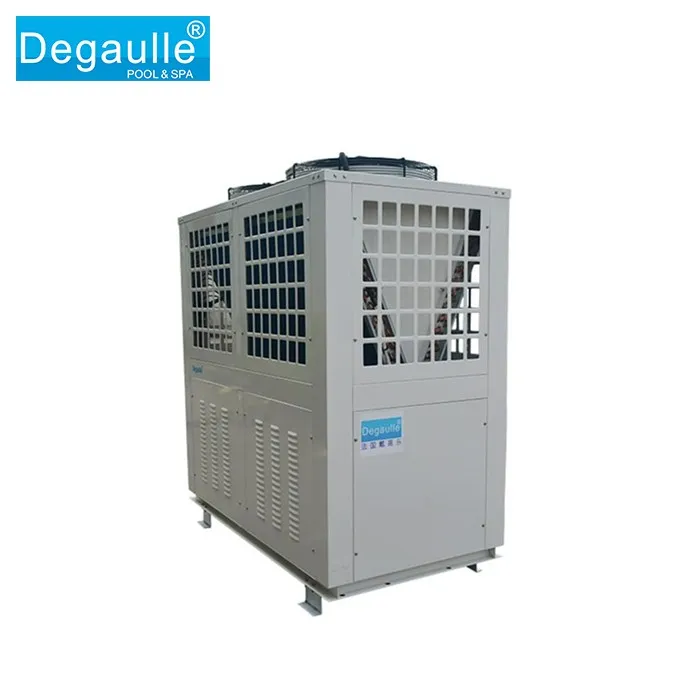

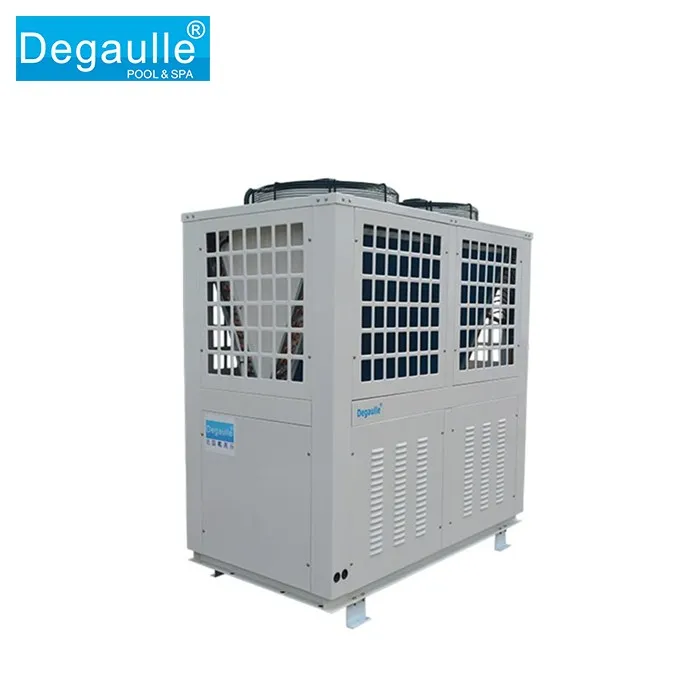

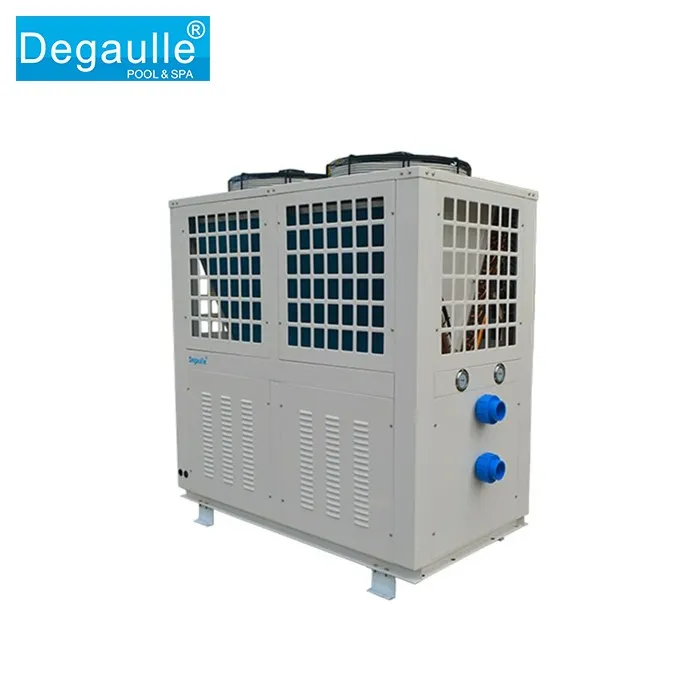

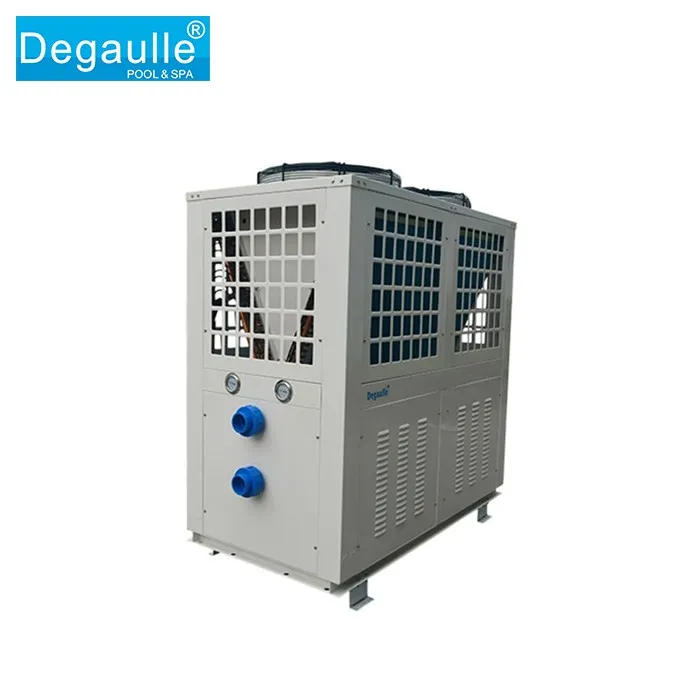

Degaulle anti-corrosion air source water heater Wholesale Solar Fairland Heat Pump Heating DGL-100C Swimming Pool Heat Pump

Heat Pump Product discription



Heat pump used the heat from the air -20℃ below the cold coal recovery after compressed into a high temperature and high pressure refrigerant, it needs to be heated by heat transfer of water or other medium, make the heat efficiency of 400-500%.











Heat Pump Parameters



Parameter Of Swimming Pool Heat Pump (Normal Temperature )

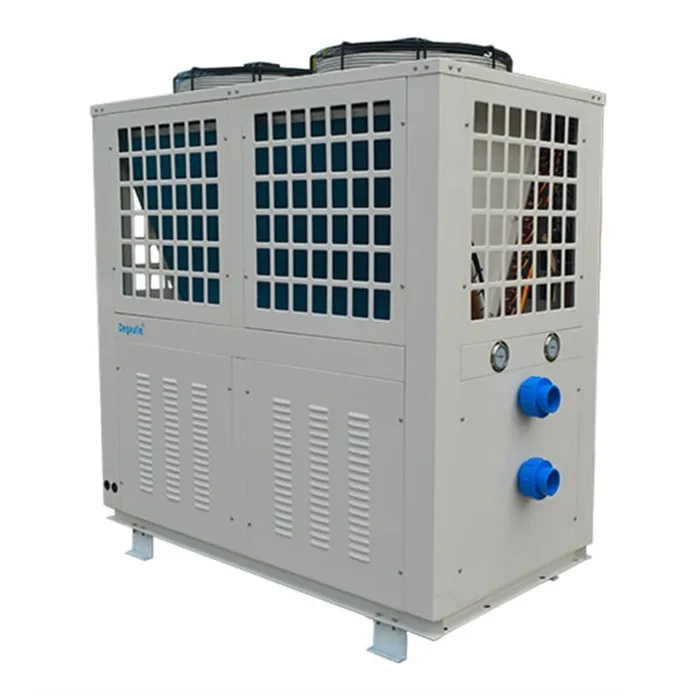

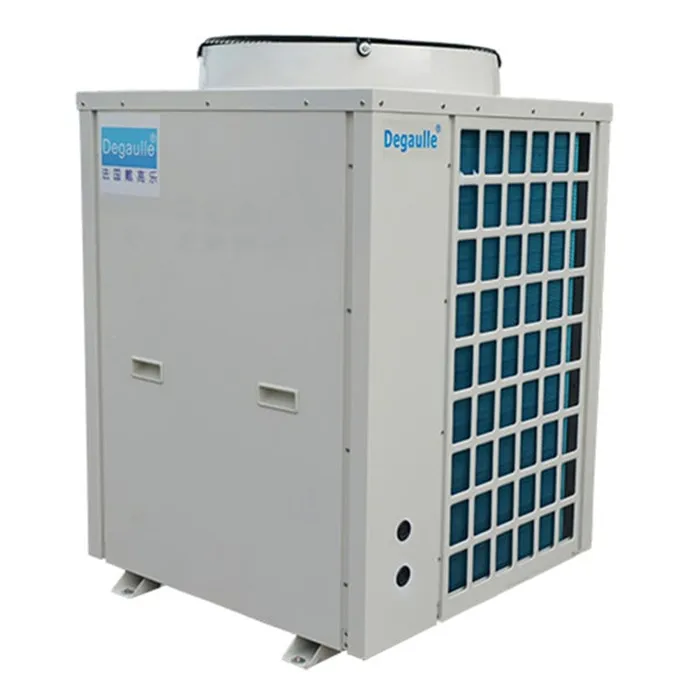

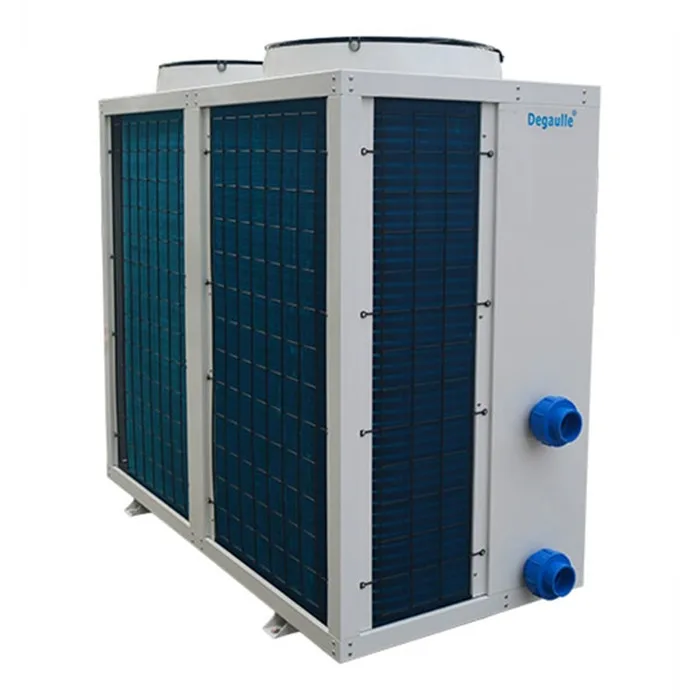

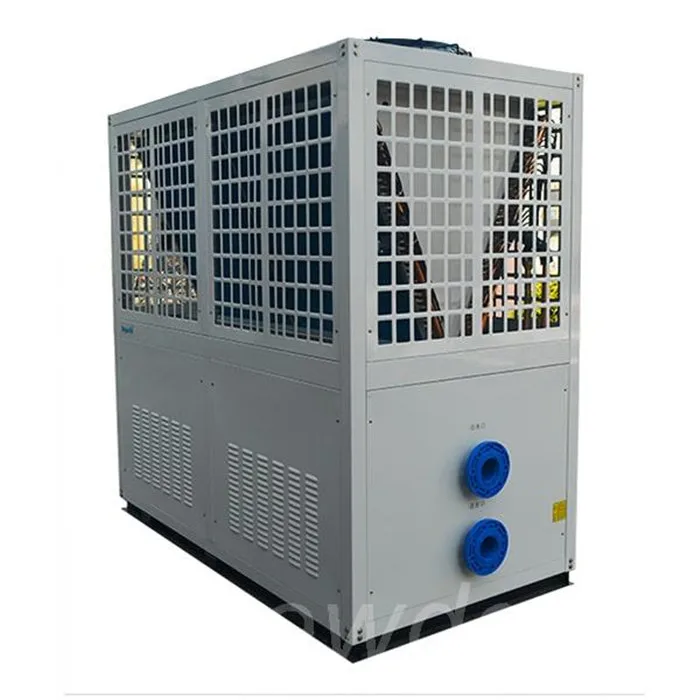

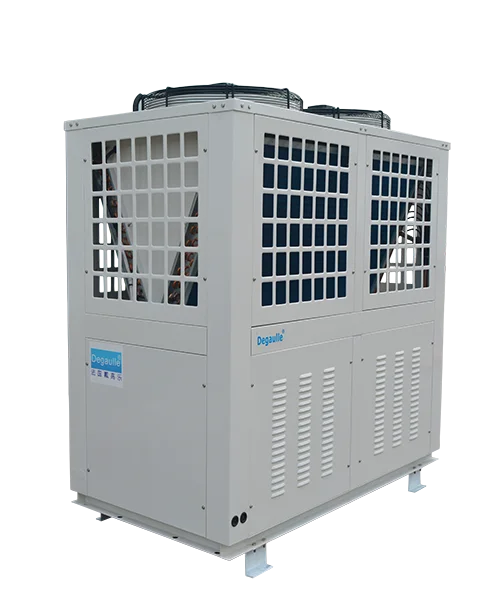

Heat Pump Model		DGL-50C	DGL-100C	DGL-120C	DGL-150C	DGL-200C	DGL-250C	DGL-300C
Number Of Horses	HP	5	10	12	15	20	25	30
Heating Capacity	KW	20.3	40.3	47.2	59.8	80.6	100.2	120.8
COP	-	5.2	5.3	5.4	5.4	5.3	5.4	5.4
Rated Voltage	V/HZ	380V/50Hz
Rated Current	A	6	12	13.8	17.5	23.1	30	34.6
Rated Power	KW	3.8	7.6	9.1	11.5	15.2	19	22.8
Max. Outlet Water Temp.	℃	42
Heat Exchanger	-	PVC Titanium Tube
Max. Pessure	MPa	2.8
Refrigerant	-	R22
Noise	dB(A)	≤65	≤68	≤68	≤68	≤70	≤70	≤70
Pipe Size	MM	32	63	63	63	90	90	110
Net Weight	kg	110	280	320	420	560	650	840
Machine Size:(L/W/H)	mm L*W*H	750*750 *1050	1450*725 *1050	1450*705 *1350	1500*800 *1515	1850*1000 *1950	2000*1100 *2080	2300*1100 *2080
Packing Size:(L/W/H)	mm L*W*H	750*750 *1250	1450*725 *1250	1450*705 *1550	1500*800 *1715	1850*1000 *2150	2000*1100 *2280	2300*1100 *2280



Parameter Of Swimming Pool Heat Pump (Low Temperature)
Heat Pump Model		DGL-D	DGL-D	DGL-D	DGL-D	DGL-D	DGL-D	DGL-D
Number Of Horses	HP	5	10	12	15	20	25	30
Heating Capacity	KW	13.3	26.6	30.1	40	53.2	66.2	79.8
COP	-	3.4	3.5	3.6	3.5	3.5	3.5	3.5
Rated Voltage	V/HZ	380V/50Hz
Rated Current	A	6	12	13.8	17.5	23.1	30	34.6
Rated Power	KW	3.8	7.6	9.1	11.5	15.2	19	22.8
Max.Outlet water Temp	℃	42
Heat Exchanger	-	PVC Titanium Tube
Max. Pessure	MPa	2.8
Refrigerant	-	R22
Noise	dB	≤65	≤68	≤68	≤68	≤70	≤70	≤70
Pipe Size	MM	32	63	63	63	90	90	110
Net Weight	kg	110	280	320	420	560	650	840
Machine Size:(L/W/H)	mm L*W*H	750*750 *1050	1450*725 *1050	1450*705 *1350	1500*800 *1515	1850*1000 *1950	2000*1100 *2080	2300*1100 *2080
Packing Size:(L/W/H)	mm L*W*H	750*750 *1250	1450*725 *1250	1450*705 *1550	1500*800 *1715	1850*1000 *2150	2000*1100 *2280	2300*1100 *2280
Note:Outdoor air temp(DB/WB):7℃/6℃, Water Temp(in):26℃





Heat Pump Features



1)Safe and reliable

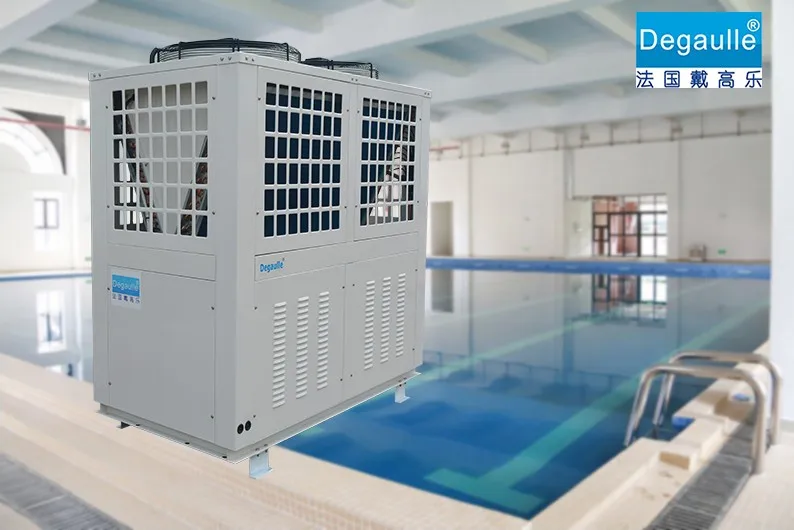

The pool-specific heat pump uses a completely separate safe water and electricity heating method, not directly heating the pool, greatly improving the safety of swimmers and employees.



2)High efficiency and energy saving

Swimming pool heat pump unit requires only a small amount of electricity can be converted into 3-4 times the heat used to provide hot water, high energy conversion rate, significant savings in operating costs.



3)Anti-corrosion and durable

Degaulle pool dedicated heat pump group with excellent anti-corrosion performance of PVC+titanium tube condenser,ensure the main components in contact with the swimming pool can effectively resist the erosion of chloride ion in water, durable.



4)Intelligent control

Temperature control system of heat pump can accurately monitor the water temperature, keep the water temperature close to the set temperature, to achieve the purpose of constant temperature.







Working principle of air source swimming pool heat pump







Company Profile

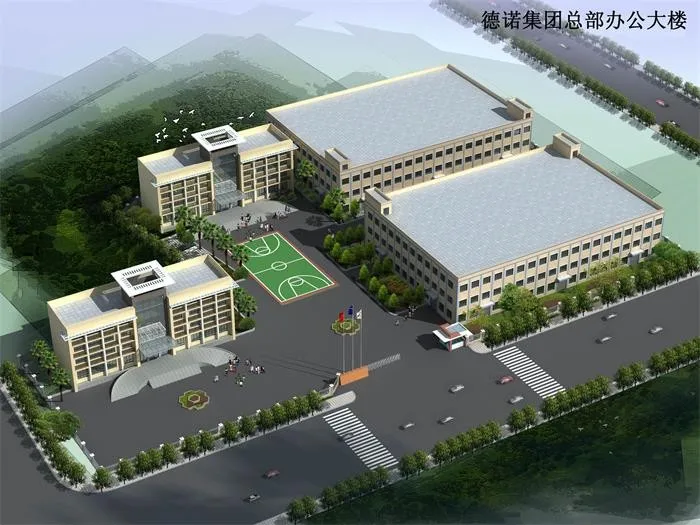

Guangzhou Denor Swimming pool Equipment Co,.Ltd. was established in 1998. As an experienced factory and exporter of heat pump Pool & SPA products and related equipments, it is always our responsibility to provide our customer high quality products with best price.
