Product Overview
Description

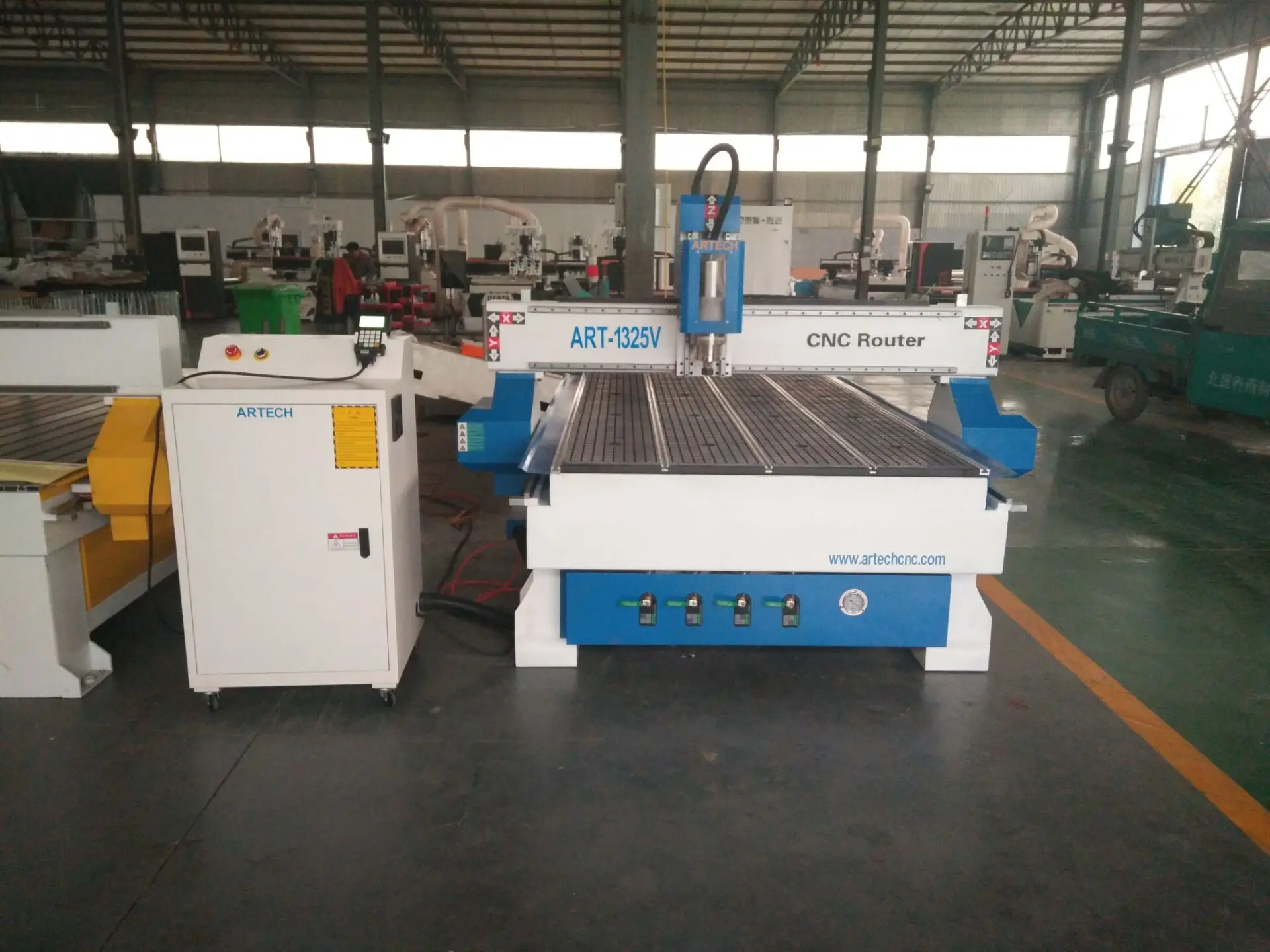

Furniture Industry Equipment Door Bed Wood Engraving Cutting Cnc Router Machine
Technical parameter of wood engraving cutting cnc router machine :
Parameters | Standard Specifications |
X,Y,Z Working Area | 1300*2500*250mm |
Spindle Power | 5.5kw |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
Table | T-slot table or vacuum absorbtion table |
vacuum pump | air cooling 5.5kw pump |
X,Y,Z Rail and Transmission | Taiwan TBI Ball Screw and gear rack |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Speed | 24000RPM |
Drive Motors | servo motor and driver |
Working Voltage | AC380V/3PH/50Hz or 220V |
Command Language | G Code |
Operating System | Nc studio controller atc |
Software Compatibility | Option:Type3, Ucancam, Artcam, solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Parameters | Standard Specifications |
Oil system | Handel |
Frame structure | Welding structure |
Collect | ER32 collect |
Dust collector | 1 pieces |
wireless wheel | Yes
|
Equipment Feature of wood engraving cutting cnc router machine :
1. The spidle speed is up to 32 meters/min, engraving speed is 20 meters/min

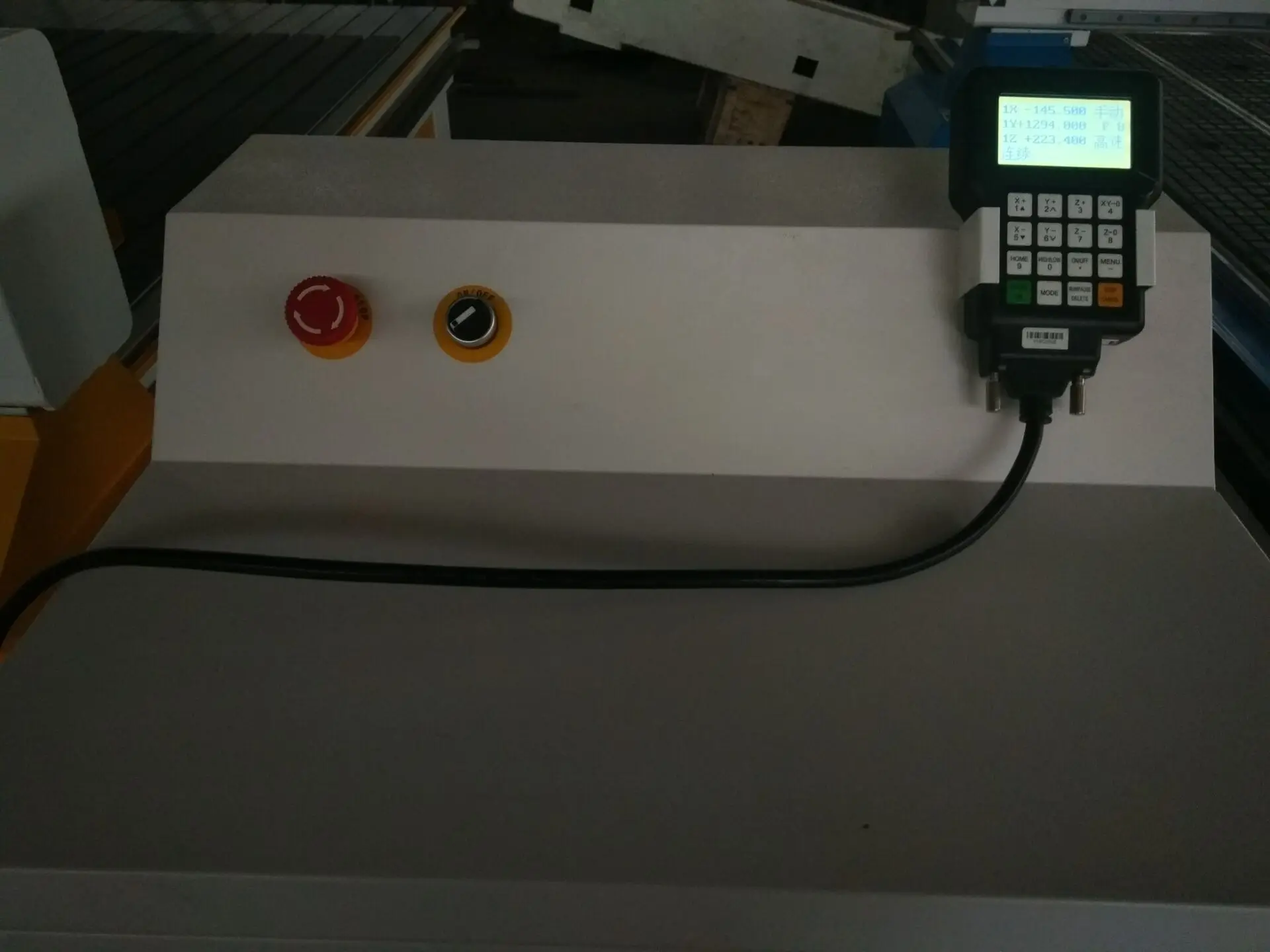

2.Adopting advanced DSP system, operated with the handle, convenient operation, designed with more human nature.
3.Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smoother curves.
4.Y spindle adopts double motors to drive
5.High strength steel tube jointing.
6.It divided into 6 vacuum table-board.
7.Professional and human nature 3D control system,
8.Optional auto tool CHANGER, and temperature control system.
Applicable industry and material
Wardrobe , cabinets ,office furniture ,custom furniture etc
1.Offering the specification of the machine ,1 years warranty
2.English software, user manual and operation CD
3.24 hours technical support by e-mail, calling
service If you have any problems ,we will within 12 hours to solve it .
4.If you need any component of the machine later ,we will provide the best price for you
5.7working days to produce the machine ,in the meanwhile , we will report the production process in time.
Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal.... ? )
2). For the Spindle Power, may I know the cutting or engraving depth you want?
3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc...
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
