Toughened Glass insulator discs (forged type)

Share on (60655931098):


Price:

Quantity:


Product Overview

Description



Product Description

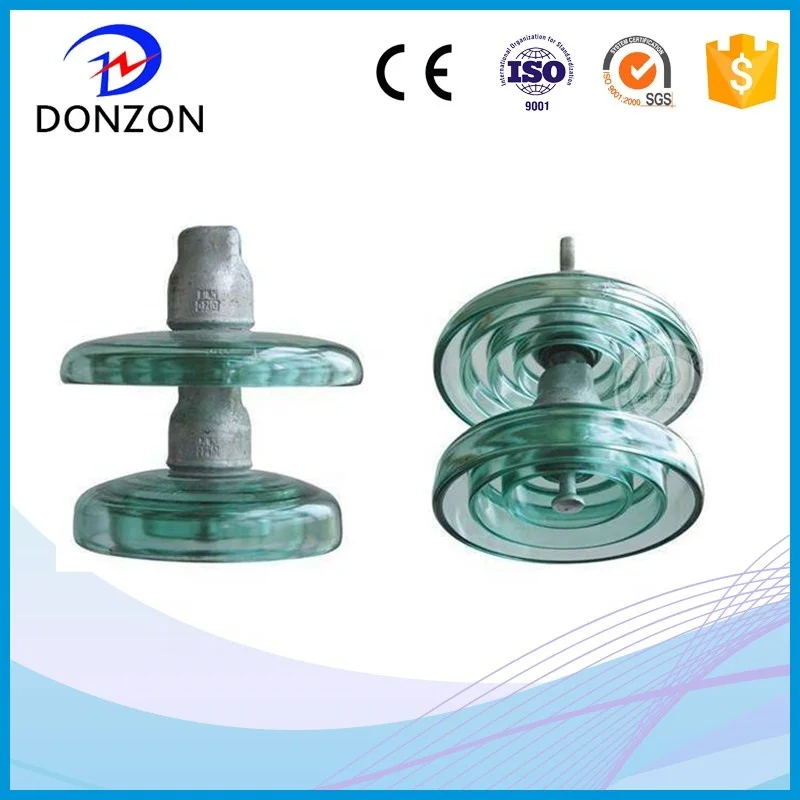

Toughened Glass insulator discs (forged type)








 Toughened  Glass insulator discs (fog type)

























































































































Currency designationU160BP/155HU160BP/170HU160BP/155HU160BP/170H
DesignationLXHP3-160LXHP4-160LXHP6-160LXHP5-160
(mm)Diameter D280280320320
(mm)Spacing H155170155170
(mm)Creepage L450450550550
(mm)Socket soupling20202020
(KN)Mechanical failing Load160160160160
(KN)Mechanical routine test80808080
(KV)Wet Power frequency withstand voltage50505555
(KV)Dry lighting impulse withstand voltage125125140140
(P.U)Impulse puncture voltage2.82.82.82.8
(KV) Power frequency puncture voltage*130*130*130*130
(μV)Rodio influence voltage50505050
(KV)Corona visual test18/2218/2218/2218/22
power frequency electric arc voltage0.12s/20KA0.12s/20KA0.12s/20KA0.12s/20KA
(kg)Net weight per unit7.17.29.59.6

Application:


.jpg








Company Information


Donzon Power Co., Ltd. is located in SiXian industrial area RenQiu City HeBei province, just 110 kilometers from tianjin port, we mainly research, develope and manufacture ADSS, OPGW cable acessories:preformed tension clamp,preformed suspension clamp, vibration damper cable joint box,down lead clamp ;electric power line equipment, communication lines equipment, railway line fittings, electrical hardware, electric iron fittings and so on.


QQ20170628145733


And we have professional technology perfect after-sales service.The most important thing is that our products have strict quality control in the process .




We  has more than 20 years of experience in terms of power ,go through the ISO9000;CE;OHSAS18001 certificate.


.jpg





Many Products are exported to Russia, the United States, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil, Argentina, Chile, all nations of southeast Asia and other international markets.







Packaging & Shipping


Packaging Details:carton ,wooden  cases,woven bag,plastic bag then put on pallets


Other packaging according to customer requirements


Delivery  Dtalis:Within two weeks


photobank (3).jpg





Our Services


1. We are specialized in manufacturing overhead power line fittings.


2. Rich manufacture experience.


3. Certificates: ISO9001.


4. High quality with competitive price.


5. Domestic and Overseas markets.


6. Well equipped with complete facilities.


7. Strict quality control and excellent after-sales service.


8. In addition to supplying varieties of types and specifications to our customers, we also accept customized product.





According to the detailed drawings,our well  trained serve staff and professional engineers will get back to you according to your requiremen.





FAQ


Q: Are you trading company or manufacturer ?


A: We are factory,so we can show you the lowest price.


Q: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 20-40 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?


A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Q: What is your package ?


A:carton,pallet,wooden box (as customer's requirement)





Q: How about your foreign trade market ?





A:Middle East, Africa, South America and North America.Southeast Asia



If you have another question, pls feel free to contact us as below:
