Professional manufacturer overhead crane rail clamp
- Category: >>>
- Supplier: Wuhan March Industrial Electric Co. Ltd.
Share on (60656082967):
Product Overview
Description
Professional manufacturer overhead crane rail clamp
Product Description

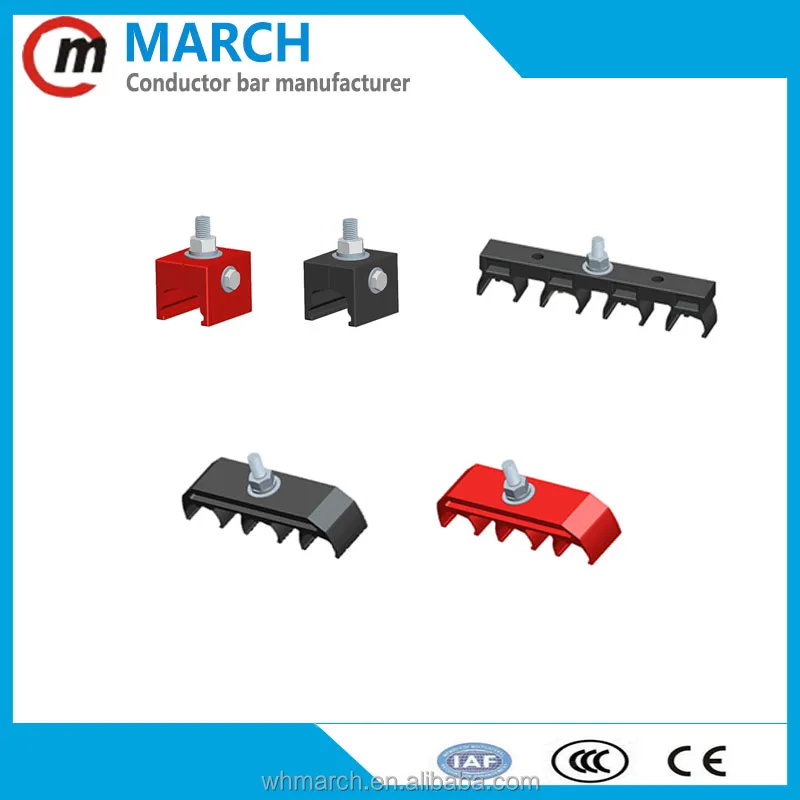

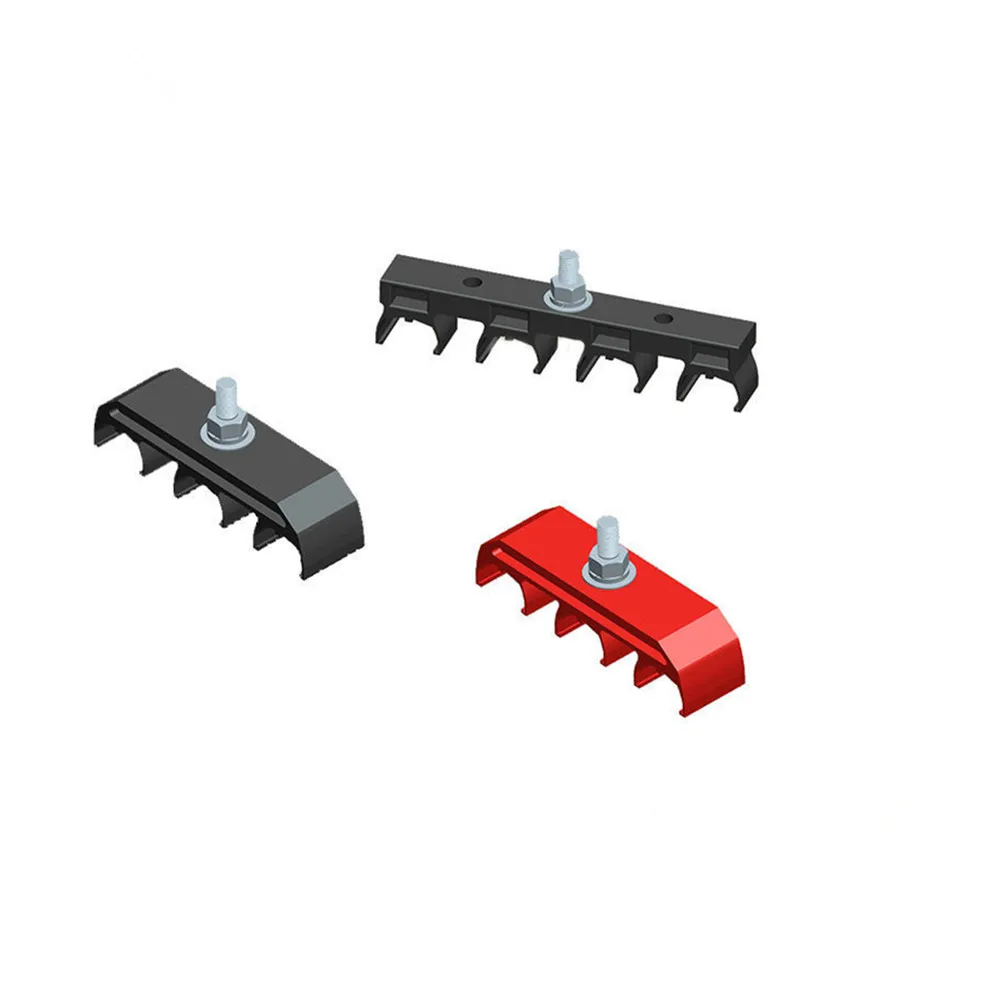

MCCBIII Hanger Clamps specification
Item | Material | Part No. |
|---|---|---|
Anchor Clamp | PPO | 37104 |
1-pole Hanger Clamp | PVC | 37101 |
3-pole Hanger Clamp | PVC | 37102 |
4-pole Hanger Clamp | PVC | 37103 |

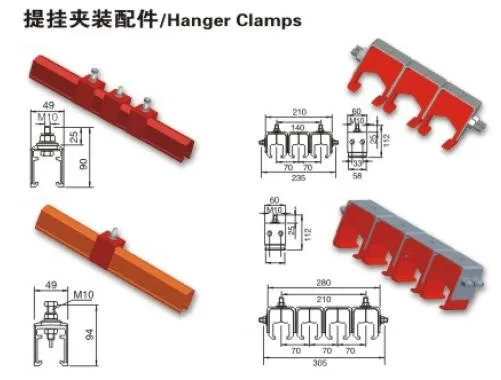

MCCBII Hanger Clamps
| Item | Material | Weight(kg) | Part No. |
| Anchor Clamp | PVC | 0.04 | 27104 |
| 1-pole-Hanger Clamp | PVC | 0.03 | 28101 |
| 3-pole Hanger Clamp | PVC | 0.06 | 27103 |
| 4-Pole Hanger Clamp | PVC | 0.07 | 27101 |
| 2-Bolt4-Pole Hanger | PVC | 0.08 | 27102 |
Type -Aluminum

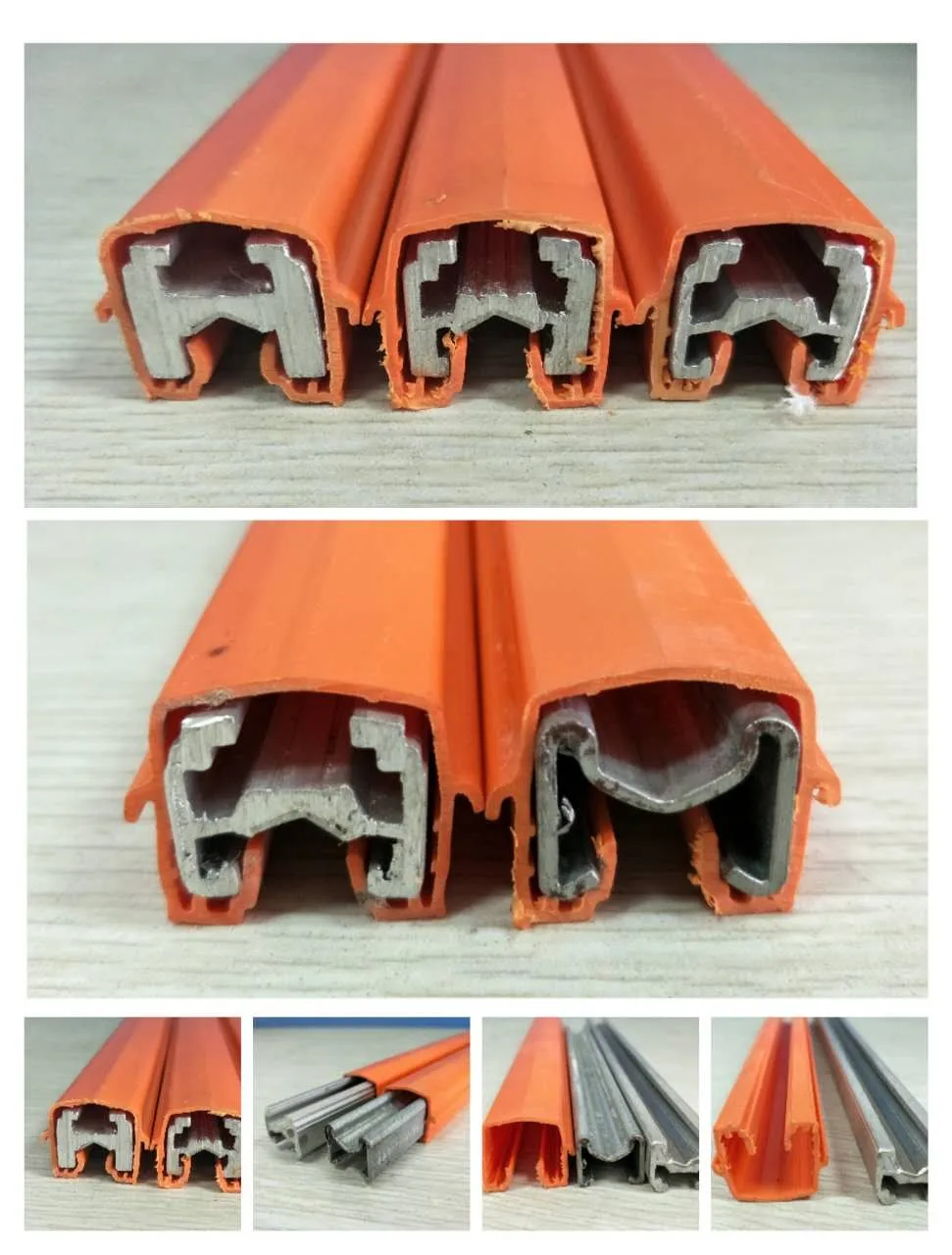

Aluminum conductor busbar
| Model | Rated current (A) | Section area (mm2) | MAX Voltage AC (v) | MAX Voltage DC (v) | Full load permissible temperature (Degree) | Weight (kg) |
| MCCBII-160A-AL | 160 | 102 | 550 | 700 | 25 | 1.98 |
| MCCBII-200A-AL | 200 | 104 | 2.13 | |||
| MCCBII-250A-AL | 250 | 110 | 2.19 | |||
| MCCBII-315A-AL | 315 | 120 | 2.32 | |||
| MCCBII-400A-AL | 400 | 157 | 2.81 | |||
| MCCBII-500A-AL | 500 | 196 | 3.11 |
Stand Length : 4.5 m
Application environment : Suitable for the out door and sea , resistance to certain chemicals

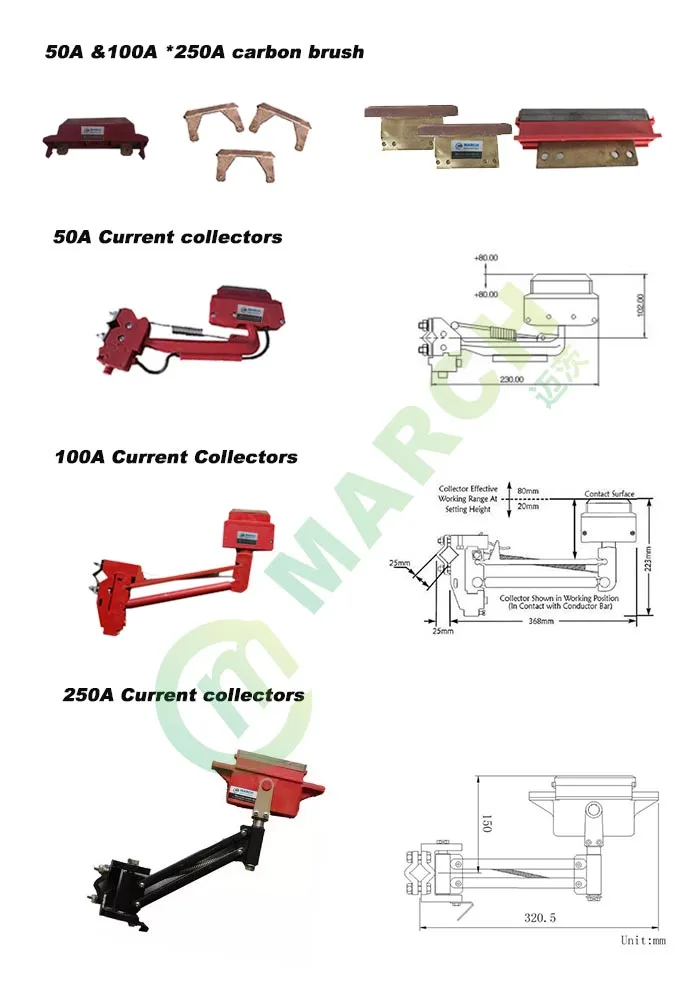

Current collector
50A-500A Insulated conductor busbar Current collector
| Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
| 50 | 1 | - | - | - | 0.4 | Copper/Graphite |
| 100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
| 200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
| 250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
| 500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact area : 360mm2 &1088 mm2
Shoe Pressure :0.007 k/mm2
Allowed Wearing : 5mm & 8mm
Max Speed: 200 m/min
Spring Load Weight :2.5KG & 8KG
Packaging & Shipping
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 Working days after confirm the order
Company Information
Wuhan March Industrial Electric Co.,Ltd ,
which founded in 2003, is a professional factory for mobile power , Insulated conductor bar power range from 60A to 2500A.Always keep provide Chinese factory price and Germany technical and quality gurantee is our advantage . !
Company currently has 120 professional and technical personnel, 20 advanced mechanical and electrical engineers , 30 senior technicians . A port machinery and after-sales personnel 50, crane installation and maintenance workers 30.
Application project
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
