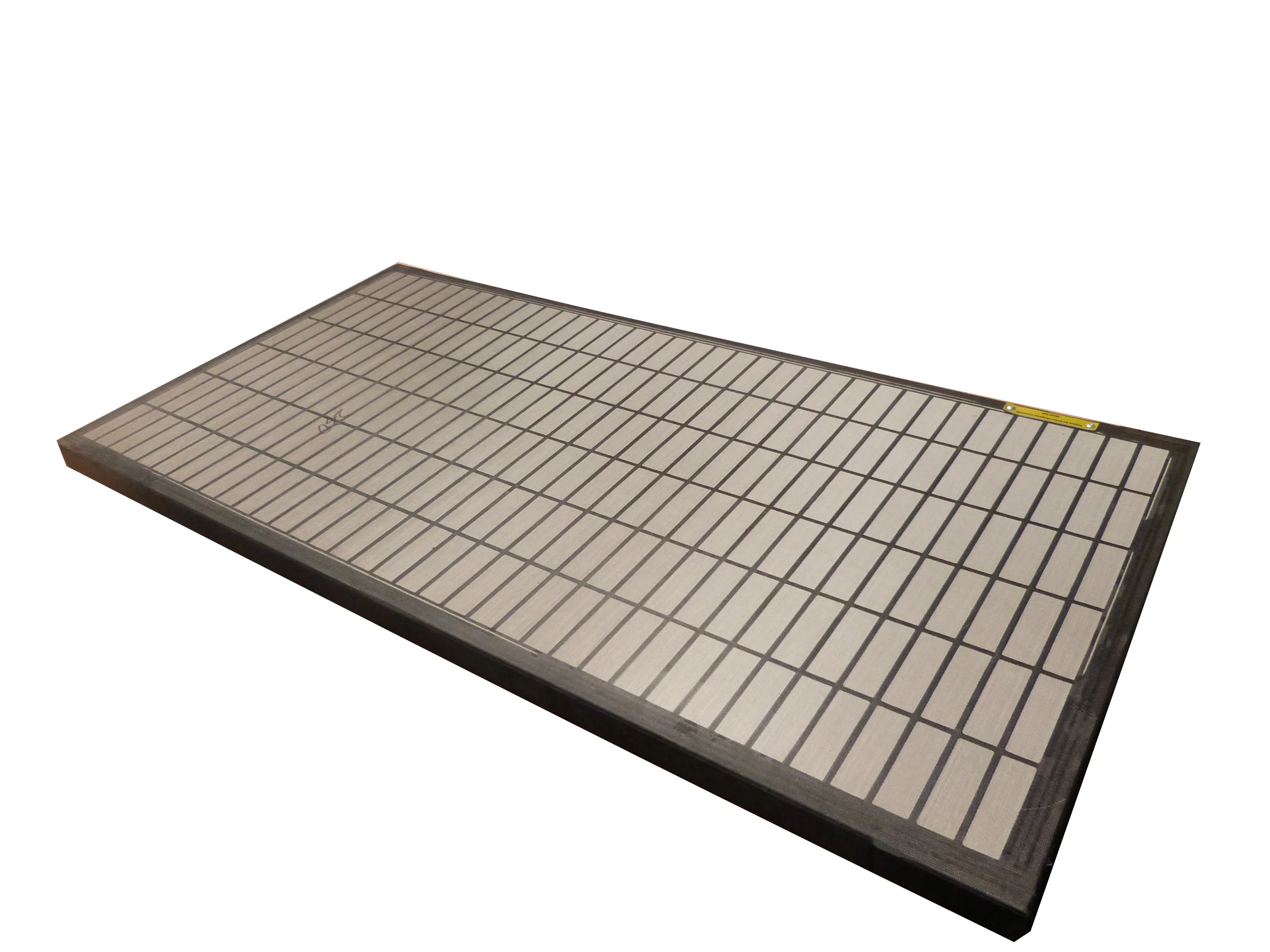

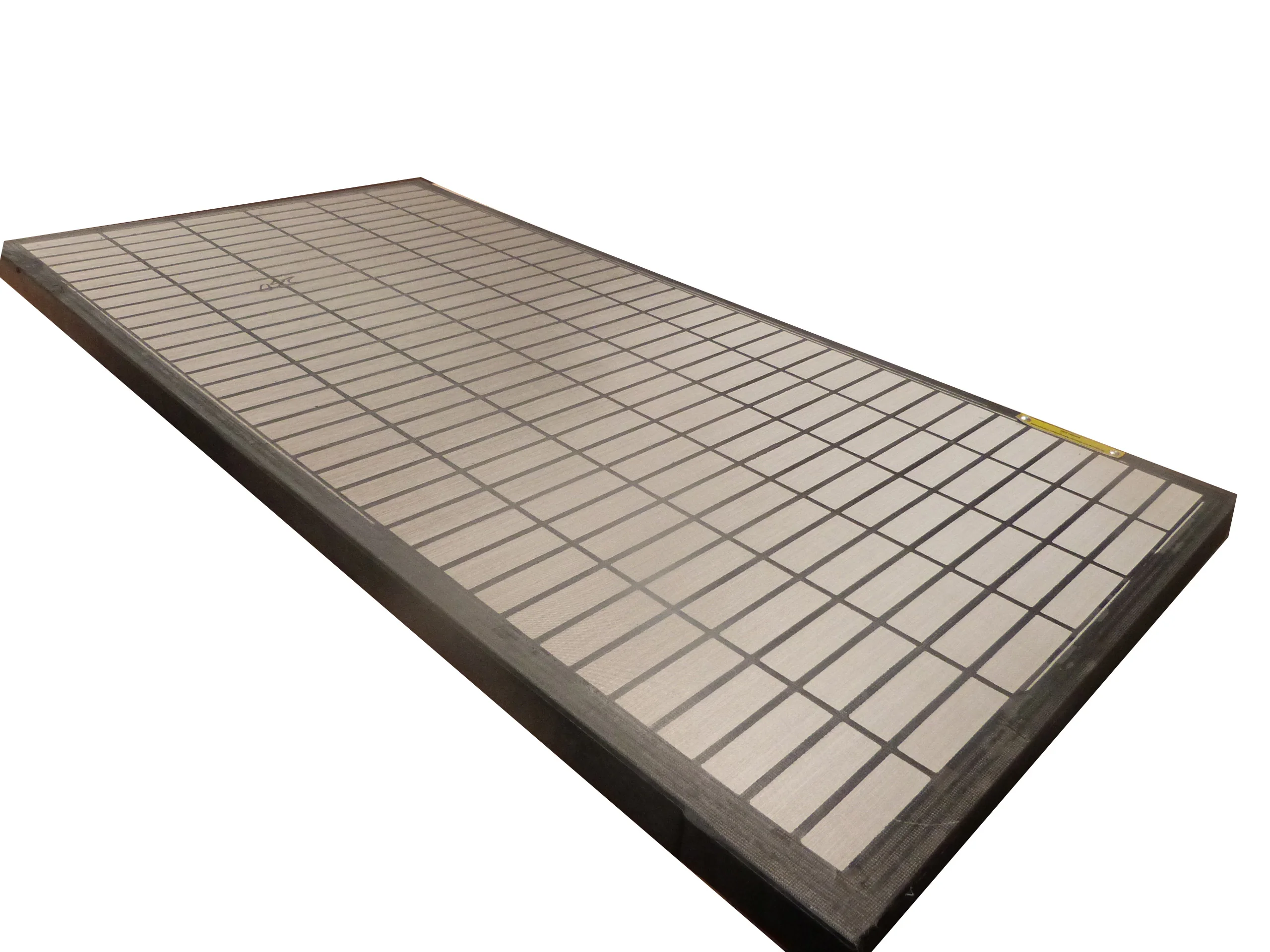

1) These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together.because of different mesh size and hole size,get an better filtering effect.

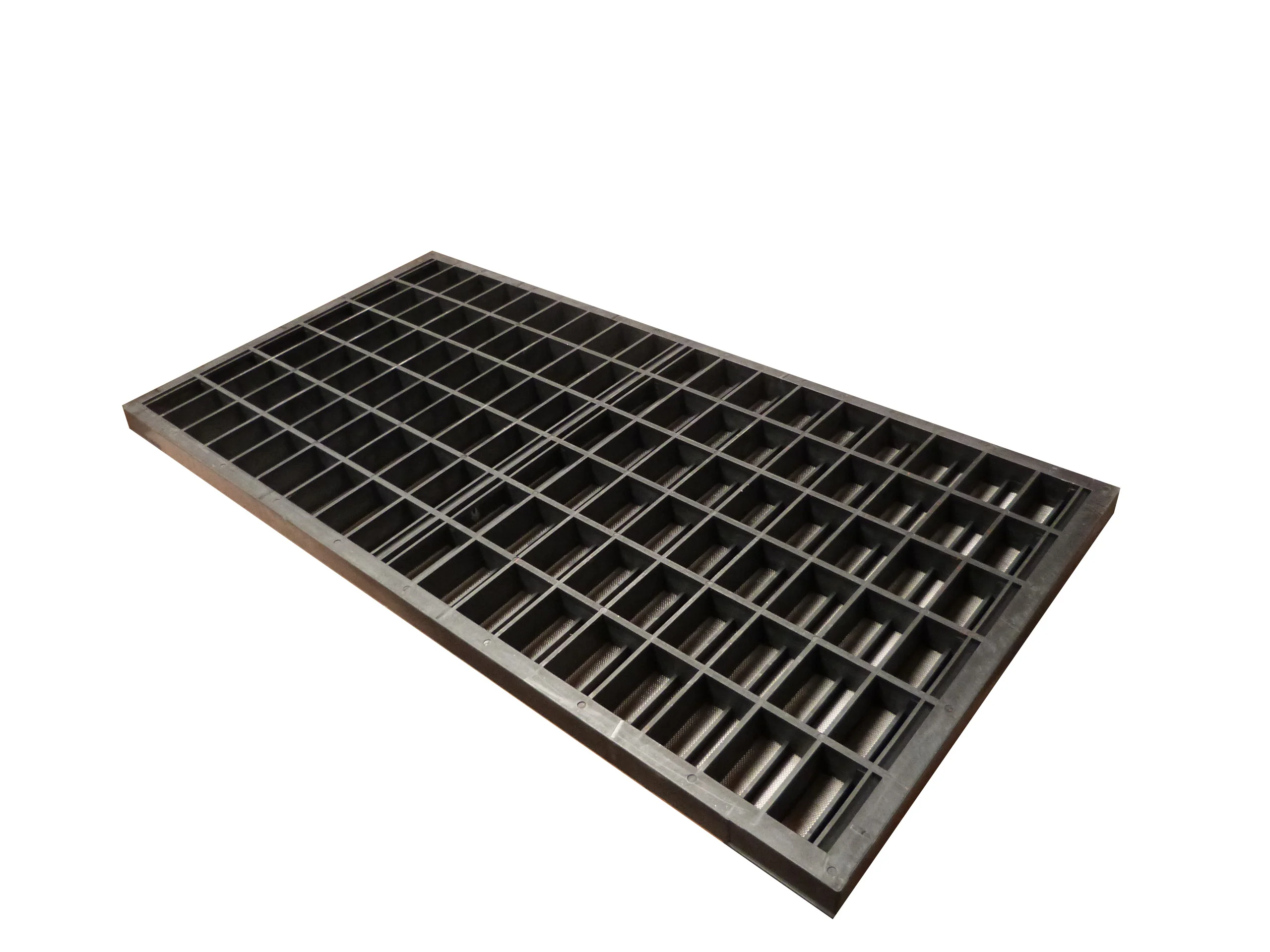

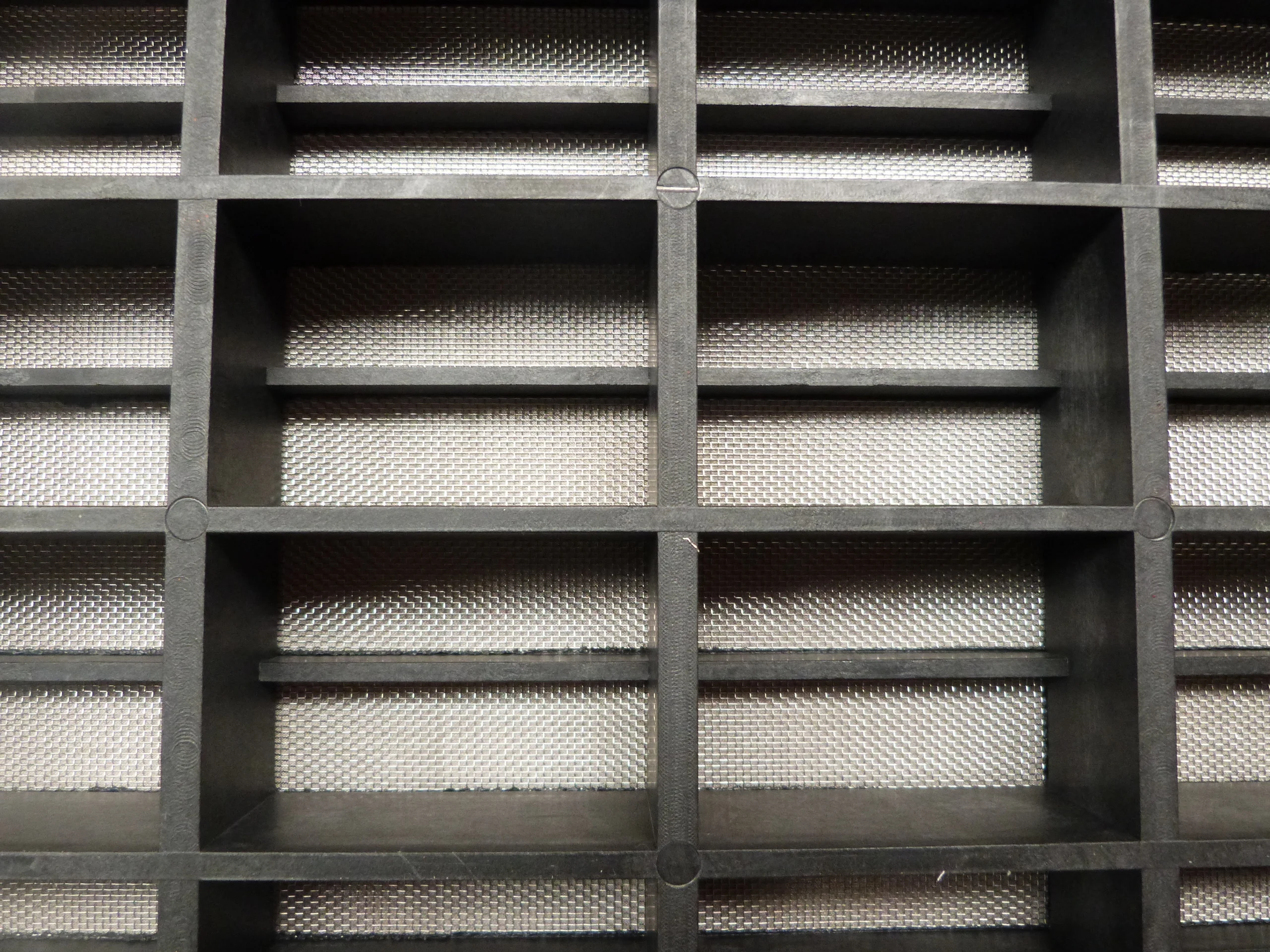

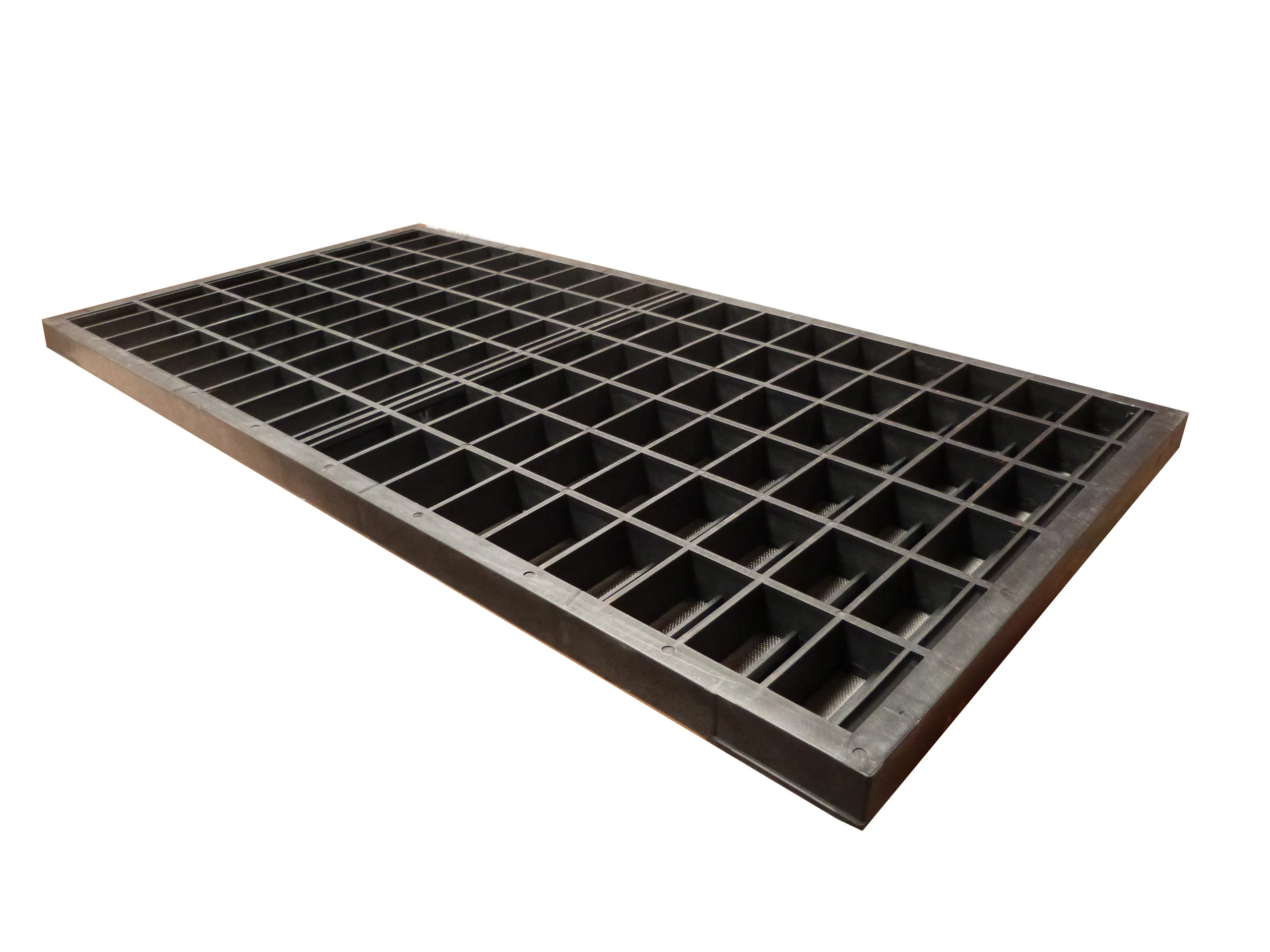

2) The bottom high strength steel frame,supporting bar with the moderate tension screen cloth,combined together, infinitely enhance the screen intensity and endurance, get an better fitering effective. Mesh sizes ranging from 20 to 325,specially customized.

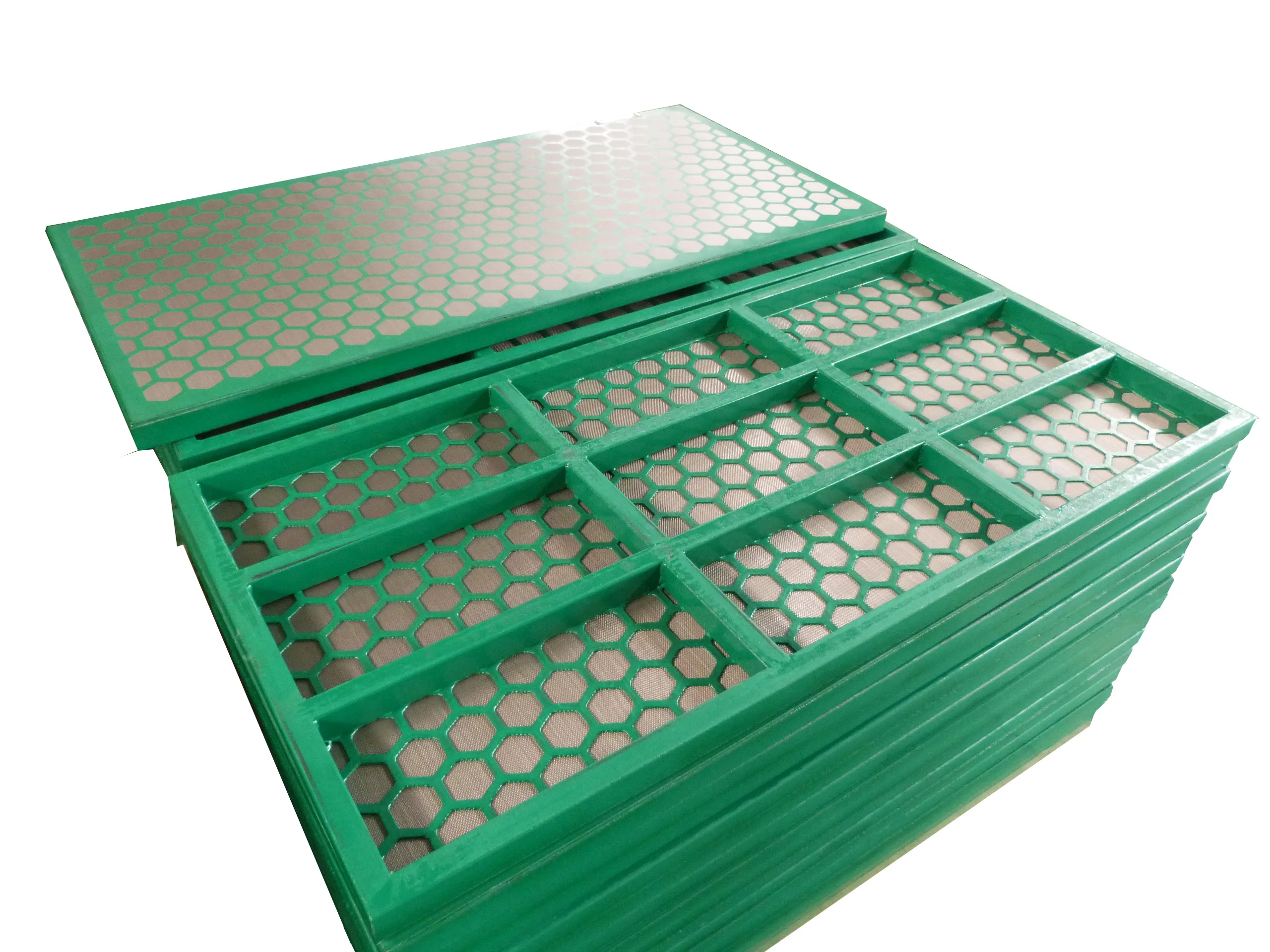

3) Steel backing plate forms usually include hexagonal, rectangular,square,diamond and so on.
the whole cloth is divided into independent small surfaces,prevent the part excessive expansion damaged.,with a special rubber plug together to repair damage, can save the time to replace the screen, Increase the efficiency and reduce the cost.
No.
TSCXR mesh
API RP 13C mesh
API RP 13C d100(micron)
Diversion rate(Kd/mm)
1
DRSJ084M
50
308
4.13
2
DRSJ 105M
60
250
3.46
3
DRSJ 120M
70
211
3.18
4
DRSJ 150M
75
196
2.87
5
DRSJ 165M
80
180
2.47
6
DRSJ 200M
100
162
1.88
7
DRSJ 230M
120
118
1.48
8
DRSJ 270M
140
110
1.26
9
DRSJ 325M
170
89
0.94
10
DRSJ 400M
200
73
0.68
No.
TSCXR mesh
API RP 13C mesh
API RP 13C d100(micron)
Diversion rate(Kd/mm)
1
DRSJ 050M
35
414
6.38
2
DRSJ 084M
60
238
3.49
3
DRSJ 105M
70
198
2.95
4
DRSJ 120M
100
162
2.46
5
DRSJ 165M
120
120
1.74
6
DRSJ 200M
140
111
1.64
7
DRSJ 230M
170
80
1.28
8
DRSJ 270M
200
78
1.05
9
DRSJ 325M
230
55
0.62

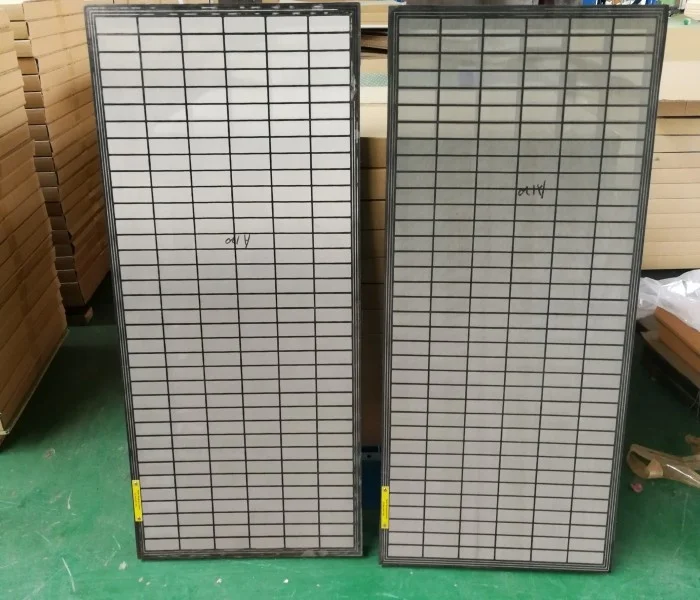

Products Show
Our Company
Best manufacturer
Our company has been in this line of business for many years and enjoys high international prestige. Our products are of very good quality and our firm is always regarded by our customers as the most reliable one. We are pleased to get in touch with you for the supply of oil shale shaker screen、Stainless steel wire mesh,Composite Screen ,Water well screen , Johnson screen, sand control screen ,Steel grid plate，Steel grating，Welded wire mesh，Barbed wire and razor wire，Perforated metal mesh，Windproof and dust net，Welded fence series ，a complete range of specifications,mainly used by oilfield, agriculture industry ,petrochemical industry, transportation, mining filtering and others, which are sold the Middle East ,Europe and America, Southeast Asia and other countries ,which was given high evaluation by customers.
Packing & Delivery

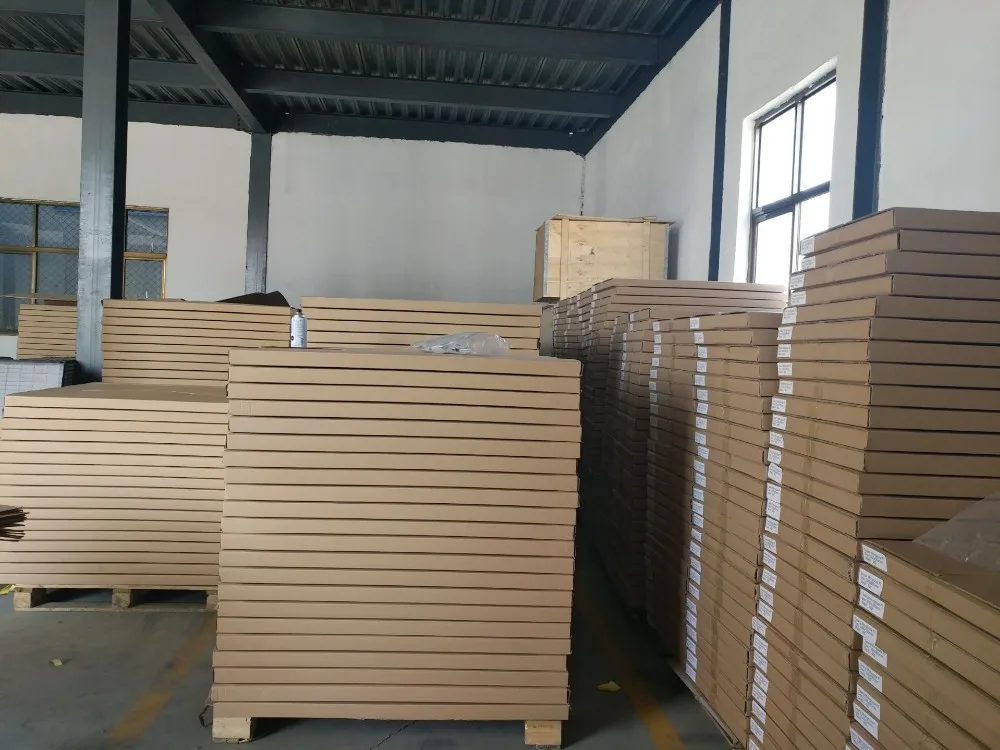

Packing Details : carton box then put into wooden case or contanier.
Delivery Details : Within 10 days after got the deposit payments by T/T
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
