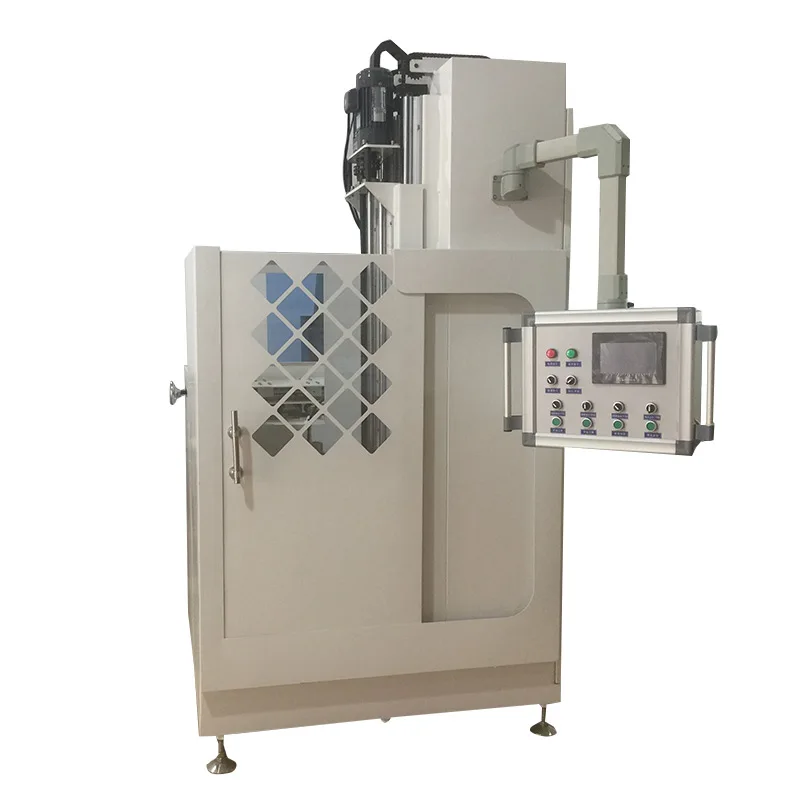

Good quality popular promotional vertical induction hardening tool machine

Number of working station : Customize

Max clamp length of the workpiece : Customize

Max quench length : Customize

Workpiece rev : 60-450r/min

Max weight of the workpiece : Customize

Quench speed : 6-3000mm/min

Workpiece speed : 3000mm/min

Max workpiece diameter : 550mm

The system control precision of the CNC : 0.001mm

Operation method : manual or auto

Positioning precision of the quench machine : 0.03mm

Machine Configuration :

1, Ball screw, CNC cutting machine tools, total customize;

2, Guide selection of linear bearings, high precision, little friction, long life, Hard-chrome-plated anti-ability;

3, Lifting the weight balanced in part through the sprocket chain, Weight for casting scales mound;

4, Sink completely sealed, no infrastructure projects; stainless steel sliding doors, beautiful and generous;

Rotary Drive: South Korea's LG inverter, spindle rotation step-less speed regulation;

The total power of the quench machine’s motor : 2.0kw

Product weight : on/about 1.5ton

Product size : length1500 x wide1000 x high3000

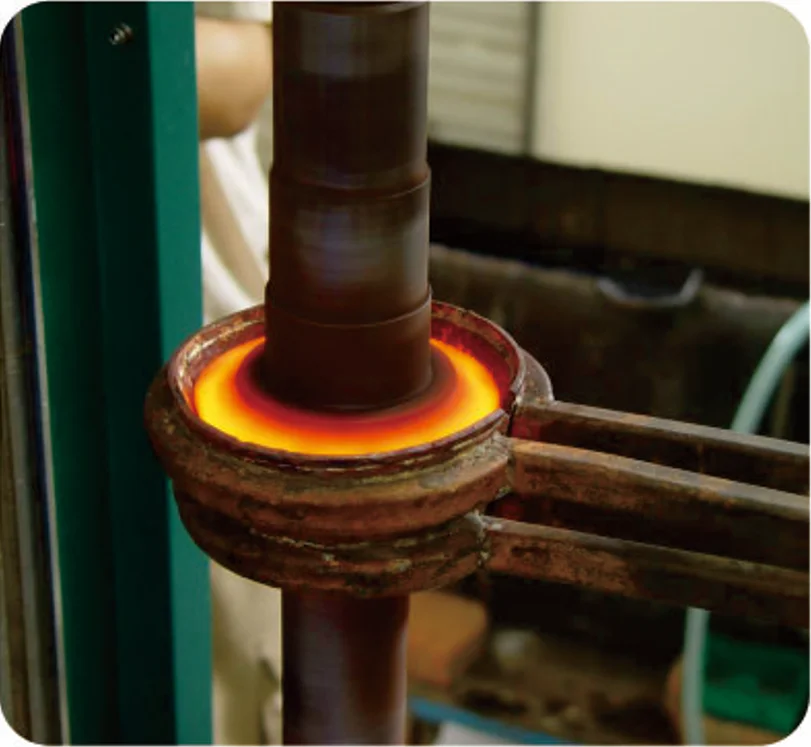

Quenching mode: continuous scan quenching; regularly quenching; sub-scan quenching;

Quenching speed adjustment: step-less adjustable

Working speed adjustment: step-less adjustable

Cooling method: spray

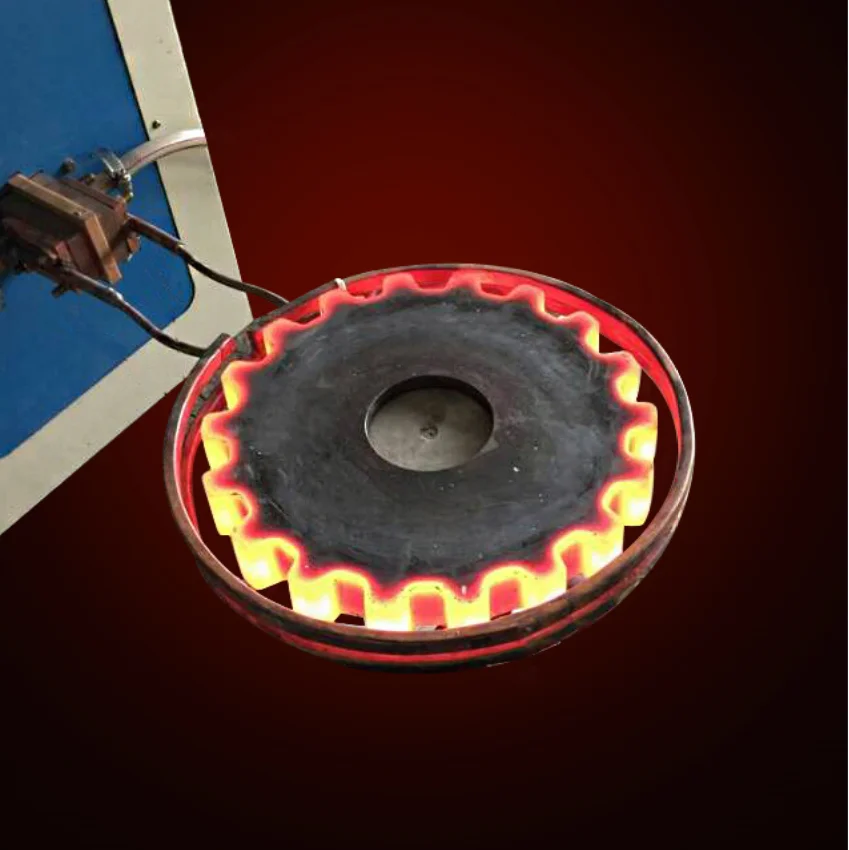

Quenching application : drive class, gear, shaft
