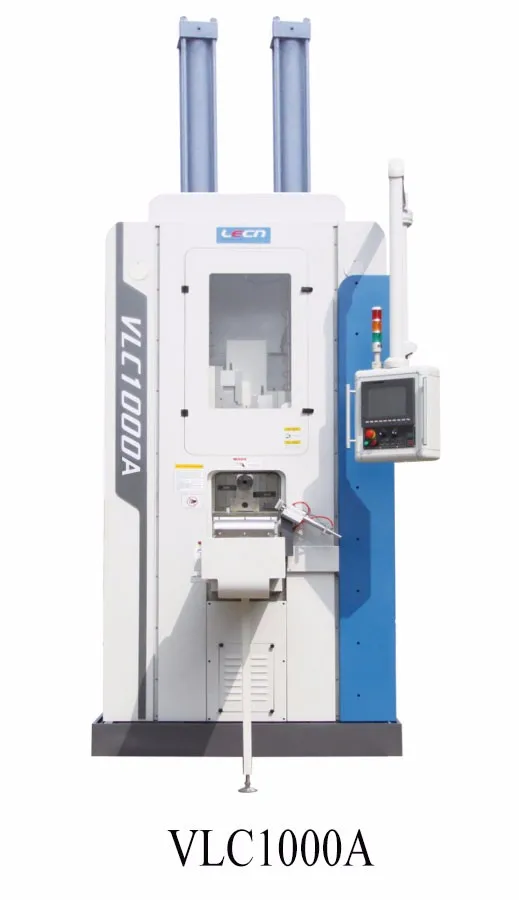

China Precision spline rolling machine VLC1000A / VLC1000EA with automation goog price quality

Product Overview

Description



Equipment  and details









Main parameters

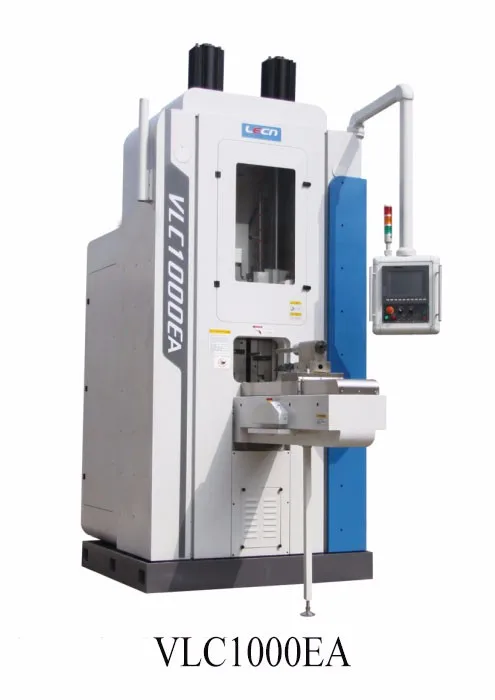

ITEM	UNIT	VLC1000A	VLC1000EA
Max  module	mm	1.5	1.5
Max out diameter	mm	ø50	ø50
Max tool width	mm	100	100
Max workpiece lenth	mm	1000	1000
Max installing tool width	mm	300	300
The open part size	mm	139.7	139.7
Tool size	mm	36or24,13	36or24,13
Max tavel	mm	1160	1160
Weight	kg	12000	12000
Length × width	mm	1580×3900	1580×3200
Drive way		Hydraulic	CNC







Function features

1)Wear-resistant castings made from special materials and rigid frame body.

2) Unique synchronization gap trimming technology can sharply improve synchronization accuracy.

3) Good mould combinations can reverse forming and save moulds.

4)Intelligent guide way lubricant detector, work piece forming with large cooling flow.

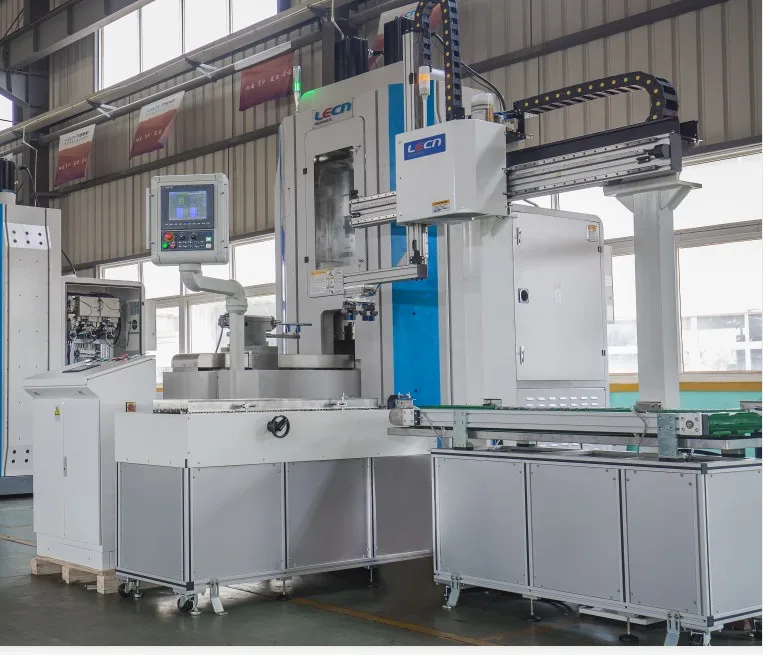

5)Reasonable structure design, friendly operating height and small floor space. 6)Can carry with truss or joint robot and automation line.

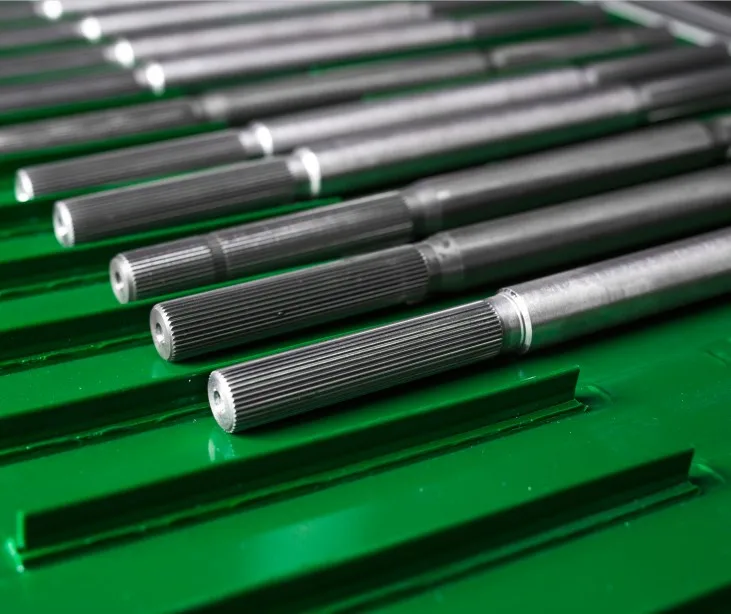

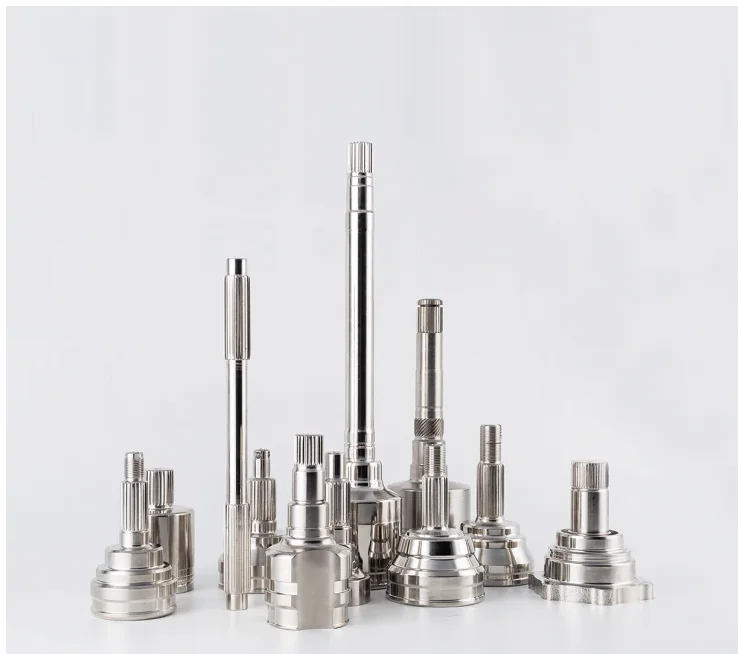

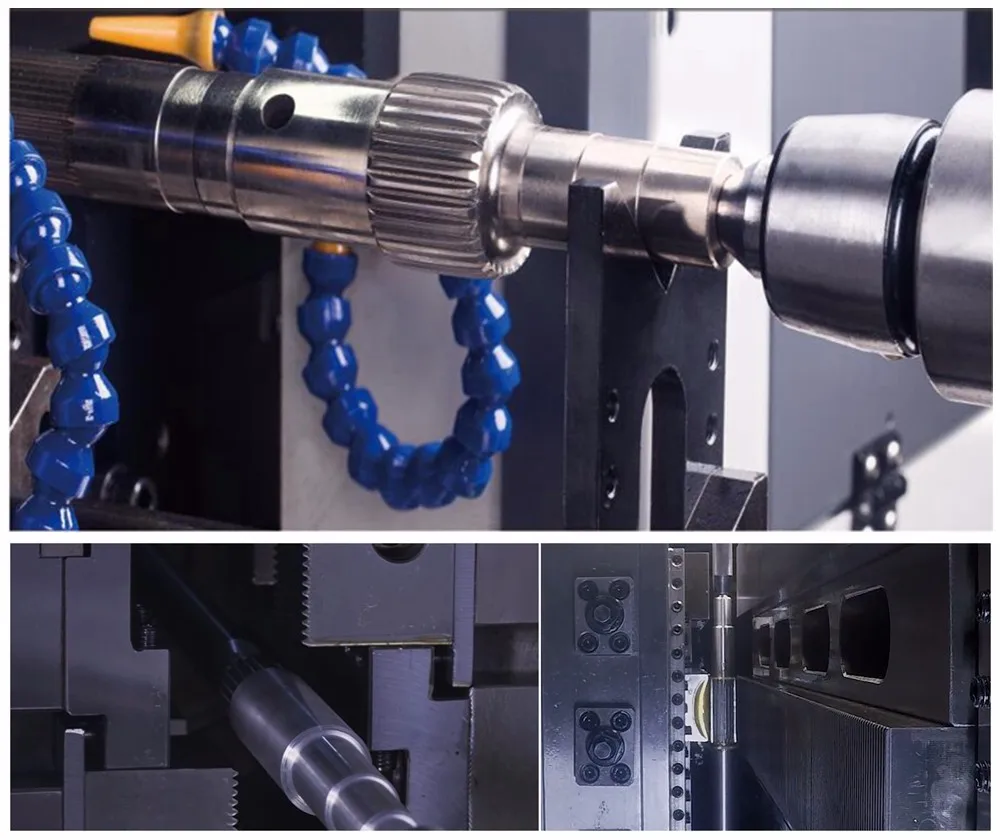

Spline shaping principles

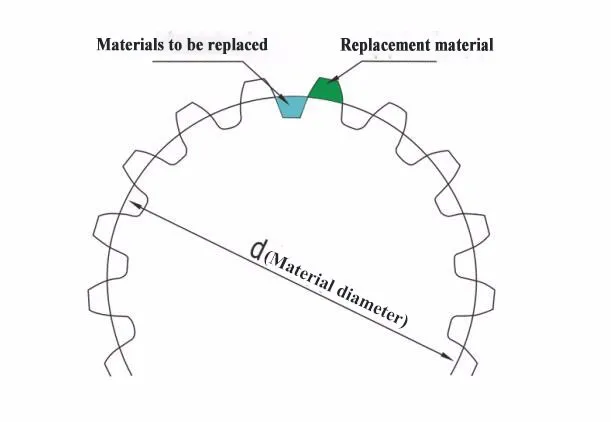

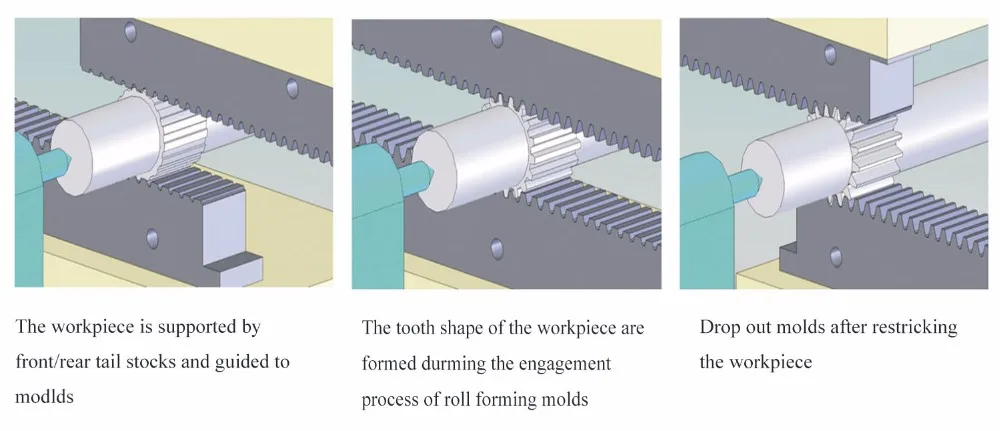

 The spline cold forming is actually a shaping process without stock removal,in which root materials are gradually extruded and replaced upto crest .



Through our computation procedure, you can easily figure out the theoretical diameter of materials necessary for shaping and you can get the final diameter after adjustment .





Advantages of cold forming: (compared with old cutting processing)



1) efficiency is increased up to more than 30 times ;

2) work piece bearing capacity is increased to 40%;

3)roughness can reach to below Ra0.4;

4)materials saved to 9%-15%;

5)fatigue strength,torsion strength and wear resistance are sharply improved.

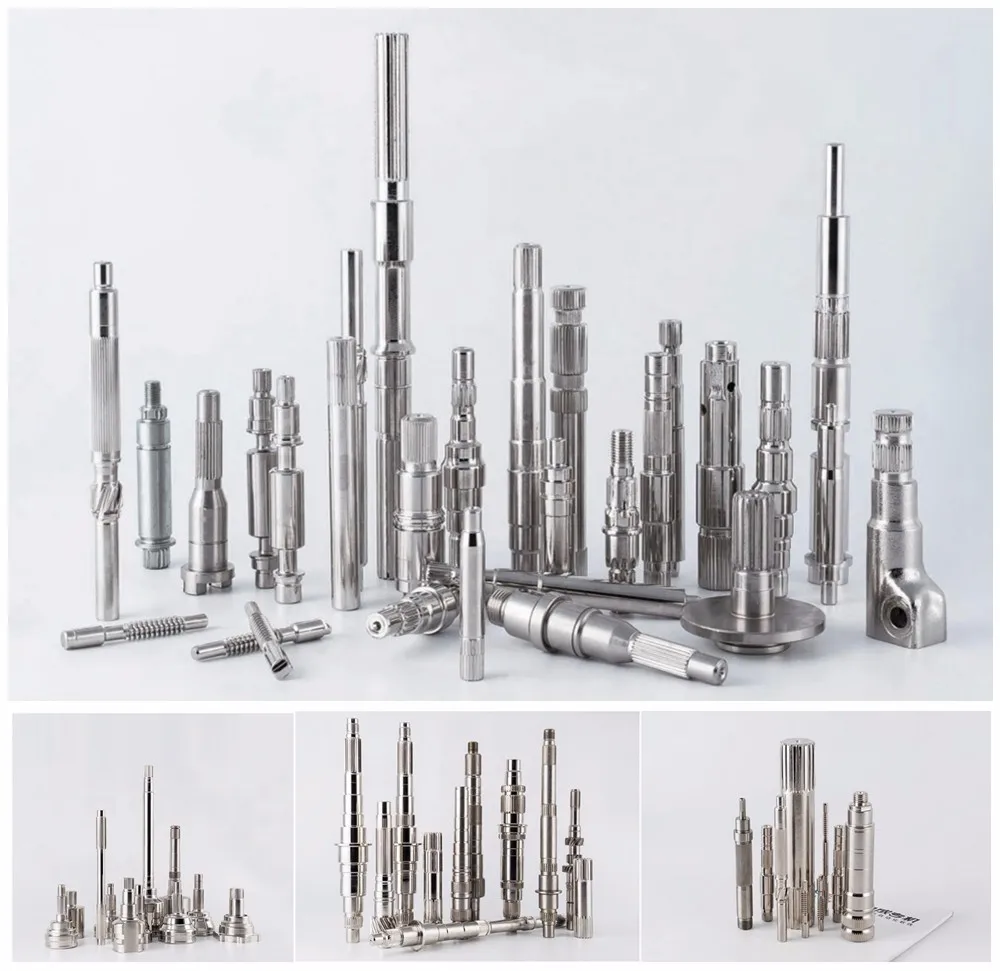

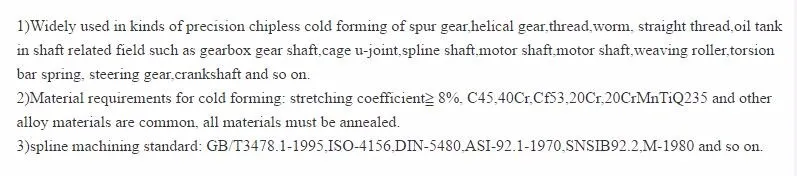

Application:







Related products

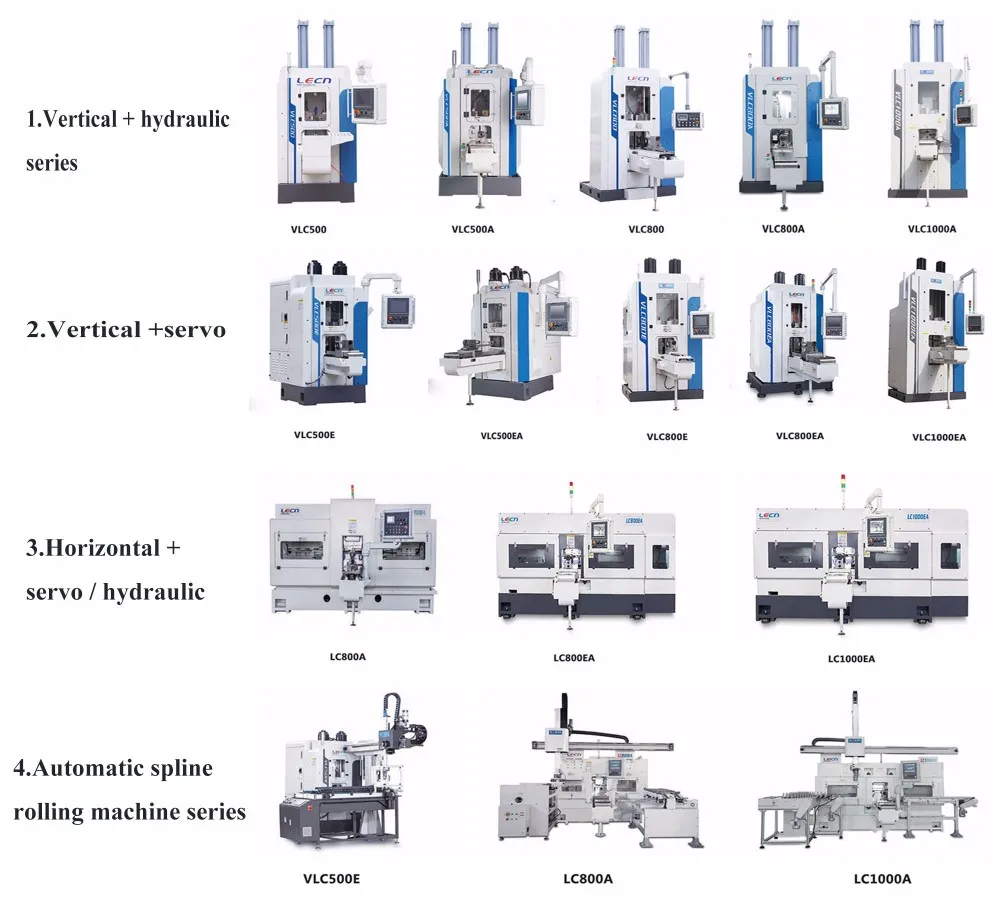

Advantanges on LECN rock rolling machine:

1)No matter verticl or horizontal, we have full series of machine for option which can carry with hydraulic driving or servo driving.

2) All the machines we choose synchronous gear system to ensure precision synchronization with LECN micro-adjustment patent.

3) All the servo rock rolling machines use patent technology of double servo, motor+ball screw and pionion and rack driving.

4)All the machines use special ball screw nut coolant technology.

5) We have special agency rights of Japanese famous mould manufacturerd and good cooperation with overseas spline mould manufacturers.

6)We have more than 10 year experiences in rock rolling processing and

there comes a bright expert team for service.

7) We have many key technology patents on spline rolling.
