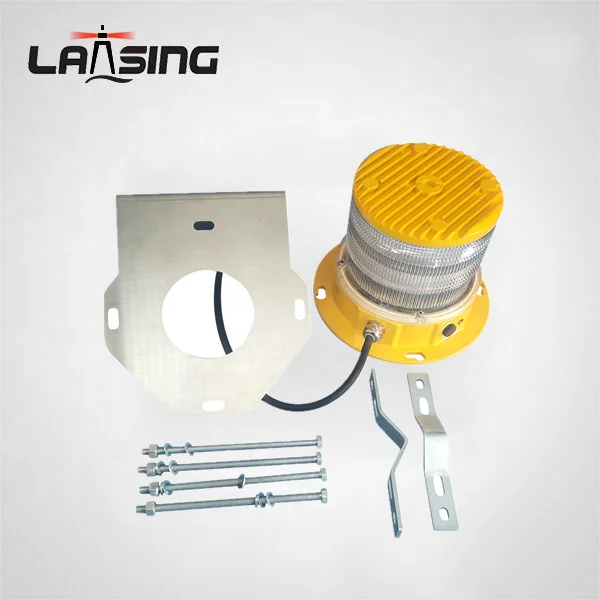

ZG2K TYPE C GPS Medium intensity flashing obstruction/FAA L 864 Red obstruction lamp/With GPS Synchronization function(optional)

LIGHT OUT-PUT

Peak Intensity

2000 Candela

Vertical Divergence

-1° :950cd, Centering at 0.5°

Horizontal out-put

360 Degree

LED Color

Red

LED Lifespan

100,000 Hours

OPERATION

Flash Pattern

Steady-burning or flashing(20-60times/min)

POWER SUPPLY

Input voltage

110VAC ~ 220VAC, 24VDC, 48VDC

Frequency

50Hz ~ 60Hz

Power consumption

40W with steady mode; 5W with flashing

MECHANICAL STRUCTURE

Lens

Polycarbonate, UV Stabilize

Body

Die-casting Aluminum

Water-proof

IP67

Weight

4.5 KG

Temperature Range

 -40℃ ~ +55℃

Relative humidity

100% with condensation

Dimensions

210mm H, 226mm Diameter

Warranty

5 years

Optional

Available with built-in photocell
Available with built-in Alarm relay
