Automatic tube swaging machine for sale with hydraulic feeding facility

Product Overview

Description

Automatic steel tube rotary swaging machine with hydraulic control



Main specification

1.Applicable material of the machine:carbon steel, stainless steel, aluminum , alloy, copper, brass etc.

2.Microcomputer controlling; Hydraulic driving.

3.Automatic and manual operations are available.

4.English or Chinese subtitles; man-machine conversion operation, easy.

5.Adopting linear slider rail, stable propulsion.

6.High accuracy and efficiency.



Technical parameter

Model/Name	ZSG40	ZSG60
Max. reducing capacity mm	Φ40×2.0	Φ60×2.5
Max. reducing length mm	260	320
Molding time m	10-60	10-60
Motor power KW	5.5	7.5
Cooling oil pump W	40	90
Rotate speed of main shaft r/min	175	286
Overall dimension mm	1020×620×1200	1300×880×1300
Weight T	1.4	1.6

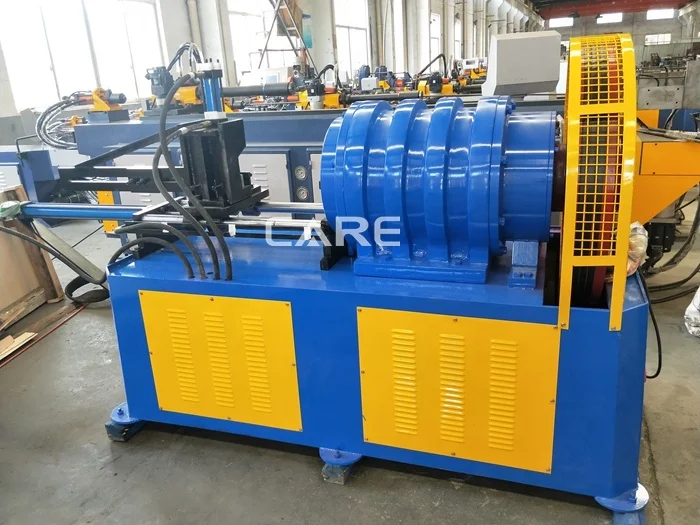

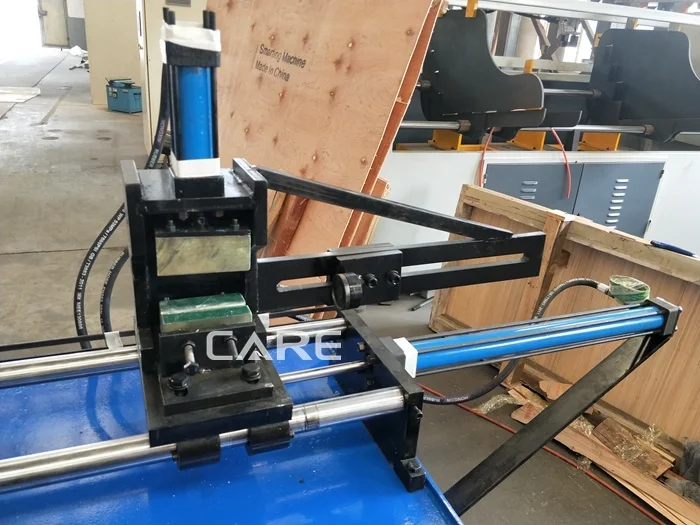

Machine photo

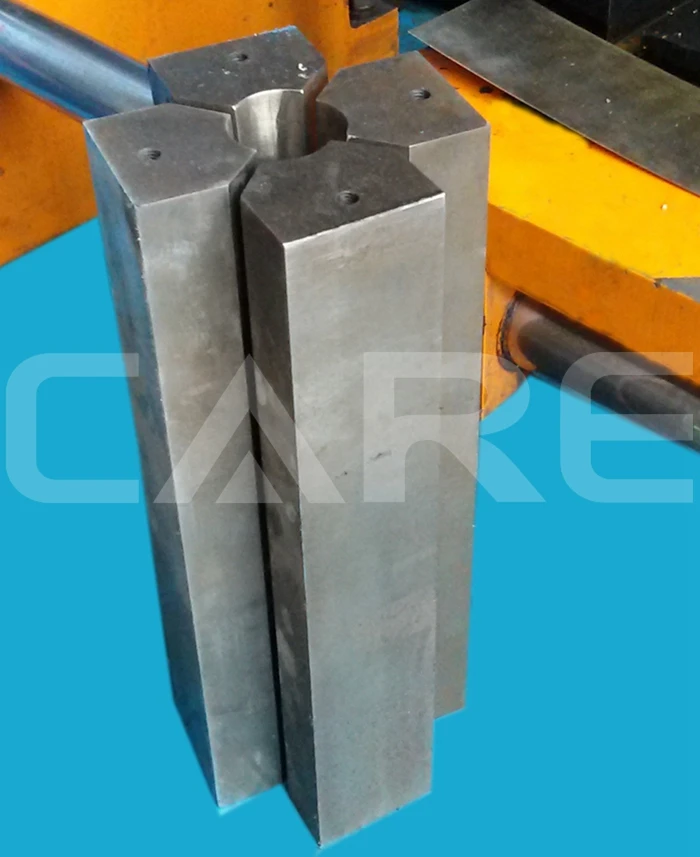

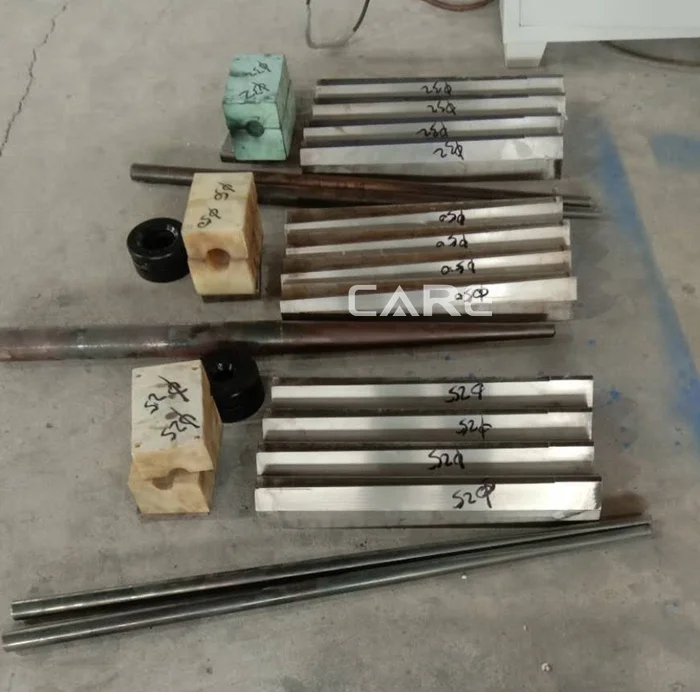

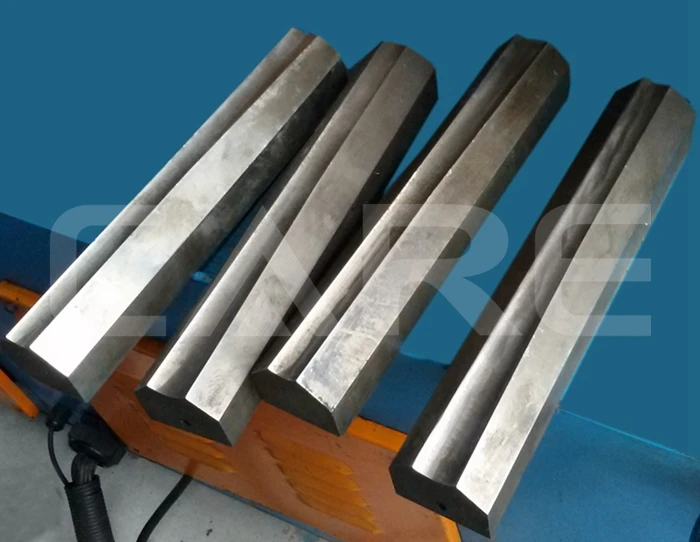

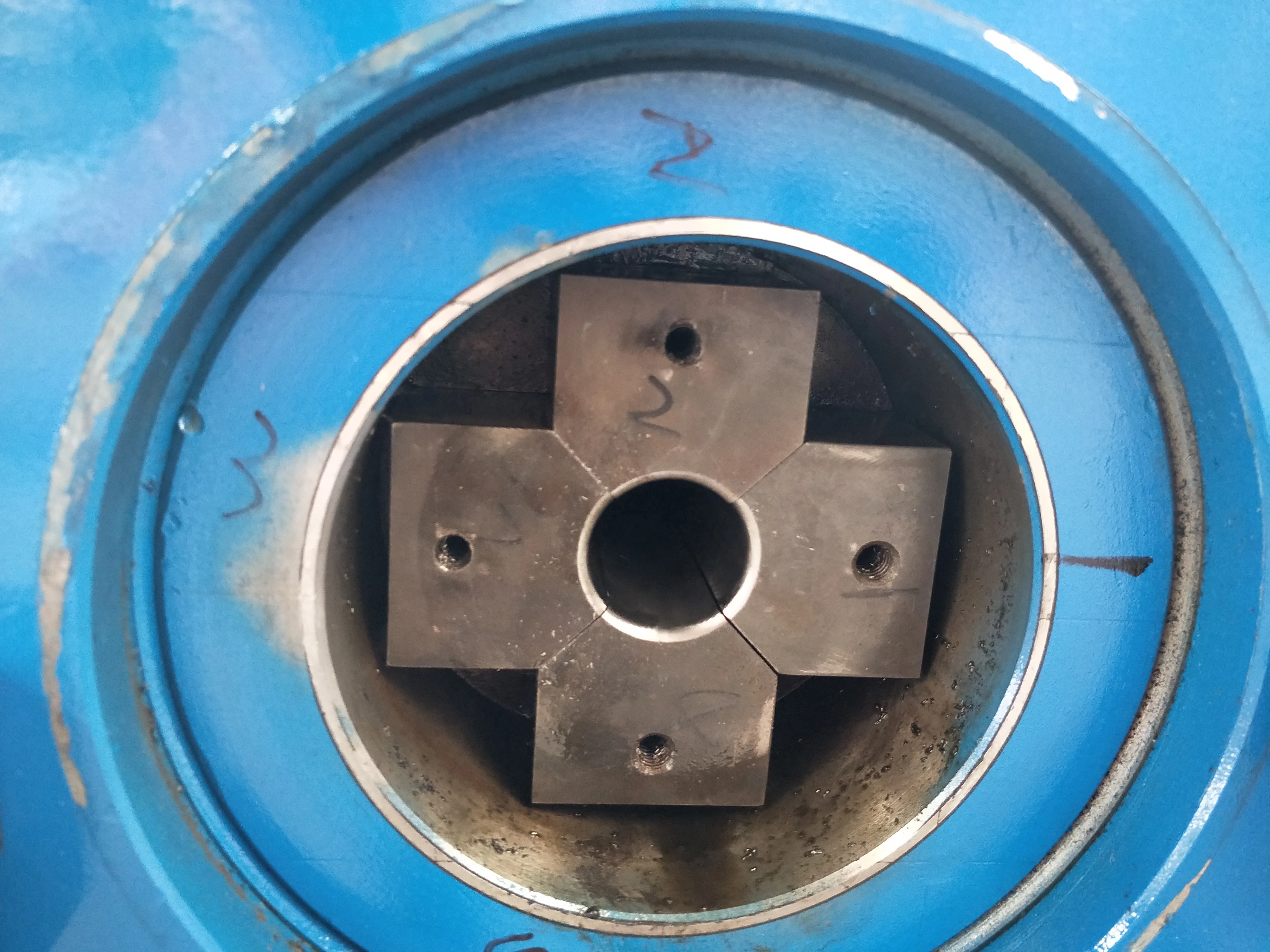

Reducing mold

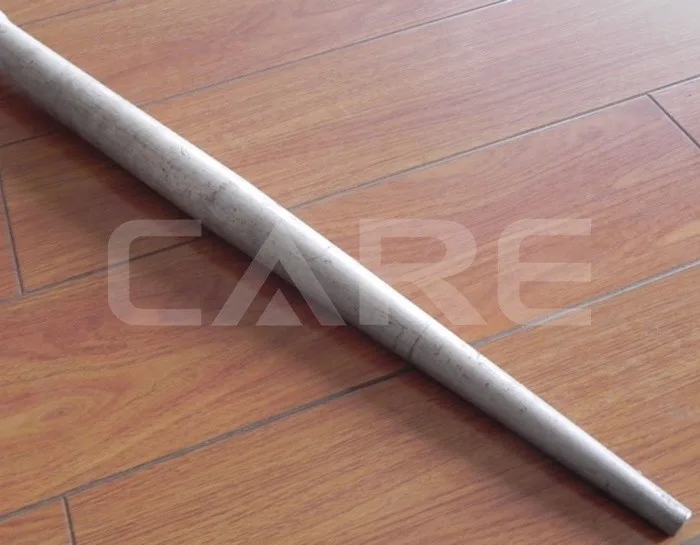

Pipe sample
