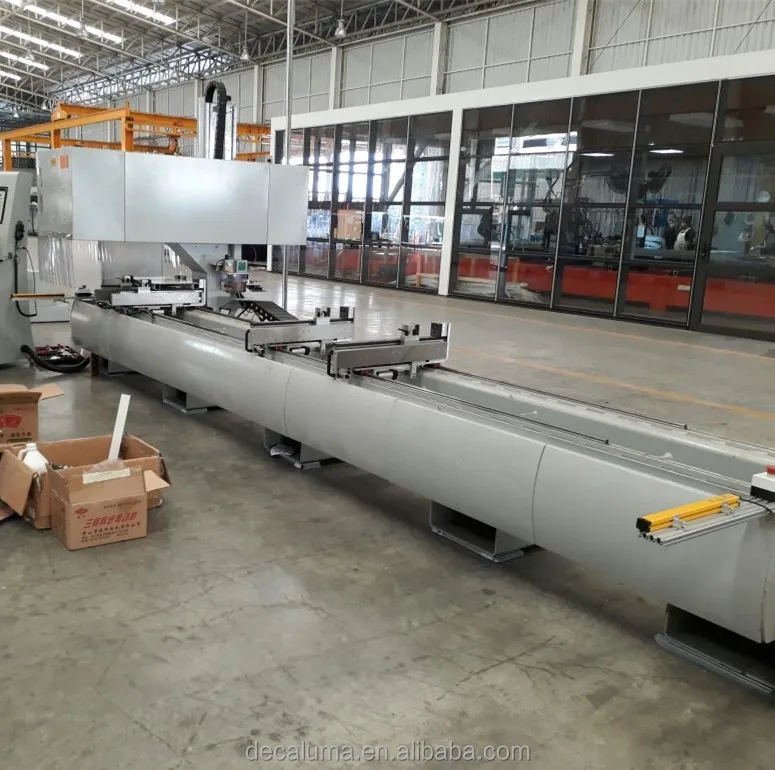

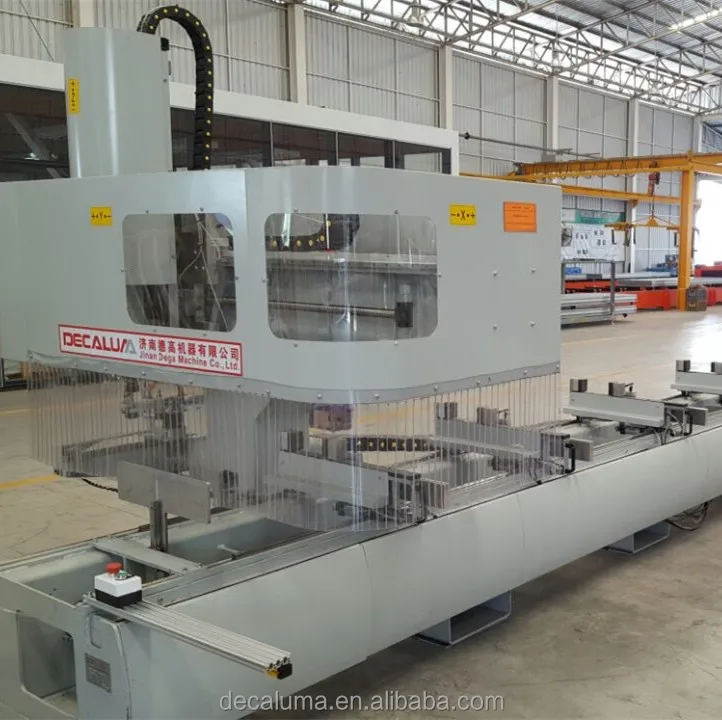

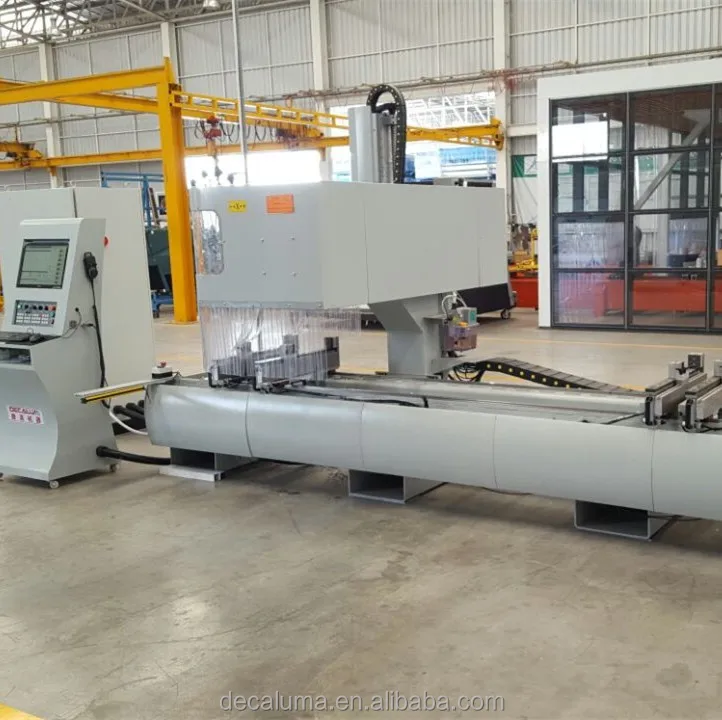

Aluminum CNC Machining Centre TANGO 3 (5 axis cnc machining centre)

Machine Function

1. CNC Vertical 5 axis machining centre is used for processing aluminum profile, light alloys, pvc and steel.

2. Equipped with high power Water-cooled electric spindle(7.5 Kw.  22.000 rpm) and HSK 63 standard tool handle.

3. Tool cutter change system automatically. The movable up-down tool magazine can equipped with 8 tools, using for drilling, milling and tapping, plus one Disc milling cutter(Max diameter 150mm) with 8 standard cutter tools.

4. Micro lubricating device. Screen system, motor driving belt crumb collection system. Cutter tool automatically measuring function, double-location processing, one-time clamping finish all production.

The spindle can position at any angle among 180° ±90°

The head of the tool’C” could be rotated on every corner center ± 213°

Digital display servo motor can quickly adjust and provide high-precision positioning when working.

Structure

    Machine body is composed of its base and Horizontal beam frame which slides at the back of machine body. Two parts are all welded steel parts and processed by high precision machining centre.

Axis sliding

    All axis moves at high precision and reliability linear guiding rail, all moving parts have centralized lubricating system.

Axis movement

All axis of motion transmission ways are as follows:

X axis    body beam frame adopts high precision gear and rack movement(longitudinal )

Y axis   adopts 32* 32 screw motion(horizontal ) and Z axis adopts 25*25 screw motion(vertical)

Z axis  The driver is equipped with braking device, z axis automatically brakes when loss of power,Z axis also has counter weight to balance the weight of machine head.

A xis  can work in all three sides of profile and intermediate region.
