Automatic multihead weigher potato chip combination combineation scale bag packaging machines
- Category: >>>
- Supplier: Zhongshan Combiweigh Automatic Machinery Co. Ltd.
Share on (60656308121):
Product Overview
Description
Products Description
Application:
It is suitable for weighing of granule, slice, roll or irregular shape materials, such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nuts, yogurt, pet food, frozen foods, small hardware and plastic components, etc.

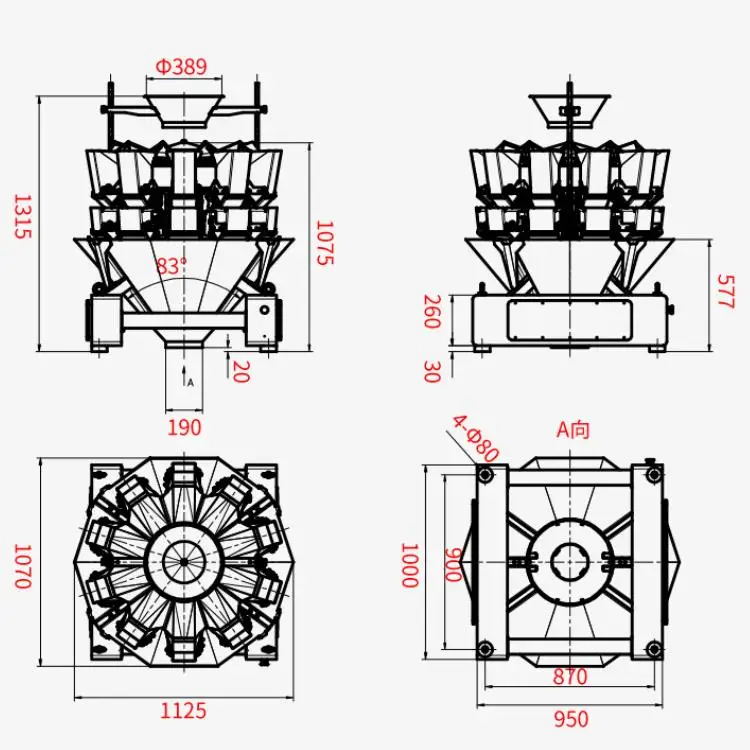

Product Parameter

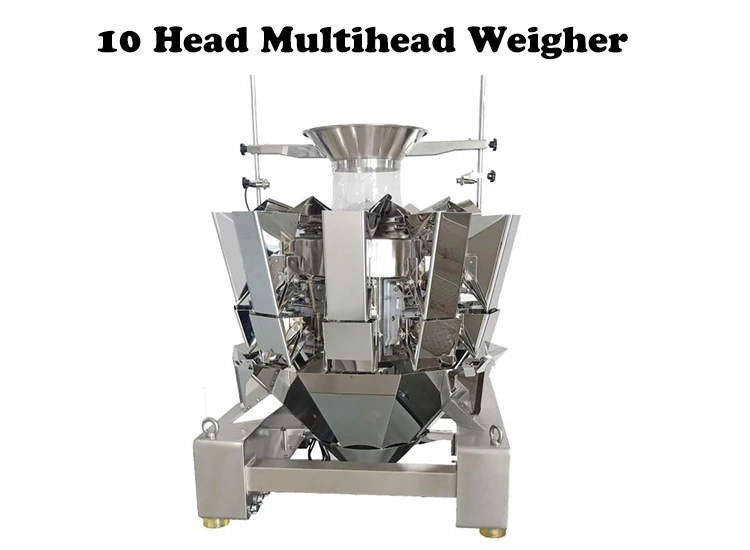

Name | 10 head 1.6L multihead weigher | 10 head 2.5L multihead weigher | |
Model | CBW-1A10(16) | CBW-1A10(25) | |
Max. Capacity | 10-800g | 10-1000g | |
Weighing accuracy | 0.5-2g | 0.5-2g | |
Control panel | 7 inch touch screen | ||
Hopper volumn | 1.6L (single-door) | 2.5L (double-door) | |
Material | 304 Stainless Steel | ||
Driving system | Step motor | ||
Control system | Modular control system | ||
Power supply | AC220V ±10% 50Hz/60Hz/1KW | AC220V ±10% 50Hz/60Hz/1KW | |
Options | Dimple plate, timing hopper, printer, rotary top cone, multi-head top cone, overweight reject system, 10 inch touch screen | ||

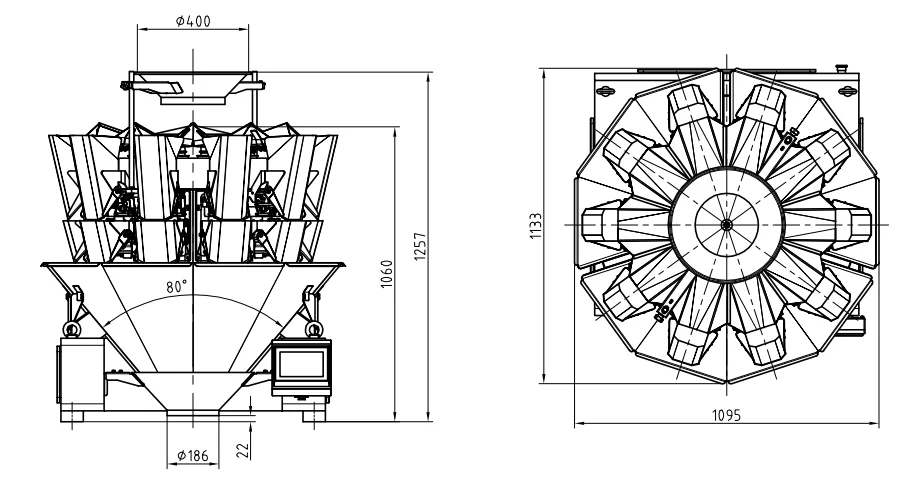

Packaging dimension | L1580*W1040 *H1220mm | L1650*W1080 *H1110mm | |
Gross weight | 360KG | 380KG | |

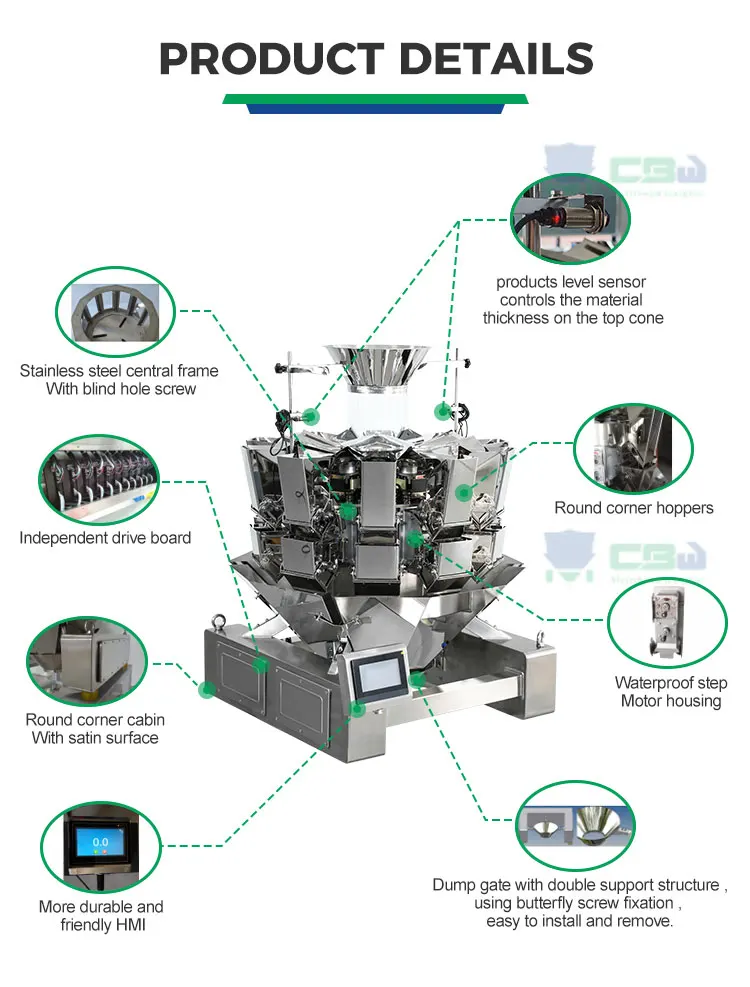

Product Features

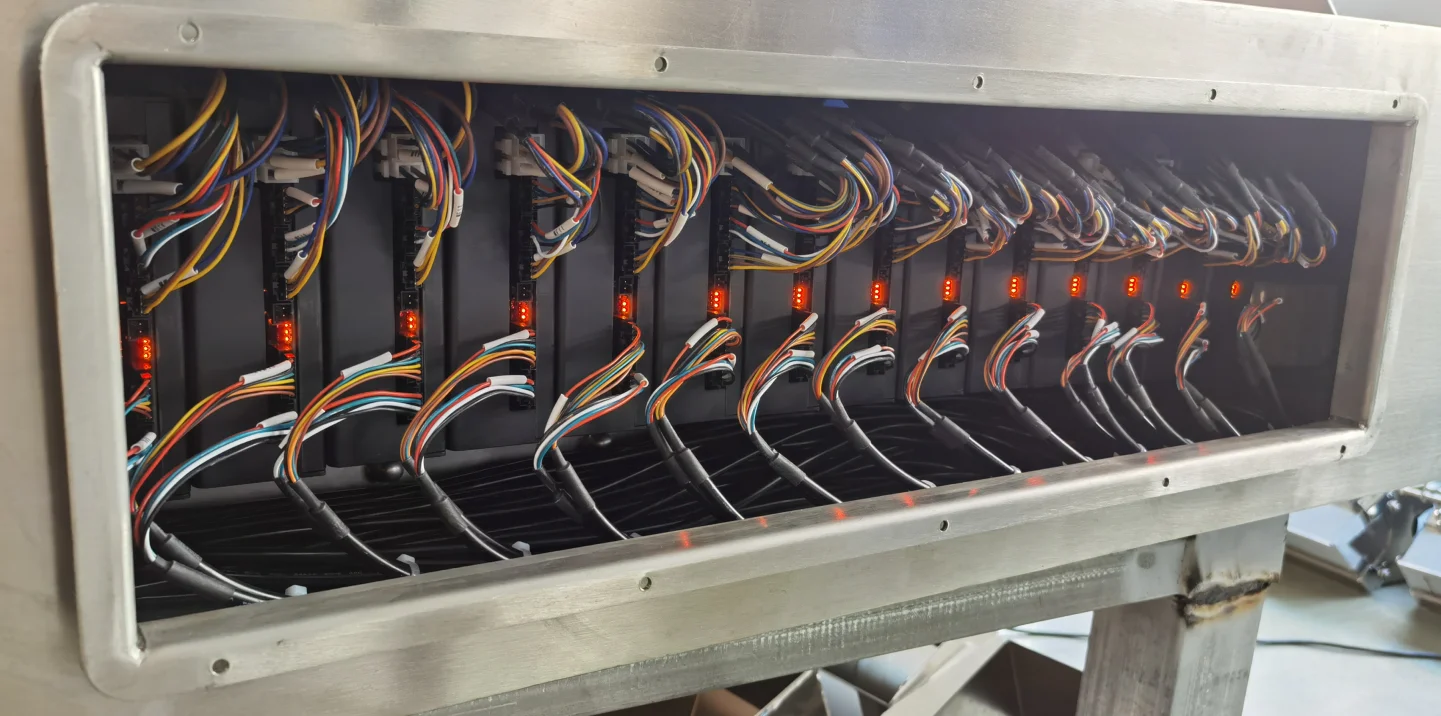

Drive boards
Independent drive board for each weight unit, and they can be changed freely with each other, even between different weighers. If one weigh unit is failure, you can stop the problem one and the weigher still can work normally.

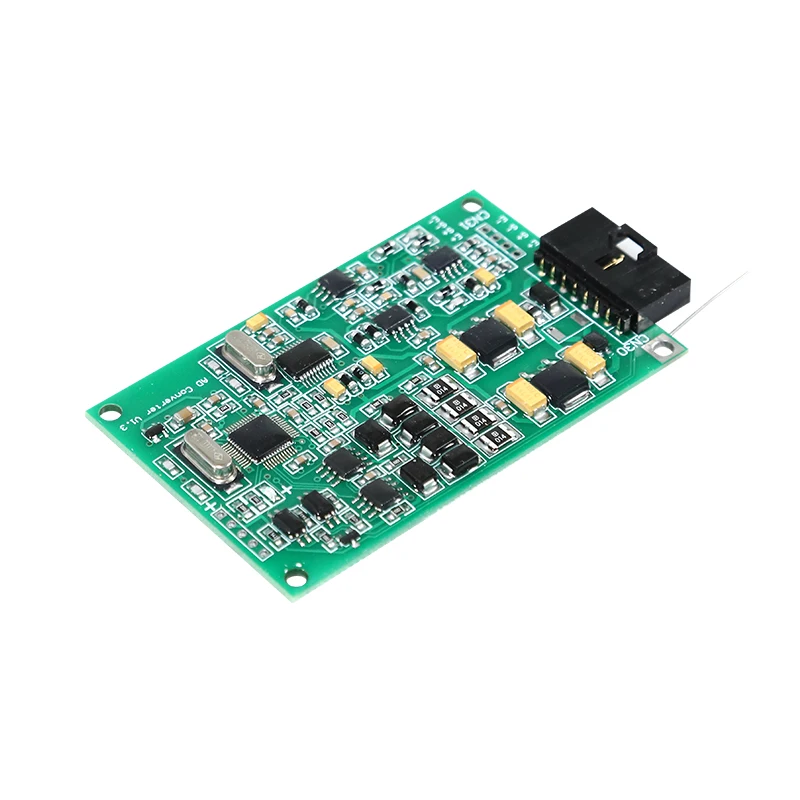

Modular AD cards
Modular AD cards are no need number by manual; it can be changed with each other directly, even between different weighers.

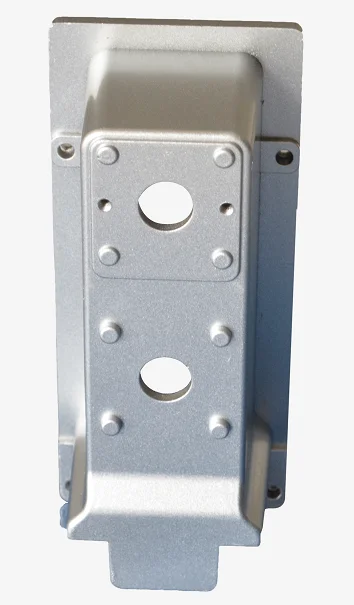

Aluminium box
All holes are blind holes, which enhance the waterproof function; the bottom place can not collect the dust easily.

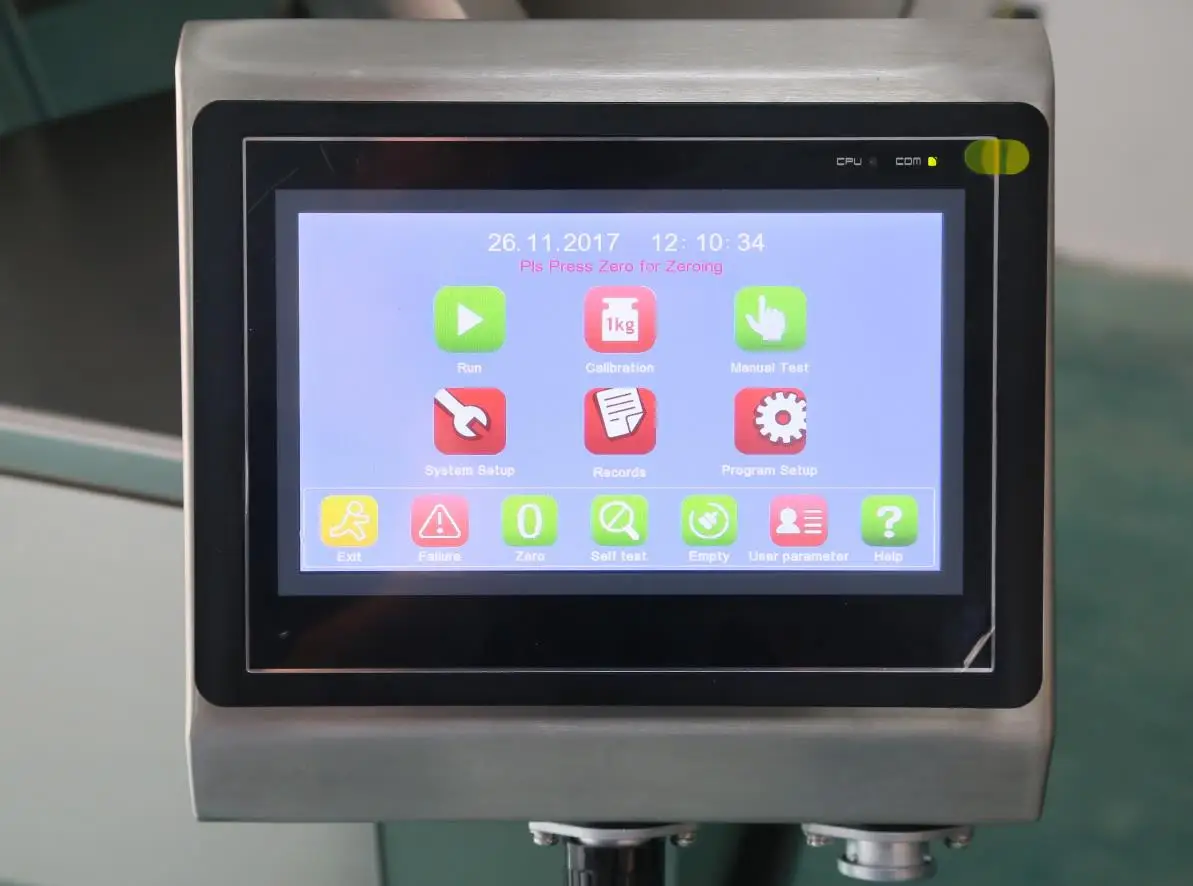

Touch screen
Friendly HMI, similar with the mobile phone operation icons, make operation more easily and simple.
Product Application
Cherry tomatoes
Soft candies
Pills
Cheese
Toy balls
CBW modular multihead weigher is high precision, fast speed, highly automatic, widely used in ration packaging of snack food, seasoning food, puffy food, frozen food and non-food products. It is easy to combine with packaging equipment.
Bag types
The product can be packed in the pillow bag, gusset bag, premade bag, three/four-sided seal bag, tray, box, etc.

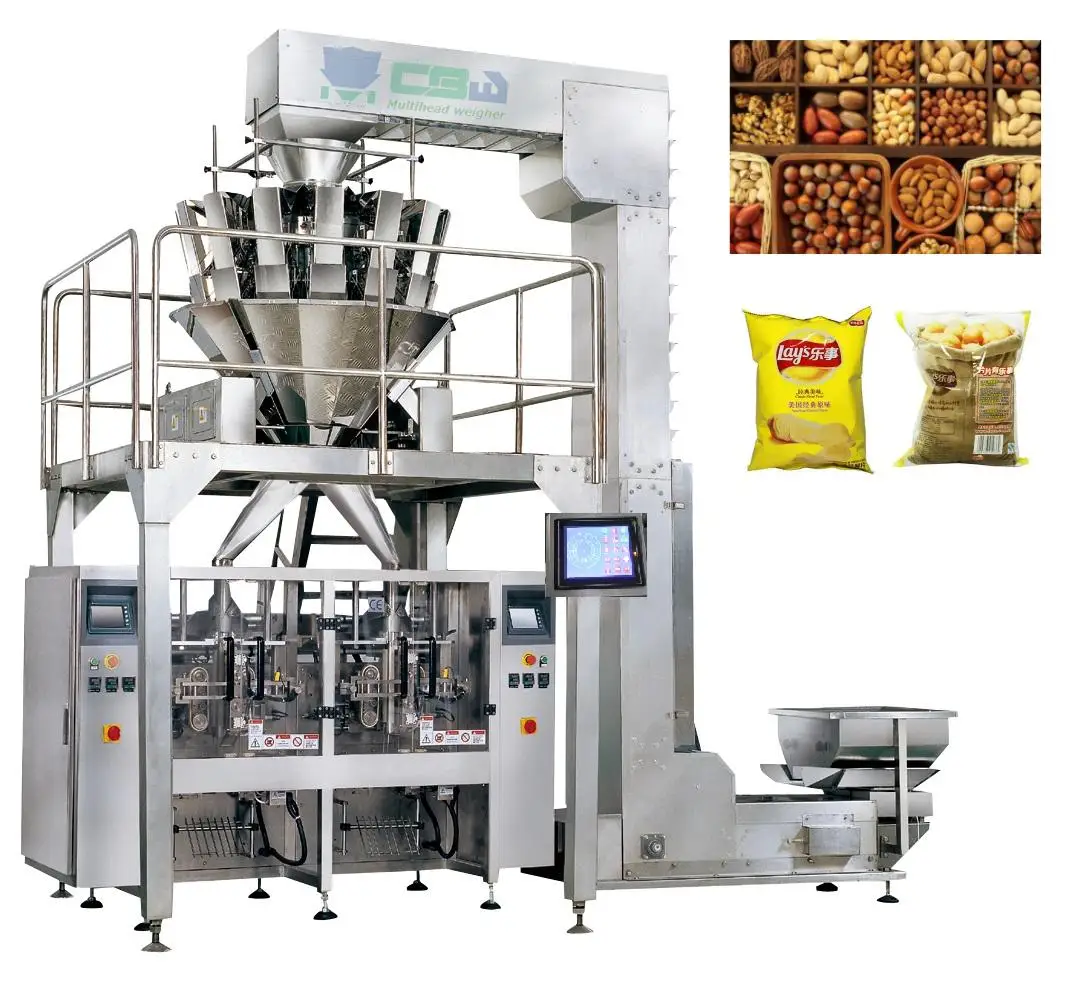

Optional Products
Z-type bucket conveyor
Take-away conveyor
Working platform
Augur filler
Doypack pouch packing machine
Vertical packaging machine

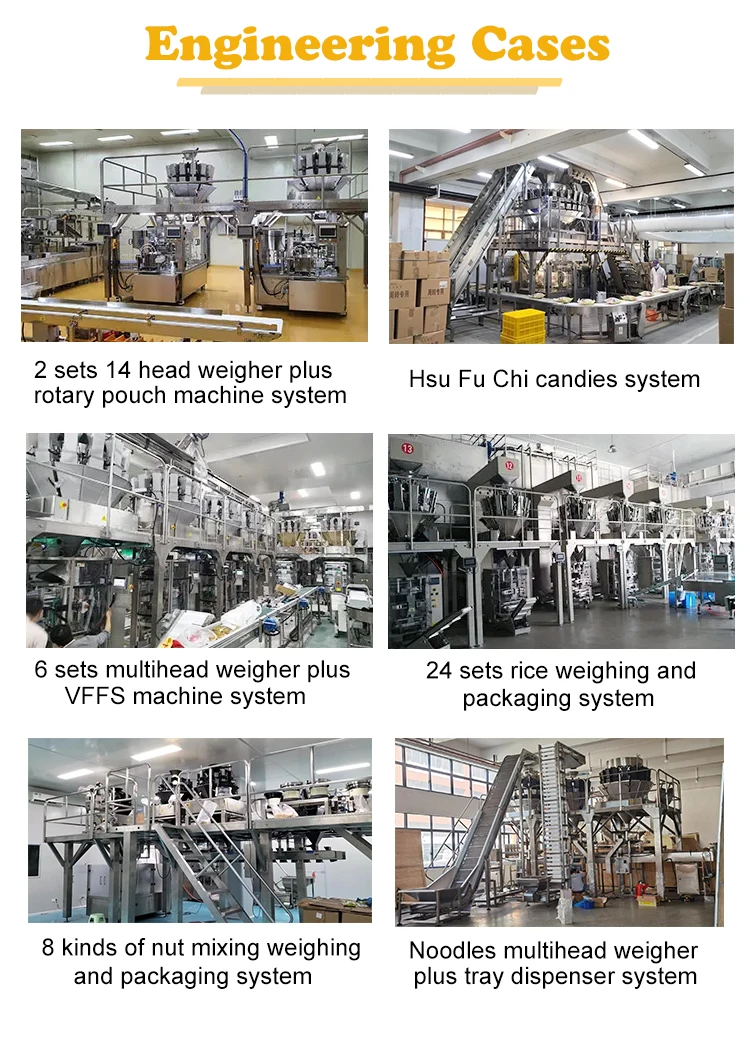

Engineering Cases
About Us
CBW>> is dedicated in modular multihead weighing solution and supplies the related packaging machines for complete packing line, including modular multihead weigher, modular linear weigher, material conveyor, check weigher, metal detector and so on. which automatically complete all the process from feeding, weighing, packaging, date printing, weight checking and metal detecting.
FAQ
Q: ls Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
We are waiting for your messages ^^
