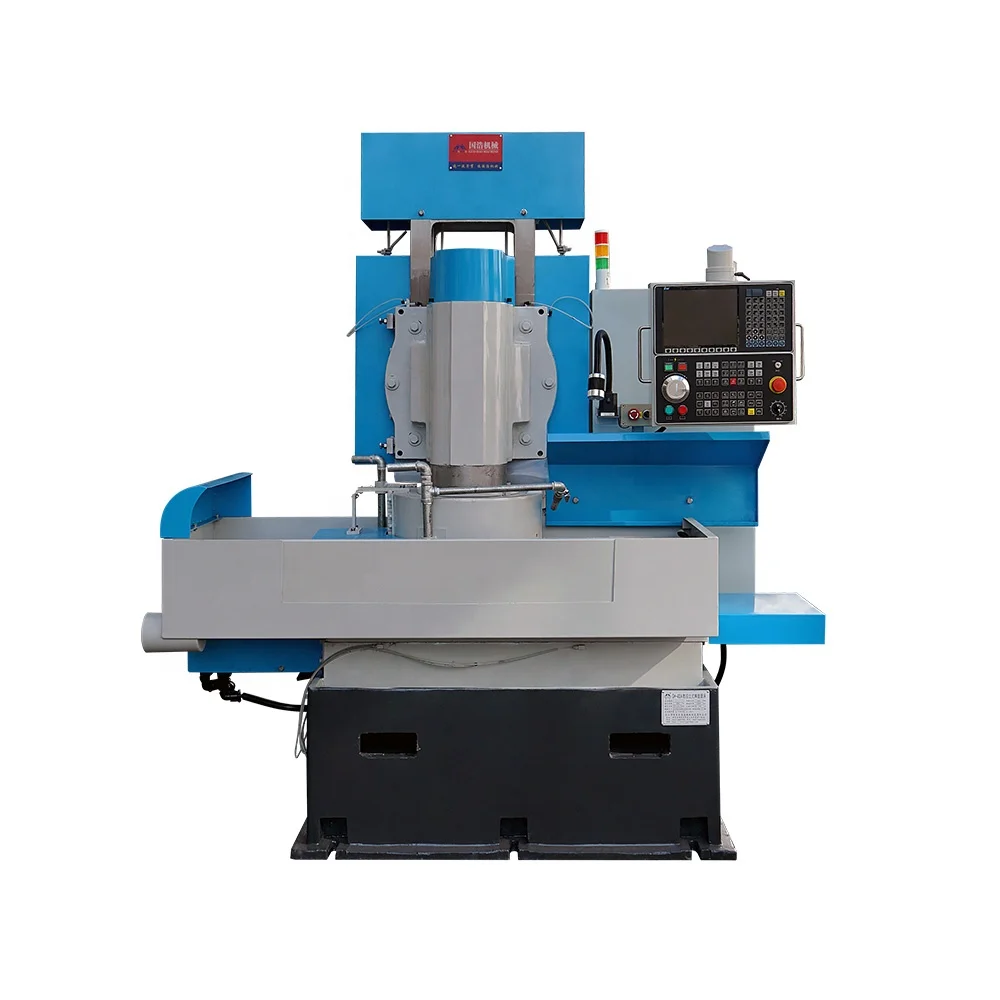

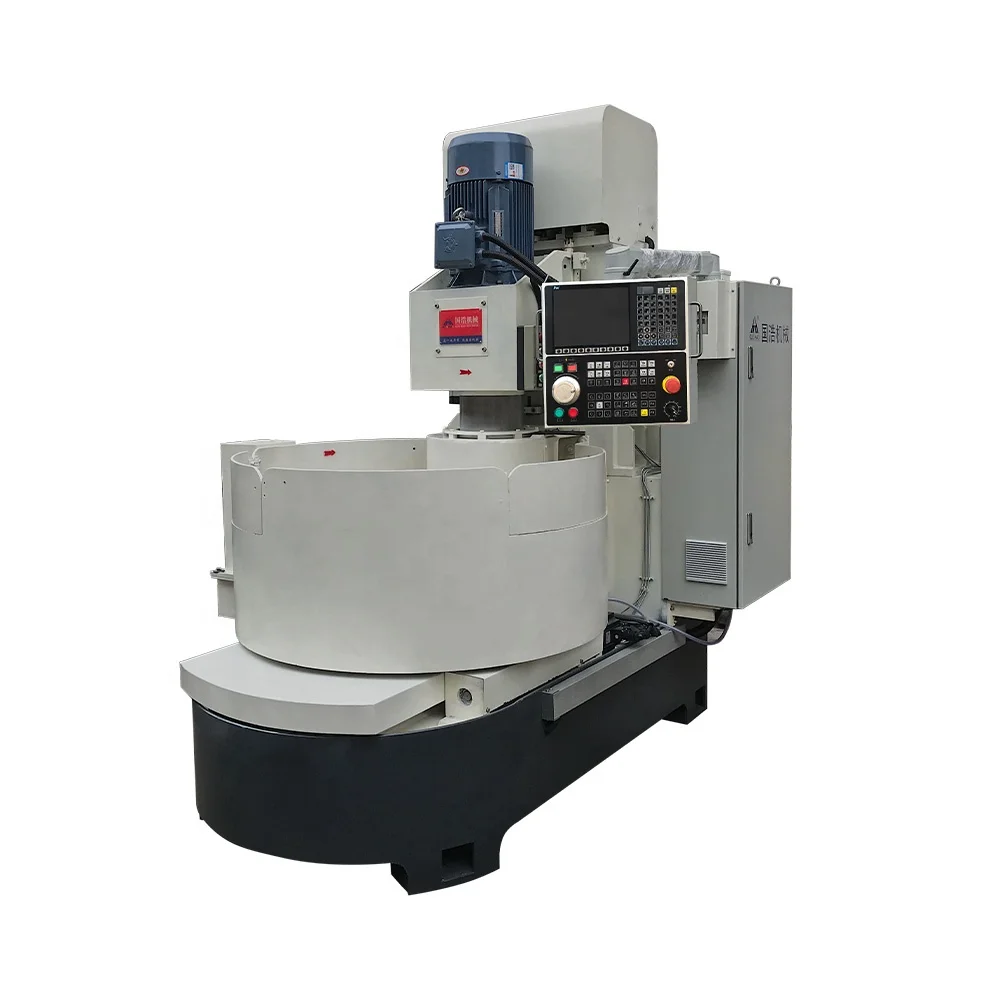

GH 1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder
GH-1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder
GH-1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder
GH-1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder
GH-1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder
GH-1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder
GH-1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder

GH 1000B CNC surface grinding machine surface grinder tool grinder grinding machine for steel cnc grinder

Share on (60656315164):


Price:RUB 2,121,039.92

Quantity:


Product Overview

Description

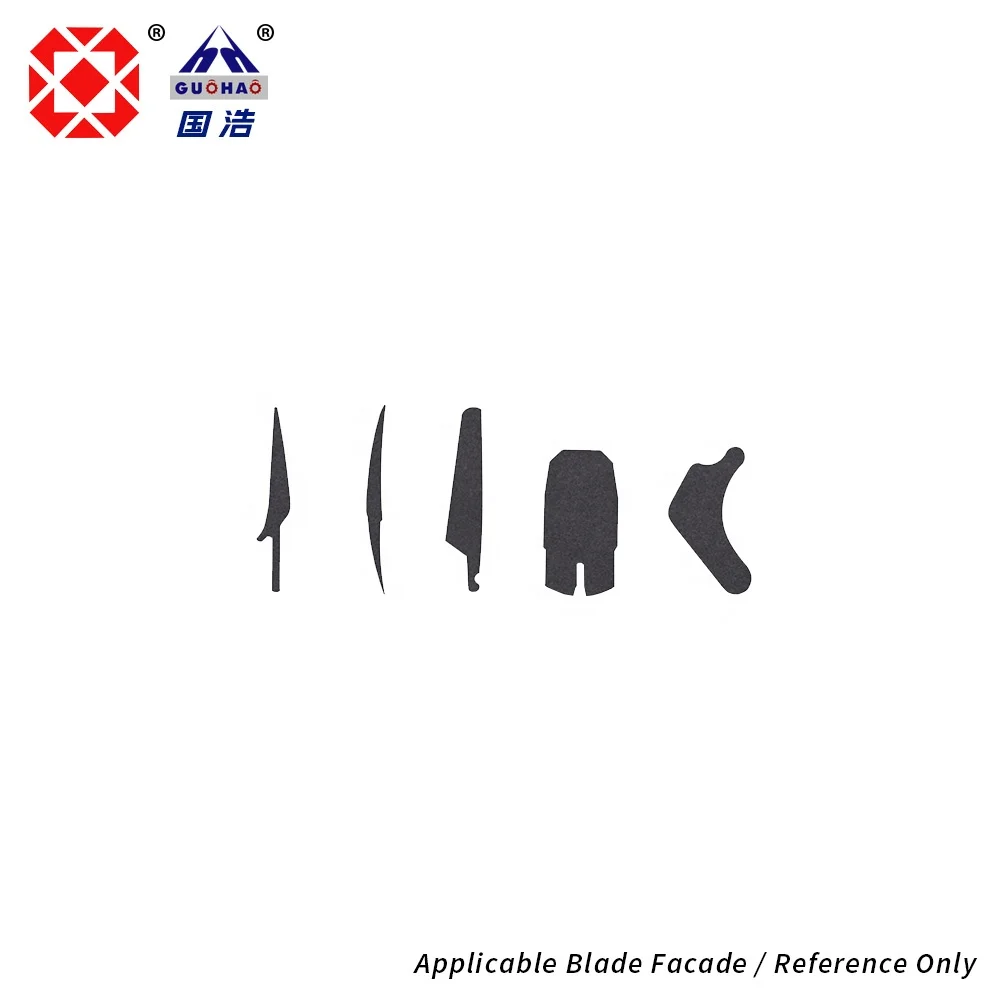

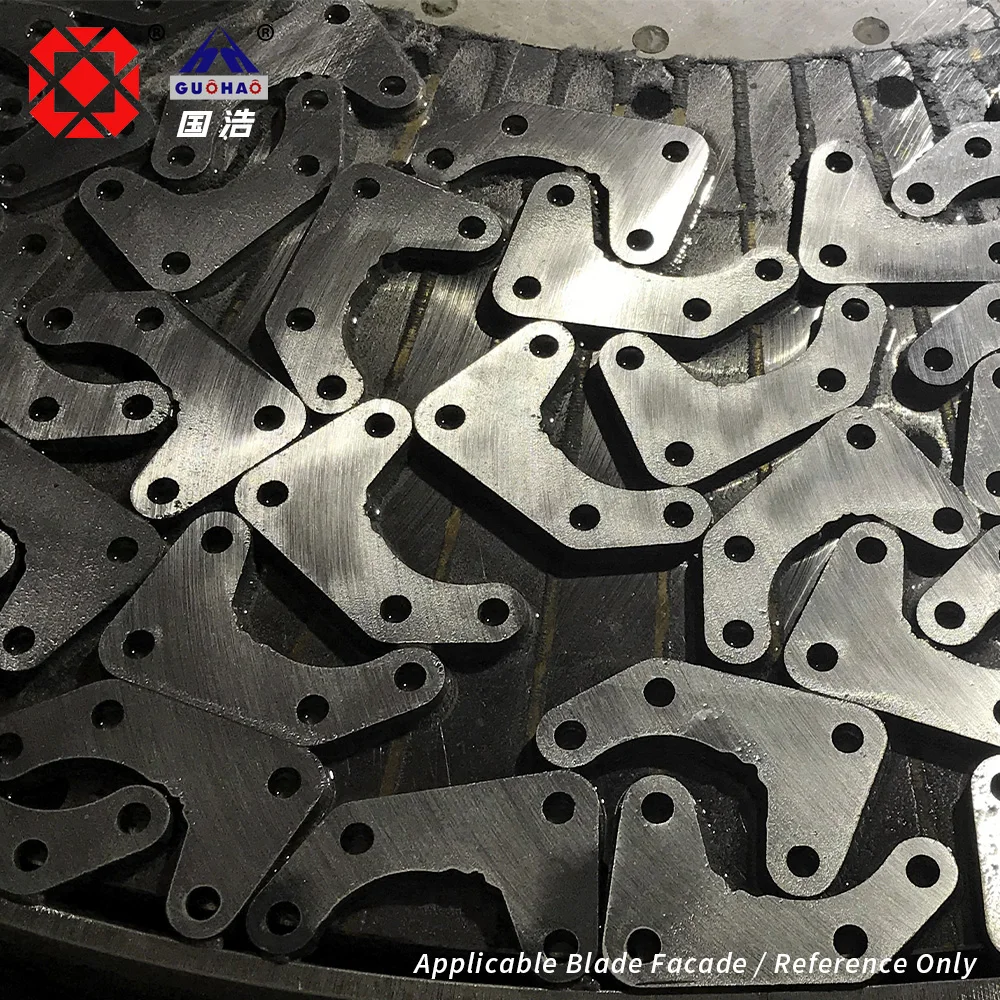

Applicable to surface grinding/abrasion of scissor, small knife, metal hardwares and etc. High efficiency one-time grinding and excellent finished surface quality of the products can meet high quality product requirement.
Product name
CNC rotary-table grinder
Model no.
GH-1000B
Motor power
15KW
CNC system
HUAZHONG
Base sliding travel
350mm
Grind head UP/DN travel
200mm
Grinding wheel specification
Barrel wheel 355x275x127mm
Grinding wheel rotate velocity
700-1635r/min
Main motor
15KW
Main motor rotate velocity
1460r/min
Workbench motor
4KW
Workbench motor rotate velocity
10-90r/min
Any technical information not refer in the table
please feel free to consult us yingjuan2017@163.com

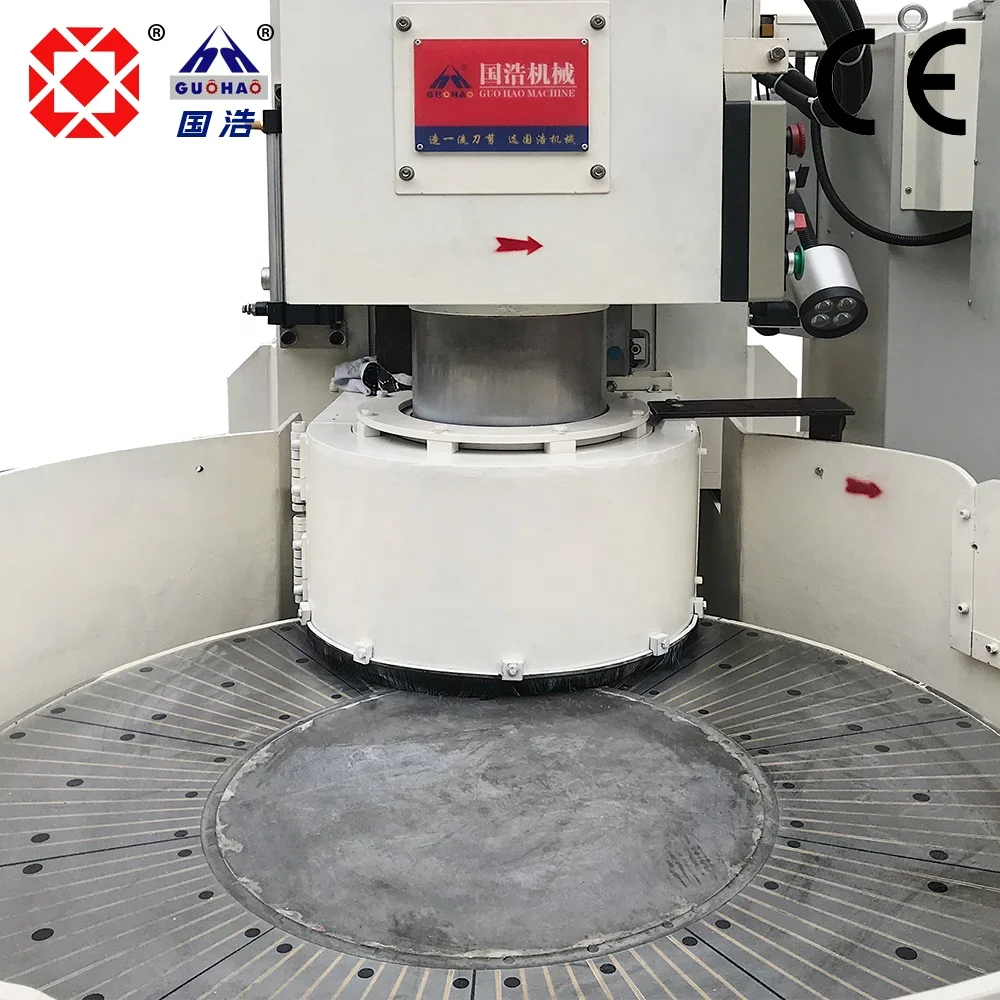

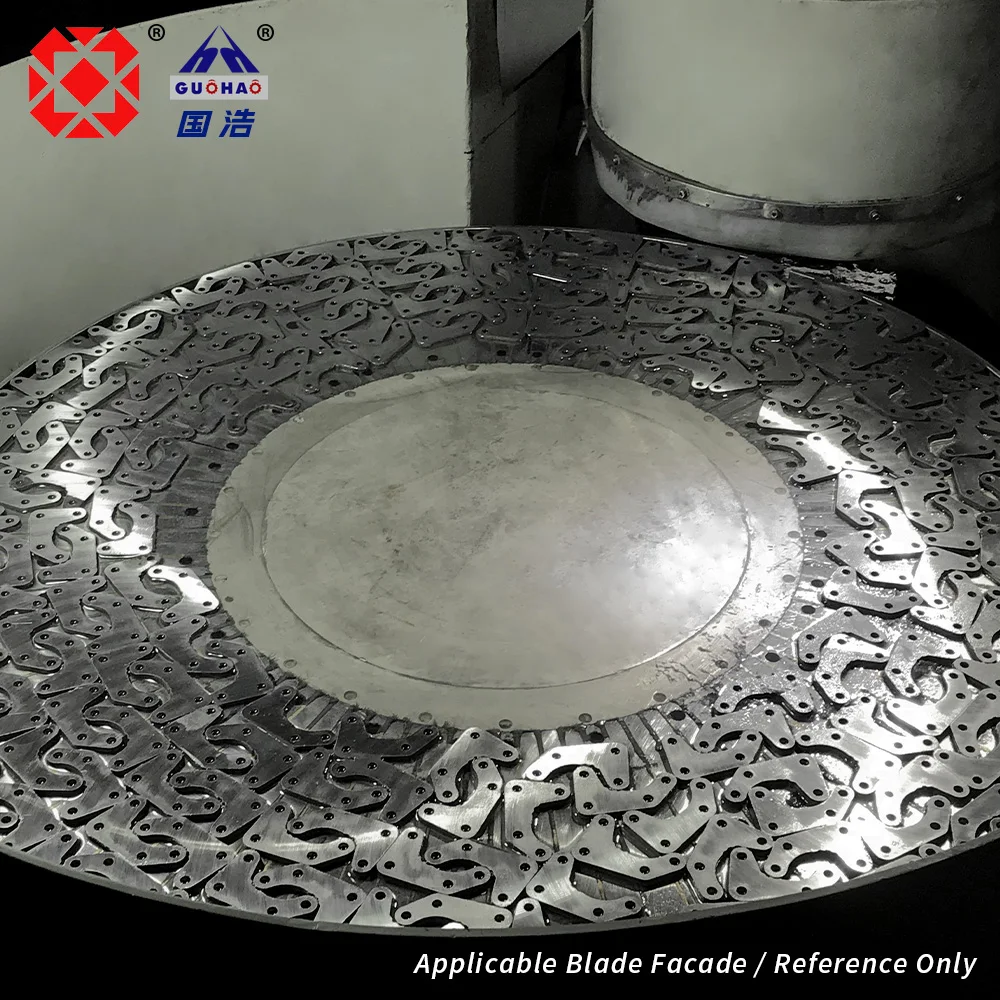

1. Equip 1000x500mm large electric magnetic table
enable to grind batch of blades at the same time, highly increase productivity.
2. The foundation and grind head use high precision linear guide rail
ensures the axis direction and radial jog of main shaft within the range 0.015mm.
3. Adopts 2-axis linkage Huazhong CNC control system
3.1 programs can generated by system with valid NC file upload or input manually through the panel
3.2 enable align control of feed amount and feed velocity of X, Z, A and Y-axis]
3.3 multiple operation modes included, Jog, Increment, Electronic hand-wheel, Automatic grinding, Automatic compensation for grinding wheel and more functions.
4. Precision error caused by the gap of ball screw can be reduced or eliminated
With correct parameter setting to the system, quality stability and uniformity of mass production can be ensure.
Product detail (Video & Image)
Certificates
P1. ROHS 2.0
P2-3. CE Certificates Machinery Instructions. LVD 2014-35-EU, EMC 2014-30-EU, MD 2006-42-EC
P4. IEC Machinery Instructions. IEC 60204-1
Related Products

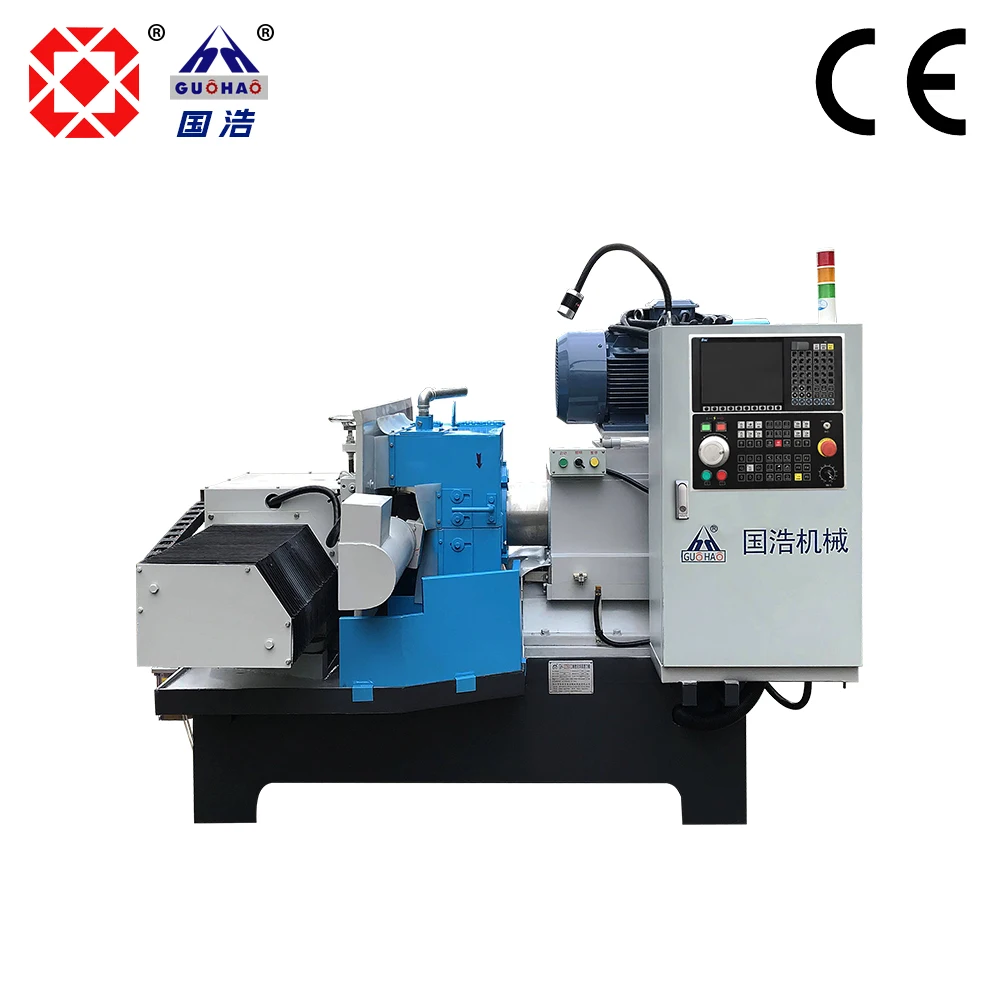

GH-3Z450 3-axis CNC Knife Single-side Grinding Machine


Enable to grind Single-sided grinding, cutting edge, flat Grinding, polishing, grinding bevel, back edge and other processes of Ceramic knives, all kinds of ordinary scissors, tailor shears, chef knives / kitchen knives / choppers, triple steel knives, fruit knives, steel knives, hunting knives, daggers, Damascus, etc. The surface of the produced product is smooth with clear and stable lines.

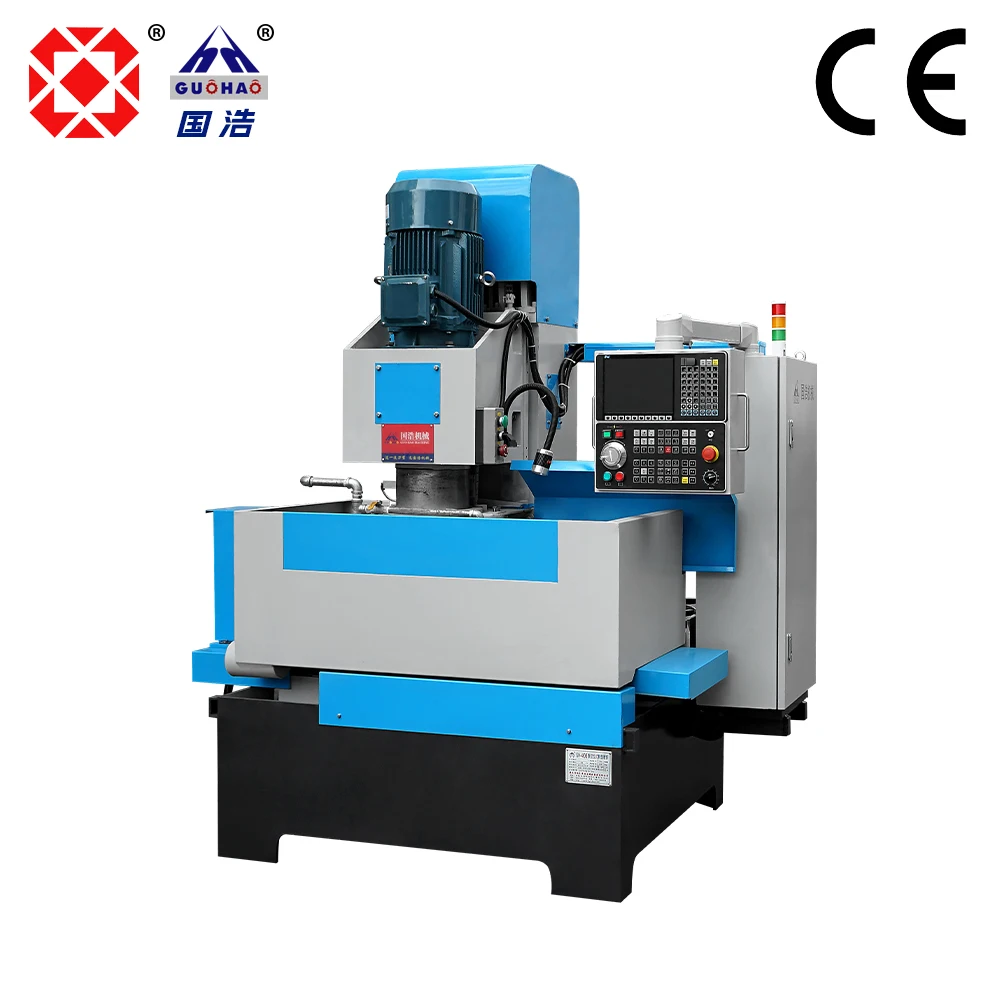

GH-400A CNC Vertical Surface Grinding Machine


Applicable to surface grinding/abrasion of Scissor, Small knife, Dagger, Binding clip, metal hardwares and etc.


GH-4Z450F 4-axis CNC Knife Single-side Grinding Machine


Enable to grind Single-sided grinding, cutting edge, flat Grinding, polishing, grinding bevel, back edge and other processes of Ceramic knives, all kinds of ordinary scissors, tailor shears, chef knives / kitchen knives / choppers, triple steel knives, fruit knives, steel knives, hunting knives, daggers, Damascus, etc. The surface of the produced product is smooth with clear and stable lines.

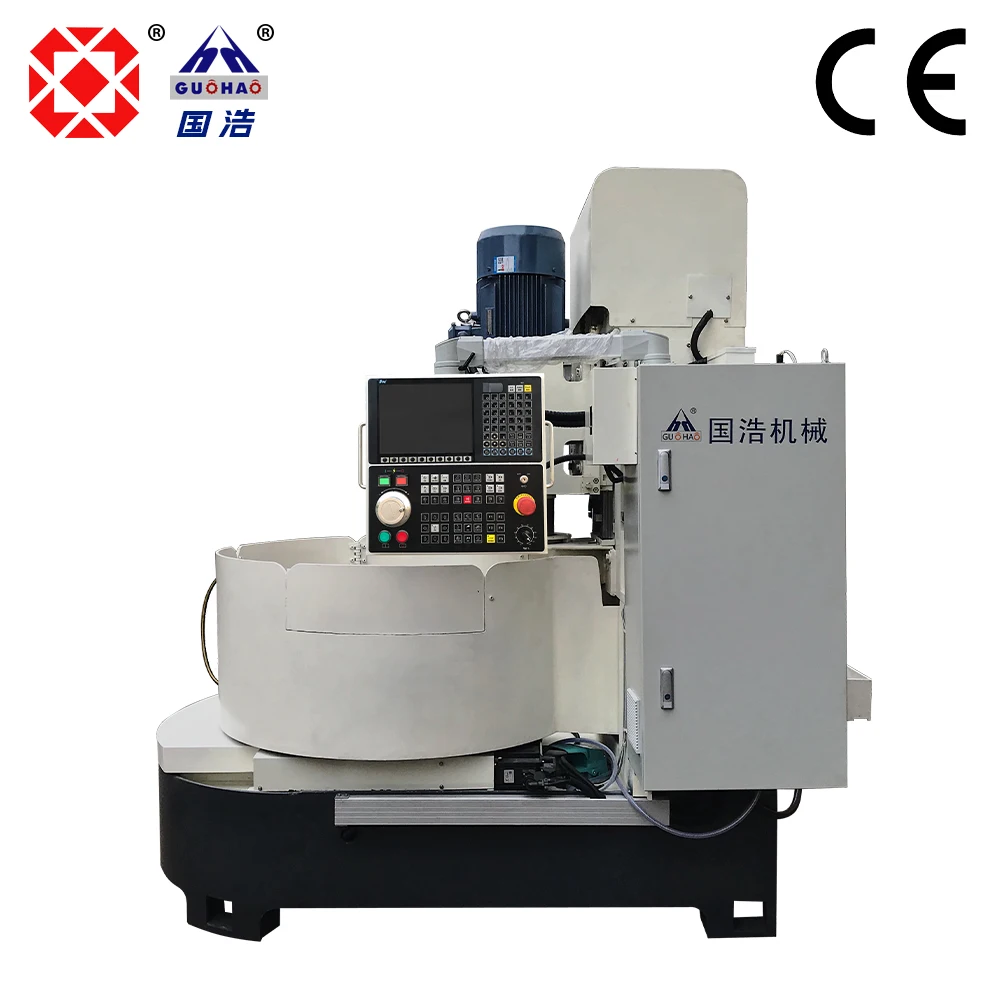

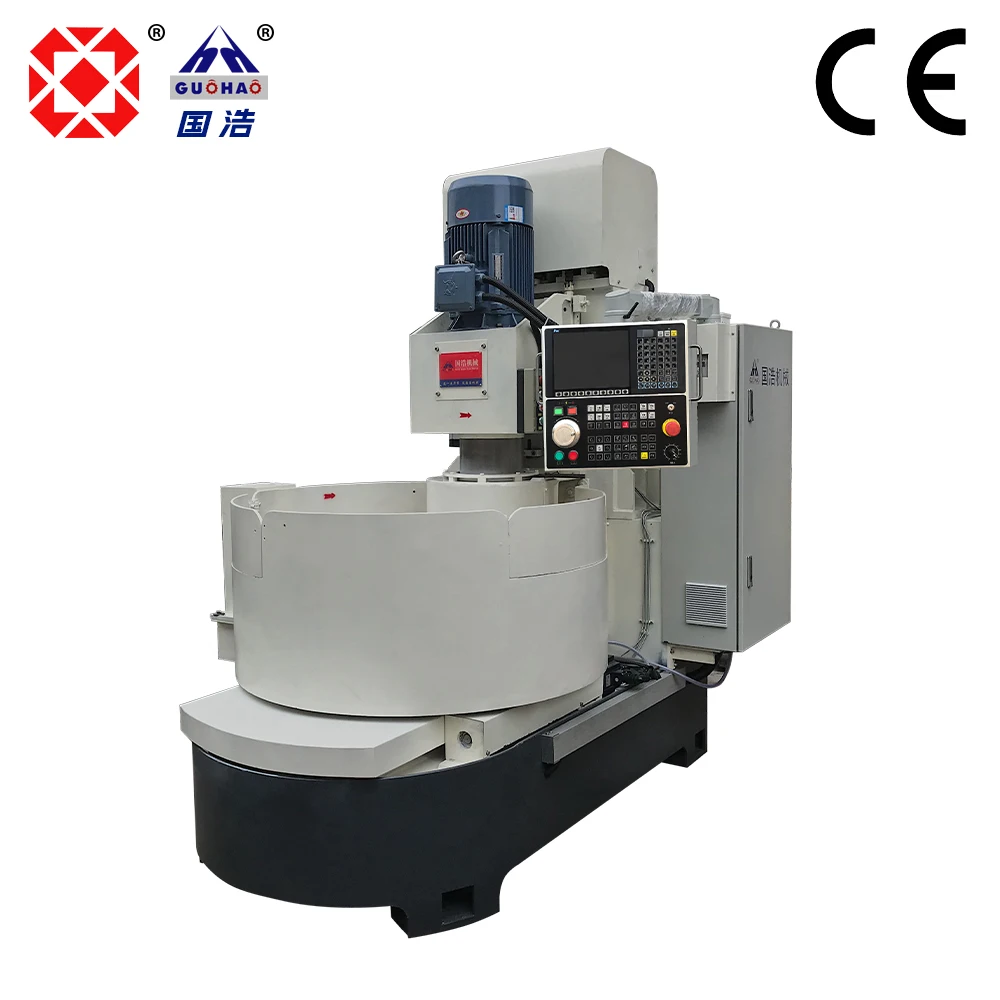

GH-400B CNC Vertical Rotary Table Knife Grinding Machine

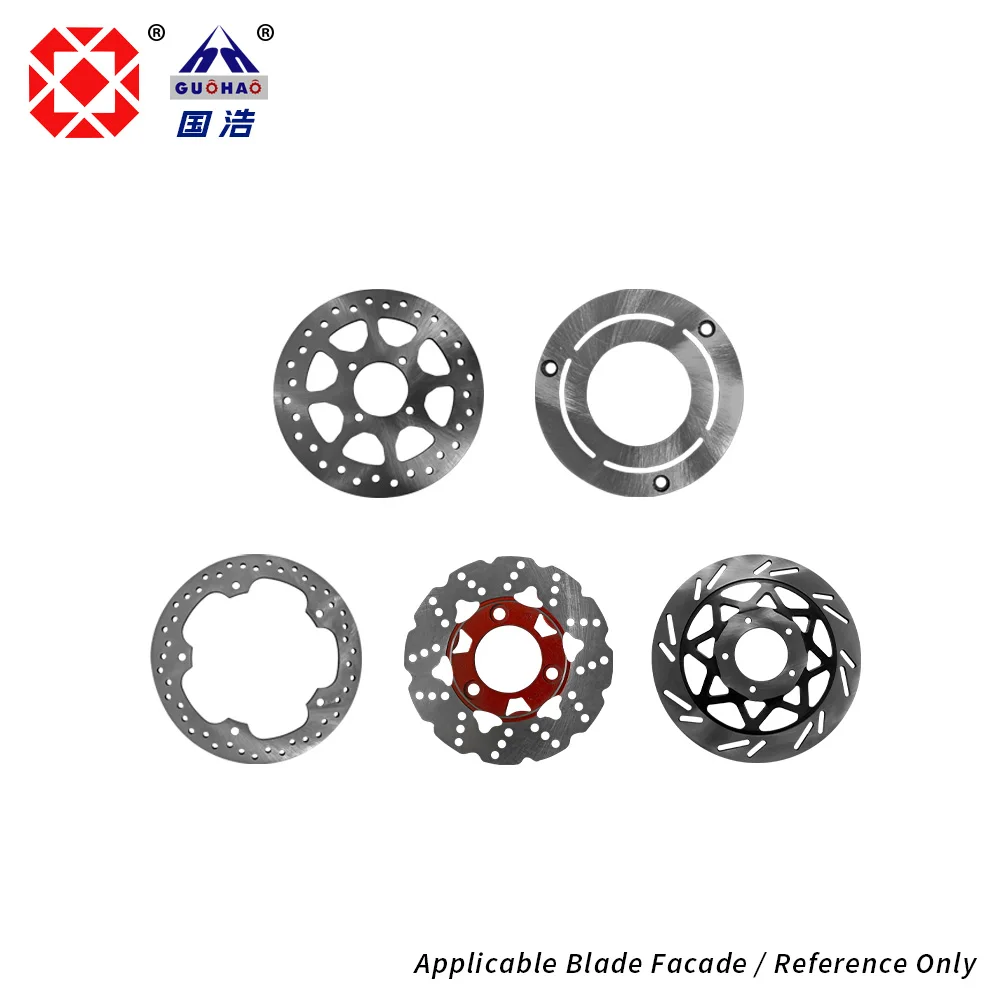

Mainly used for surface grinding of circular-disk kind of products (such as motorcycle brake discs, food machinery circular blades and etc.)
