ZX6350ZA Universal metal vertical horizontal drilling and milling machine
- Category: >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60656331325):
Product Overview
Description
ZX6350ZA Universal metal horizontal vertical milling drilling machine
Product Description
Main features for our ZX6350ZA Universal metal horizontal vertical milling drilling machine:
1.Complete with automatic table feed in X,Y and Z-axis including rapid feed
2.Z-axis with auto lifting
3.Surface treated, large table includes T-slots
4.Heavy cast-iron machine stand eliminates vibrations
5.Dovetail guiding in all three axes - adjustable by gibs
6.Positioning motor for z-axis comes standard
7.Wide speed and feed range
8.Ideal for single and small-series production
9.Tapered roller bearings ensure high concentricity
10.Left and rigth rotation allows thread cutting
Main specification
Detailed specifications of ZX6350ZA Universal metal horizontal vertical milling drilling machine:
| Model | ZX6350ZA | |
| Max.drilling dia. (mm) | 50 (2'') | |
| Spindle taper | ISO40 | |
| Max.horizontal milling dia. (mm) | 100 | |
| Max.vertical milling dia. (mm) | 25 | |
| Max.boring dia. (mm) | 120 | |
| Distance spindle to table surface (mm) | 80-460 | |
| Spindle speeds range (r.p.m.)(steps) | Vertical | 115-1750(8) |
| Horizontal | 40-1300(12) | |
| Spindle travel (mm) | 120 | |
| Table size (mm) | 1120×280 | |
| Table travel (mm) | 600×300 | |
| Motor | Vertical | 0.8/1.5 |
| Horizontal | 2.2 | |
| N.W/G.W | 1300/1450 | |

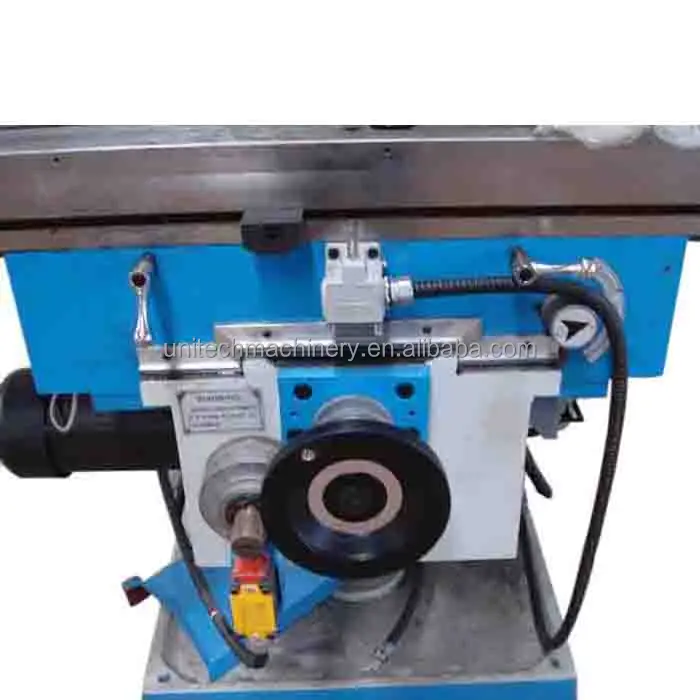

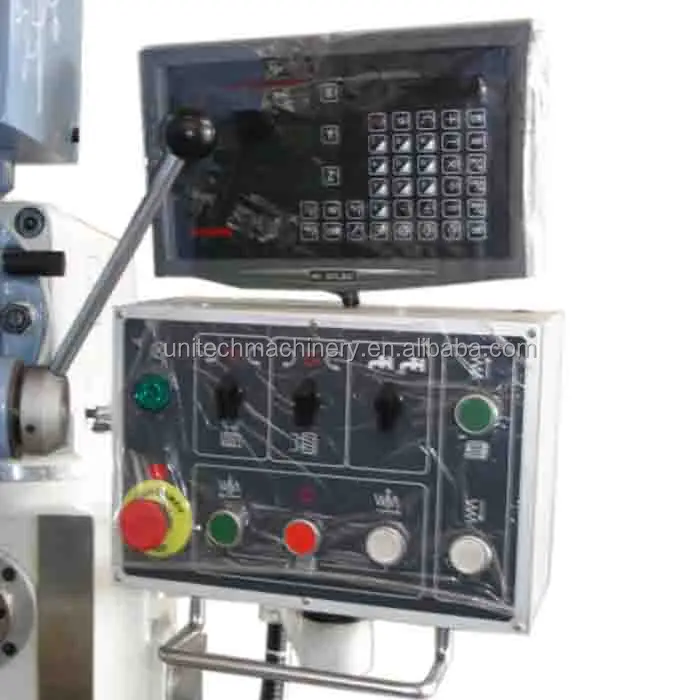

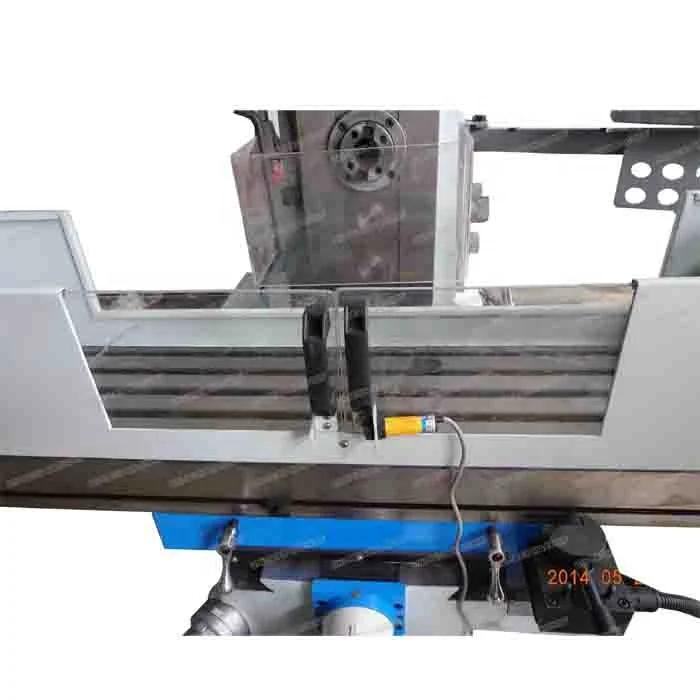

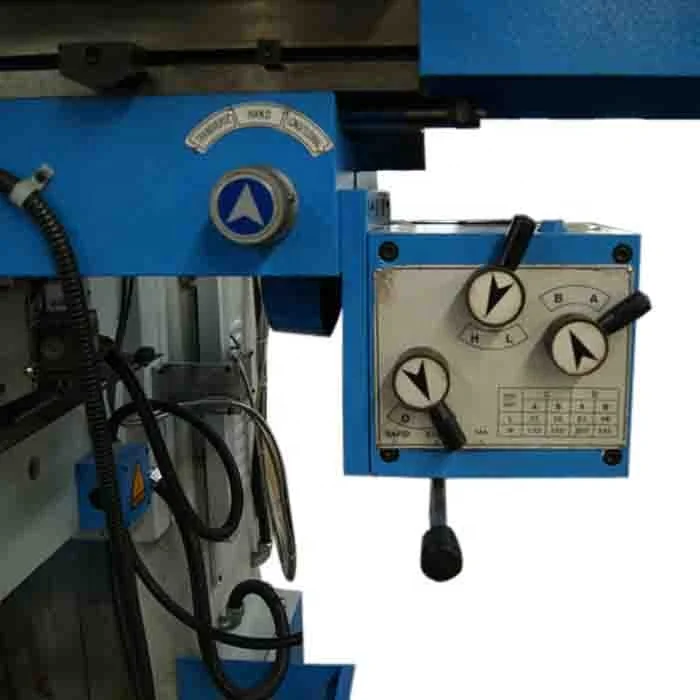

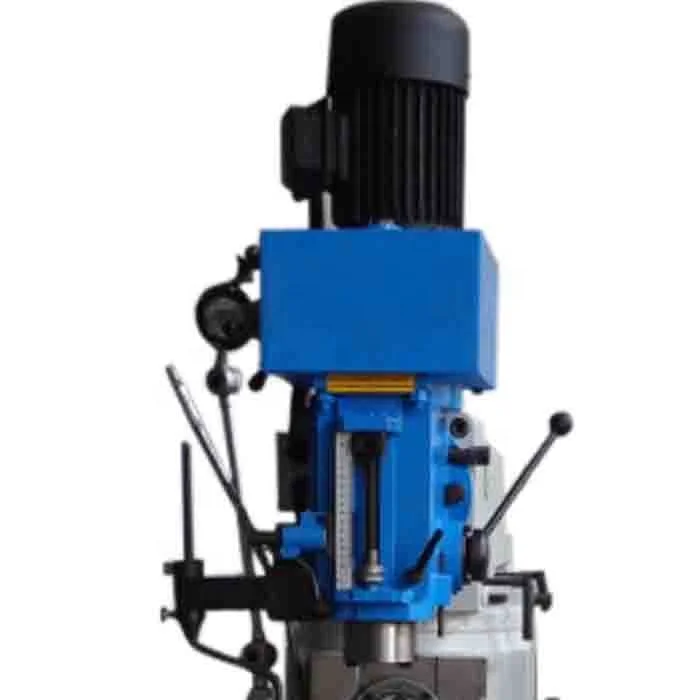

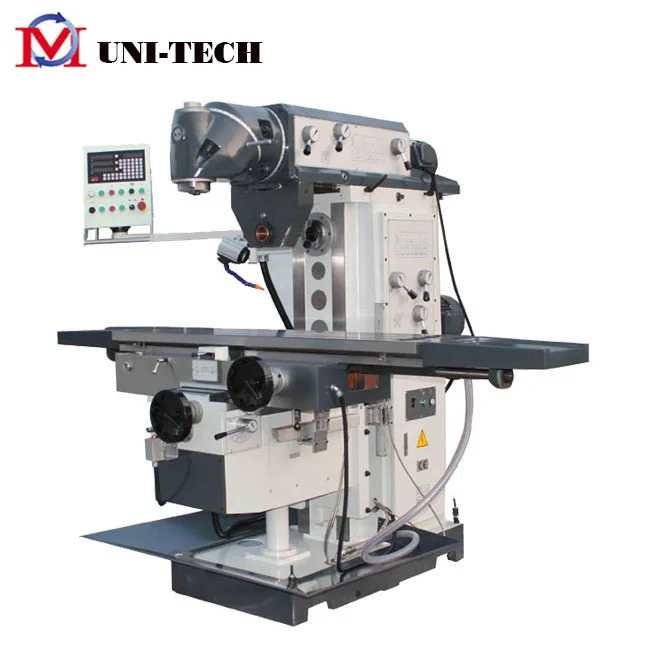

Detailed Images
You could get more important informations from the following detailed pictures about ZX6350ZA Universal metal horizontal vertical milling drilling machine:
Packaging & Shipping
ZX6350ZA Universal metal horizontal vertical milling drilling machine
Packing size: 1400x1630x2350mm
Our Services
We also would like to let you know our warranty about ZX6350ZA Universal metal horizontal vertical milling drilling machine as following:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Company Information
You will know more informations about our company we product the ZX6350ZA Universal metal horizontal vertical milling drilling machine:

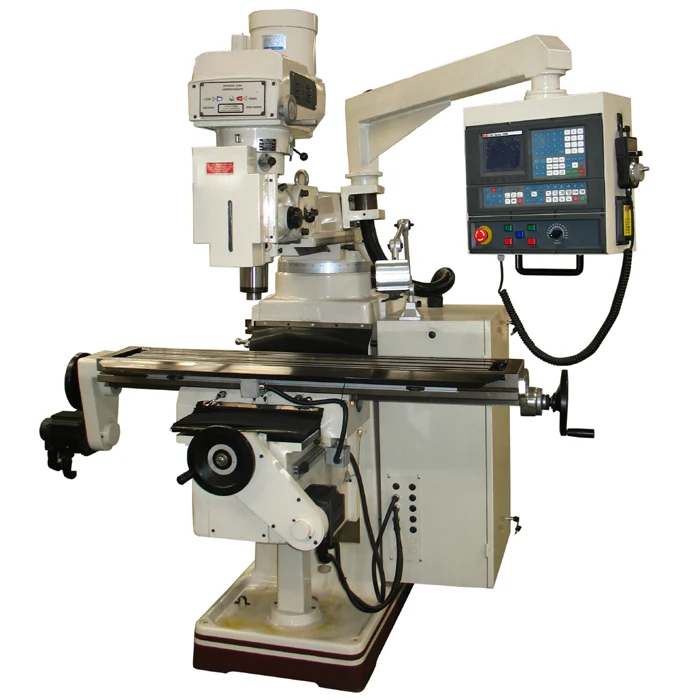

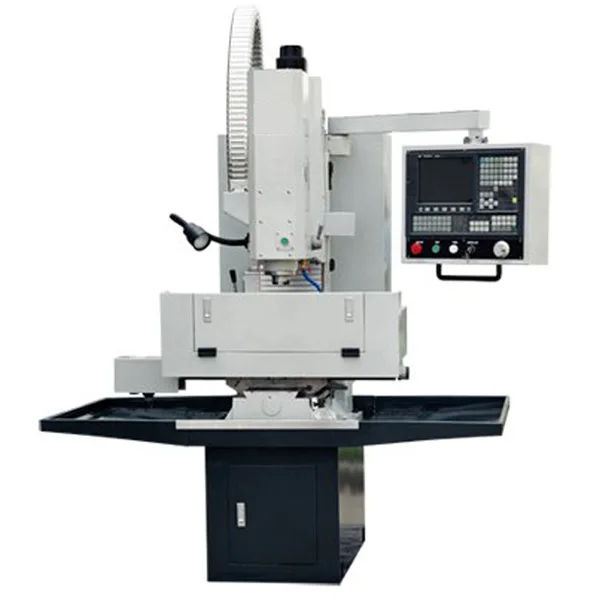

Related Products
