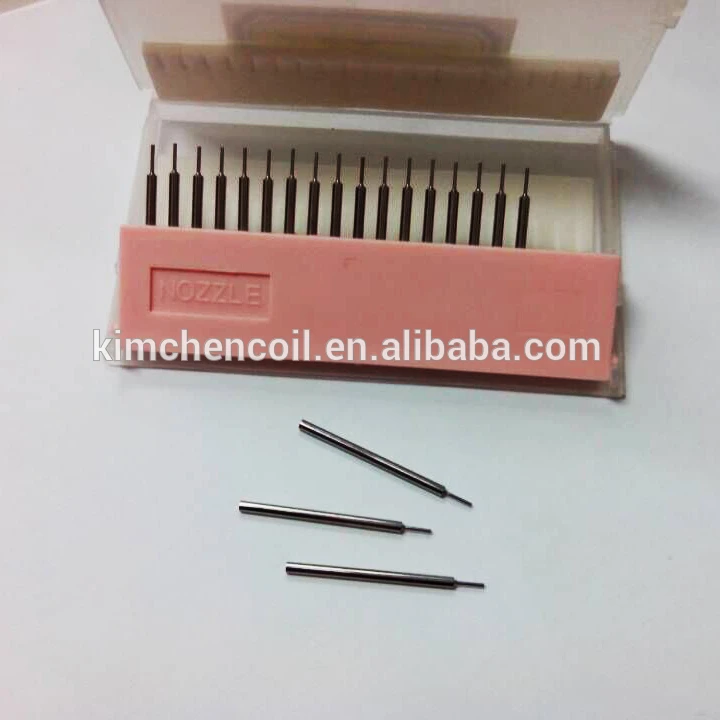

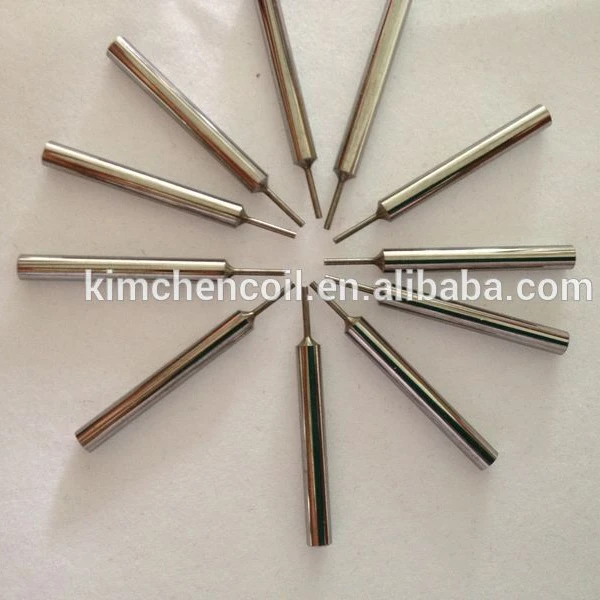

Tungsten Carbide Coil Winding Nozzle Wire Nozzle Guides (60656549189)

Share on:


Price:RUB 376.69 - RUB 527.37
Price in USD:Details

Quantity:


Product Overview

Description

Product Description
Place of Origin
Dongguan China
Brand Name
KIMCHEN
Material
Tungsten Carbide
Hardness
HR90 degree
Polish
Precision grinding
Roughness of R place
Ra 0.025
Anti-bending:
2300N/mm
Roughness of bore
Ra 0.1
Function:
Protect enameled-wire
Work Limit
d1>0.2mm D1>0.7mm

Detailed Discription

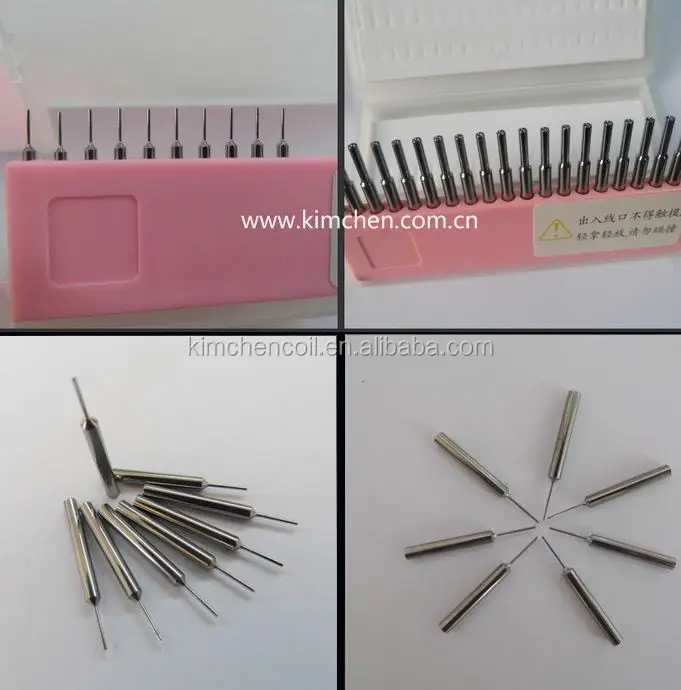

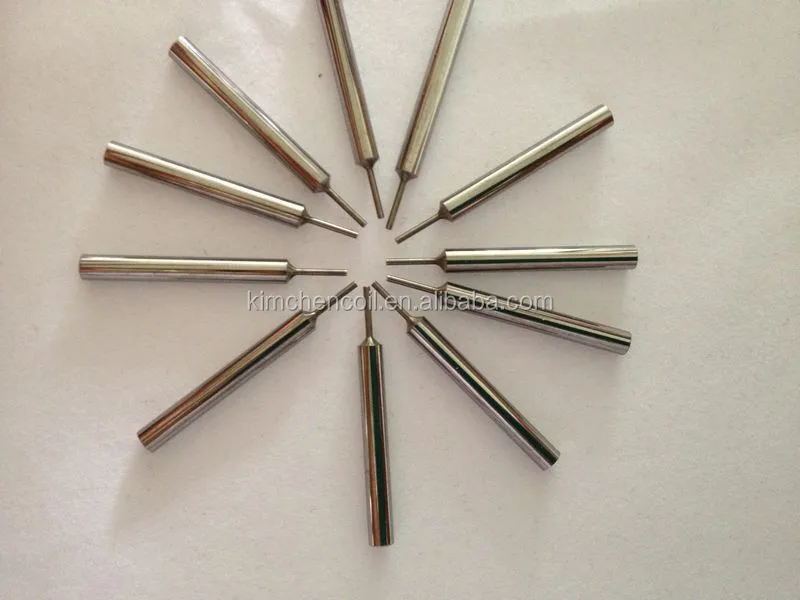

Tungsten carbide nozzle also call wire guide tubes or wire guide needles. It is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA90 degree while the anti-bending degree reached over 2300N/mm. We do the precision grinding and surface treatment to achieve Ra0.1 of the bore roughness and the Ra0.025 of the R place of both ends.

There is a scientific curvature radius design in the both entrance. This design can ensure a smooth transit of the thread. Due to the overall materials processing, and no elevation in the bore, the phenomenon of easy-bending and plugging has been improved comparing with the ruby nozzle.

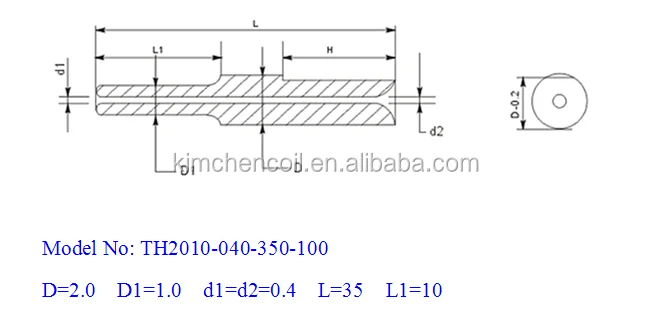

Specification

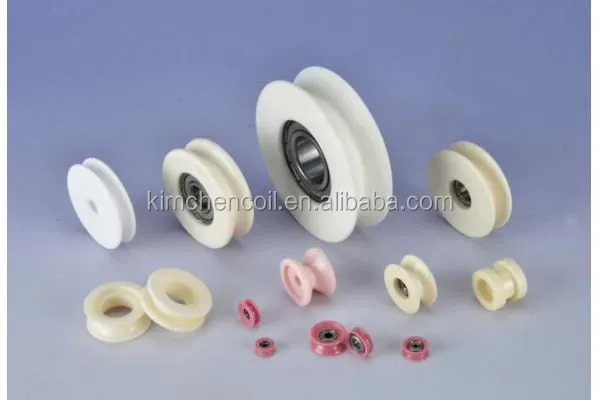

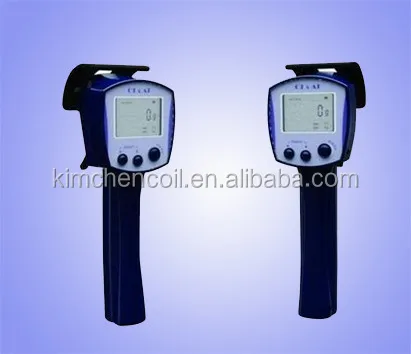

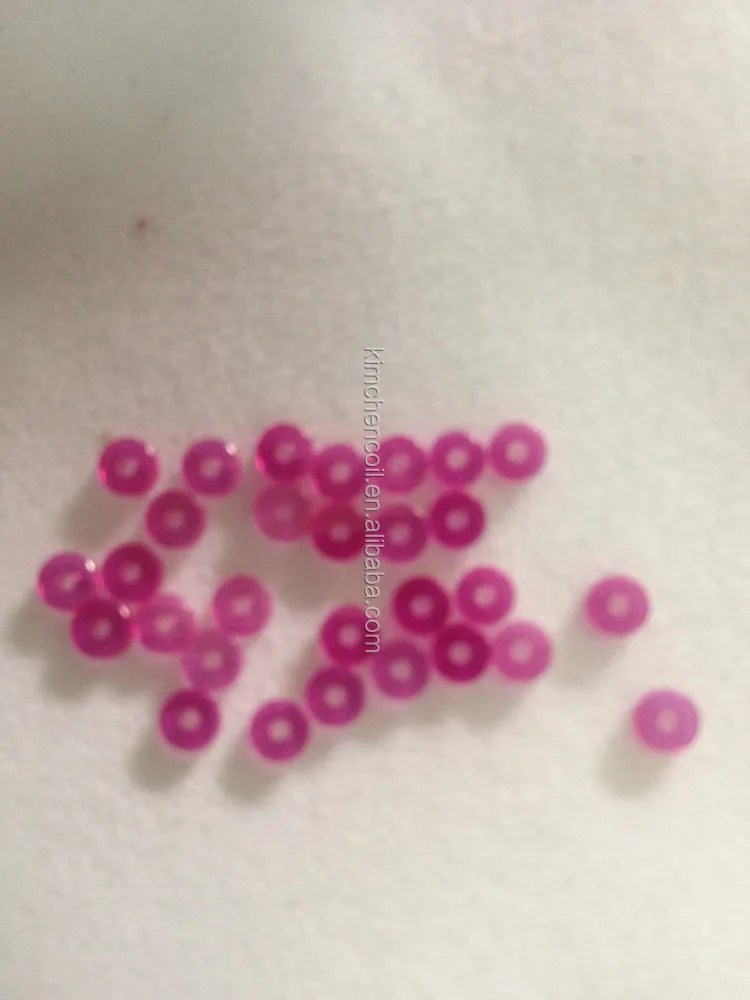

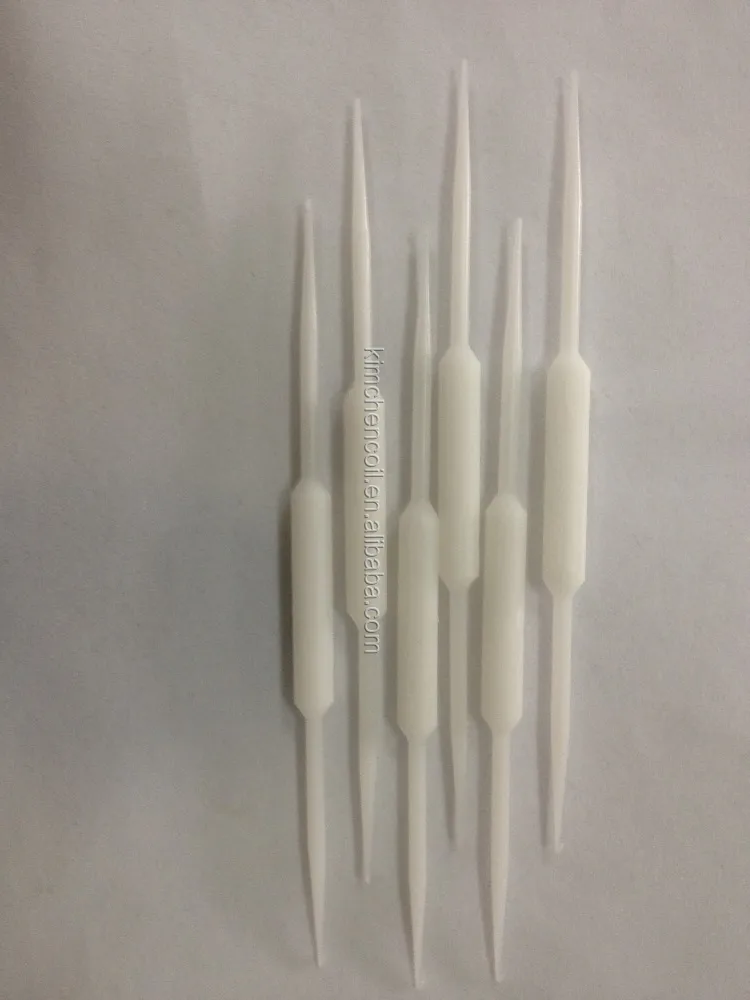

Other Products
Certification

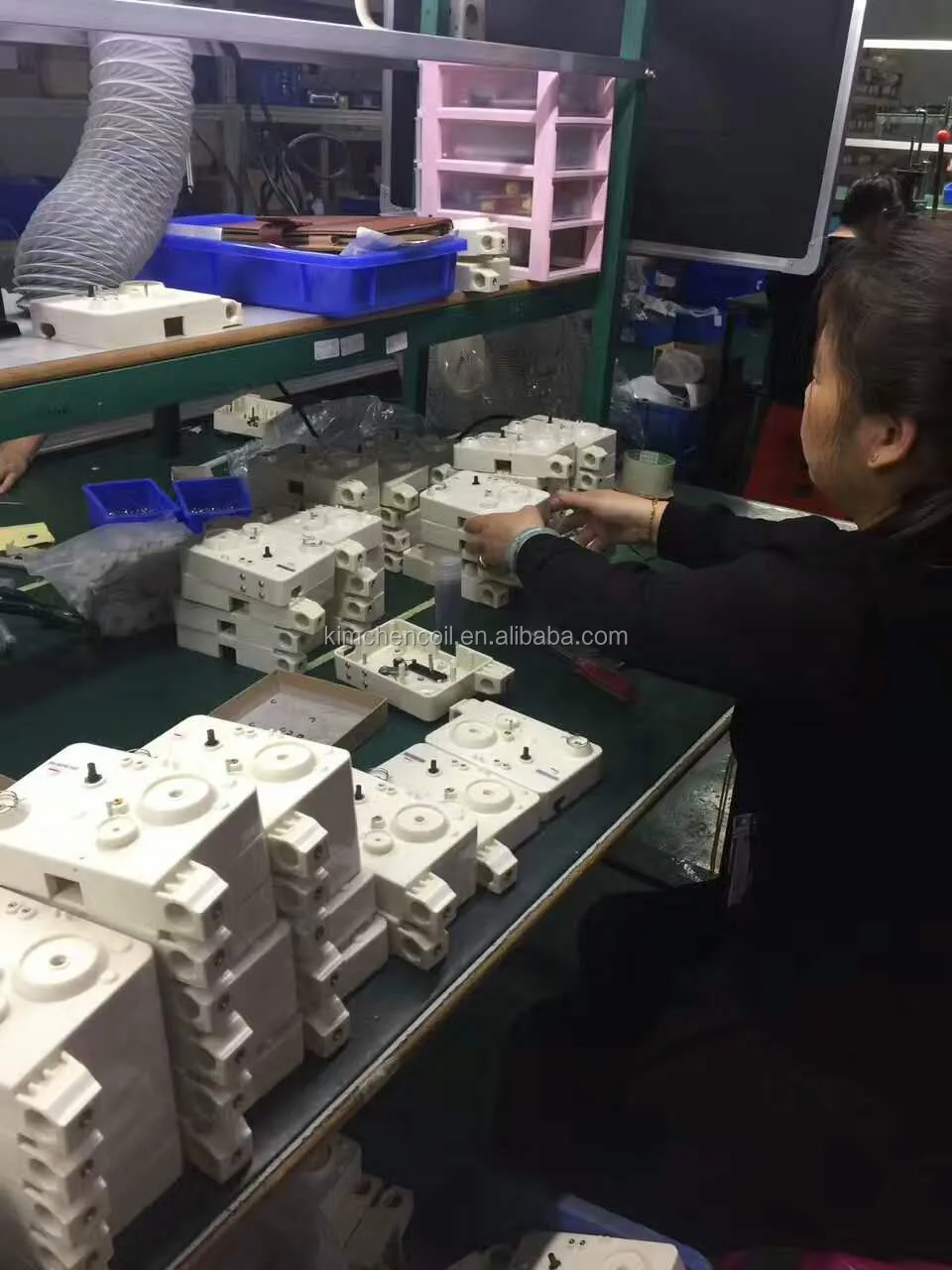

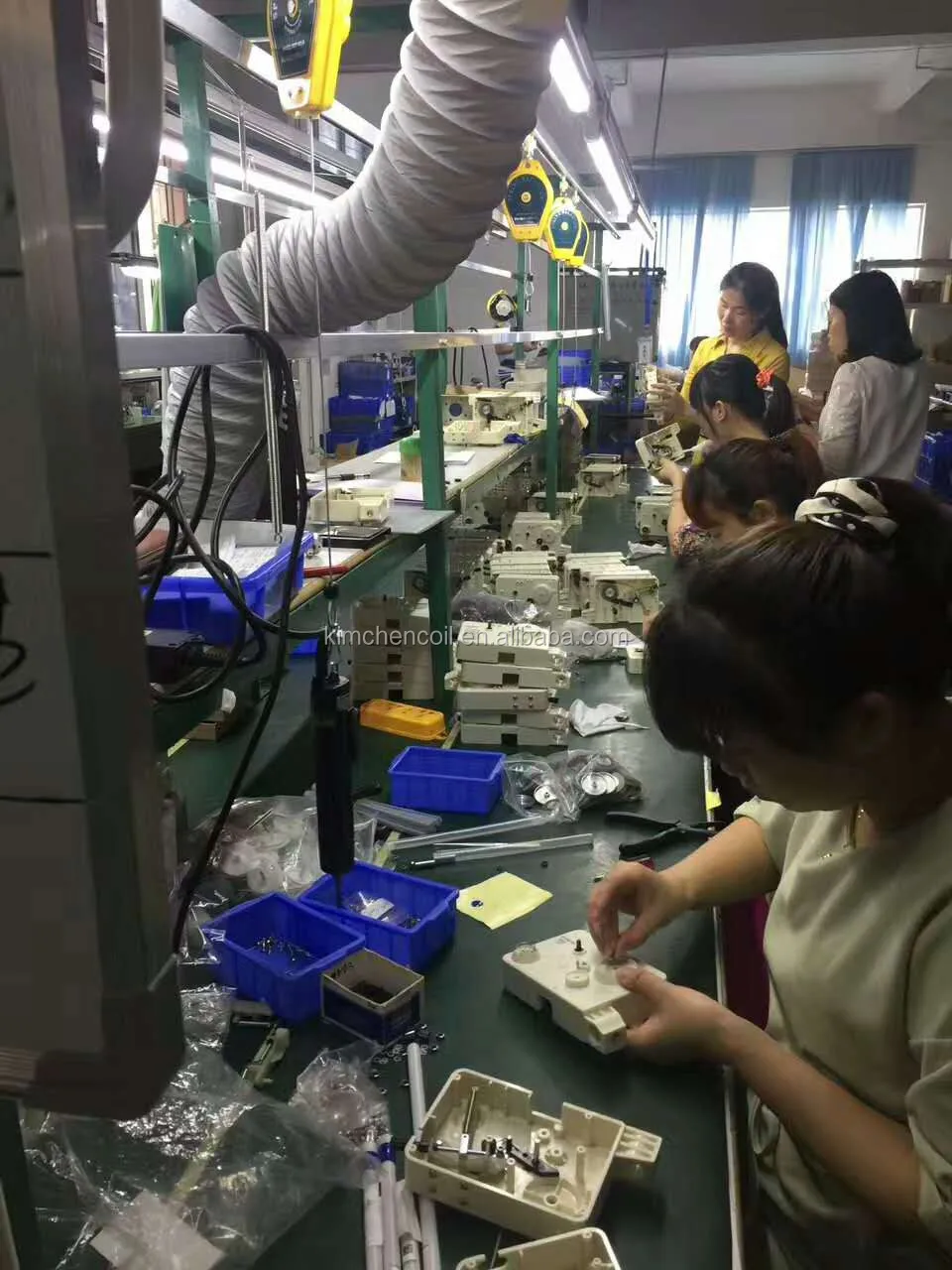

Production

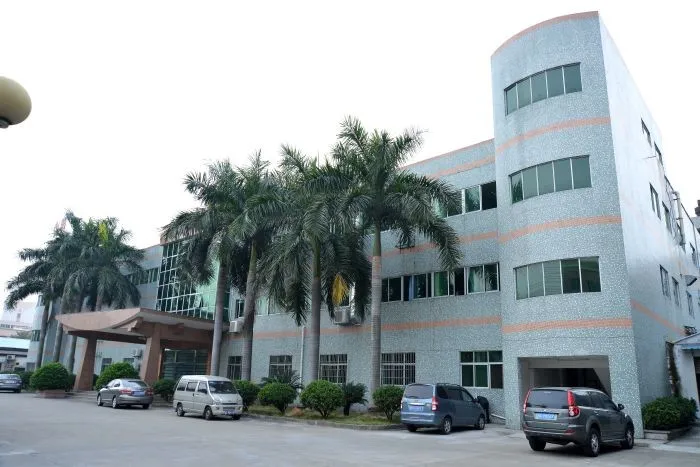

Our Company

 KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, It is located in Dongguan City in China. We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems, textile machinery and electrical industry Precision Ceramics, automatic lathe products, precision machining manufacturing and water jet technology. Our company has more than 100 employees, of which nearly 20 technical staff.

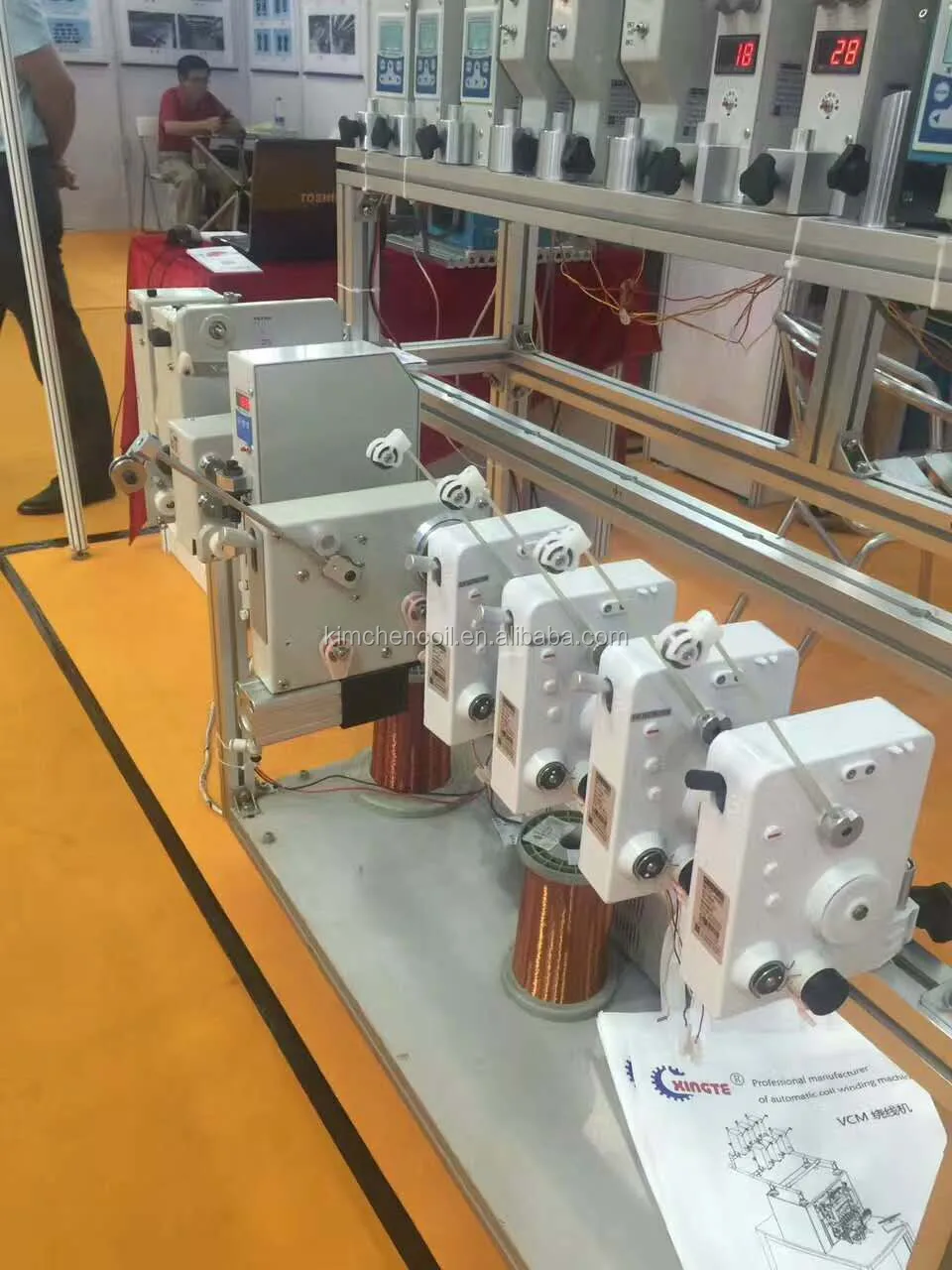

 After a few years development of the coil winding tension system and the production of the two series of 10multiple specifications tensioner, after the listing of products ,we gain customer recognition with an annual output-5,000 sets. At the same time we are exploring the development of new industrial categories, through the introduction of advanced international machine tool equipment, we have a certain production scale in the field of automatic lathe products, therefore we have the ability to undertake all types of non-standard nut (column), posts and large quantities of shaft processing with the stable and reliable product quality.

Continuous Development and Conscious Operation is our long term goal. We hope to develop prosperous collaboration with you in the future. If you are interested in our product please contact us:
