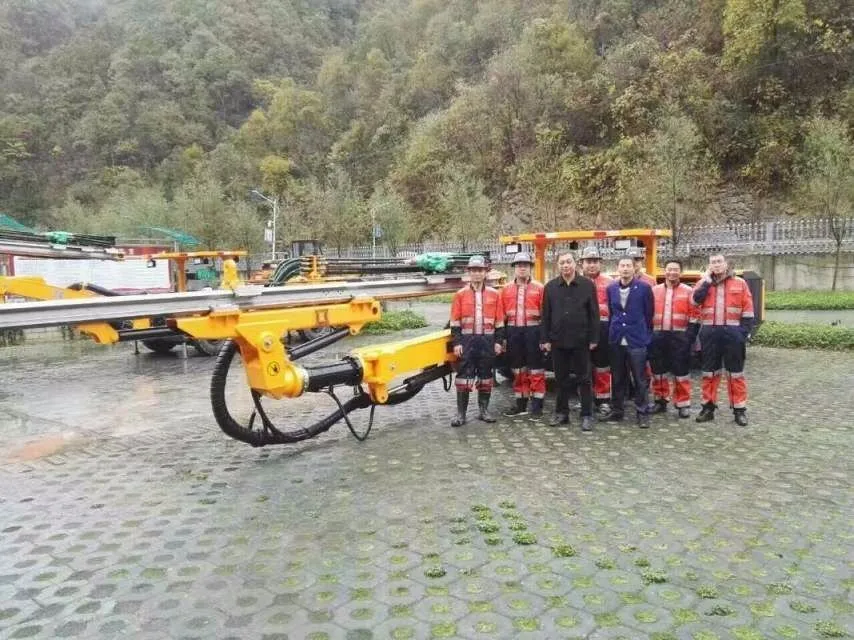

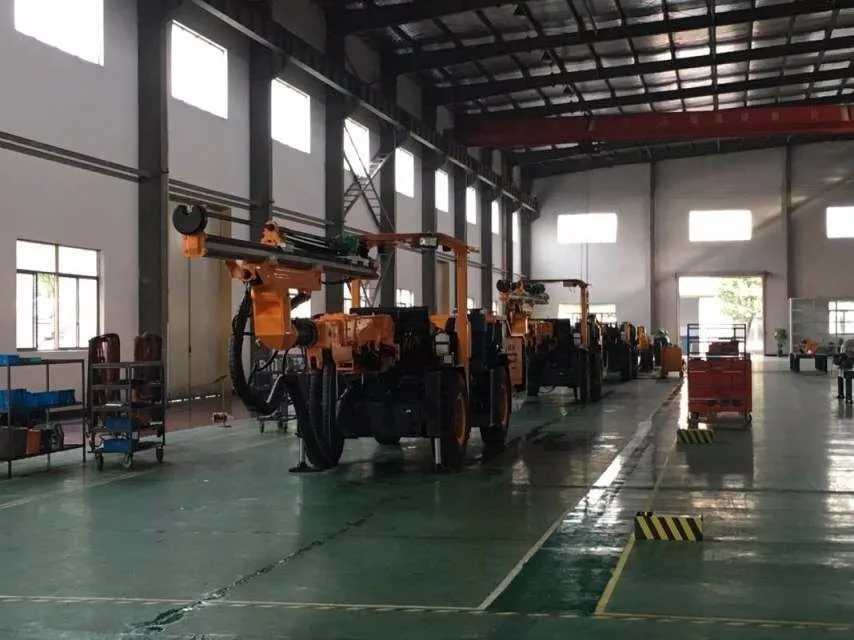

KJ313 underground hydraulic rock drill jumbo

Product Overview

Description

KJ313 underground hydraulic rock drill jumbo



1. General description of   Full hydraulic KJ313 Tunnel boring machine for sale



    KJ313 -type full-hydraulic tunnel jumbo is applicable for hard-rock mine tunnelling operation of 12-35m2 section, which is specially designed for hitting anchor rod at the same time. It can be used to drill 2.2m-depth bolt hole in the roadway with the height of 4m.

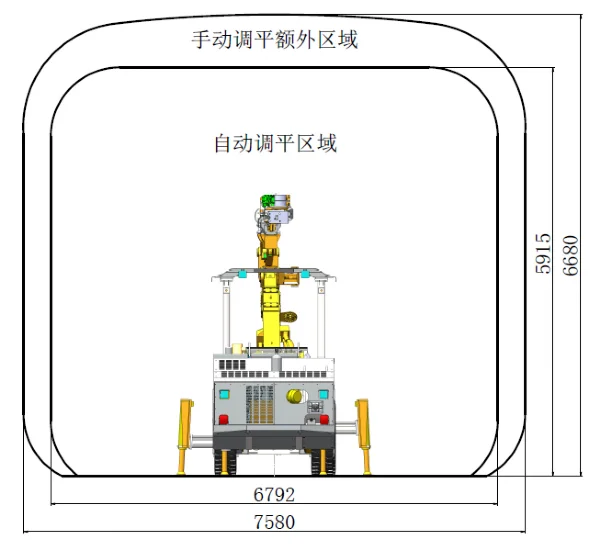

  Solid universal arm is equipped with the best section covering shape, and the propulsion beam can turn over by 360° and level off automatically, so as to be convenient for quickly achieving drilling and positioning. Meanwhile, the drill boom can be also used for laterally opening crossdrift and anchor-hold drilling operation.

The arrangement of drill carriage shall ensure the view of the manipulator in good condition. The arrangement is in balance condition. The strong four-wheel-drive articulated base plate can ensure that the drill carriage travels flexibly, quickly and safely in the narrow roadway.



  High-frequency impact jackdrill optimizes the transmission efficiency of impact wave, enhances the drilling rate, reduces consumption of drilling tools and enhances the serviceability rate of equipment by adopting stair piston;

  Spacious operation space and a series of automatic functions are conducive for the driver concentrating to safely, quickly and accurately drill.

  Each maintenance part is protected well and easy to access and maintain at the same time.

  Boundary dimension (including optical auxiliary power station.





Advantages:

  Robust universal drilling boom creates ideal face drilling coverage. Automatic parallelism and 360o roll-over enable easy, fast and accurate positioning for face drilling, sideway drilling and bolt hole drilling.



 The layout of components provides excellent vision for the operator in drilling and travelling.Powerful and well balanced 4-wheel drive chassis allows the rig to move through limited space and tough terrain in the mines. Duo-circuit service brake and enclosed multi-disc parking/ emergency brake ensure safety in tramming and on ramp slope.



Field proven high frequency hydraulic drifter delivers high performance. Trapezoid shaped percussion piston optimizes shock wave transfer efficiency, enhancing penetration and decrease drilling consumables costs.

Comfortable operator station provides safe working condition. Many automatic features simplified the drilling control and helps the miners to concentrate on fast and accurate drilling.

All service points are easily accessible, which simplifies daily routine maintenance.





2. Specification of   Full hydraulic KJ313 Tunnel boring machine for sale

Boundary dimension and weight
Length		11300mm
Width		1750mm
Height		2000/3000 mm
Weight		12000 kg
Running speed (Horizontal)		10 km/h
Maximumgradeability		0.25
Safety protection
Noise level		<100 dB(A)
Adjustable security ceiling		Meet anti-rolling and anti-rockfall requirement
Drilling system
Rock drill		1×HC50/R38		1×HC109/R38
Impact power	13kW		18.8kW
Impact flow	105L/min		135L/min
Surge pressure	130bar		135bar
The maximum rotary pressure	150bar		150bar
Frequency	62 Hz		47 Hz
Torque	325Nm		780Nm
Hole diameter	32-89mm		45-102mm
Turnover of propulsion beam	360°
Compensative travel of propulsion beam	900mm
drill boom
type		K26F
form		Automatic level off
Flexible drill boom		1200mm
Electric hydraulic power pack
Electric motor		45kW/55kW Three-phase motor
Impact/ propulsion/drill boom		Axial variable displacement piston pump
Rotation		Gear pump
Filter fineness		10μ
Hydraulic oil tank		240L
Hydraulic cooler		Water cooler
Operating voltage		380V
Frequency		50Hz
Startup method		Star delta
Cable Reel	1×K440
Cable capacity of reel	100m/80m
External diameter of cable	Φ28mm/Φ32mm
Specification of the  cable	3×35+3G6+2×1.5
	3×50+3G6+2×1.5
Wind and water circuit system
Air compressor	1×JN5
Displacement	0.5m3/min
Pressure	5-7bar
Shank lubrication device	Pressure oil lubrication tank/electromagnetic lubrication pump
Gas consumption for lubrication	0.3m3/min
Oil consumption for lubrication	180-250g/h
Water pump	1×CR3
Power	1.5kW
Pump output	3m3/h
Base plate
Diesel engine	BF4L2011 53kW,2800rpm
Tail gas clean-up	Power gas catalyst
Transmission system	Four-wheel-drive closed-type travelling system
Hunting angle	±10°Swing of rear axle
Tire	11.00-20
Steering mechanism	±40°Articulated steering
Travel braking	Double-circuit hydraulic brake
Parking braking	Multi-disk wet brake of reducer
Fuel tank	60L

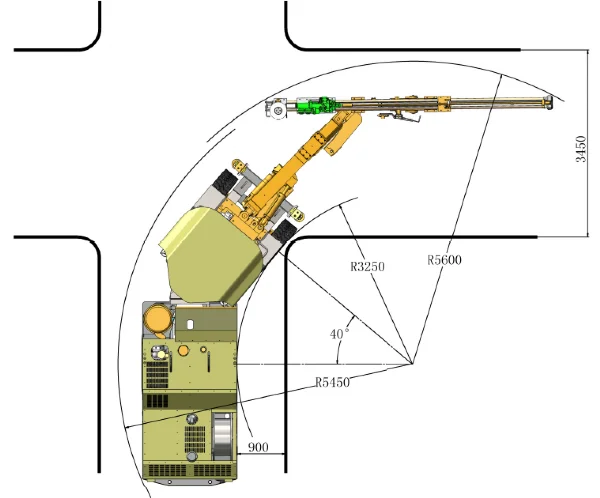

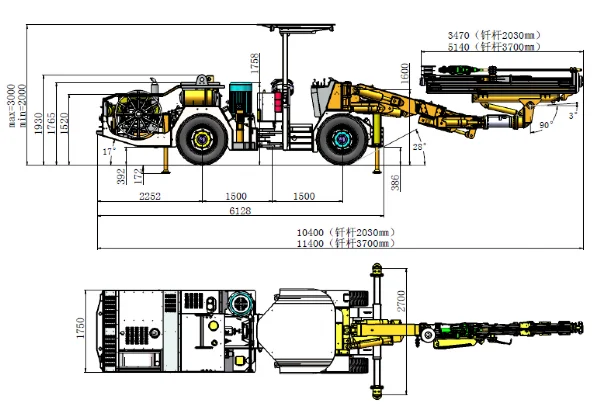

Structure of KJ313







.

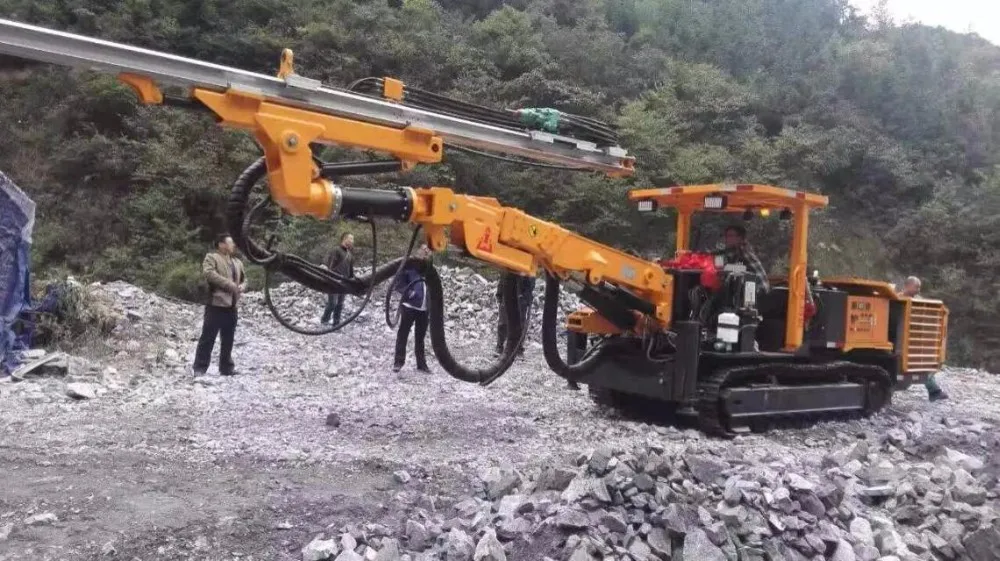

Picture of working condition
