Best price transform oil filtration machine manufacturer
US $15.00-$55.00
Биодизельное производство, используемый очиститель кулинарного масла закрытого типа с фильтром для пресса
- Category: Machine Oil Purifier >>>
- Supplier: Chongqing Top Oil Purifier Co. Ltd.
Share on (60656693745):
Product Overview
Description
Product Description

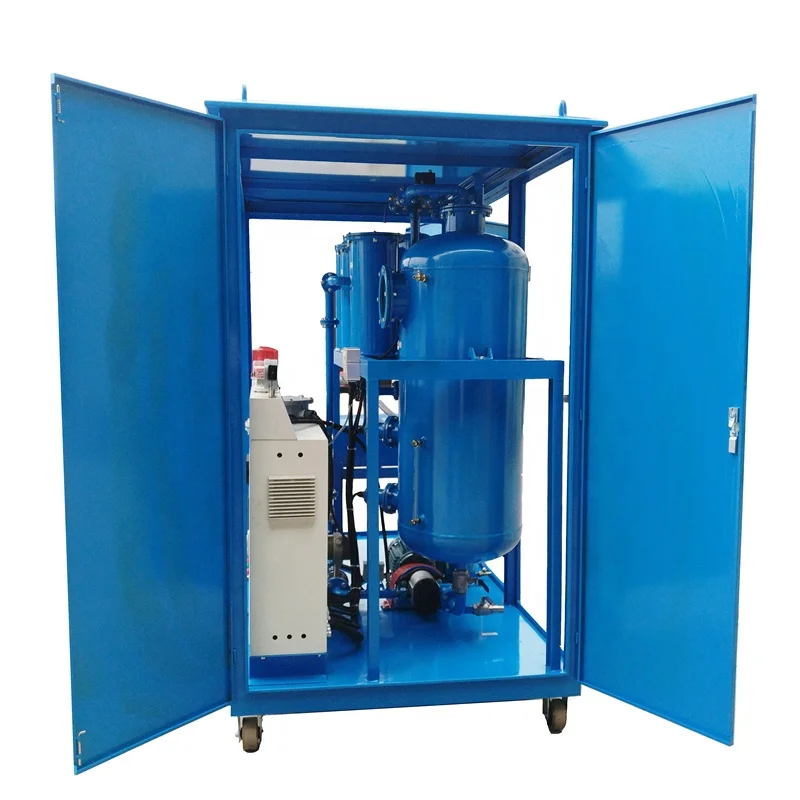

Biodiesel production Enclosed type Used cooking oil purifier with press filter
(COP Series) -Best selling oil purifier for processing cooking oil, coconut oil,animal oil etc. For further making biodiesel, soap, animal feeds...
Application
COP Series vacuum oil purifier is applied to purify used cooking oil, vegetable oil, coco oil, sunflower oil, trench oil, swill oil, animal oil, lubricating oil etc. It is an ideal purification machine for biodiesel factory, fried food factory, oil restaurant, cooking oil factory, vegetable oil factory, waste oil collecting store etc. It effectively removes particles, water, gases and alcohol etc from the oil.
When COP is equipped with our regeneration decoloring machine TYR ( refer to the left side pictures), it can also effectively remove the dark color from oil (as the following picture shows).
Features
1.The filters of COP, made of the stainlessness steel, is anti-rust and anti-corrupt. It makes sure the filtered oil is completely clear without any impurity. The precision is quite high and the service life is long. Also, it has a large volume for storing the impurities.
2. After the water separator treat the oil, it just contains the tiny water and soluble water.
3. The vacuum separator adopts three-dimensional duplex evaporation and film evaporation. The tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.
4. It adopts back flushing system, which can clear impurities automatically.
5. Simple operation, reliable, and safe.
Technical Parameter
Parameters | Unit | COP-10 | COP-20 | COP-30 | COP-50 | COP-100 | COP-150 | COP-200 | COP-300 | ||||||||
Flow Rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | ||||||||
Work Vacuum | MPa | -0.06 ～ -0.095 | |||||||||||||||
Work Pressure | MPa | ≤0.4 | |||||||||||||||
Temperature | ℃ | 0 ～ 100 | |||||||||||||||
Power supply | 380V,50Hz, 3 phase (or as needed) | ||||||||||||||||
Working noise | dB(A) | ≤75 | ≤75 | ≤75 | ≤78 | ≤78 | ≤78 | ≤80 | ≤82 | ||||||||
Heating power | KW | 36 | 40 | 45 | 72 | 80 | 90 | 120 | 135 | ||||||||
Total power | KW | 38 | 42 | 47 | 75 | 87 | 101 | 135 | 147 | ||||||||
Inlet/outlet | mm | 25 | 25 | 25 | 32 | 42 | 50 | 50 | 60 | ||||||||
Net weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 | 1500 | ||||||||
Overall dimensions | mm | 1500×1000×1200 | 1500×1050×1600 | 1500×1050×1650 | 1600×1150×1700 | 1750×1250×1800 | 1900×1600×1950 | 1900×1700×2000 | 2100×1700×2100 | ||||||||
Oil index after treated
Item | Guarantee indexes |
Moisture content | ≤50 PPM |
Demulsification value | New oil≤15min, running oil≤30min |
Impurity size | ≤1 micron (no free carbon) |
Gas content | ≤0.1% |
Clean degree | ≤4 Grade (NAS1638) |
Detailed Images
According to the treated oil usage, you can choose different machine body material. And you can also choose the color of machine such as yellow, blue, green, grey.
On site of customer's place in Greece (for pre-filtration of further biodiesel production.)
Packing & Delivery
Our Company
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.
Certificates
Office & Factory
Our oil purification / recycling machines
Our customer site
Test Equipment
