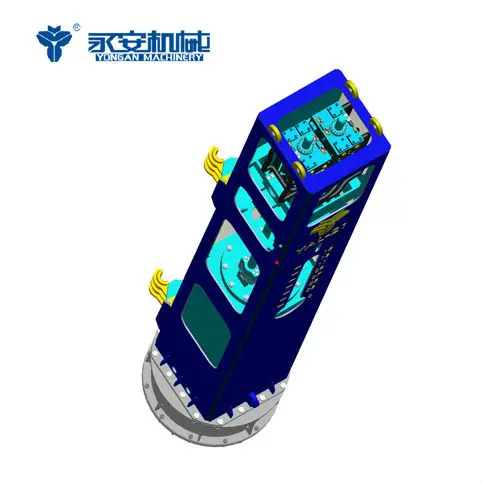

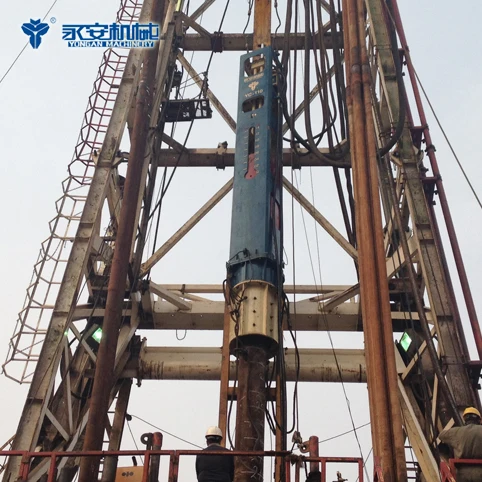

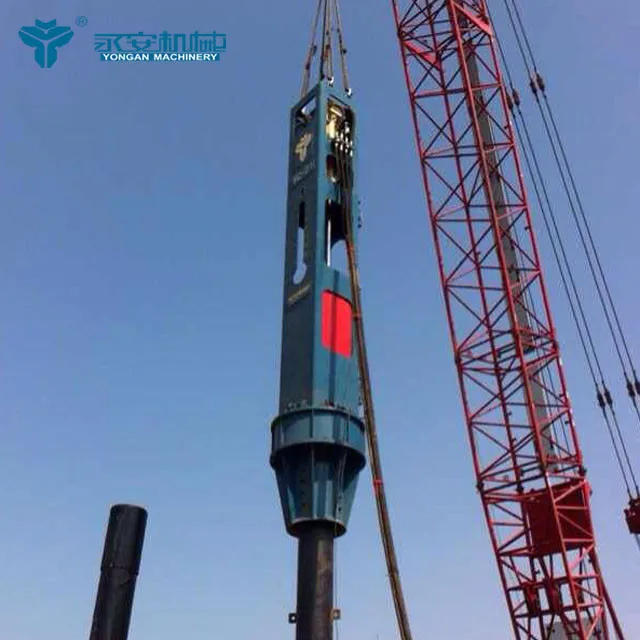

Vibro Hammer YC 11 Hydraulic Impact Hammer For Port Building piling hammer

Yongan hydraulic impact hammer has 14 models from YC-3 to YC-80, impact energy of Hydraulic Impact Hammer vary from 24 KNm to 1360 KNm. YC-80 is the largest impact hammer in China at once, but other sizes can also be supplied according to customer's requirement. Our Hydraulic Impact Hammer can be fixed leader or crane suspended, Hydraulic Impact Hammer mounting type can be customized according to the customer's machine,our Hydraulic Impact Hammer also can be used to extract piles or modified with adoptable accessories to do rapid piling work, etc.

Yongan Hydraulic impact hammer is widely applicable for most types of piling and foundation works. Suitable for various pipe material size and shape, such as concrete pile, steel sheet pile, H beam, casing pile and shapes like round, square, octagoanl, etc.

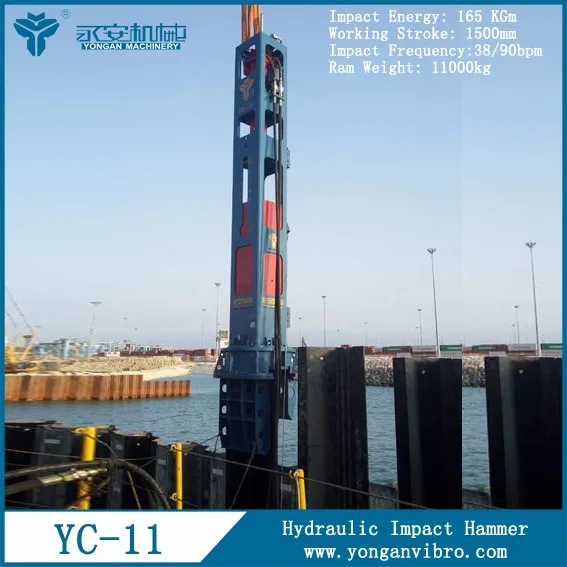

Hydraulic Impact Hammer  YC-11
Impact Energy	KNm	165
Working Stroke	mm	1500
Impact Frequency	bpm	38/90
Ram Weight	kg	11000
Lifting Method	Single hydraulic cylinder lifting
Size w/o pile cap	mm	976*976*1010
Weight	kg	161380

Hydraulic impact Hammer YC-11
Engine Power	P	360
System  Pressure	Mpa	24
Work Flow	L/min	380
The Volume of liquid oil	L	800
Fuel tank capacity	L	1400
Size	mm	3900*1550*2050
Weight	kg	3500

Hydraulic Impact Hammer YC-11 Main Features

1) Hydraulic Impact Hammer YC-11,Prominent energy transferring rate with the efficient design of hammer body and the cushion arrangement.

2) Hydraulic Impact Hammer YC-11,High blow rate and precise ram stroke movement ability.

3)  Hydraulic Impact Hammer YC-11, simplicity in design.

4) Hydraulic Impact HammerYC-11,Long-term reliability, high performance power pack and cooling system. Precise workmanship is adopted to electric and hydraulic system in cluding hoses, cables, coupling and other related parts, thus the whole system is reliable. After being equipped with the Italian brand powerful pump, and adopting the simple hydraulic and electrical system, the power pack thus could perform high quality as a whole.

Certificates

Detailed Images

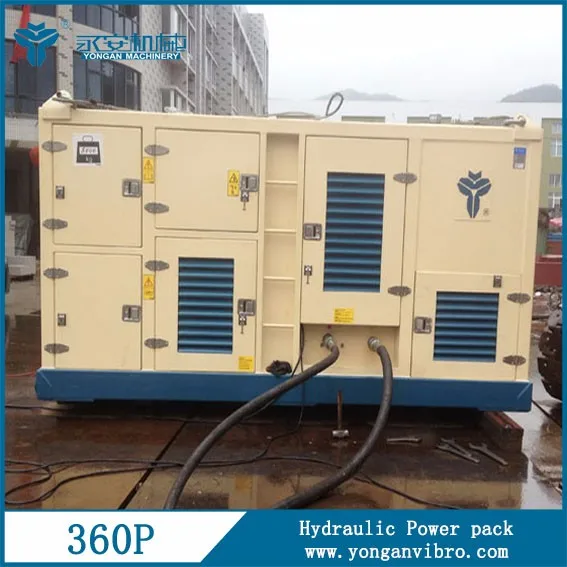

Optional power pack

 Power pack 360P,Cummins engine

Our Service

Pre-Sales Service

* Inquiry and consulting support.

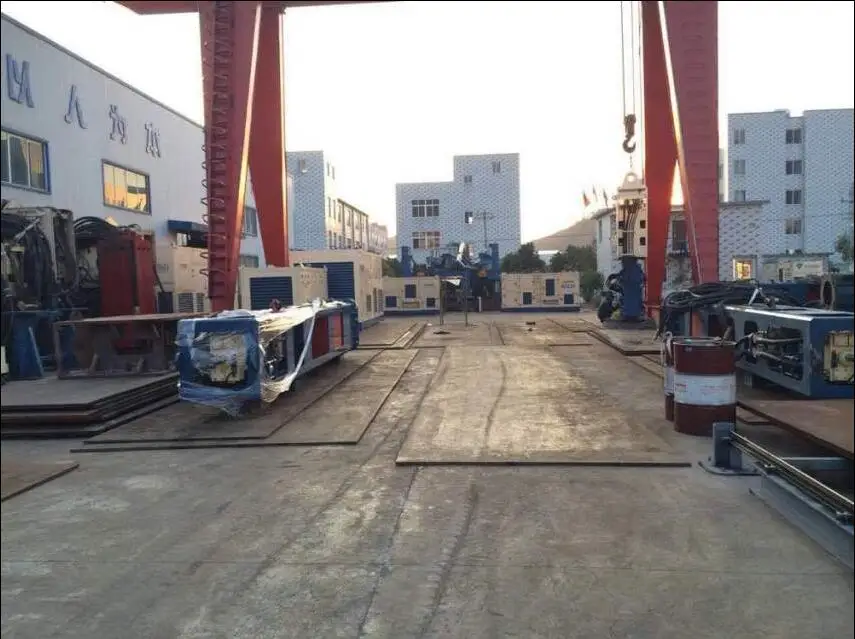

* View our Factories.

After-Sales Service

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Packaging Details	Hydraulic impact Hammer packed in shrink film,  Accessories in woodex box,  and Power pack in a whole container.

Product application

Offshore Piling
