XGZP6847 Gas Pressure Electronic Sphygmomanometer Sensor Transmitter Module 3.3v Power Supply 0 300mmhg Send Hose

Product Overview

Description

Features

Ranges: -100kPa~0kPa…1000kPa(-15PSI~0PSI…150PSI)

Perfect Accuracy(±1.0%) of full scale

Gage,Vacuum Type

For Non-corrosive gas or dry air

Calibrated,Amplified analog output

Temp. Compensated:0°C~+85°C(32°F~+185°F)

Direct application,Low Cost



Applications

• For Medical equipment field, such as therapy equipment,breathing machine, oxygen generating equipment,monitor,alcohol tester.etc.


• For Sport and fitness equipment field,such as massage,air spring bed,etc.


• For Home appliance field, such as washing machine,active oxygen water machine beer machine,coffee machine, etc.


• For Other fields, such as air pump,emergency lamp, dust collector, HVAC and pneumatic device etc.

Introduction

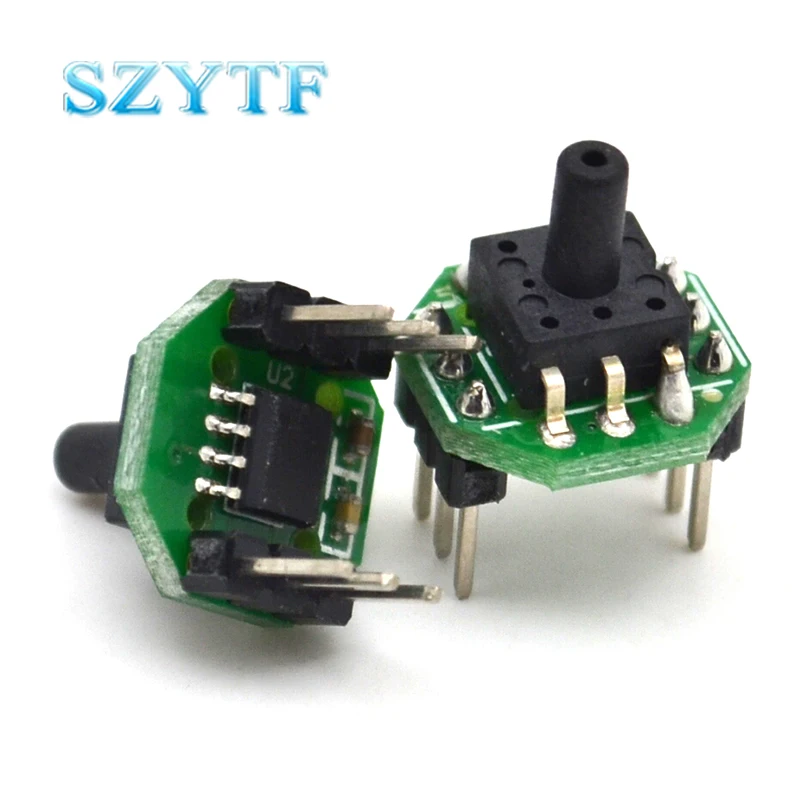

• XGZP6847 is a prefect silicon pressure sensor module offering a ratiometric analog interface for reading pressure over the specified full scale pressure span and temp.range.



• The XGZP6847 incorporates a silicon piezoresistive pressure sensor(XGZP SOP6) and an on-board Application Specific Integrated Circuit(ASIC) under PC board in a DIP8 package.



• The XGZP6847 is fully calibrated and temperature compensated for offset,sensitivity,temperature and non-linearity,so XGZP6847 pressure sensor module satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical equipment,fitness machine,home electronics,and other pneumatic devices etc.



• XGZP6847 pressure sensor module is for high volume application at an affordable cost and perfect performance.



• Custom calibrations(excitation voltage,output voltage,and pressure range) are available.

Item	Data	Unit
Output Signal	0.5-4.5	V
Accuracy	±1.0	%Span
TSO(Temp. Coefficient of Offset)	±0.03	%FS/°C
TCS(Temp. Coefficient of Span)	±0.03	%FS/°C
Long Term Stability(1year )	±2	%Span
Over Pressure	2X (≤500kPa) 1.5X(≥500kPa)	Rated
Compensation Temp	0 ~ 85/32 ~ 176	°C/°F
Ambient Temp	-20 ~ 100/-4 ~ 212	°C/°F
Storage Temp	-40 ~ 125/-40 ~ 257	°C/°F





Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI)

Pressure Range(kPa)	Model
0 ~ 10	XGZP6847010KPG
0 ~ 20	XGZP6847020KPG
0 ~ 40	XGZP6847040KPG
0 ~ 100	XGZP6847100KPG
0 ~ 200	XGZP6847200KPG
0 ~ 500	XGZP6847500KPG
0 ~ 700	XGZP6847700KPG
0 ~ 1000	XGZP6847001MPG
-100 ~ 0	XGZP6847100KPGN
-30 ~ 0	XGZP6847030KPGN
-20 ~ 0	XGZP6847020KPGN
-40 ~ 40	XGZP6847040KPGPN
-100 ~ 100	XGZP6847100KPGPN
-100 ~ 700	XGZP6847700KPGPN





Dimension (Unit:mm/Inch)

Electric Connection

1	2	3	4	5	6
N/C	Vdd	GND	Vdd	OUT	GND

NOTE:
1,N/C Pins must be left floating
2,Soldering of lead Pins:250’C for 5 sec max.

Notes:
1.Attention that the medium should be compatible with the pressure parts.
2.Please contact us if special request on parameter and application.



Model

100KPGN

030KPGN

020KPGN

Output (V)

Pressure(kPa)

0.5	-100	-30	-20
1.5	-75	-22.5	-15
2.5	-50	-15	-10
3.5	-25	-7.5	-5
4.5	0	0	0
