DT130BL 130mm 1800W 2000rpm 12.0N.m high performance brushless dc motor

Price:RUB 16,101.82

Quantity:

Product Description

1. Wide speed range, flat torque

2. Excellent speed stability

3. Compact and high power

4. High efficiency and energy-saving

5. Lou temperature rise, low noise

6. Low vibration and long service life

7. Low cogging torque

Specification

Model	Rated Power (W)	Rated Voltage (VDC)	Rated Speed (rpm)	Rated Torque (N.m)	Shaft Diameter	Length (mm)	NO.of poles	Weight
DT130BL175-3120	1800	310	2000	12.0	22	175	4	7.0kg

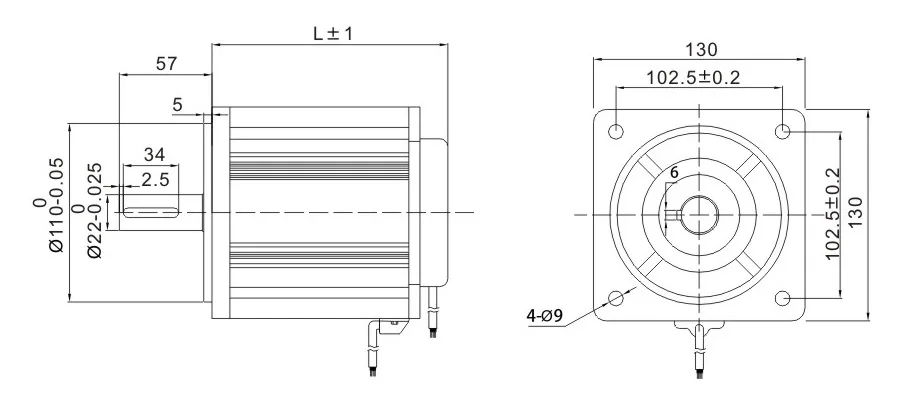

Dimension

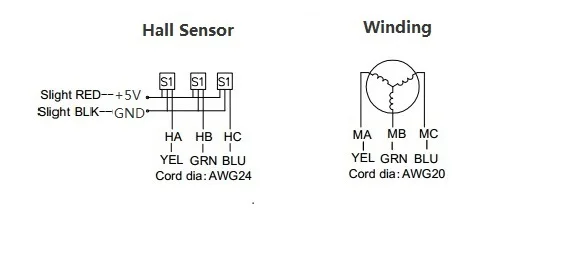

Wiring Connection

All specification in catalogue are for customer’s reference. We recommend customer confirm specification with our salesman before placing orders.
