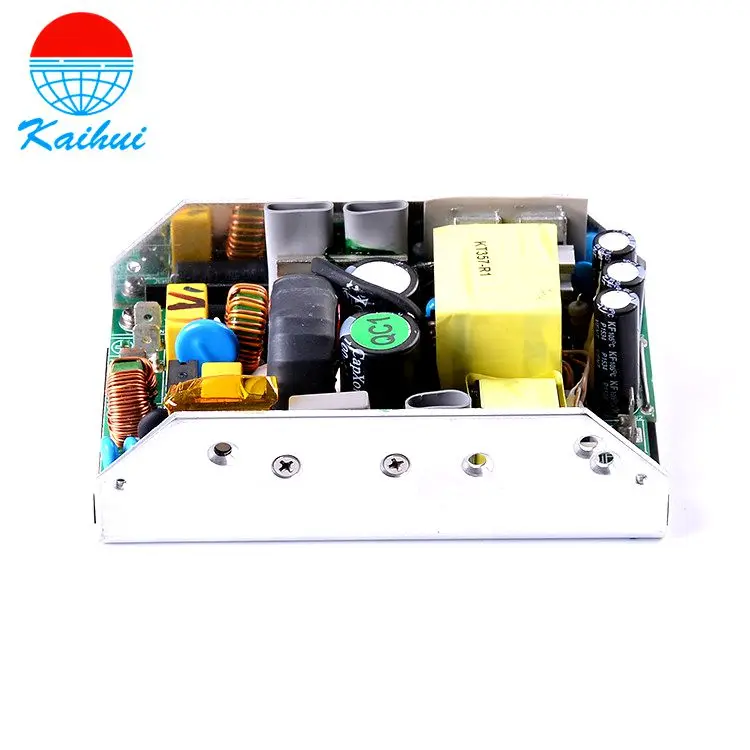

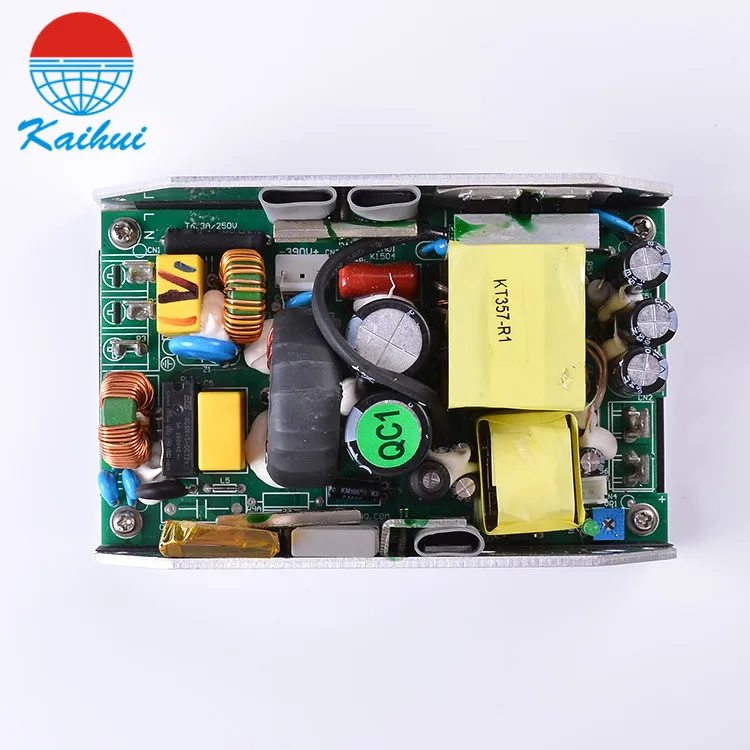

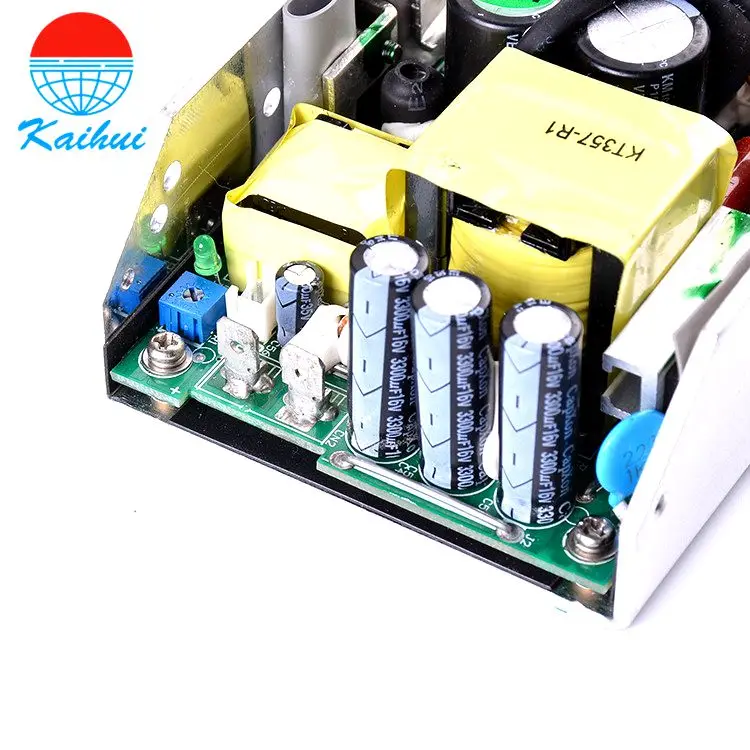

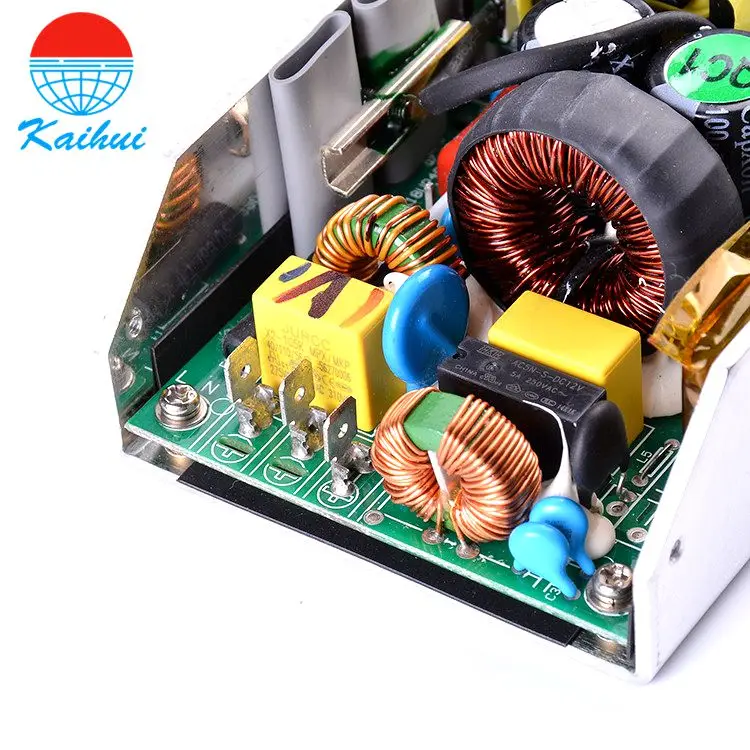

50/60Hz Input Moving Head Parts SMPS K18 UP400S12 12V 30A Power Supply SMPS
50/60Hz Input Moving Head Parts SMPS K18-UP400S12 12V 30A Power Supply SMPS
50/60Hz Input Moving Head Parts SMPS K18-UP400S12 12V 30A Power Supply SMPS
50/60Hz Input Moving Head Parts SMPS K18-UP400S12 12V 30A Power Supply SMPS
50/60Hz Input Moving Head Parts SMPS K18-UP400S12 12V 30A Power Supply SMPS
50/60Hz Input Moving Head Parts SMPS K18-UP400S12 12V 30A Power Supply SMPS

50/60Hz Input Moving Head Parts SMPS K18 UP400S12 12V 30A Power Supply SMPS

Share on (60657068825):


Price:

Quantity:


Product Overview

Description


Product Description

With years of export experience along with excellent quality, advanced services and competitive prices, Kai Hui has won numerous customers' trust and support.Our products have passed ISO9001 quality management system and also passed CCC, GS, CE, ETL certification.

\t
1,High efficiency, low temperature rise;
\t
2,PFC function;Universal AC Input;
\t
3,Short circuit, overload, overvoltage,over-temp. protection.
\t
4,Other output voltage also can be made,such as dual output model etc.
\t
 parameter                                                                                                      Item No.
\t
K18-UP400S12
\t
K18-UP400S24
\t
K18-UP400S36
\t
K18-UP400S48
\t
Output voltage
\t
+12V
\t
+24V
\t
+36V
\t
+48V
\t
Rated current
\t
30A
\t
16.7A
\t
11A
\t
8.3A
\t
Current range（Natural cooling）
\t
0-25A
\t
0-12.5A
\t
0-8.3A
\t
0-6.3A
\t
Current range (20CFM fan cooling)
\t
0-30A
\t
0-16.7A
\t
0-11A
\t
0-8.3A
\t
Rated power（Natural cooling）
\t
300W
\t
300W
\t
298.8W
\t
302.4W
\t
Rated power (20CFM fan cooling)
\t
360W
\t
400.8W
\t
396W
\t
398.4W
\t
Ripple
\t
240mVp-p
\t
240mVp-p
\t
360mVp-p
\t
480mVp-p
\t
Adjustable output range
\t
±10%
\t
Output Accuracy
\t
±1%
\t
Line Regulation
\t
±0.5%
\t
Load Regulation
\t
±0.5%
\t
Set up,Rise,Keep up time
\t
500ms,50ms,20ms
\t
Input Voltage range
\t
90-264V AC
\t
Input current
\t
2.2A @ 220V AC
\t
Input frequency
\t
47-63 Hz
\t
Efficiency
\t
>90% @ 220V AC
\t
Power Factor
\t
>0.99@110V;>0.95@220V
\t
Inrush current
\t
COLD START 15A/115V,30A/230V
\t
Leakage Current
\t
<0.35mA@240V AC
\t
Over load protection
\t
110~150%,Hiccup protection, automatic recovery
\t
Output overvoltage protection
\t
15-18V
\t
28-33V
\t
42-46V
\t
55-60V
\t
Over Temp.protection
\t
Cover’s temp. >105℃,output closed,automatic recovery.
\t
Working Temp.,Humidity
\t
-20~50℃,10~90% RH,No condensation
\t
Storage Temp.,Humidity
\t
-20~85℃,10~95% RH
\t
Temp.,Drift
\t
±0.03%/℃(0~50℃)
\t
Vibration
\t
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
\t
Safety standards
\t
GB4943,EN60950-1
\t
Pressure
\t
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:500VAC
\t
Insulation resistance
\t
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
\t
EMC standards
\t
EN55022 CLASS B,EN61000-3-2
\t
Dimension
\t
127*82*45mm
                           We produce transformer by ourself

        Lead free produce line coincide with ROHS standard

                                High Voltage and Low voltage test

                            EMI testing

                                  100% Burn-in Test

                              Packing

Our Company

Guangzhou KAIHUI Electronics Co., Ltd. was established in 2003, Located in Guangzhou, China. The investment size of the company is more than 10 million RMB and covers 5000 square meters.
KAIHUI is specialized in researching and manufacturing full range switching power supply, power adapters, DC/DC , AC/DC, DC/AC converter. We have powerful Our We launch one new product each month to meet market requirement.

13 years professional manufacturer of switching power supply

19 years' experience engineer in power supply industrial provide service to you at any time.

More slimmer, More smaller, " Private Design & Develop" only for YOU.

Certifications
Customer Feedback
Trade Show
Packing & Delivery

Packing

We adopt standard export carton.

Delivery


Sample orders:
Our common products: 3-4days
OEM products: 9-10days

For the formal order: 10 working days.


Value-Added Service

Let KAIHUI serve as you sole provider for all your power supplies needs.
We pride ourselves on not just being a components distributor, but a trusted partner. We can assist with custom services that save you time, money and effort. In addition, our expertise in shipping logistics can improve your efficiency and we willingly maintain inventory for our valued partners.

We have:
13 years of expertise
19 years of experienced engineer
Franchised component lines
We produce transformer by ourselves
The ability to response quickly to your changes


Customer advantage:

Fewer payable invoices
Less inventory carrying costs incurred
Reduces overhead
Materials sent to floor for assembly, quickly and efficiently
You may become our exclusive agency to get win-win business partner


Our famous partner:

OPPLE / CKC/PR-LIGHTING

Our successful case:

Shanghai Bund Lighting Project

Guangzhou Garden Hotel Lighting project
