Electronic ballast for UV lamp lighting Hot selling 12VDC power supply UV ballast

DC Power UV Lamp Electronic Ballast Main Technical Data

PL15-425-18D12 UV lamp electronic ballast Application UV Lamp Types

Lamp Types:GPH212T5  GPH287T5  GPH303T5  GPH357T5  TUV11W   TUV16W

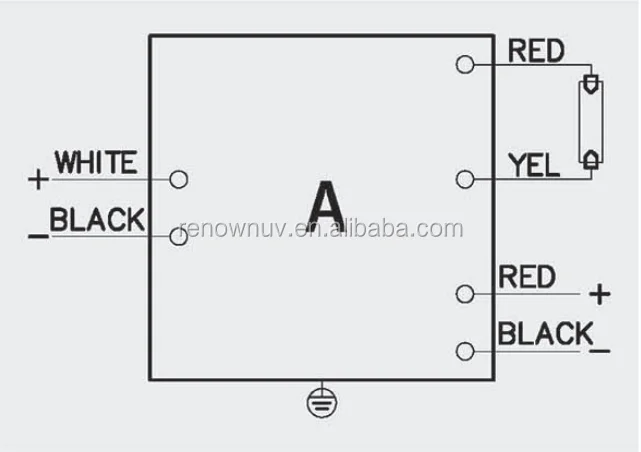

Wiring Diag:A

Electronic Ballast Wiring Diagram

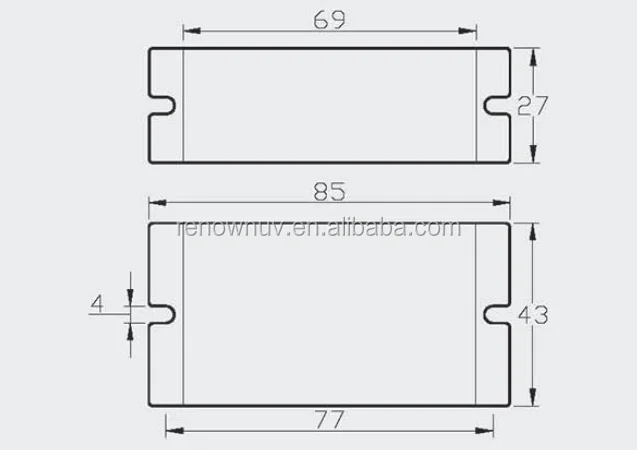

12V/24V DC PowerElectronic Ballast Dimension

 l Technical specifications

Efficiency: >70%

Operating Frequency: 40-70KHz

Dimensions:85*43*27mm

Max.cable length between ballasts and lamp:1.5m

l Installation requirement

Wire Gauge:0.5-1.0mm²

LED specification:V_F=1.8-3.6V  L_F=20-50mA

l Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

l For applications with less than one switch-on cycle per day

(other otherwise preheat start ballasts are recommended)

Lamp filament must be suitable for instant start operation,ask lamp manufacturer.

l Features

Starting:Instant

Lamp status indication via DC signal output.

DC3~6V 5mA:lamp on. DC 0~0.8V:lamp fault or on lamp. Connect LED

l Applications

All areas of applications include Tanning UV lamps:

=>Air purification

=>Aquarium

=>Domestic drinking water
