Tobee Effluent Handling
$12,600
WP 20 Gasoline water motor pompe
- Category: >>>
- Supplier: Umex (ningbo) Imp. & Exp. Co. Ltd.
Share on (60657146653):
Product Overview
Description

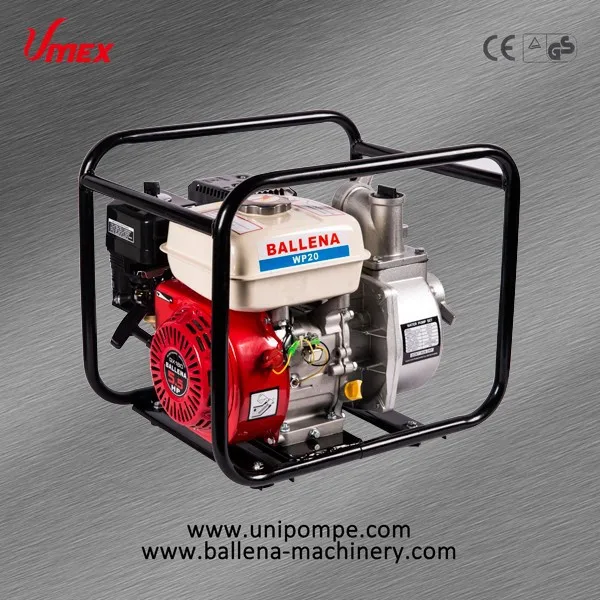

WP-20 Gasoline water motor pompe
Main Features
motopompe
8General purpose, centrifugal 2" pump
8Easy starting OHV commercial engine
8Capacity 36~60 m3/h
8Durable silicon carbide mechanical seal
8Cast iron volute and impeller
8Heavy duty full frame protection
8Isolation mounted engine and pump
8Oil Alert protection
8Large strainer and simple tools
NO | NAME | NO | NAME | NO | NAME | NO | NAME |
1 | Engine | 9 | Impeller | 17 | Non-return vale | 25 | Seal packing |
2 | Pump body | 10 | Spiral case | 18 | Flume | 26 | Elbow draft tube |
3 | “O” seal | 11 | “O” seal | 19 | Flange bolt M8×20 | 27 | Flange bolt M8×25 |
4 | Washer | 12 | Pump cover | 20 | Seal packing | 28 | Flame rubber |
5 | Hexagon screws M8×55 | 13 | Packing8 | 21 | Joint | 29 | Nut M8 |
6 | Casing wear ring | 14 | Flange bolt M8×20 | 22 | Head | 30 | Flame |
7 | Impeller wear ring | 15 | “O” seal | 23 | Strainer |
|
|
8 | Impeller seals | 16 | Plug | 24 | Tabe clip |
|
|
Performance table:
MODEL | WP-20(A) | WP-20(B) |
INLET/OUTLET DIA. | 2‘’ x 2‘’ | 2" x 2" |
MAX SUCTION(M) | 8 | 8 |
FLOW RATE(M3/H) | 36 | 60 |
HEAD MAX(M) | 28 | 28 |
ENGINE MODEL | GX120 | GX160 |
ENGINE TYPE | 4-STROKE OHV Gasoline engine | |
DISPLACEMENT(CC) | 127 | 173 |
MAX OUTPUT(HP/RPM) | 4.0 | 5.5 |
FUEL TANK(L) | 2.3 | 3.6 |
IGNITION SYSTEM | TRANSISTORED IGNITION | |
STARTING SYSTEM | RECOIL/ELECTRIC STARTING | |
DRY WEUGHT(KG) | 22 | 23 |
DIMENSION(MM) | 470X370X370 | 500X370X440 |
