Cost price Port Crane Portal Crane Material Handling Crane



Brief introduction of mobile jib portal crane

      The crane is specialized equipments for pilling containers with a large span, thus to make full use of the yard area, strengthen the piling capability of the yard and achieve estimation. They can be used to file containers in the docks, at inland transits and at railway container yards. The theoretical efficiency of them can be designed according to the customers' demands. The specifications combine maximum reliability and safety with high-operating efficiency, long-life, and low maintenance costs-leading to the lowest total cost of ownership.

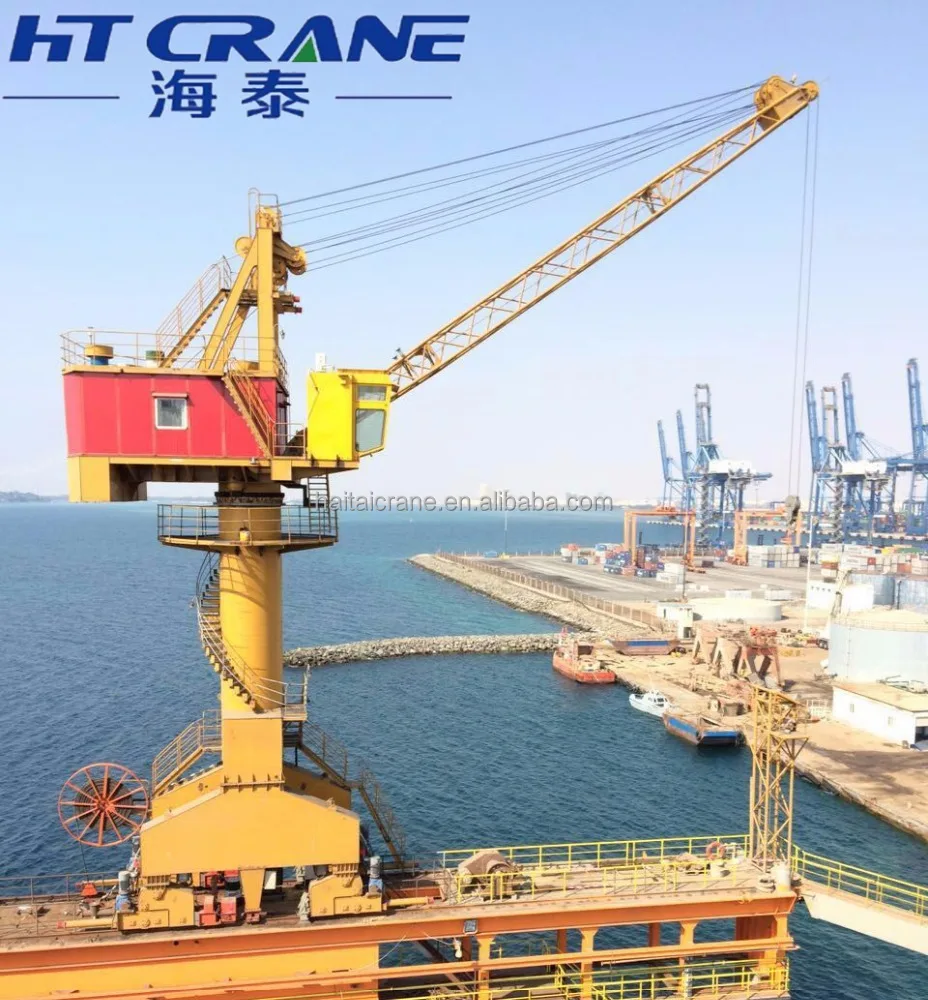

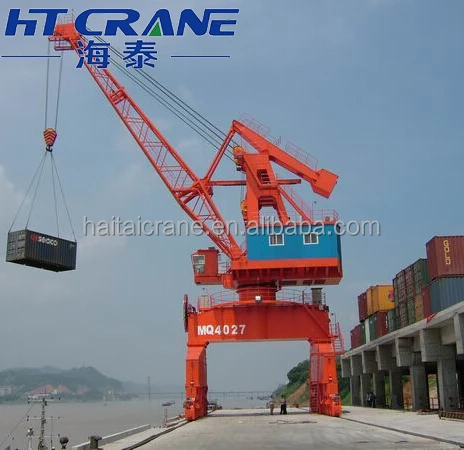

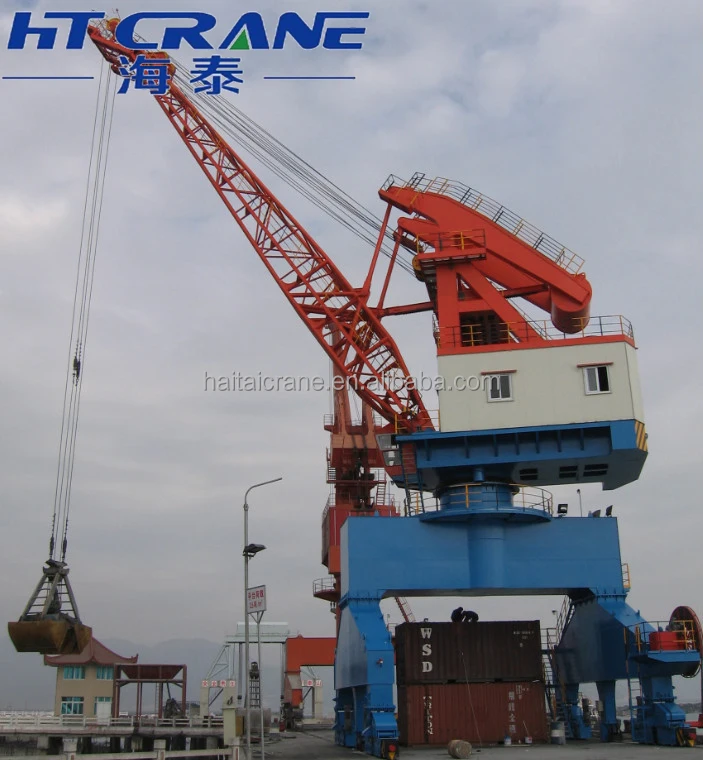

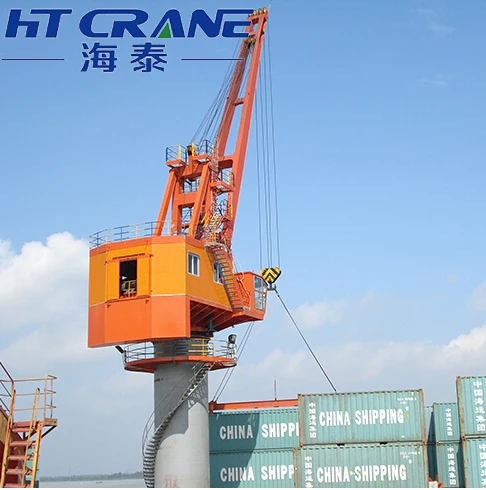

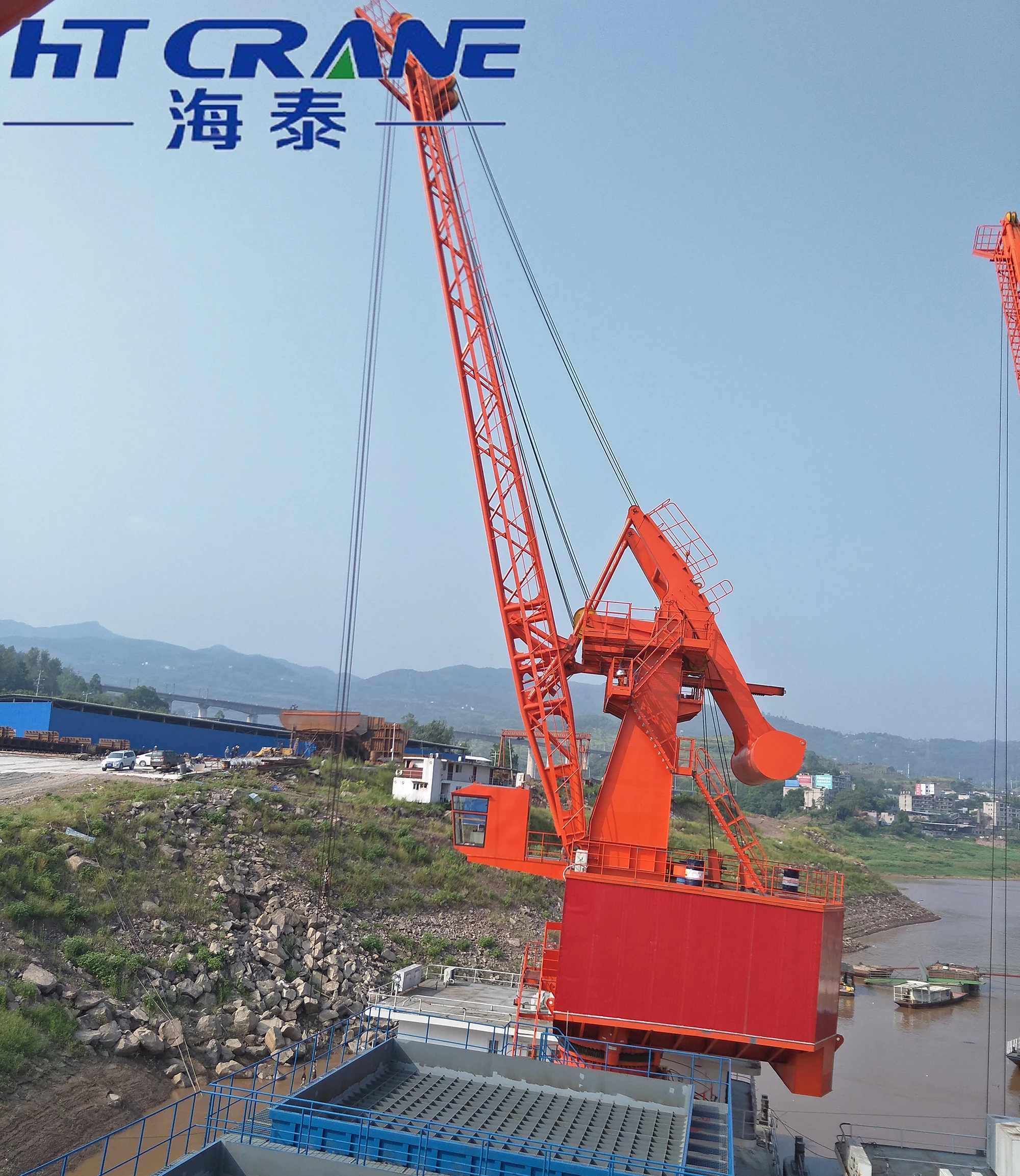

Sketches for reference

Working condition of fixed slewing crane

1.The temperature in the working environment should be in the scope of -20°c~+45° & relative  humidity is no higher than 95% (with dew).

 2. In-service the wind speed should be no higher than 20m/s.

 3. The installation of the crane rail should accord with requirement of JT5022.



Specification of fixed slewing crane (REFERENCE)



Production Specification				MQ
Lifting capacity			t	35
Group Classification Of Complete Machines				A7
Lifting Height	Above Base Level	m		18
	Below Base Level	m		15
Working Radius	Max.	m		25
	Min.	m		9
Lifting Mechanism	Group Classification			M7
	Lifting Speed	m/min		24.6
Luffing Mechanism	Group Classification			M7
	Luffing Speed	m/min		24.8
Slewing Mechanism	Group Classification			M7
	Slewing Speed	r/min		1.1
Traveling Mechanism	Group Classification
	Traveling Speed	m/min		20
Track Gruge/Wheel Base			m	10.5
Steel Track Recomended				P50
Weight Of Complete Machines		t		~266





Quality guarantee & our services of fixed slewing crane

 1. Products in accordance with state regulations "Three Guarantees", in equipment quality guarantee period, the equipment itself because of quality problems caused by equipment damage or can not normal use and normal maintenance of equipment, we are free repair or replacement of damaged or failed parts (not including wearing parts).
2. The normal quality assurance of the equipment put into use for one year.
3. Quality guarantee period, we paid long-term supply of spare parts, and products to the permanent maintenance, replacement parts and maintenance costs will depend on the cost of appropriate charges

 4. Professional technical staffs provide installation, commissioning and training services.

 5. Delivery with user manual, parts manual, product certificates and other relevant certificates.

 6.  Technical Consultation for any time.



Packaging & shipping of  fixed slewing crane

1. Steel structures packed by plastic woven cloth;

2. Electrical and other parts packed by wooden case.

3. Delivery: within 60-180 days after receipt of your deposit



FAQ
Q1: Can you send me your price list?
A1: Sorry dear friend, as you know, the crane products are customized, different capacity load, different span. Different lift height and other working conditions make the crane prices large different. So in order to save your time, we can give you a quick offer depends on your detail requirement. Contact us for quick offer. Thanks for your understanding.

Q2: Can the products shipped by containers?
A2: Container is also preferred shipping way, even the span is over than the size of container length, we can also provide a special design on main beam, make the main beam united together by flange with bolts and nuts. But if the crane is special designed with over high or over than the container's width, we will choose the bulk ship. Welcome contact us for detailed solutions and confirm the suitable shipping way.

Q3: If the spare parts are out of work, is that easy for us buying them in local?
A3: Our main electrical parts adapt Siemens or Schneider brand; It's very easy to buy in the entire world. But if there is any difficult for our customers get the parts, we can delivery them by DHL.

Q4: Can your side send engineers here for installation?
A4: Yes, we can. If your side needs us to do installation, we could send our professional engineers to do the work. Or, if our engineers can work with our installation team, the installation will save a lot of time. Contact us for suitable install solution.
